1. Ifihan
Thank you for choosing the Beliani Howick Modern Shower Column. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower system. Please read this manual thoroughly before installation and keep it for future reference.
1.1 Abo Alaye
- Ensure all local plumbing and building codes are followed during installation.
- Turn off the main water supply before beginning any installation or maintenance.
- Use appropriate tools and wear safety glasses during installation.
- Do not overtighten connections, as this may damage the product.
- Ti o ko ba ni idaniloju nipa eyikeyi apakan ti fifi sori ẹrọ, kan si alagbawo plumber ti o peye.
2. Ọja Ipariview
The Beliani Howick Modern Shower Column is a sophisticated and functional addition to any bathroom, featuring a rain shower head, a hand shower, and a mixer faucet, all finished in elegant chrome.
Nọmba 2.1: Iwaju view of the Beliani Howick Modern Shower Column, showcasing the main rain shower head, adjustable hand shower, and integrated mixer faucet.

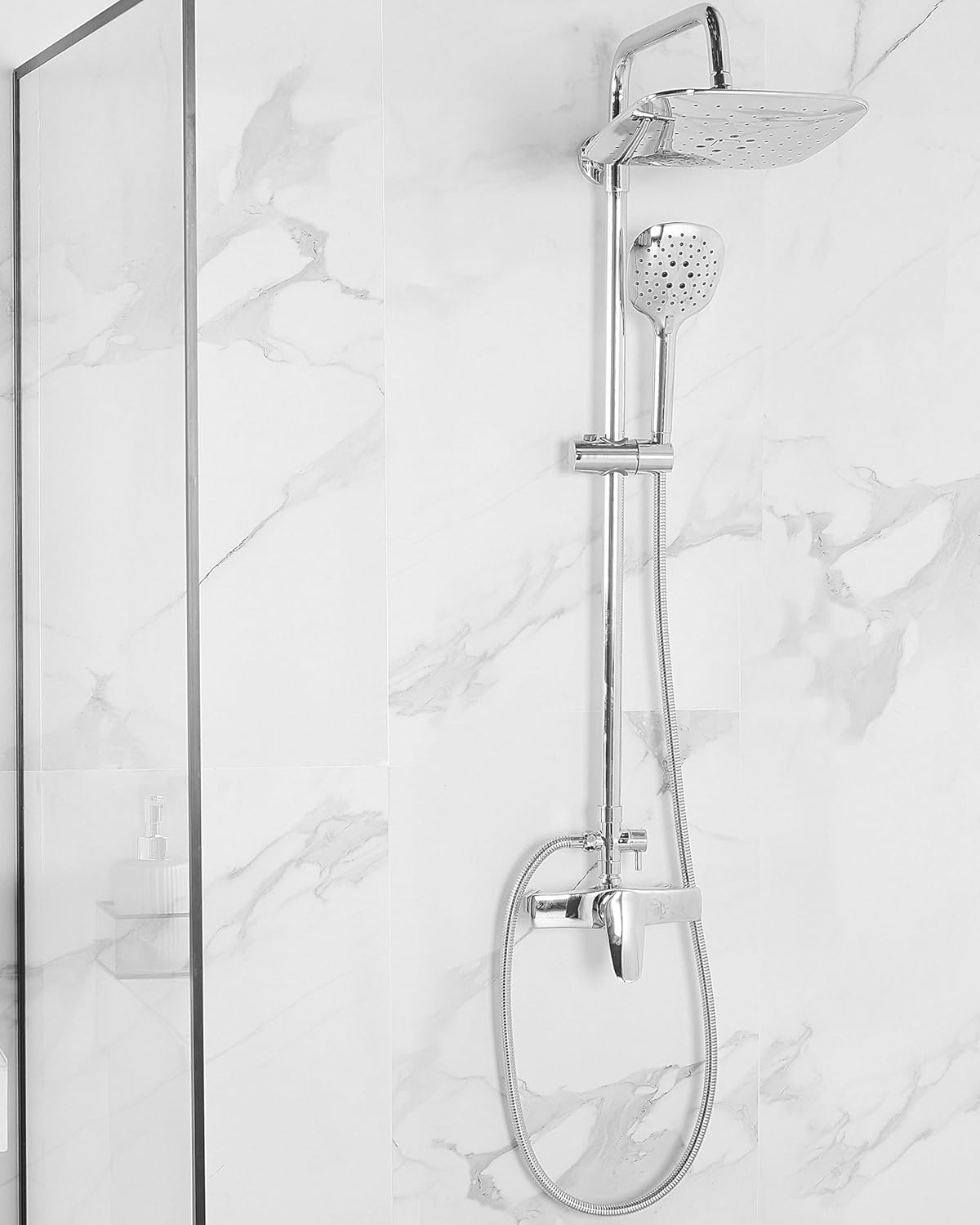

Nọmba 2.2: The shower column installed in a contemporary bathroom setting with white marble-patterned tiles, demonstrating its aesthetic integration.
2.1 irinše
- Rain Shower Head (Square)
- Adjustable Hand Shower with Hose
- Integrated Mixer Faucet
- Diverter Knob (to switch between shower head and hand shower)
- Iṣagbesori Hardware
3. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | 235002 |
| Brand | Beliani |
| Ohun elo | Brass, Chromed Finish |
| Awọn iwọn (Lapapọ) | Approximately 36 cm (W) x 20 cm (D) x 83-115 cm (H) |
| Iwọn | 4.15 kg |
| Nọmba ti Kapa | 3 (for hot, cold, and diverter) |
| ASIN | B08NXHLRB1 |
Nọmba 3.1: Detailed dimensional drawing of the shower column, including measurements for the main column height (83-115 cm), shower head width (36 cm), and hand shower length (24 cm).
4. Eto ati fifi sori
Professional installation is recommended for this product. Ensure you have all necessary tools and components before starting.
4.1 Awọn irinṣẹ ti a beere (Ko si)
- Wrench adijositabulu
- Screwdriver (Phillips ati Flathead)
- Lu pẹlu awọn ege liluho ti o yẹ
- Ipele
- Teepu Idiwọn
- Ikọwe
- Thread Seal Tape (Teflon Tape)
4.2 Pre-Fifi Igbesẹ
- Pa Ipese Omi: Locate the main water shut-off valve for your home and turn it off. Open a faucet to drain any remaining water from the pipes.
- Ṣayẹwo Awọn ohun elo: Unpack all components and check for any damage or missing parts. Refer to the parts list (if provided with the product packaging).
- Mura Odi: Ensure the wall surface where the shower column will be mounted is clean, dry, and structurally sound.
4.3 Ilana fifi sori ẹrọ
- Mount the Mixer Faucet: Attach the main mixer faucet unit to the existing hot and cold water outlets on your wall. Use thread seal tape on the pipe threads to ensure a watertight seal. Tighten connections securely with an adjustable wrench, but do not overtighten.
- Install the Main Column: Secure the main vertical column to the mixer faucet and the upper wall bracket. Use a level to ensure the column is perfectly vertical before marking and drilling holes for the upper bracket.
- So Orí Ìwẹ̀ Òjò pọ̀ mọ́: Connect the square rain shower head to the top arm of the column. Ensure the connection is tight and sealed.
- Connect Hand Shower: Attach the flexible hose to the hand shower outlet on the mixer and to the hand shower itself. Place the hand shower in its adjustable holder on the main column.
- Idanwo fun Leaks: Slowly turn on the main water supply. Check all connections for leaks. If leaks are present, turn off the water, tighten the connection, and re-test.
- Idanwo Iṣẹ ṣiṣe: Test the flow from both the rain shower head and the hand shower, and ensure the diverter knob functions correctly.
5. Awọn ilana Iṣiṣẹ
Using your Beliani Howick shower column is straightforward.
5.1 Omi Sisan ati otutu Iṣakoso
- Iṣakoso iwọn otutu: Use the left handle on the mixer faucet to adjust the water temperature. Turn towards pupa for hot water and towards buluu fun omi tutu.
- Iṣakoso Sisan: Use the right handle on the mixer faucet to control the water flow intensity.
5.2 Shower Outlet Selection (Diverter)
- The central knob on the mixer faucet acts as a diverter.
- Turn the knob to select between the main rain shower head and the hand shower.
- Ensure the water is flowing before switching the diverter to avoid sudden pressure changes.
Nọmba 5.1: Sun mo tipetipe view of the mixer faucet with its three handles (hot, cold, diverter) and the attached hand shower, illustrating the control points.
Nọmba 5.2: Underside view of the square rain shower head, showing the evenly distributed nozzles for a consistent water flow.
6. Itọju ati Itọju
Proper maintenance will ensure the longevity and optimal performance of your shower column.
6.1 Ninu
- Clean the chrome surfaces regularly with a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., ammonia, bleach) as they can damage the finish.
- For hard water spots, use a solution of white vinegar and water (1:1 ratio), apply with a soft cloth, let it sit for a few minutes, then rinse thoroughly and dry.
- Periodically clean the nozzles of the shower heads by gently rubbing them to dislodge any mineral buildup.
6.2 Itọju Gbogbogbo
- Check hose connections periodically for any signs of wear or leaks.
- Ensure the hand shower hose is not kinked or twisted during use or storage.
7. Laasigbotitusita
Abala yii n ṣalaye awọn ọran ti o wọpọ ti o le ba pade pẹlu ọwọn iwẹ rẹ.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Agbara Omi Kekere | Clogged shower head nozzles; partially closed shut-off valve; mineral buildup in pipes. | Clean shower head nozzles. Ensure all shut-off valves are fully open. Consider professional descaling if buildup is severe. |
| N jo ni Awọn isopọ | Loose connections; insufficient thread seal tape; damaged washers/gaskets. | Turn off water supply. Tighten connections. Reapply thread seal tape. Replace worn washers/gaskets. |
| Omi otutu sokesile | Awọn iṣoro pẹlu igbona omi; aipin omi titẹ. | Check water heater settings. Consult a plumber to balance water pressure. |
| Diverter Ko Yipada Dada | Mineral buildup inside diverter mechanism. | Attempt to flush by rapidly switching the diverter. If issue persists, professional service may be required. |
If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact Beliani customer support.
8. Atilẹyin ọja ati Support
Beliani stands behind the quality of its products.
8.1 atilẹyin ọja Alaye
For detailed warranty terms and conditions, please refer to the warranty card included with your product packaging or visit the official Beliani webojula. Jeki ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.
8.2 Onibara Support
If you require assistance with installation, troubleshooting, or have any questions regarding your Beliani Howick Modern Shower Column, please contact Beliani customer support:
- Webojula: www.beliani.pl (Please check your regional Beliani website for specific contact details)
- Imeeli: Tọkasi si webojula fun olubasọrọ imeeli.
- Foonu: Tọkasi si webojú-òpó wẹ́ẹ̀bù fún nọ́mbà fóònù olùbáṣepọ̀.
When contacting support, please have your model number (235002) and ASIN (B08NXHLRB1) ready.
