ONE Light 69002A/W LED Deck and Stair Lights User Manual

1. Ọja Ipariview

The ONE Light 69002A/W is a set of six integrated LED lights designed for outdoor deck and stair illumination. Each light features a robust 316 stainless steel construction, ensuring durability and resistance to outdoor elements. These lights are rated IP67, providing protection against dust and temporary immersion in water. They operate on 230V and are equipped with non-dimmable LED drivers.

• Ohun elo: 316 Irin alagbara
• Iwọn IP: IP67 (Dust tight and protected against temporary immersion in water)
• Awọn iwọn: 40 mm (Iga)
• Orisun Imọlẹ: Integrated LED (6 x 0.5W)
• Àìlera: Ko dimmable
• Satunṣe: Ko adijositabulu
• Ibamu: Conforms to EN60598-1 and other specific standards.

2. Awọn ilana aabo

Jọ̀wọ́ ka àwọn ìlànà ààbò wọ̀nyí dáadáa kí o tó fi sori ẹrọ àti lílò. Àìtẹ̀lé àwọn ìlànà wọ̀nyí lè fa ìkọlù iná mànàmáná, iná, tàbí àwọn ewu mìíràn.

• Aabo Itanna: Installation must be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure the main power supply is switched off before commencing any installation or maintenance work.
• Voltage: This product operates on 230V. Verify your power supply matches this requirement.
• Lilo ita gbangba: The lights are IP67 rated for outdoor use. Ensure all connections are properly sealed to maintain this rating.
• Ti kii ṣe Dimmable: Do not attempt to connect these lights to a dimmer switch. The integrated LED driver is not compatible with dimmers, and doing so may damage the product or create a fire hazard.
• Awọn LED Iṣọkan: LED lamps are integrated and cannot be changed in the luminaire. Do not attempt to replace them.
• Ooru: While LED lights produce less heat than traditional bulbs, ensure adequate ventilation around the fixtures.
• Bibajẹ: Do not use the product if any part is damaged. Contact customer support for assistance.

3. Package Awọn akoonu

Daju pe gbogbo awọn paati wa ati ti ko bajẹ ṣaaju tẹsiwaju pẹlu fifi sori ẹrọ.

• 6 x ONE Light 69002A/W LED Deck/Stair Lights
• 6 x Independent Plugs
• 6 x 1-meter Cables (attached to lights)
• Ilana Afowoyi (iwe yii)

4. Eto ati fifi sori

Installation should be carried out by a qualified professional. Ensure power is disconnected before installation.

1. Gbero Eto: Determine the desired locations for each of the six lights on your deck or stairs. Consider the cable length (1 meter per light) and the proximity to your main power supply.
2. Prepare Mounting Holes: Based on the dimensions of the lights, drill appropriate holes for flush mounting. Refer to the dimension diagram below for precise measurements.
3.

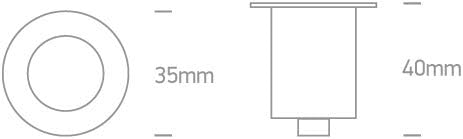

   Apejuwe aworan: This diagram illustrates the physical dimensions of a single ONE Light 69002A/W LED light. It shows a circular top view with a diameter of 35mm and a side profile view indicating a total height of 40mm. This information is crucial for preparing the correct size mounting holes.

4. Asopọmọra: Connect each light's 1-meter cable to the independent plug. Then, connect the plugs to your 230V main power supply circuit. Ensure all electrical connections are secure and waterproof, especially for outdoor applications, to maintain the IP67 rating.
5. Awọn imọlẹ to ni aabo: Insert each light into its prepared mounting hole and secure it according to the fixture's design. Ensure a snug fit to prevent water ingress.
6. Idanwo: Once all lights are installed and secured, restore power and test the functionality of each light.

5. Awọn ilana Iṣiṣẹ

The ONE Light 69002A/W LED lights are designed for simple operation.

• Titan/Apapa: Control the lights using the main power switch connected to the circuit.
• Ti kii ṣe Dimmable: These lights are not dimmable. They will operate at their full brightness when powered on.

6. Itọju

Regular maintenance ensures optimal performance and longevity of your LED lights.

• Ninu: Periodically clean the surface of the lights with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the stainless steel finish.
• Ayewo: Regularly inspect the cables and connections for any signs of wear, damage, or corrosion. Address any issues promptly to maintain safety and IP rating.
• Ko si Awọn apakan Iṣẹ Olumulo: The integrated LEDs cannot be replaced. If a light fails, the entire unit may need to be replaced.

7. Laasigbotitusita

If you encounter issues with your ONE Light 69002A/W LED lights, refer to the following common problems and solutions.

If troubleshooting steps do not resolve the issue, please contact ONE Light customer support.

8. Awọn pato

Apejuwe aworan: This image displays the energy efficiency label for the ONE Light 69002A/W luminaire. The label states, "This luminaire contains built-in LED lamps. Awọn lamps cannot be changed in the luminaire." It also includes a European energy rating scale, indicating the product's energy class for LED lights.

9. Atilẹyin ọja ati Support

Specific warranty information is not provided in the product details. For warranty claims, technical support, or further assistance, please contact your retailer or the manufacturer, ONE Light, directly.

Manufacturer: ONE Light
Model: 69002A/W
