1. Ifihan
This manual provides detailed instructions for the safe and effective use of your Godox Ving V860IIIS Speedlight. Designed for Sony cameras, this high-performance flash unit features a powerful 76Ws output, 2.4G wireless X system, High-Speed Sync (HSS), and a quick-release lock for secure mounting. Please read this manual thoroughly before operation to ensure optimal performance and to prevent damage to the product or injury to yourself.

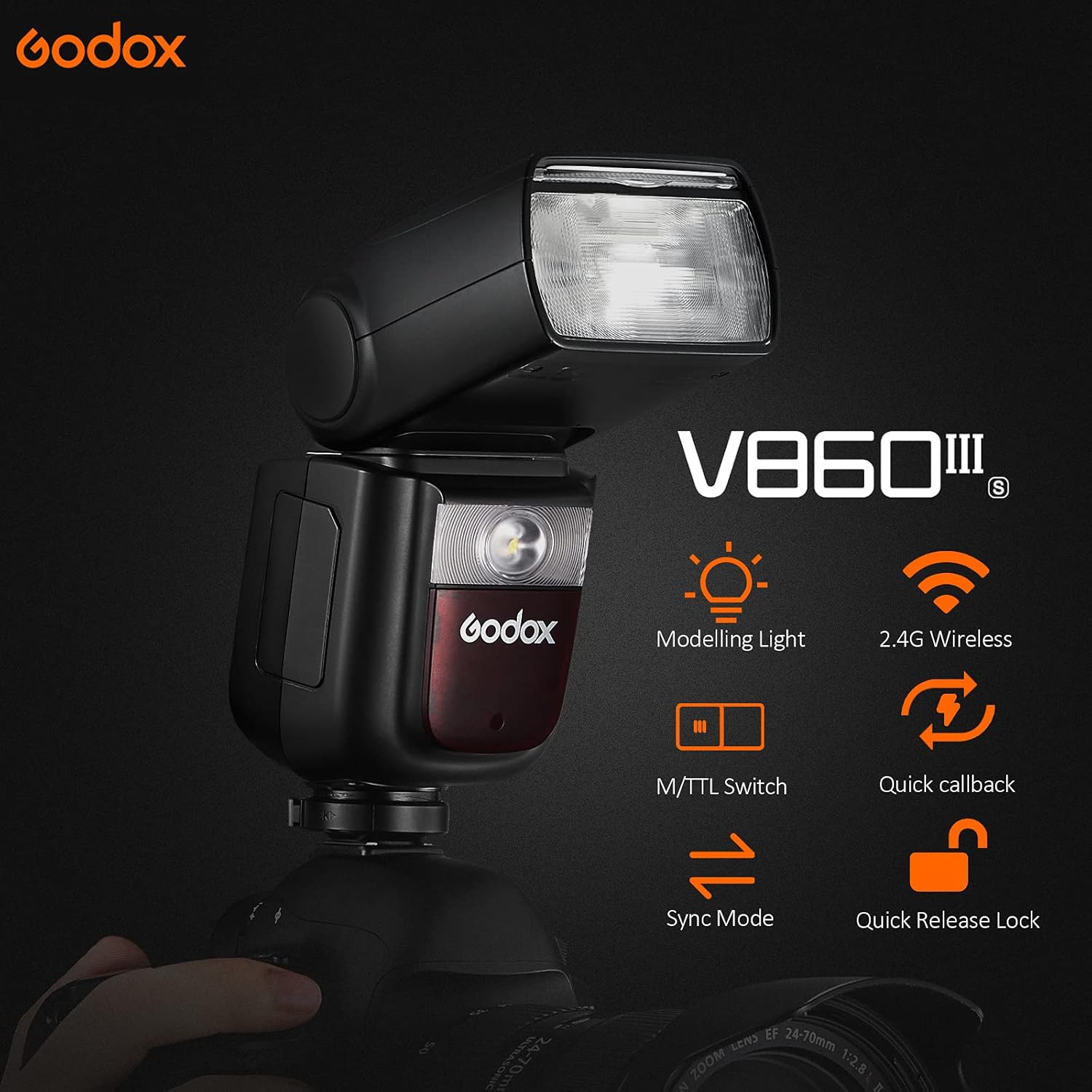

Image: The Godox Ving V860IIIS Speedlight, showcasing its design and highlighting features such as the modeling light, 2.4G wireless capability, M/TTL switch, quick callback, sync mode, and quick release lock.
2. Awọn iṣọra aabo
To prevent electric shock, fire, or damage to the product, always observe the following safety precautions:
- Do not disassemble or modify the flash unit. High voltage components are present.
- Keep the unit dry. Do not expose to rain or moisture.
- Do not touch the flash tube after firing, as it can be hot.
- Yẹra fún fífi ojú hàn sí ìmọ́lẹ̀ tààrà, pàápàá jùlọ ní ibi tí ó súnmọ́, nítorí pé ó lè ba ojú jẹ́.
- Jeki kuro ni arọwọto awọn ọmọde.
- Lo batiri ati ṣaja ti a sọ tẹlẹ nikan.
3. Ohun ti o wa ninu Apoti
Daju pe gbogbo awọn ohun kan wa ninu package rẹ:
- 1x Godox V860IIIS Flash Unit
- Batiri Litiumu 1x (7.2V/2600mAh)
- 1x Protection Case
- 1x Ilana itọnisọna
- 1x USB Battery Charger
- Ṣaja 1x
- 1x okun USB
- Iduro kekere 1x
- 1x Pergear Color filters (set)
- 1x Pergear Diffusers (set)
Aworan: Ohun oke view of the Godox V860IIIS Speedlight and its included accessories, such as the battery, charger, USB cable, mini stand, protection case, and various diffusers and color filters.
4. Ọja Ipariview
4.1 Key Awọn ẹya ara ẹrọ
- Ètò X Alailowaya Godox 2.4G tí a ṣe sínú rẹ̀: Offers all-in-one functions for wireless control and triggering.
- Modeling Light: Integrated LED modeling light with 10 adjustable brightness levels for pre-visualization.
- Quick Button for Manual and TTL Switch: Easily switch between TTL (Through-The-Lens) and Manual flash modes.
- High-Performance Li-ion Battery: 7.2V/2600mAh battery provides 0.01-1.5s recycle time and approximately 480 full power flashes.
- Àwọn Ìgbésẹ̀ Flash Onírúurú: Supports TTL, Manual, and Multi flash modes, including HSS (up to 1/8000s), FEC, FEB, and rear curtain sync.
- Master & Slave Functionality: Can operate as a master or slave unit within the Godox 2.4G wireless X system.
4.2 Modeling Light
The V860IIIS features an integrated modeling light at the front of the flash head. This light aids in pre-visualization of lighting effects and helps blend with ambient light. The brightness is dimmable in 10 levels.

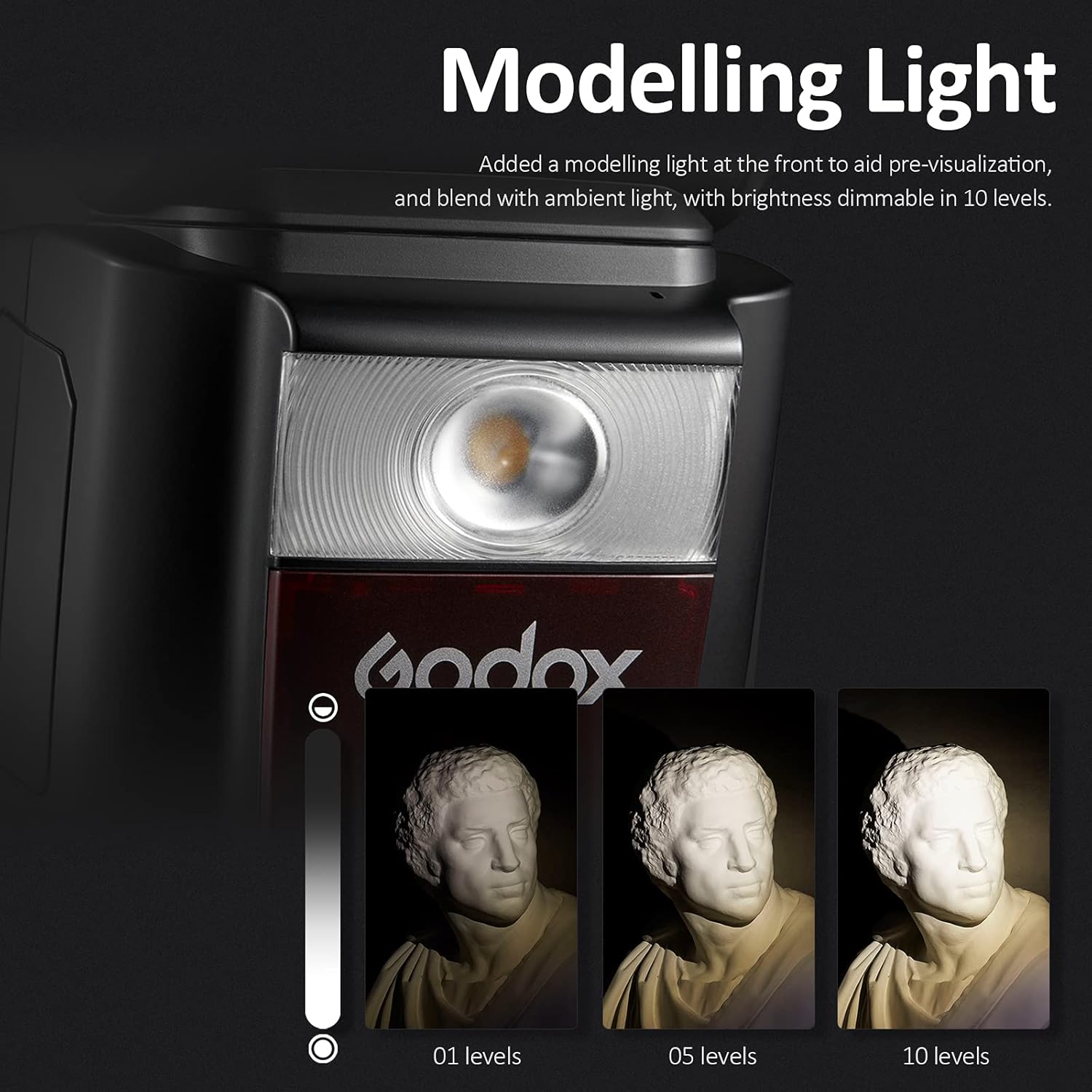

Image: A close-up of the Godox V860IIIS Speedlight's modeling light, demonstrating its adjustable brightness from level 01 to 10 on a subject.
4.3 TTL and Manual Mode Switch
A dedicated quick button on the side of the flash allows for rapid switching between TTL (automatic) and Manual (fixed power) flash modes.

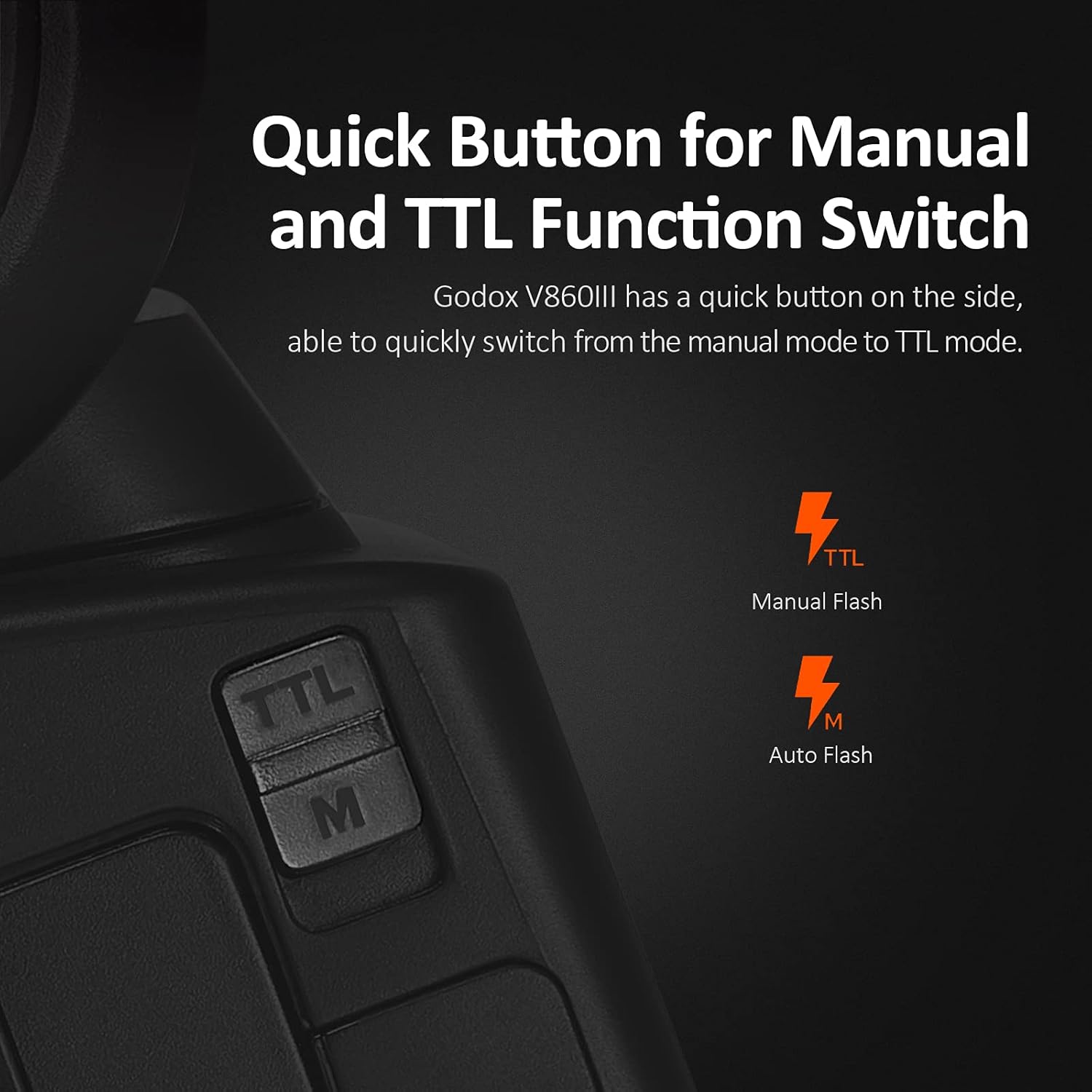

Image: A close-up of the side of the Godox V860IIIS Speedlight, showing the 'TTL' and 'M' buttons for quick switching between automatic and manual flash modes.
4.4 batiri Performance
The V860IIIS is powered by a 7.2V/2600mAh Li-ion battery, offering a fast recycle time of 0.01-1.5 seconds and up to 480 full power flashes. This battery is interchangeable with the Godox V1 battery.
Image: The Godox V860IIIS Speedlight's display showing flash settings, with an emphasis on the battery and its performance metrics: 1.5s fast recycling time and 480 flashes at full power.
5. Eto
5.1 Ngba agbara si Batiri naa
- Insert the lithium battery into the USB battery charger.
- Connect the charger to a power source using the provided USB cable and charger adapter.
- The indicator light on the charger will show charging status. Charge until fully indicated.
5.2 Sopọ si Kamẹra
- Rí i dájú pé ẹ̀rọ fáìlì náà ti pa.
- Slide the flash's hot shoe into your Sony camera's hot shoe mount.
- Engage the quick-release lock to secure the flash firmly to the camera.
6. Awọn ilana Iṣiṣẹ
6.1 Agbara Tan / Pa
Press the power button to turn the flash unit on or off. The LCD screen will illuminate upon power-on.
6.2 Aṣayan ipo
Use the 'MODE' button or the dedicated TTL/M switch to cycle through flash modes:
- TTL (Lẹ́ńsì-Lẹ́ńsì): Automatic flash exposure based on camera metering.
- M (Afowoyi): Manually set flash power output (e.g., 1/1 to 1/256).
- Ọ̀pọ̀lọpọ̀ (Stroboscopic): Fires a series of rapid flashes during a single exposure for motion effects.
6.3 Wireless X System (Master/Slave)
The V860IIIS can function as a master or slave unit within the Godox 2.4G Wireless X System. This allows for off-camera flash control.
- As a Slave Unit: The V860IIIS can be triggered by other Godox 2.4G master units (e.g., XProS, X2T-S) or compatible Sony camera flashes (e.g., HVL-F60M, HVL-F43M, HVL-F32M).
- As a Master Unit: The V860IIIS can control other Godox 2.4G slave units or compatible Sony camera flashes.
Image: A diagram illustrating the Godox V860IIIS Speedlight's capability to function as both a master and slave unit, showing its interaction with other Sony flashes and Godox triggers.
6.4 Advanced Flash Functions
- HSS (High-Speed Sync): Allows flash synchronization at shutter speeds faster than the camera's native sync speed (up to 1/8000s).
- FEC (Ẹsan Iṣafihan Filaṣi): Adjusts the flash output to fine-tune exposure.
- FEB (Flash Exposure Bracketing): Takes three photos with different flash exposures.
- Imuṣiṣẹpọ Aṣọ Tẹhin: Ó tan ìmọ́lẹ̀ náà kí aṣọ ìkélé kejì tó ti pa, èyí tó ń ṣẹ̀dá ìṣípopadà lẹ́yìn ohun tó wà nínú àwòrán náà.
Àwòrán: Mẹ́ta àtijọ́ample photographs demonstrating the creative possibilities with the V860IIIS, including capturing water splashes, dynamic motion, and multi-exposure effects.
7. Itọju
7.1 Ninu
Lo asọ asọ ti o gbẹ lati nu ẹyọ filaṣi naa. Fun idoti alagidi, die-die damp cloth can be used, followed by a dry cloth. Do not use solvents or abrasive cleaners.
7.2 batiri Itọju
- Tọju batiri naa ni itura, aye gbigbẹ nigbati ko si ni lilo.
- Ma ṣe fi batiri han si awọn iwọn otutu to gaju.
- Tí o bá ń tọ́jú rẹ̀ fún ìgbà pípẹ́, gba agbára bátìrì náà sí ìwọ̀n agbára tó tó 50%.
8. Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Filaṣi ko ina. | Low battery; Incorrect mode; Flash not securely mounted. | Charge battery; Select appropriate flash mode (TTL/M); Re-mount flash securely. |
| Ifihan filasi ko tọ. | Incorrect FEC setting; Ambient light issues; Distance to subject. | Adjust FEC; Check camera settings; Move closer or further from subject. |
| Ohun tí ń fa ìṣòro aláìlókùn kò ṣiṣẹ́. | Incorrect channel/ID; Distance too far; Obstructions. | Ensure master and slave units are on the same channel/ID; Reduce distance; Clear line of sight. |
9. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Awoṣe | Godox V860III-S |
| Awọn iṣagbesori ibaramu | Sony |
| Iyara amuṣiṣẹpọ Flash | 1/8000s (HSS) |
| Batiri | 7.2V/2600mAh Litiumu Ion (tí ó wà pẹ̀lú rẹ̀) |
| Tunlo Aago | 0.01-1.5 aaya |
| Awọn filasi Agbara ni kikun | Isunmọ. 480 |
| Imọlẹ awoṣe | 10 Levels LED |
| Alailowaya System | Built-in Godox 2.4G Wireless X System |
| Iwọn Nkan | 2.2 iwon |
| Package Mefa | 10.43 x 8.62 x 4.21 inches |
10. Atilẹyin ọja & Atilẹyin
10.1 atilẹyin ọja Alaye
Godox products typically come with a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official Godox webAaye fun awọn ofin ati ipo atilẹyin ọja kan pato ti o kan agbegbe rẹ. Pa iwe-ẹri rira rẹ mọ gẹgẹbi ẹri rira fun awọn ẹtọ atilẹyin ọja.
10.2 Onibara Support
For technical assistance, troubleshooting, or service inquiries, please contact Godox customer support through their official website or the contact information provided in your product packaging. When contacting support, please have your product model number (V860III-S) and purchase details ready.
