Outsunny 10' x 12' Hardtop Gazebo Canopy (Model 84C-215V01) Instruction Manual

1. Ọja Ipariview

This manual provides instructions for the assembly, operation, and maintenance of your Outsunny 10' x 12' Hardtop Gazebo Canopy, Model 84C-215V01. This outdoor pavilion is designed to provide a shaded and protected area for your patio, garden, backyard, deck, or lawn.

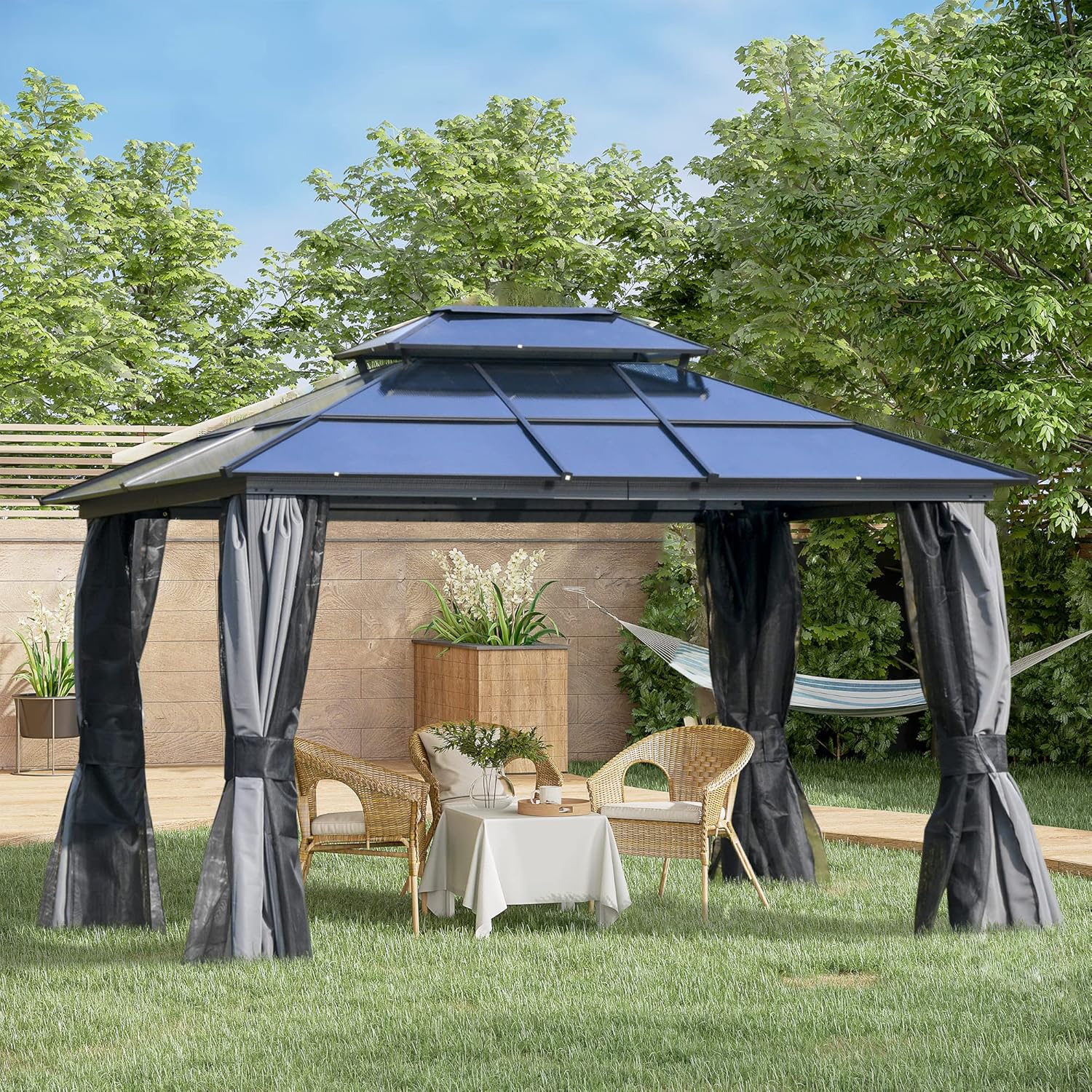

Figure 1: Outsunny 10' x 12' Hardtop Gazebo Canopy installed in a backyard.

Awọn ẹya pataki:

• Orule Polycarbonate: Tinted polycarbonate roof panels offer UV protection and shelter from light rain.
• Férémù Aluminiomu: Constructed with a non-rusting aluminum frame for durability and lightweight handling.
• Integrated Netting and Curtains: Includes breathable mesh netting to deter insects and polyester privacy curtains for wind protection and privacy.
• Ceiling Hooks: Two integrated ceiling hooks for hanging lights or decorations.
• Fifi sori ni aabo: Designed for stability with ground stakes for soft ground and anchor bolts for hard surfaces.

Figure 2: Translucent polycarbonate roof providing shade and UV protection.

Figure 3: Rust-resistant aluminum frame for durability.

2. Alaye Aabo

Please read and understand all safety warnings and instructions before assembly and use of this product. Failure to follow these instructions may result in injury or damage to the product.

• Apejọ: This product requires assembly by at least two adults. Ensure all parts are present and undamaged before beginning.
• Iduroṣinṣin: Always secure the gazebo to the ground using the provided ground stakes or anchor bolts. Do not use in high winds without proper anchoring.
• Awọn ipo oju ojo: Avoid extreme weather conditions such as heavy snow, floods, or strong winds. Do not allow snow to accumulate on the roof. Accumulation of snow can cause structural damage.
• Iyọkuro: Ensure adequate clearance around the gazebo from heat sources, open flames, and electrical wiring.
• Awọn ọmọde ati awọn ohun ọsin: Pa awọn ọmọde ati awọn ohun ọsin kuro ni agbegbe apejọ.

3. Eto ati Apejọ

Assembly of the Outsunny Hardtop Gazebo requires careful attention to detail and is best performed by two or more individuals. While specific step-by-step diagrams are typically included with the product packaging, this section provides general guidance and visual aids for key components.

Awọn imọran Apejọ Gbogbogbo:

• Fi gbogbo awọn eroja ati ohun elo silẹ ṣaaju ki o to bẹrẹ.
• Refer to the included instruction diagrams for specific part identification and sequence.
• Ma ṣe di gbogbo awọn boluti ni kikun titi gbogbo fireemu yoo fi pejọ ati ti o ni onigun mẹrin.
• Use ladders for safe access to higher sections during roof installation.

Key Assembly Components:

Figure 4: Details of the double-sided zipper for access, hook & loop strap for curtains, feet with holes for reinforcement, and hanging loop design for netting.

Figure 5: Features including a central hook for lighting, a double ventilated roof for airflow, and feet with holes for ground stakes or expansion screws.

Assembly Video Reference:

4. Awọn ilana Iṣiṣẹ

The Outsunny Hardtop Gazebo is designed for versatile use in your outdoor space.

Curtains and Netting Usage:

• Nẹti Apapo: The four zipper mesh netting sidewalls can be used to create an enclosed space, protecting against insects while allowing airflow.
• Awọn aṣọ-ikele asiri: The four zipper polyester curtains provide privacy and additional protection from wind or sun. They can be tied back to the posts using the hook & loop straps when not in use.
• Iṣeto Rọ: The gazebo can be used with curtains closed, netting closed, or completely open for an open-air feel.

Figure 6: Mesh netting in use, providing protection without obstructing the view.

Figure 7: Curtains drawn to provide privacy and block sun/wind.

Figure 8: Three-way usage options for the gazebo: fully enclosed, mesh sidewalls, or open-air.

Ceiling Hooks:

Utilize the two ceiling hooks located at the center of the gazebo to hang lightweight decorative items such as string lights, lanterns, or small flower baskets.

Figure 9: Top center hook for hanging accessories.

5. Itọju

Itọju deedee yoo fa igbesi aye ati irisi gazebo rẹ gun.

• Ninu: Clean the polycarbonate roof panels, aluminum frame, and fabric components with mild soap and water. Rinse thoroughly and allow to air dry. Avoid abrasive cleaners or harsh chemicals.
• Yiyọ yinyin kuro: It is critical to remove any snow accumulation from the roof immediately. Heavy snow can cause the roof to collapse, leading to severe damage or injury.
• Idaabobo oju ojo: In anticipation of severe weather (heavy winds, snowstorms, etc.), it is recommended to remove the curtains and netting and, if possible, disassemble the gazebo or secure it further.
• Ṣayẹwo Fastener: Periodically check all bolts and fasteners to ensure they are tight. Re-tighten as necessary.
• Itọju Aṣọ: The polyester cloth and breathable mesh are designed for outdoor use and are anti-fading. However, prolonged exposure to harsh sunlight may still cause some fading over many years.

Figure 10: Materials used: 180G/M² Polyester Cloth (anti-fading), Polycarbonate Board (anti-fading), and 290G/M² Breathable Mesh.

6. Laasigbotitusita

Apá yìí ń sọ̀rọ̀ nípa àwọn ọ̀ràn tó wọ́pọ̀ tó lè dìde nígbà tí a bá ń kó jọ tàbí lílò.

• Iṣoro lakoko Apejọ:
  • Ensure all parts are correctly oriented according to the diagrams before tightening bolts.
  • Do not overtighten fasteners until the entire section is aligned.
  • Verify that you are using the correct hardware for each step.
  • If parts do not align, slightly loosen adjacent connections to allow for adjustment.
• Sonu tabi Awọn apakan ti bajẹ:
  • Carefully check all packaging for small components.
  • Contact customer support with your model number and a description of the missing/damaged part.
• Aiduro Gazebo:
  • Ensure all frame connections are securely tightened.
  • Verify that the gazebo is properly anchored to the ground using stakes or anchor bolts.
  • Confirm the installation surface is level.

7. Awọn pato

Figure 11: Overall dimensions of the Outsunny 10' x 12' Hardtop Gazebo.

8. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation included with your purchase or contact Outsunny customer support directly. If you have any questions regarding assembly, missing parts, or product functionality, please reach out to the manufacturer or seller for assistance.

Olupese: Aosom LLC

Fun iranlọwọ siwaju sii, ṣabẹwo si Outsunny itaja lori Amazon.
