Scheppach NTS20 Wet and Dry Electric Vacuum Cleaner Instruction Manual

1. Awọn ilana aabo

Please read and understand all safety instructions before operating the Scheppach NTS20 wet and dry electric vacuum cleaner. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Aabo Itanna: Nigbagbogbo rii daju pe ipese agbara ibaamu voltage specified on the rating label. Do not operate the vacuum cleaner with a damaged cord or plug. Keep the power cord away from heat, oil, sharp edges, or moving parts.
• Igbale tutu: When wet vacuuming, ensure the foam filter is correctly installed and the paper filter bag is removed. Do not vacuum flammable or explosive liquids.
• Igbale gbigbe: When dry vacuuming, ensure the paper filter bag is correctly installed. Do not vacuum hot ashes, glowing embers, or sharp objects that could damage the filter bag.
• Lilo gbogbogbo: Ohun elo yii kii ṣe ipinnu fun lilo nipasẹ awọn eniyan (pẹlu awọn ọmọde) pẹlu idinku ti ara, imọlara, tabi awọn agbara ọpọlọ, tabi aini iriri ati imọ, ayafi ti wọn ba ti fun wọn ni abojuto tabi itọnisọna nipa lilo ohun elo nipasẹ eniyan ti o ni iduro fun aabo wọn. . Awọn ọmọde yẹ ki o wa ni abojuto lati rii daju pe wọn ko ṣere pẹlu ohun elo naa.
• Itọju: Disconnect the plug from the power socket before carrying out any cleaning or maintenance work.

2. Ọja Ipariview ati irinše

The Scheppach NTS20 is a versatile wet and dry electric vacuum cleaner designed for various cleaning tasks. It features a robust stainless steel container and a powerful 1200W motor.

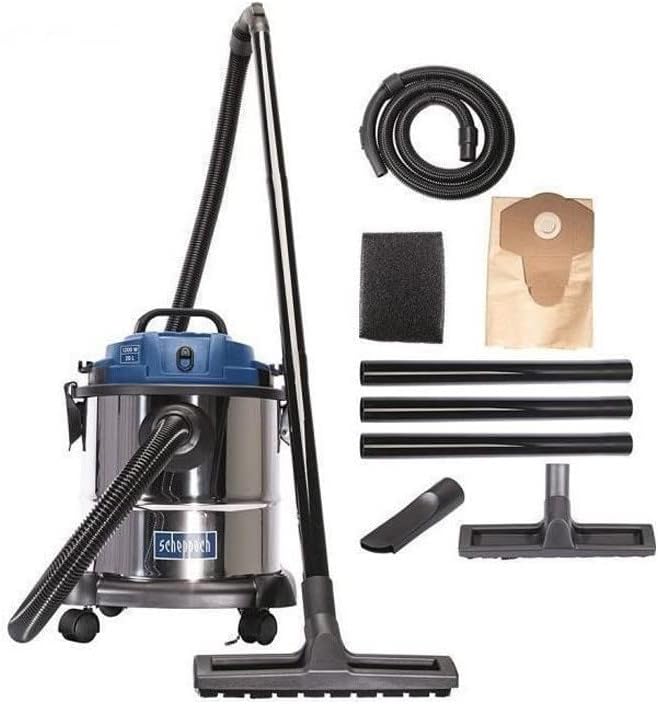

Nọmba 2.1: Scheppach NTS20 Wet and Dry Vacuum Cleaner and its included accessories. This image displays the main unit, flexible hose, extension tubes, floor nozzle, crevice nozzle, foam filter, and paper filter bag.

Awọn eroja pataki:

• Olori mọto: Contains the motor, switch, and power cord connection.
• Stainless Steel Container: 20-liter capacity for collecting dust and liquids.
• Okun Rọ: For connecting various nozzles and attachments.
• Awọn Tube Ifaagun: For extended reach during cleaning.
• Ikun Ilẹ: For general dry and wet cleaning of floors.
• Noise Crevice: For cleaning narrow spaces and corners.
• Ajọ Fọọmu: Essential for wet vacuuming.
• Apo Ajọ iwe: Essential for dry vacuuming.
• Awọn kẹkẹ: For easy maneuverability.

3. Eto ati Apejọ

Before first use, assemble the vacuum cleaner according to the following steps:

1. So Awọn kẹkẹ: Turn the container upside down. Insert the wheels into the designated slots on the base until they click into place.
2. Install Filter (Dry Vacuuming): For dry vacuuming, place the paper filter bag over the inlet inside the container and secure it. Ensure the foam filter is removed.
3. Install Filter (Wet Vacuuming): For wet vacuuming, remove the paper filter bag. Place the foam filter over the motor head's filter cage. Ensure it is seated correctly to prevent water from entering the motor.
4. Attach Motor Head: Place the motor head onto the container and secure it with the quick-release clamps ni ẹgbẹ mejeeji.
5. Sopọ okun: Insert the flexible hose into the suction port on the front of the container. For the blowing function, insert the hose into the exhaust port on the motor head.
6. So Awọn ẹya ara ẹrọ: Connect the desired extension tubes and nozzle (floor nozzle or crevice nozzle) to the end of the flexible hose.

4. Awọn ilana Iṣiṣẹ

The Scheppach NTS20 offers three primary functions: wet vacuuming, dry vacuuming, and blowing.

Nọmba 4.1: Visual representation of the three main functions: wet vacuuming (Nasssaugen), dry vacuuming (Saugen), and blowing (Ausblasen).

4.1 Gbẹ Vacuuming

• Ensure the paper filter bag is installed and the foam filter is removed.
• Connect the hose and desired nozzle.
• Pulọọgi okun agbara sinu iṣan itanna to dara.
• Turn the vacuum cleaner ON using the switch on the motor head.
• Vacuum dry debris such as dust, dirt, wood shavings, and sawdust.

Nọmba 4.2: Examples of materials that can be cleaned: wood shavings (Hobelspäne), sawdust (Sägespäne), fine dust (Feinstaub), and liquids (Flüssigkeiten).

4.2 Igbale tutu

• Remove the paper filter bag and install the foam filter.
• Connect the hose and desired nozzle.
• Pulọọgi okun agbara sinu iṣan itanna to dara.
• Tan igbale regede ON.
• Vacuum liquids. The vacuum cleaner has a float valve that will automatically stop suction when the container is full to prevent overflow. Turn off the vacuum and empty the container immediately when this occurs.

4.3 fifun Išė

• Disconnect the flexible hose from the suction port.
• Insert the flexible hose into the exhaust port located on the motor head.
• Turn the vacuum cleaner ON. The air will now blow out from the hose, useful for clearing debris from hard-to-reach areas or drying surfaces.

Nọmba 4.3: The flexible 2-meter hose connected to the vacuum cleaner, demonstrating its maneuverability.

Nọmba 4.4: Included crevice nozzle and large combi nozzle for carpets and smooth floors.

5. Itọju

Regular maintenance ensures optimal performance and extends the life of your Scheppach NTS20 vacuum cleaner. Always disconnect the power plug before performing any maintenance.

5.1 Ṣofo Apoti naa

• Tu silẹ ni kiakia clamps on the motor head.
• Lift the motor head off the container.
• Carefully empty the contents of the container into a suitable waste receptacle.
• Fi ìpolówó nu inu apoti naaamp asọ ti o ba wulo.
• Reattach the motor head and secure the clamps.

Nọmba 5.1: Itusilẹ ni kiakia clamps for fast and convenient emptying of the container.

5.2 Filter Cleaning ati Rirọpo

• Foam Filter (Wet Vacuuming): After wet vacuuming, remove the foam filter and rinse it thoroughly with water. Allow it to air dry completely before reinstallation or storage.
• Paper Filter Bag (Dry Vacuuming): Replace the paper filter bag when it is full or when suction power decreases significantly. Do not attempt to clean and reuse paper filter bags.

5.3 Cleaning Awọn ẹya ẹrọ

• Clean the hose, extension tubes, and nozzles with water and mild detergent. Ensure they are dry before storage.

5.4 Ibi ipamọ

• Store the vacuum cleaner and its accessories in a dry, frost-free place, out of reach of children.
• Utilize the integrated cable and accessory holders for tidy storage.

Nọmba 5.2: Integrated cable and accessory holders for convenient storage directly on the machine.

6. Laasigbotitusita

Tọkasi tabili ni isalẹ fun awọn ọran ti o wọpọ ati awọn ojutu wọn.

7. Imọ ni pato

Detailed specifications for the Scheppach NTS20 Wet and Dry Electric Vacuum Cleaner.

Nọmba 7.1: Key dimensions and capacities: 20 L container volume, 0.40 m² filter area, 4 m connection cable, and 2 m hose.

Nọmba 7.2: Illustration of the compact design and the suction power of 20 kPa.

8. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation provided with your purchase or contact Scheppach customer service directly. Keep your proof of purchase for any warranty claims.

Atilẹyin Onibara:

If you encounter any issues not covered in this manual or require further assistance, please contact Scheppach customer support. Contact details can typically be found on the manufacturer's official webaaye tabi lori apoti ọja rẹ.
