1. Ifihan
Thank you for choosing the tectake 5-Panel Metal Safety Barrier. This versatile barrier is designed to provide a safe environment for children and pets by restricting access to hazardous areas such as fireplaces, stairs, or specific rooms. Its modular design allows for various configurations to suit your home's layout. Please read this manual carefully before assembly and use to ensure proper installation and safe operation.
Image 1.1: The tectake 5-panel safety barrier protecting a child from a fireplace.
2. Awọn ilana aabo
- Always ensure the barrier is securely installed and all locking mechanisms are engaged before leaving children or pets unattended.
- This safety barrier is intended for domestic use only.
- Do not use this barrier as a substitute for adult supervision.
- Regularly check all parts for wear, damage, or loose connections. Discontinue use if any part is damaged.
- Ensure the barrier is installed at a safe distance from heat sources, such as fireplaces, to prevent burns.
- Do not allow children to climb on or play with the barrier.
- The wall mounting hardware must be used for maximum stability and safety, especially when used with children.
- This product is designed for children up to 24 months of age.
3. Package Awọn akoonu
Jọwọ ṣayẹwo pe gbogbo awọn eroja wa ṣaaju ki o to bẹrẹ ikojọpọ:
- 5 x Metal Barrier Panels (including 1 gate panel)
- Wall Mounting Hardware (screws and wall brackets)
- Awọn ilana Apejọ (Itọnisọna yii)
Aworan 3.1: Pariview of the 5-panel safety barrier components.
4. Apejọ Awọn ilana
Follow these steps to assemble your tectake safety barrier:
- Connect the Panels: Each panel features a connecting mechanism. Align the male connector of one panel with the female connector of another. Slide the panels together until they click securely into place. Ensure the 'OPEN' indicator on the hinge is not visible when connected, indicating a locked position.
- Form the Desired Shape: Arrange the 5 panels into your desired configuration (e.g., hexagonal playpen, straight barrier, or U-shape around a fireplace). The hinges allow for a wide angular range, offering flexibility.
- Wall Mounting (Recommended): For maximum stability and safety, especially when used as a barrier around a fireplace or at the top/bottom of stairs, secure the barrier to a wall using the provided wall mounting hardware.
- Position the barrier in its final location.
- Mark the drilling points for the wall brackets on the wall.
- Drill holes and insert appropriate wall plugs (if necessary for your wall type).
- Attach the wall brackets to the wall using the screws.
- Secure the end panels of the barrier to the wall brackets. The brackets allow for 360-degree rotation for flexible positioning.
Image 4.1: Panel connection mechanism. Slide panels together until secure.
Aworan 4.2: Example of a U-shaped configuration for the barrier.
Image 4.3: Wall mounting bracket and hardware for secure installation.
5. Operating the Safety Gate
The barrier includes one gate panel for easy access. The gate features a multi-level safety lock mechanism to prevent accidental opening by children.
- Láti Ṣí Ẹnubodè: Simultaneously press the button and lift the gate handle to disengage the locking mechanism.
- Láti ti ẹnu-ọ̀nà: Push the gate firmly until it clicks into the closed and locked position. Always ensure the gate is securely latched.
Image 5.1: Detail of the gate's safety lock mechanism.
6. Iṣeto ni Aw
The modular design allows for various configurations:
- Fireplace Guard: Arrange the panels in a U-shape around your fireplace, securing the ends to the wall.
- Baby Gate/Pet Fence: Use as a straight barrier across doorways or hallways, securing to walls on both sides.
- Ṣiṣẹda: Connect all panels to form an enclosed area, creating a safe play space for children or pets.
Additional sets can be combined to extend the length or create larger enclosures.
7. Itọju
- Ninu: Wipe the barrier with a damp cloth and mild soap. Do not use abrasive cleaners or harsh chemicals.
- Ayewo: Periodically check all connections, hinges, and wall mounts to ensure they are tight and secure.
- Ibi ipamọ: When not in use, the barrier can be folded for space-saving storage.
8. Laasigbotitusita
- Barrier feels unstable: Ensure all panel connections are fully engaged and the wall mounting hardware is securely installed. Check that screws are tightened.
- Ẹnubodè náà ṣòro láti ṣí/tí pa: Verify that no debris is obstructing the latch mechanism. Apply a small amount of silicone spray to the moving parts if necessary.
- Panels do not connect smoothly: Ensure the connectors are correctly aligned. Do not force the connection; gently adjust the angle of the panels.
9. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Total Dimensions (L x D x H) | Approx. 2893 x 30 x 715 mm (2.9l x 0.72H meters) |
| Narrow Panel Dimensions (L x D x H) | Isunmọ. 322 x 30 x 706 mm |
| Wide Panel Dimensions (L x D x H) | Isunmọ. 712 x 30 x 706 mm |
| Gate Panel Dimensions (L x D x H) | Isunmọ. 712 x 30 x 715 mm |
| Gate Passage Width | Isunmọ. 545 mm |
| Bar Dimensions (L x D x H) | Isunmọ. 10 x 10 x 675 mm |
| Distance Between Bars | Isunmọ. 55 mm |
| Iwọn | Isunmọ. 12.2 kg |
| Ohun elo | Powder-coated steel, Polyamide |
| Àwọ̀ | Dudu |
| Iṣagbesori Iru | Ògiri Ògiri |
| Niyanju ori Range | Omo |

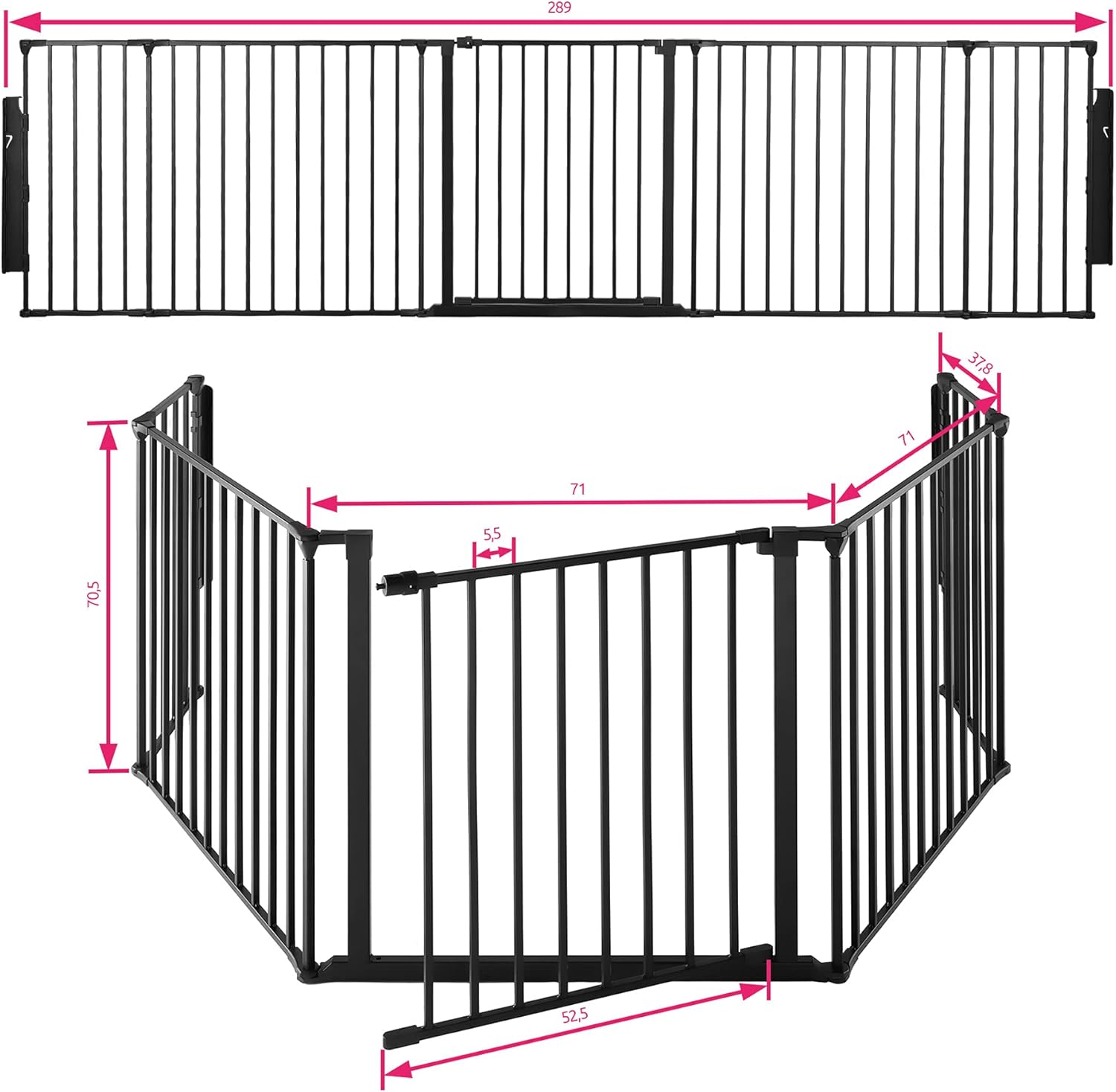

Image 9.1: Dimensional drawing of the tectake 5-panel safety barrier.
10. atilẹyin ọja Information
Specific warranty details for this product are not provided in the available information. Please refer to your purchase documentation or contact tectake customer support for warranty terms and conditions.
11. Onibara Support
For further assistance, technical support, or to inquire about replacement parts, please contact tectake customer service through their official website or the retailer where the product was purchased. Please have your model number (403569) ready when contacting support.
