BRPOM BM500-ES Car Jump Starter User Manual

Ọrọ Iṣaaju

Thank you for choosing the BRPOM BM500-ES Car Jump Starter. This device is a portable, high-capacity power bank designed to jump start vehicles with 12V batteries, and also functions as a power source for electronic devices, an emergency flashlight, and includes additional safety features. Please read this manual thoroughly before use to ensure proper operation and safety.

Awọn Itọsọna Aabo

Always observe the following safety precautions when using the BRPOM BM500-ES Car Jump Starter:

• Maṣe ṣe gba awọn pupa ati dudu clamps to touch each other, as this may cause sparks, short circuits, or damage.
• Maṣe ṣe jump start a vehicle if the battery voltage wa ni isalẹ 10V.
• Maṣe ṣe attempt to jump start a vehicle if the jump starter's battery level is below 20%.
• Maṣe ṣe use the jump starter to charge vehicle batteries. It is designed for jump starting only.
• Maṣe ṣe expose the product to extreme temperatures (above 60°C or below -20°C), direct sunlight, or moisture.
• Maṣe ṣe disassemble, modify, or attempt to repair the unit yourself. Contact customer support for assistance.
• Jeki kuro ni arọwọto awọn ọmọde.
• Rii daju pe fentilesonu to dara nigba lilo.
• Remove the jump starter from the vehicle battery within 30 seconds after the vehicle starts.

Package Awọn akoonu

Daju pe gbogbo awọn nkan wa ninu apo rẹ:

• BRPOM BM500-ES Car Jump Starter Unit
• Smart Jump Cables with Clamps
• USB-C Ngba agbara Cable
• Itọsọna olumulo
• Ọran ipamọ

Aworan: All components of the BRPOM BM500-ES Car Jump Starter package, including the main unit, smart jump cables, USB charging cable, user manual, and a protective carrying case.

Ọja Pariview

Mọ ara rẹ pẹlu awọn eroja ti ibẹrẹ fifa rẹ:

• Ẹka akọkọ: Contains the battery, control buttons, LED indicators, and various ports.
• Smart Jump Cables: Feature intelligent protection against reverse polarity, over-current, short-circuit, over-charge, and over-temperature. They have a connector that plugs into the jump starter and red/black clamps for the vehicle battery.
• Àwọn Ibudo Ìjáde USB: For charging mobile phones, tablets, and other USB-powered devices.
• Ibudo Iwọle USB-C: For recharging the jump starter unit.
• Ina filaṣi LED: Integrated light with multiple modes (steady, strobe, SOS).
• Emergency Hammer: A hardened tip for breaking glass in emergencies.
• Kompasi: Integrated for navigation assistance.

Aworan: A sunmọ-soke view of the red and black smart jump cables, highlighting their robust construction and safety features.

Setup: Charging the Jump Starter

Before first use, fully charge the jump starter. It is recommended to recharge the unit every 3-6 months to maintain battery health, even if not used.

1. So okùn gbigba agbara USB-C ti a pese mọ ibudo titẹ sii USB-C lori ibẹrẹ fifa soke.
2. Connect the other end of the USB-C cable to a 5V/2A or higher USB wall adapter (not included).
3. The LED indicators on the jump starter will illuminate and flash to show the charging progress. All LEDs will be solid when fully charged.

Aworan: The BRPOM BM500-ES jump starter connected to a wall adapter via its USB-C port for recharging. The LED indicators show charging status.

Awọn ilana iṣiṣẹ: Fò Bibẹrẹ Ọkọ ayọkẹlẹ kan

Tẹ̀lé àwọn ìgbésẹ̀ wọ̀nyí dáadáa láti bẹ̀rẹ̀ ọkọ̀ rẹ:

1. Ensure the jump starter is at least 20% charged.
2. Turn off your vehicle's ignition and all accessories (lights, radio, AC).
3. Connect the blue end of the smart jump cables to the jump starter's 12V output port. Ensure a firm connection.
4. Attach the red positive (+) clamp si ebute rere (+) ti batiri ọkọ rẹ.
5. Attach the black negative (-) clamp si ebute odi (-) ti batiri ọkọ rẹ.
6. Check the indicator light on the smart jump cable.
   • Alawọ ewe ri to: Connection is correct and safe. Proceed to start the vehicle.
   • Solid Red with Beeping: Reverse polarity detected. Disconnect clamps and reattach correctly.
   • Alawọ ewe didan: Batiri voltage is too low. Press the "BOOST" button on the smart cable if available, then start the vehicle within 30 seconds.
   • Ko si Imọlẹ: Check connections or if the vehicle battery is severely damaged.
7. Once the indicator is solid green, start your vehicle's engine.
8. After the engine starts, immediately remove the smart jump cables from the jump starter, then disconnect the black negative (-) clamp, followed by the red positive (+) clamp lati batiri ọkọ ayọkẹlẹ.

Aworan: The BRPOM BM500-ES jump starter unit connected to a vehicle battery via its smart jump cables, ready for operation. The green indicator light on the cable connector is visible.

Awọn iṣẹ miiran

Power Bank Išė

The jump starter can charge your electronic devices:

• So okùn gbigba agbara USB ti ẹrọ rẹ pọ mọ ọkan ninu awọn ibudojade USB lori ibẹrẹ fifa soke.
• Ibẹrẹ fo yoo bẹrẹ laifọwọyi gbigba agbara ẹrọ rẹ.
• The unit features Quick Charge 3.0 technology for faster charging of compatible devices.

Aworan: A BRPOM BM500-ES jump starter unit being used to charge a tablet via its USB output port, demonstrating its power bank capability.

Ina filaṣi LED

The integrated LED flashlight offers multiple modes:

• Press and hold the power button for 3 seconds to turn on the steady flashlight.
• Press the power button again to cycle through modes: Strobe, SOS, and Off.

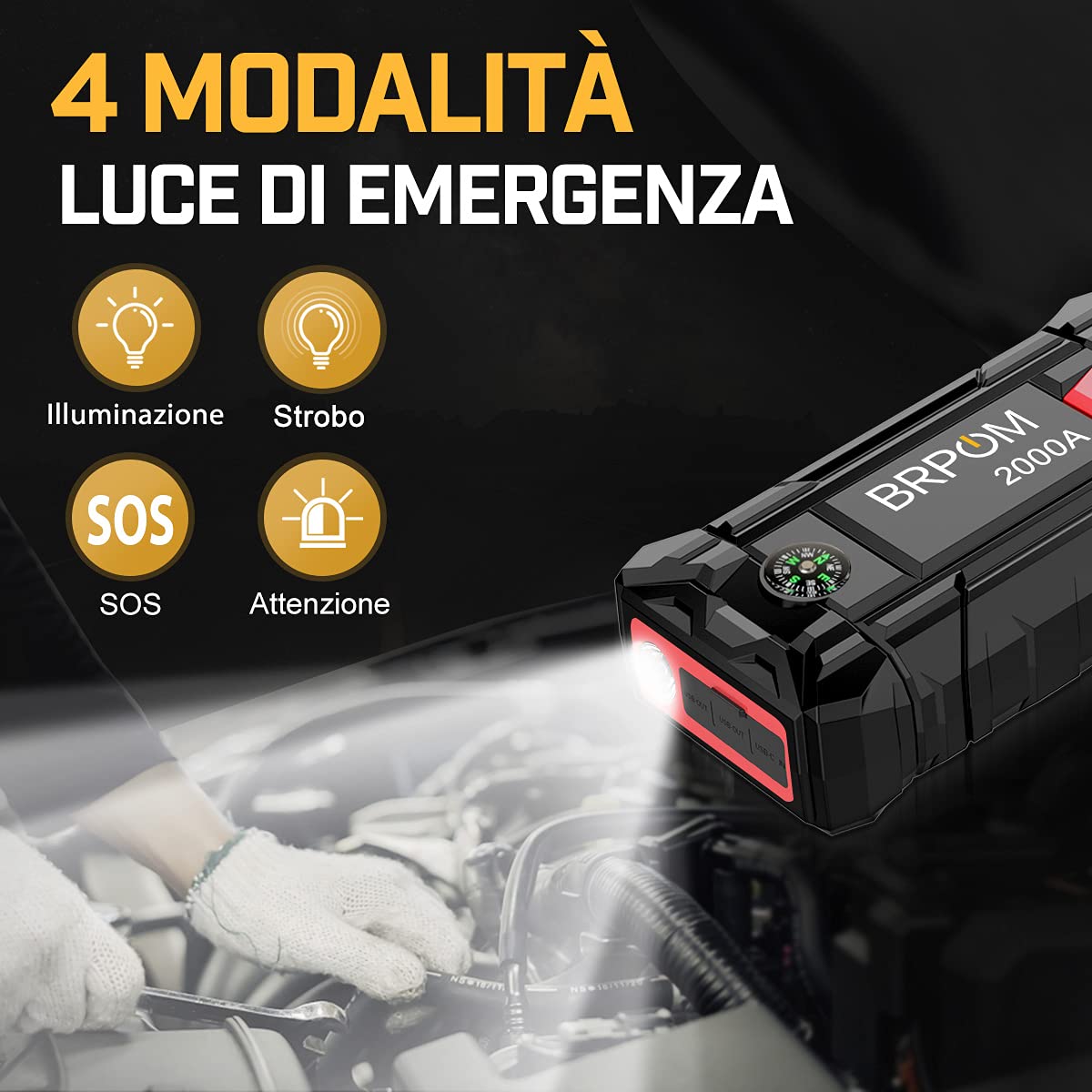

Aworan: The BRPOM BM500-ES jump starter unit with its LED flashlight illuminated, demonstrating its various lighting modes including steady, strobe, and SOS.

Hammer pajawiri

The jump starter includes a hardened tip for emergency glass breaking:

• In an emergency, use the pointed metal tip located on the side of the unit to break vehicle windows.
• Iṣọra: Use only in genuine emergencies.

Aworan: A close-up of the BRPOM BM500-ES jump starter unit highlighting its integrated emergency hammer feature, shown breaking a car window.

Kompasi

A small compass is integrated into the unit for basic directional guidance.

Itọju ati Ibi ipamọ

• Store the jump starter in a cool, dry place, away from direct sunlight and moisture.
• Recharge the unit at least once every 3-6 months to prolong battery life, even if not used.
• Clean the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Keep the smart jump cables clean and free of corrosion.

Laasigbotitusita

Awọn pato

Akiyesi: Awọn alaye ni o wa labẹ iyipada laisi akiyesi.

Atilẹyin ọja ati Support

For warranty information and customer support, please refer to the documentation included with your product or visit the official BRPOM webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.

If you encounter any issues not covered in this manual, please contact BRPOM customer service for assistance.
