Ọrọ Iṣaaju
Thank you for choosing the BRPOM Car Jump Starter. This powerful and portable device is designed to safely and efficiently jump-start your vehicle, as well as serve as a power bank for your electronic devices and a multi-mode LED flashlight. Please read this manual thoroughly before use to ensure proper operation and to maximize the lifespan of your device.
Image: The BRPOM Car Jump Starter unit, smart jumper clamps, USB charging cable, and a protective carrying case.
Ọja Awọn ẹya ara ẹrọ
- Powerful Jump Starting Capability: Equipped with a 5000A peak current and 21800mAh capacity, capable of jump-starting 12V vehicles (up to 8.0L gasoline or 6.5L diesel engines) in seconds. Suitable for cars, trucks, motorcycles, snowmobiles, ATVs, lawnmowers, boats, and more. Operates effectively in temperatures from -20°C (-4°F) to 60°C (140°F).
- Aago Imurasilẹ ti o gbooro: A fully charged unit can perform up to 40 jump starts and maintain its charge for up to 12 months when not in use, thanks to advanced self-discharge prevention technology.
- Convenient Power Bank Function: Features QC3.0 fast charging, allowing you to quickly charge mobile phones, tablets, cameras, and other electronic devices.
- Upgraded Smart Clamps: Includes intelligent jumper clamps with 8 advanced protection technologies: reverse polarity, short circuit, over-discharge, overheating, overcurrent, overcharge, overvoltage, and overload protection. Longer and thicker cables ensure better conductivity and wider opening range for ease of use and safety.
- 4-Mode LED Flashlight: Integrated powerful LED flashlight with four modes: illumination, strobe, SOS, and warning alarm, providing essential light and signaling for emergencies, camping, fishing, or other outdoor activities.
- Emergency Window Breaker: Features a built-in emergency window breaker for critical situations.
Image: Visual representation of the jump starter's 5000A peak current and 21800mAh battery capacity, along with compatible engine sizes for various vehicle types.
Package Awọn akoonu
Jọwọ ṣayẹwo awọn akoonu ti package lori unboxing:
- BRPOM Car Jump Starter Unit
- Smart Jumper Clamps
- USB-C Ngba agbara Cable
- Itọsọna olumulo
- Ọran Gbigbe Idaabobo
Image: All items included in the BRPOM Car Jump Starter package: the main unit, smart clamps, USB cable, user manual, and carrying case.
Eto ati gbigba agbara
Ibere idiyele
Before first use, fully charge the BRPOM Car Jump Starter. Connect the included USB-C charging cable to the device's input port and plug the other end into a USB wall adapter (not included). The LED indicators on the unit will show the charging progress. A full charge is indicated when all LED lights are solid.
Image: The BRPOM Jump Starter connected to a wall charger via its USB-C port, illustrating the charging process.
Ṣiṣayẹwo Ipele Batiri
Press the power button once to check the current battery level. The LED indicators will light up, showing the remaining charge. Ensure the device is sufficiently charged (at least 50%) before attempting to jump-start a vehicle.
Awọn ilana Iṣiṣẹ
Fo Bibẹrẹ Ọkọ
- Ṣeto Ọkọ naa: Ensure the vehicle's ignition is off and all accessories (headlights, radio, etc.) are turned off.
- Connect Smart Clamps sí Fífó Olùbẹ̀rẹ̀: Insert the blue plug of the smart jumper clamps fully into the jump starter's 12V output port. Ensure a secure connection.
- Darapọ mọ Clamps to Car Battery:
- Sopọ awọn PUPA rere (+) clamp sí ibi tí ọkọ̀ náà ti ń lo batiri tó dára (+).
- Sopọ awọn DUDU odi (-) clamp sí ibi tí ọkọ̀ náà ti ń lo batiri òdì (-).
The indicator light on the smart clamp will turn solid green if the connection is correct and safe. If it flashes red or beeps, check the connections for reverse polarity or short circuit.
- Bẹrẹ Ọkọ naa: Once the smart clamp indicator is solid green, start your vehicle's engine. If the vehicle does not start on the first attempt, wait at least 30 seconds before trying again. Do not attempt more than 3 consecutive starts.
- Yọ Clamps: Ni kete ti ọkọ naa ba bẹrẹ, yọ smart cl naa kuro lẹsẹkẹsẹamps from the car battery terminals, then disconnect the clampláti inú ẹ̀rọ ìbẹ̀rẹ̀ ìfò.
Image: A four-step visual guide demonstrating the process of jump-starting a car: 1. Insert jumper cable, 2. Connect clamps to battery, 3. Start engine, 4. Remove clamps.
Lilo bi Bank Power
The BRPOM Car Jump Starter features USB output ports (including QC3.0) to charge your electronic devices. Simply connect your device's charging cable to the jump starter's USB output port. The device will automatically begin charging.
Image: The BRPOM Jump Starter being used to charge a tablet and a smartphone in the back seat of a car, highlighting its quick charge capability.
Lilo Tọṣi LED
Press and hold the power button for 3 seconds to turn on the LED flashlight. Press the power button again to cycle through the modes: Illumination → Strobe → SOS → Warning Alarm (red/blue flashing) → Off. The warning alarm mode is useful for roadside emergencies.

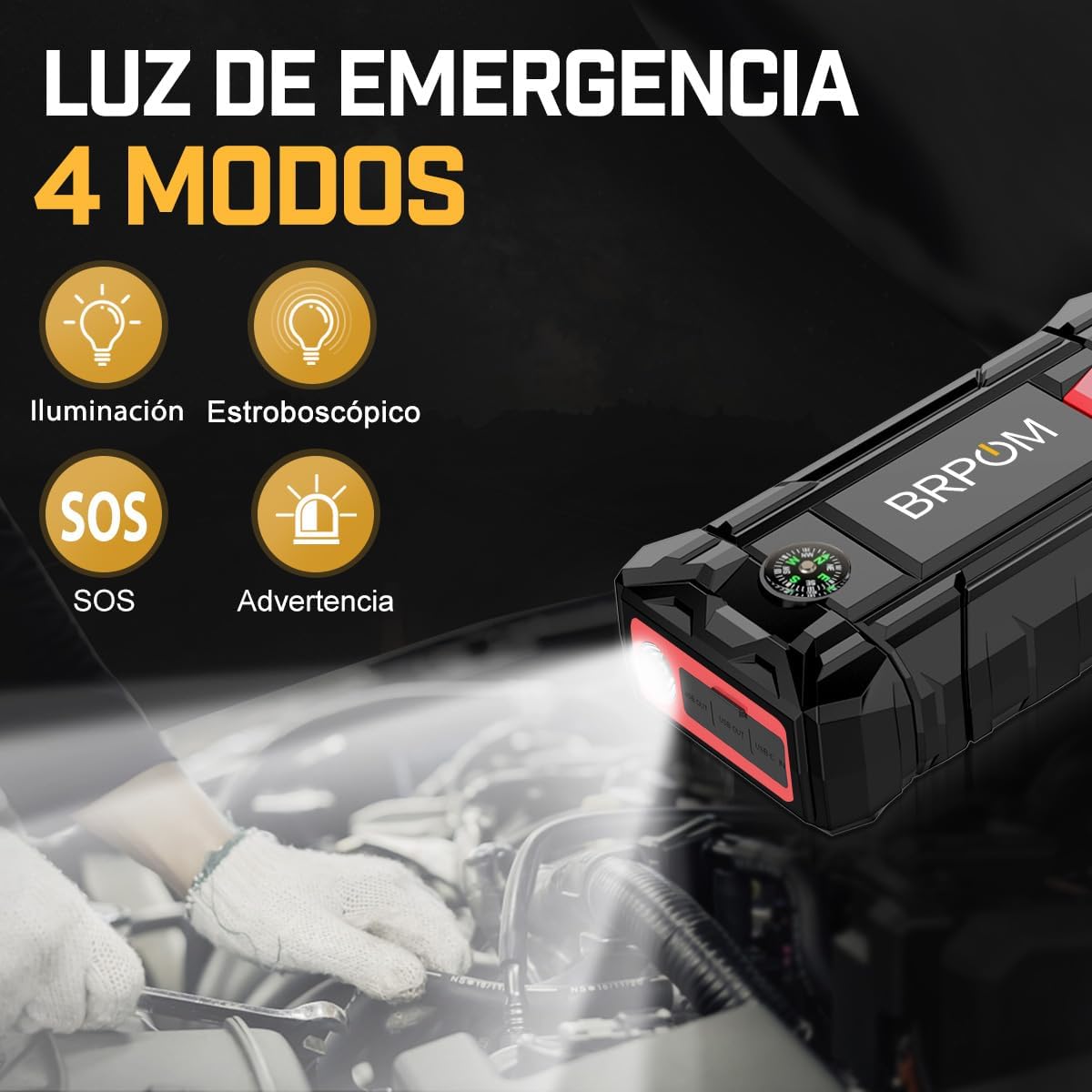

Image: The BRPOM Jump Starter's LED flashlight illuminating an engine bay, with icons depicting its four modes: Illumination, Strobe, SOS, and Warning.
Awọn iṣọra Aabo
Always observe the following safety guidelines when using the BRPOM Car Jump Starter:
- Ma gba laaye awọn pupa ati dudu clamps to touch each other, as this may cause sparking or damage.
- Do not jump-start a vehicle if the jump starter's battery level is below 50%.
- Do not attempt to jump-start a vehicle with a severely damaged or frozen battery.
- Ensure proper polarity connection (red to positive, black to negative) to avoid damage to the jump starter or vehicle. The smart clamps provide protection against reverse polarity.
- Do not leave the jump starter connected to the vehicle battery after the vehicle has started.
- Jeki ẹrọ naa kuro ni omi, ọrinrin, ati awọn iwọn otutu to gaju.
- Ma ṣe tuka tabi yi ẹrọ naa pada.
- Jeki kuro ni arọwọto awọn ọmọde.
- Lo cl ọlọgbọn ti a pese nikanamps and charging cable.

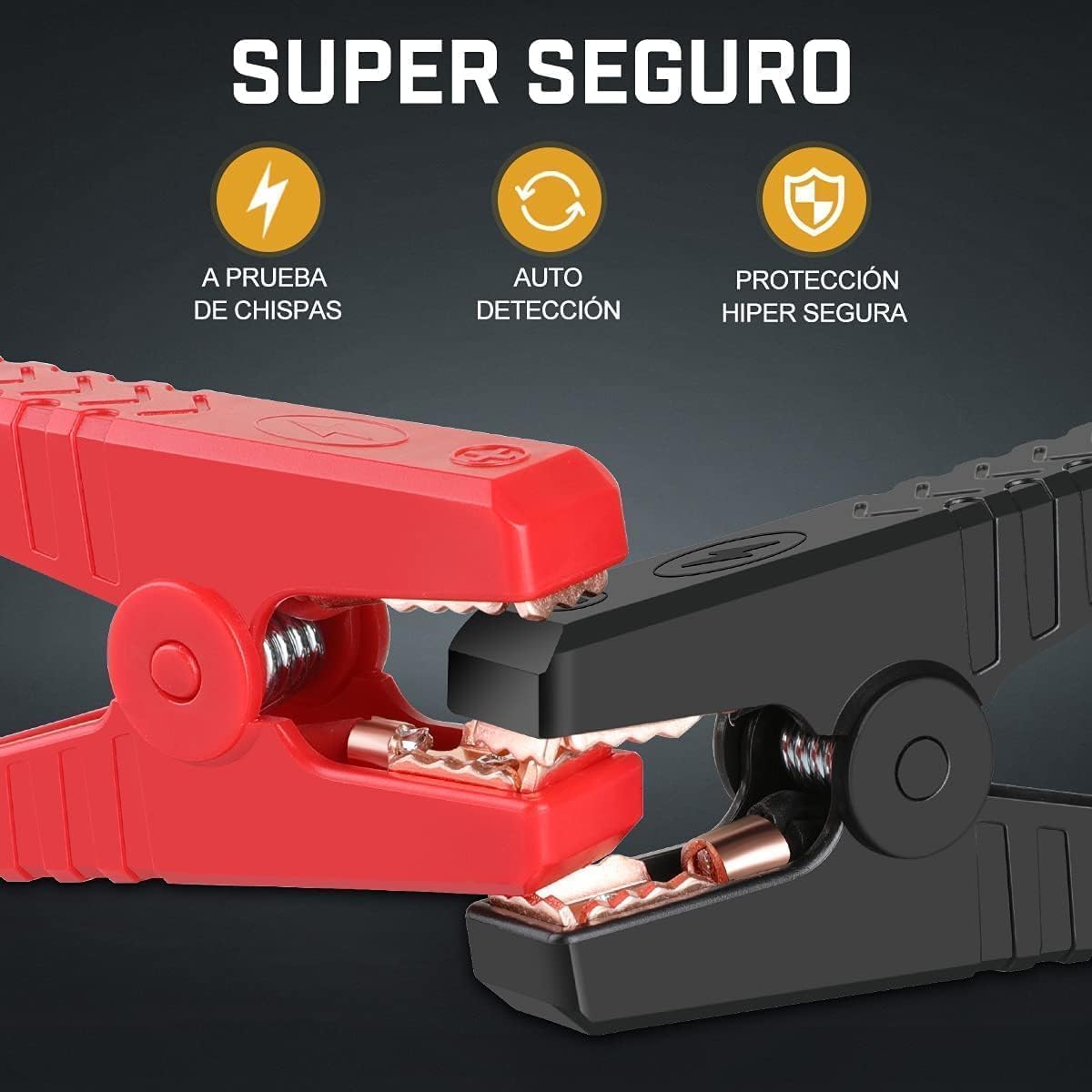

Aworan: A sunmọ-soke view of the BRPOM smart jumper clamps, emphasizing their spark-proof, auto-detection, and hyper-secure protection features.
Itoju
- Gba agbara nigbagbogbo: To maintain optimal battery health and ensure readiness, it is recommended to recharge the jump starter every 3-6 months, even if not in use. This prevents deep discharge and prolongs battery life.
- Ibi ipamọ: Store the device in a cool, dry place, away from direct sunlight and extreme temperatures. Use the provided carrying case for protection.
- Ninu: Fi aṣọ gbígbẹ tó rọ̀, tó sì gbẹ nu ẹ̀rọ náà. Má ṣe lo àwọn kẹ́míkà líle tàbí àwọn ohun ìfọmọ́ tó ń pa ara.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Jump Starter ko ni tan. | Batiri naa ti jade patapata. | Gba agbara fun olubere fo naa patapata. |
| Ọkọ ayọkẹlẹ ko bẹrẹ. | Ti ko tọ clamp asopọ (iyipada polarity). Lọ batiri ibẹrẹ ju kekere lọ. Vehicle battery is severely damaged or frozen. | Ṣayẹwo clamp connections (red to +, black to -). The smart clamps will indicate errors. Saji awọn fifo Starter. Kan si alagbawo ọjọgbọn kan. |
| Smart clamp indicator flashes red or beeps. | Reverse polarity, short circuit, or other connection error. | Ge asopọ clamps and re-connect them correctly. Refer to "Jump Starting a Vehicle" section. |
| Ẹrọ ko gba agbara. | Okùn gbigba agbara tabi adapter naa ni aṣiṣe. Charging port dirty. | Try a different USB-C cable and wall adapter. Ensure the charging port is clean and free of debris. |
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Awoṣe | BRPOM 5000A 21800mAh |
| Oke Lọwọlọwọ | 5000A |
| Agbara Batiri | 21800mAh |
| Bẹrẹ Voltage | 12V |
| Gaasi Engine Rating | Titi di 8.0l |
| Diesel Engine Rating | Titi di 6.5l |
| Ijade USB | QC3.0 (5V/9V/12V) |
| Iru-C Input | 18W (for charging the unit) |
| Awọn iwọn otutu ti nṣiṣẹ | -20°C si 60°C (-4°F si 140°F) |
| Awọn iwọn | 20 x 9 x 5 cm (7.87 x 3.54 x 1.97 inches) |
| Iwọn | 970 g (2.14 lbs) |
Atilẹyin ọja ati Support
The BRPOM Car Jump Starter comes with a meji-odun atilẹyin ọja from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
For technical support, warranty claims, or any questions regarding your BRPOM product, please contact our customer service team. Refer to the contact information provided on the product packaging or our official webojula.
