Scheppach HC25si Silent Air Compressor User Manual

1. Ifihan

Thank you for choosing the Scheppach HC25si Silent Air Compressor. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your compressor. Please read these instructions carefully before using the product and keep them for future reference. Proper use and maintenance will ensure long-lasting performance and reliability.

2. Awọn ilana aabo

Máa tẹ̀lé àwọn ìlànà ààbò pàtàkì nígbà gbogbo láti dín ewu iná, ìkọlù iná mànàmáná àti ìpalára ara ẹni kù. Àìtẹ̀lé àwọn ìlànà wọ̀nyí lè fa ìpalára ńlá tàbí ìbàjẹ́ sí ọjà náà.

• Aabo Itanna: Rii daju pe ipese agbara ibaamu voltage specified on the compressor. Do not operate in wet conditions. Always use a grounded outlet.
• Aabo Titẹ: Never exceed the maximum operating pressure of the compressor or the connected tools. Do not direct compressed air at people or animals.
• Ohun elo Idaabobo Ti ara ẹni: Wear safety glasses, hearing protection, and appropriate clothing when operating the compressor.
• Agbegbe Iṣẹ: Keep the work area clean, well-lit, and free from obstructions. Do not operate in explosive atmospheres.
• Itọju: Ge asopọ agbara agbara ṣaaju ṣiṣe eyikeyi itọju tabi awọn atunṣe.
• Awọn ọmọde ati Awọn Oluduro: Jeki awọn ọmọde ati awọn aladuro kuro ni konpireso iṣẹ.

3. Ọja Ipariview

The Scheppach HC25si is a silent, oil-free air compressor designed for various applications. Familiarize yourself with its main components:

The Scheppach HC25si Silent Air Compressor features a blue tank, black motor housing, and a sturdy handle for portability.

A closer look at the control panel, showing the tank pressure gauge, regulated output pressure gauge, and the quick-connect air outlet.

• Air ojò: Tọjú afẹ́fẹ́ tí a fi sínú omi.
• Motor/Pump Unit: Generates compressed air.
• Àwọn Òṣùwọ̀n Ìfúnpá: One shows tank pressure, the other shows regulated output pressure.
• Olutọsọna titẹ: Ṣe àtúnṣe titẹ afẹfẹ ti o wu jade.
• Quick-Connect Coupling: For attaching air tools and hoses.
• Sisan Ikun: Ti wa ni isalẹ ojò naa fun fifa omi kuro ninu omi.
• Awọn kẹkẹ ati Imudani: Fun irọrun gbigbe.

4. Eto

Follow these steps to prepare your compressor for first use:

1. Ṣii silẹ: Carefully remove the compressor from its packaging. Check for any shipping damage.
2. Ibi: Position the compressor on a stable, level surface in a well-ventilated area. Ensure adequate space around the unit for air circulation.
3. Wheel and Handle Assembly: Attach the wheels and handle if they are not pre-assembled, following the diagrams in the separate assembly guide (if provided).
4. Asopọmọra itanna: So okùn agbára pọ̀ mọ́ ihò iná mànàmáná 230V, 50Hz tí a fi ilẹ̀ pamọ́.
5. Ṣiṣe Ibẹrẹ: Before connecting any tools, turn on the compressor and allow it to build up to maximum pressure. Check for any unusual noises or leaks.

5. Awọn ilana Iṣiṣẹ

Operating your Scheppach HC25si compressor is straightforward:

1. So Air Hose: Attach your air hose to the quick-connect coupling.
2. Ohun elo Afẹfẹ Sopọ: Attach the desired air tool to the other end of the air hose.
3. Ṣatunṣe Ipa: Turn the red pressure regulator knob to set the desired output pressure, observing the regulated pressure gauge.
4. Bẹ̀rẹ̀ ìfúnpọ̀: Flip the power switch to the 'ON' position. The compressor will start filling the tank. It will automatically shut off when maximum pressure is reached and restart when the pressure drops.
5. Lo Irinṣẹ: Operate your air tool as needed.
6. Stop Compressor: When finished, flip the power switch to the 'OFF' position and disconnect the power cord.
7. Irẹwẹsi: Release any remaining air pressure from the tank by opening the drain valve or using an air tool until the gauges read zero.

Awọn ohun elo ti o wọpọ

This diagram illustrates common uses for the compressor, including nailing/stapling, operating an impact wrench, paint spraying, tire inflation, using an air ratchet, and an air chisel hammer.

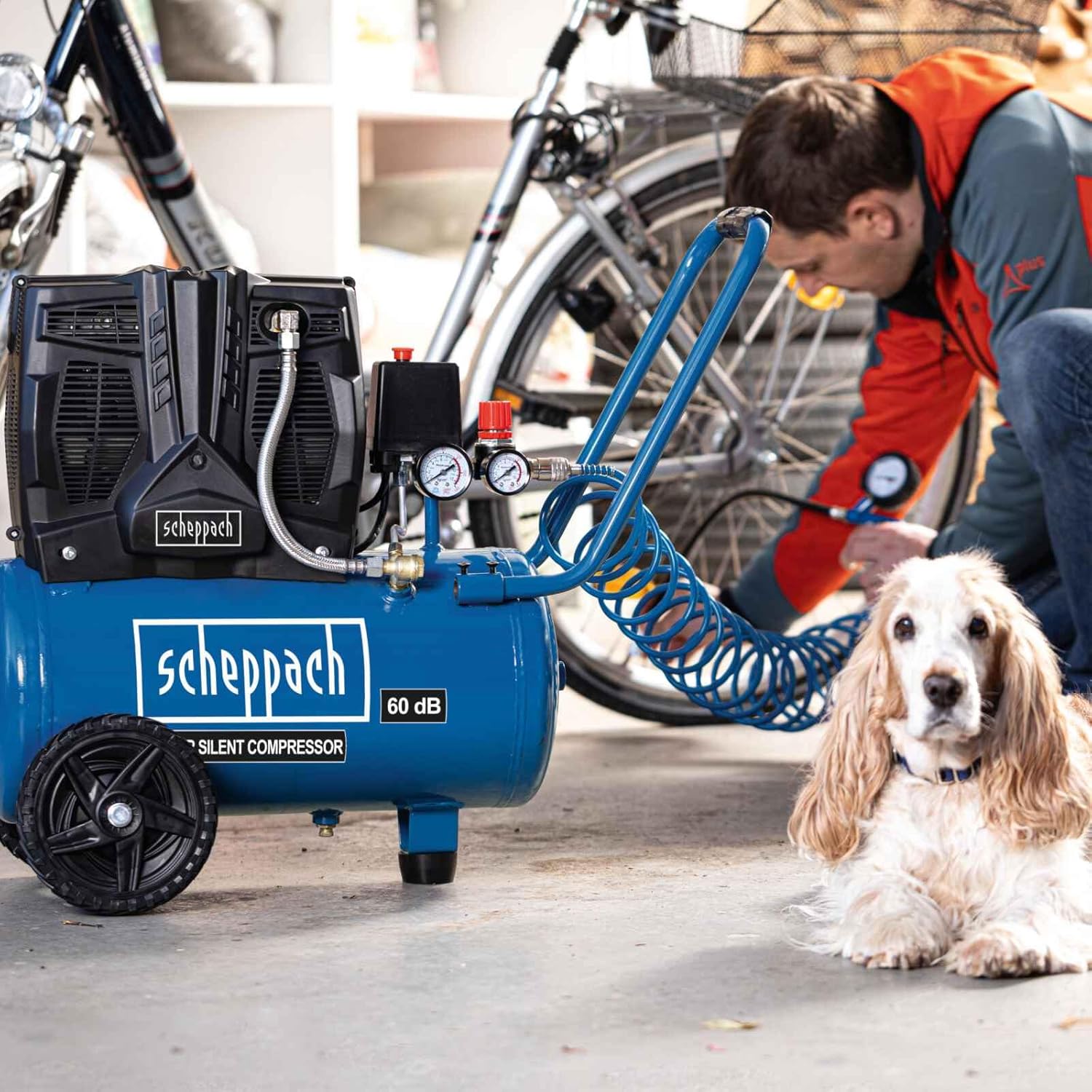

The compressor is shown in use, inflating a bicycle tire, demonstrating its utility for various inflation tasks.

6. Itọju

Regular maintenance ensures optimal performance and extends the lifespan of your compressor. Always disconnect the power before maintenance.

• Imugbẹ Imugbẹ: After each use, open the drain valve at the bottom of the tank to release any accumulated moisture. This prevents rust and corrosion inside the tank.
• Ajọ Afẹfẹ mimọ: Periodically check and clean the air filter. A clogged filter reduces efficiency.
• Oil-Free Design: The HC25si is an oil-free compressor, meaning no oil changes or oil level checks are required.
• Isọsọ gbogboogbo: Keep the exterior of the compressor clean. Wipe off dust and debris with a damp asọ.
• Ibi ipamọ: Store the compressor in a dry, clean environment. Ensure the tank is depressurized before storage.

This image visually confirms the compressor's oil-free design, eliminating the need for oil changes, and its 24-liter tank capacity.

7. Laasigbotitusita

Tọkasi apakan yii fun awọn ọran ti o wọpọ ati awọn ojutu wọn:

8. Awọn pato

Key technical data for the Scheppach HC25si Silent Air Compressor:

This graphic highlights the compressor's main features: a maximum working pressure of 8 bar, an intake capacity of 230 liters per minute, its oil-free design, and a 24-liter tank volume.

A visual comparison of noise levels, indicating the Scheppach HC25si operates at approximately 60 dB(A), significantly quieter than many other tools and environments.

9. Atilẹyin ọja ati Support

Scheppach products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or visit the official Scheppach website. For technical support, spare parts, or service inquiries, please contact your authorized Scheppach dealer or customer service department.
