beFree Ohun BFS-5.1 Kakiri Ohun Agbọrọsọ System

beFree Sound 5.1 Channel Bluetooth Surround Sound Speaker System User Manual

Model: BFS-5.1 Surround Sound Speaker System

Ọrọ Iṣaaju

Thank you for choosing the beFree Sound 5.1 Channel Bluetooth Surround Sound Speaker System. This manual provides essential information for the proper setup, operation, and maintenance of your new audio system. Please read it thoroughly before use to ensure optimal performance and longevity of the product.

This system is designed to deliver an immersive audio experience for movies, games, and music, featuring 5.1 positional audio, enhanced bass response, and multiple connectivity options.

Kini To wa

Fi tọkàntọkàn tú gbogbo àwọn ohun èlò náà kí o sì rí i dájú pé o ti gba àwọn ohun èlò wọ̀nyí:

  • One 4" Amplifier (Subwoofer Unit)
  • Five 2.5" Satellite Speakers
  • One Remote Control (requires 2 AAA batteries, not included)
  • 1 Audio Cable (RCA to 3.5mm)
  • Eriali FM 1
  • 3 DVD Connection Cables (RCA to RCA)
Remote control and various audio cables included with the beFree Sound 5.1 speaker system.

Image: Remote control and included audio cables for connecting the system to various devices.

Awọn ilana iṣeto

1. Agbọrọsọ Placement

For optimal 5.1 surround sound experience, position the speakers as follows:

  • Agbọrọsọ aarin: Gbe taara si iwaju ipo gbigbọ, ni igbagbogbo loke tabi isalẹ ifihan rẹ.
  • Front Left & Front Right Speakers: Position to the left and right of your display, equidistant from the center speaker and the listening position.
  • Surround Left & Surround Right Speakers: Place to the sides or slightly behind the main listening position, facing inwards.
  • Subwoofers: Can be placed anywhere in the room, but often performs well in a corner or near the front speakers to enhance bass.
Diagram showing the beFree Sound 5.1 speaker system with subwoofer and five satellite speakers arranged for surround sound.

Aworan: Example setup of the 5.1 speaker system, illustrating the placement of the subwoofer and satellite speakers.

2. Nsopọ awọn Agbọrọsọ

Connect each of the five satellite speakers to the corresponding output ports on the rear panel of the subwoofer unit. Ensure the correct speaker (Front Left, Front Right, Center, Surround Left, Surround Right) is connected to its designated port.

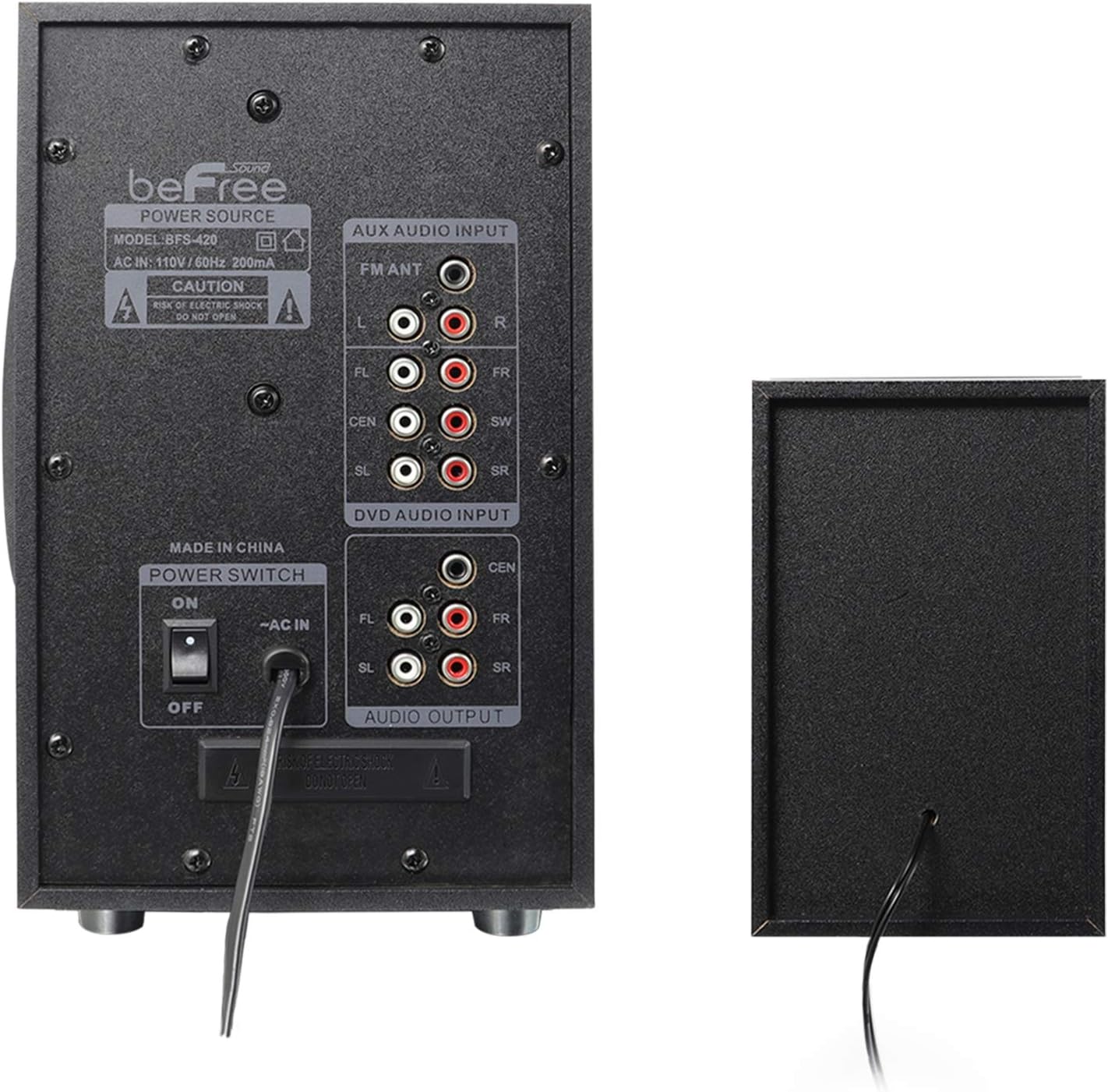

Rear panel of the beFree Sound subwoofer showing various audio input and output ports, including speaker connections, AUX, FM antenna, and DVD inputs.

Aworan: Ẹyin view of the subwoofer unit, highlighting the speaker output terminals and various input options.

3. Nsopọ Awọn orisun Audio

Your system supports multiple audio input methods:

  • Iṣawọle Olohun AUX: Use the provided RCA to 3.5mm audio cable to connect devices like smartphones, MP3 players, or laptops to the "AUX AUDIO INPUT" ports.
  • DVD Audio Input: Use the provided RCA cables to connect a DVD player or other compatible devices to the "DVD AUDIO INPUT" ports for 5.1 channel audio.
  • Eriali FM: Connect the FM antenna to the "FM ANT" port for radio reception. Extend the antenna for better signal.
  • USB/SD Kaadi: Insert a USB drive or SD memory card into the respective slots on the front panel for direct media playback.

4. Asopọ agbara

Connect the power cord to the AC power outlet. Ensure the power switch on the rear panel is in the "OFF" position before plugging in. Once all connections are secure, switch the power to "ON".

Awọn ilana Iṣiṣẹ

1. Agbara Tan / Paa

Use the power switch on the rear of the subwoofer unit to turn the system on or off. The remote control also has a power button (red circle) for standby mode.

2. Aṣayan Input

Press the "INPUT" button on the front panel of the subwoofer or the corresponding buttons on the remote control (e.g., "BT" for Bluetooth, "AUX", "DVD", "USB", "SD", "FM") to select your desired audio source.

3. Sisopọ Bluetooth

  1. Select "BT" input mode on the speaker system. The display will show "BT" and an audible prompt may indicate pairing mode.
  2. Lórí ẹ̀rọ Bluetooth rẹ (fóònù alágbèéká, tábìlẹ́ẹ̀tì, àti bẹ́ẹ̀ bẹ́ẹ̀ lọ), wá àwọn ẹ̀rọ Bluetooth tó wà.
  3. Select "beFree Sound" (or similar name) from the list to pair.
  4. Once paired, an audible confirmation will sound, and you can play audio from your device through the speaker system.

4. FM Radio isẹ

  1. Select "FM" input mode.
  2. Press the "AUTO" button on the remote control to automatically scan and save available radio stations.
  3. Use the "TUNE+" or "TUNE-" buttons to manually adjust the frequency or navigate through saved stations.
  4. The "SAVE" button can be used to manually store a station to a preset number.

5. USB / SD Kaadi Sisisẹsẹhin

Insert a USB flash drive or SD card into the respective slot. The system will automatically switch to USB/SD mode and begin playing compatible audio files. Use the remote control for playback functions (Play/Pause, Next/Previous Track).

6. Iwọn didun ati Atunse Ohun

  • Iwọn Titunto: Use the "VOL+" and "VOL-" buttons on the remote or the main knob on the subwoofer to adjust the overall volume.
  • Iwọn ikanni kọọkan: The remote control allows adjustment of individual speaker levels (FL, FR, CEN, SL, SR, SW) for fine-tuning the surround sound experience.
  • EQ: Use the "EQ" button on the remote to cycle through preset equalizer modes.

Itoju

  • Ninu: Lo aṣọ rírọrùn tí ó gbẹ láti nu ojú àwọn agbọ́hùnsọ àti subwoofer. Má ṣe lo àwọn ohun èlò ìfọmọ́ omi tàbí àwọn ohun èlò ìpara.
  • Afẹfẹ: Ensure adequate ventilation around the subwoofer unit to prevent overheating. Do not block any vents.
  • Ayika: Avoid exposing the system to extreme temperatures, humidity, direct sunlight, or dusty environments.
  • Isakoṣo latọna jijin: Replace AAA batteries in the remote control when its range or responsiveness decreases.

Laasigbotitusita

IsoroOwun to le FaOjutu
Ko si agbaraPower cord not connected; Power switch off; No power from outlet.Ensure power cord is securely plugged in. Turn power switch to ON. Check power outlet with another device.
Ko si ohunIncorrect input selected; Volume too low; Audio cables not connected properly; Device not playing audio.Select correct input source. Increase master volume. Check all audio cable connections. Ensure source device is playing audio.
Sisopọ Bluetooth kunaSpeaker not in BT mode; Device too far; Interference; Device already paired to another speaker.Ensure speaker is in BT mode. Move device closer. Turn off other Bluetooth devices. Forget "beFree Sound" on your device and try pairing again.
Gbigba FM ti ko daraEriali ko tesiwaju; Ifihan agbara.Fully extend the FM antenna. Reposition the antenna for better signal reception.
Isakoṣo latọna jijin ko ṣiṣẹBatteries depleted or incorrectly inserted; Obstruction between remote and sensor.Replace remote control batteries (2x AAA). Ensure batteries are inserted with correct polarity. Remove any obstructions.

Awọn pato

  • Orukọ awoṣe: BFS-5.1 Kakiri Ohun Agbọrọsọ System
  • Irú Agbọrọsọ: 5.1 ikanni Yika Ohun
  • Agbara Ijade: 75 Watts Total (25W Subwoofer, 10W x 5 Satellite Speakers)
  • Idahun Igbohunsafẹfẹ: 40Hz-20KHz
  • Iyapa: > 50dB
  • Asopọmọra: Bluetooth, USB, SD Card, FM Radio, AUX (RCA), DVD (RCA 5.1)
  • Awọn ẹrọ ibaramu: Laptop, MP3 Player, Smartphone, Tablet, Television
  • Ọna Iṣakoso: Isakoṣo latọna jijin
  • Orisun Agbara: AC 110V/60Hz (Plug Mount)
  • Awọn iwọn ọja: 22 x 17.5 x 11.5 inches (Overall package dimensions, individual components vary)
  • Ìwọ̀n Nkan: Isunmọ 15.08 poun (6.85 Kilogram)

Atilẹyin ọja ati Support

This beFree Sound product comes with a Limited Warranty. Please refer to the warranty card included in your packaging for specific terms and conditions. For technical support or service inquiries, please contact beFree Sound customer service through their official webaaye tabi alagbata ti o ti ra ọja naa.

Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.
