1. Ifihan
This manual provides detailed instructions for the installation, operation, and maintenance of your ANRAN 2K 3MP WiFi Surveillance Camera, model P2-EU. Please read this manual thoroughly before using the product to ensure proper function and safety. Keep this manual for future reference.
2. Ọja Ipariview
The ANRAN P2-EU is an outdoor 2K 3MP WiFi surveillance camera designed to enhance your property's security. It features advanced functionalities for comprehensive monitoring.
Image 2.1: ANRAN P2-EU 2K 3MP WiFi Surveillance Camera.
Awọn ẹya pataki:
- 360° Pan/Tilt Rotation: The camera offers a full 360-degree field of view with remote control via the mobile application, allowing for flexible monitoring without blind spots.
- Ijọpọ Ayanlaayo: Equipped with four white lights, the camera can illuminate areas or act as a deterrent upon motion detection.
- Motion Detection with Alerts: Configurable motion detection sends alarms and mobile application notifications when activity is detected.
- Audio Ọna Meji: Built-in microphone and speaker enable real-time communication with individuals near the camera through the mobile app.
- Fifi sori Rọrun: Designed for straightforward setup, primarily guided by the mobile application without requiring extensive technical knowledge.
3. Package Awọn akoonu
Please verify that all items are present in your package. Refer to the product packaging for a complete list of included accessories.
- ANRAN P2-EU 2K 3MP WiFi Surveillance Camera
- Adapter agbara
- Iṣagbesori skru ati ìdákọró
- Afowoyi Olumulo (iwe-ipamọ yii)
4. fifi sori
4.1 Iṣagbesori Kamẹra
The camera is designed for wall mounting. Choose a suitable location that provides the desired viewing angle and is within range of your WiFi network and a power outlet.
- Mark the drilling points on the wall using the camera's mounting base as a template.
- Drill holes at the marked positions. Insert wall anchors if mounting on masonry.
- Secure the camera's mounting base to the wall using the provided screws.
- Attach the camera securely to the mounting base.
Image 4.1: Camera mounted on a wall, illustrating 355° pan and 90° tilt capabilities.
4.2 Nsopọ si Agbara
Connect the provided power adapter to the camera's power input and then plug it into a standard electrical outlet. Ensure the connection is secure and protected from weather elements if installed outdoors.
4.3 App Oṣo ati Sisopọ
The ANRAN P2-EU camera is configured and controlled via a mobile application. You can use either the ANRAN App or the CloudEdge App, available on Google Play Store and Apple App Store.
- Download and install the ANRAN App or CloudEdge App on your smartphone.
- Ṣẹda akọọlẹ kan tabi wọle ti o ba ti ni ọkan tẹlẹ.
- Follow the in-app instructions to add your new camera. This typically involves scanning a QR code on the camera or manually selecting the device type and connecting to your home WiFi network.
- Ensure your phone is connected to a 2.4GHz WiFi network during the initial setup, as the camera may not support 5GHz networks.
Image 4.2: Smartphone displaying the camera's live feed and control options.
5. Isẹ
5.1 Live View ati Pan / Pulọọgi Iṣakoso
Once connected, open the app to view the live feed from your camera. Use the on-screen controls to pan (rotate horizontally up to 355°) and tilt (rotate vertically up to 90°) the camera, allowing you to adjust the viewing area remotely.
Image 5.1: Remote control of camera pan and tilt via the mobile application.
5.2 Išipopada erin ati titaniji
The camera features intelligent motion detection. You can customize sensitivity levels and detection zones within the app. When motion is detected, the camera can:
- Fi awọn iwifunni titari ranṣẹ si foonuiyara rẹ.
- Trigger a spotlight alarm to deter intruders.
- Initiate automatic recording of the event.
Image 5.2: Spotlight alarm and mobile notification triggered by motion detection.
5.3 Meji-Ona Audio
Utilize the two-way audio feature to communicate through the camera. Tap the microphone icon in the app to speak, and the sound will be projected through the camera's speaker. You can also hear audio from the camera's vicinity through your phone.

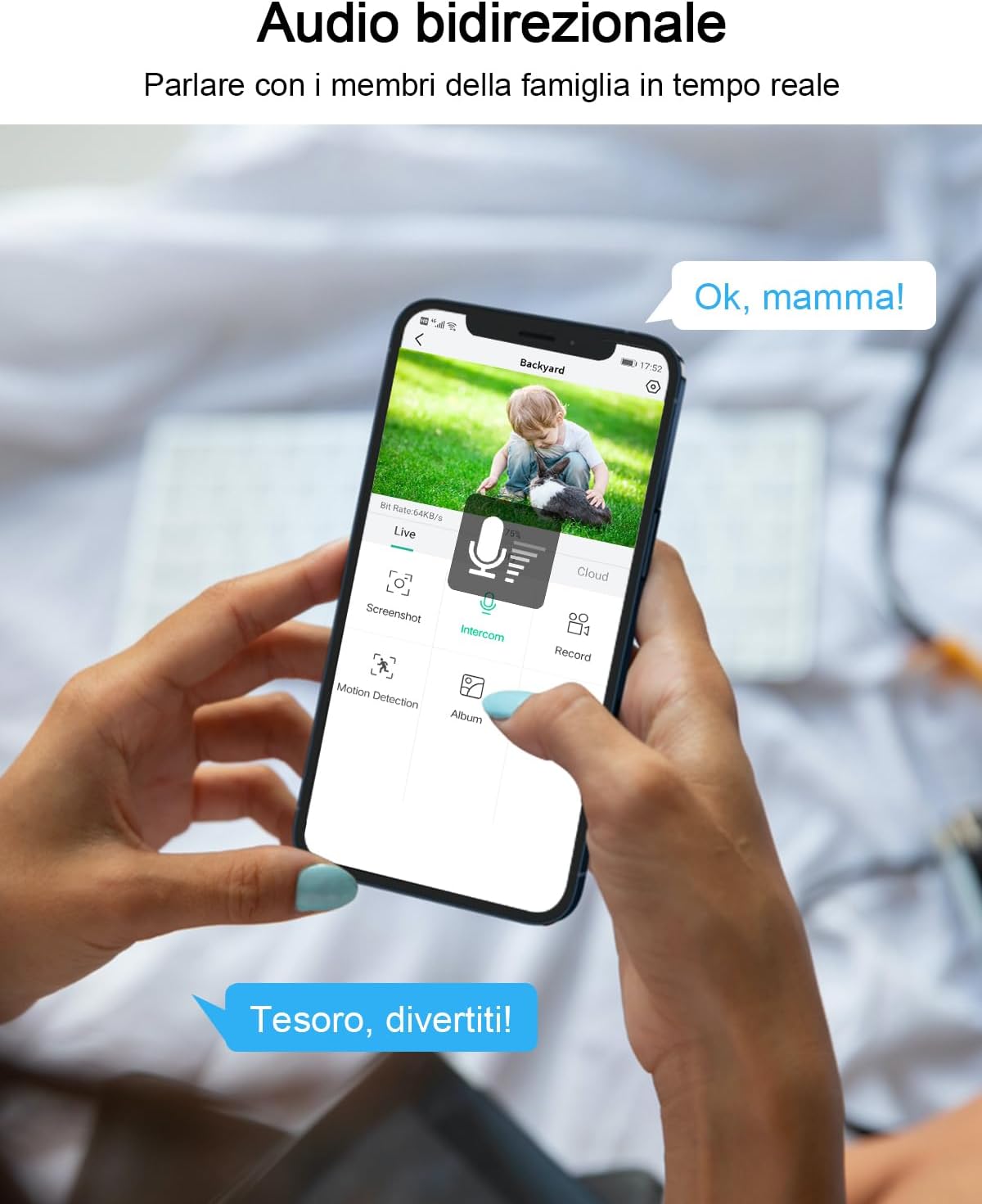

Image 5.3: Demonstrating two-way audio communication via the mobile app.
5.4 Night Vision
The camera offers enhanced night vision capabilities. In low-light conditions, it can automatically switch to infrared (black and white) night vision. With its integrated spotlights, it can also provide full-color night vision when activated, offering clearer details.
Image 5.4: Comparison of standard night vision and color night vision.
5.5 Àwọn àṣàyàn gbígbàsílẹ̀
The camera supports continuous 24/7 recording or event-triggered recording. Footage can be stored locally on a microSD card (not included) inserted into the camera's slot, or via cloud storage services (subscription may be required).
Image 5.5: Camera with microSD card slot for local storage and app interface for reviewawọn gbigbasilẹ.
6. Itọju
6.1 Ninu
To maintain optimal image quality, regularly clean the camera lens with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could scratch the lens or housing.
6.2 famuwia imudojuiwọn
Periodically check the mobile application for available firmware updates. Keeping your camera's firmware up-to-date ensures access to the latest features, security enhancements, and performance improvements.
7. Laasigbotitusita
Awọn oran ti o wọpọ ati Awọn ojutu:
- Aisinipo kamẹra:
- Ṣayẹwo asopọ agbara.
- Ensure WiFi signal strength is adequate at the camera's location.
- Restart the camera and your WiFi router.
- Didara Aworan Ko dara:
- Nu lẹnsi kamẹra nu.
- Ensure sufficient lighting for optimal night vision.
- Ṣayẹwo iyara asopọ intanẹẹti rẹ.
- Iwari išipopada Ko Ṣiṣẹ:
- Verify motion detection settings in the app (enabled, sensitivity, detection zones).
- Rii daju pe kamẹra wa view ko ni idinamọ.
- Awọn ọran ohun Ona Meji:
- Check microphone and speaker permissions for the app on your phone.
- Ensure volume levels are adjusted correctly.
8. Awọn pato
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Awoṣe | P2-EU |
| Ipinnu | 2K (3MP effective fixed resolution) |
| Angle pan | Awọn iwọn 355 |
| Titẹ Igun | Awọn iwọn 90 |
| Asopọmọra | Wi-Fi (2.4GHz) |
| Orisun agbara | AC Power (12 Volts, 5 Watts) |
| Ibi ipamọ | MicroSD Card (not included), Cloud Storage |
| Pataki Awọn ẹya ara ẹrọ | HD Resolution, Motion Detection, Two-Way Audio, Spotlight, Color Night Vision |
| Lilo | Ita gbangba |
| Ohun elo | Ṣiṣu |
9. Atilẹyin ọja ati Support
ANRAN products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official ANRAN website. If you encounter any issues or require technical assistance, please contact ANRAN customer support through the contact information provided on their website or within the mobile application.
