Ọrọ Iṣaaju
This manual provides detailed instructions for the safe installation, operation, and maintenance of your LUXRITE 3 Inch Ultra Thin LED Recessed Lighting fixture. Please read this manual thoroughly before installation and retain it for future reference. This product is designed for both indoor and outdoor use in wet locations.
Alaye Aabo
- Always turn off power at the circuit breaker before beginning installation.
- Consult a qualified electrician if you are not familiar with electrical installations.
- Rii daju pe gbogbo awọn asopọ itanna ṣe ni ibamu pẹlu awọn koodu agbegbe ati awọn ilana.
- Má ṣe yí ohun èlò tàbí àwọn èròjà rẹ̀ padà.
- This fixture is rated for 120V AC.
- Suitable for use in IC (Insulation Contact) rated applications.
- Dara fun awọn ipo tutu.
Package Awọn akoonu
Rii daju pe gbogbo awọn paati wa ṣaaju fifi sori ẹrọ:
- LUXRITE 3 Inch Ultra Thin LED Recessed Light Fixture
- Apoti ipade
- Baffle Trim (integrated)
- Ilana itọnisọna
Ọja Awọn ẹya ara ẹrọ
- 5 Awọn aṣayan iwọn otutu awọ: Selectable between 2700K (Warm White), 3000K (Soft White), 3500K (Natural White), 4000K (Cool White), and 5000K (Bright White).
- Ti o le ṣe dimmable: Smooth dimming from 100% down to 10% output.
- Slim Canless Design: Requires only 2 inches of clearance space.
- Atọka Rendering Awọ Giga (CRI 90): Provides accurate color clarity.
- Igbesi aye gigun: Ti won won fun 50,000 wakati ti isẹ.
- Wet Rated & IC Rated: Dara fun damp and wet locations, and safe for direct contact with insulation.
- UL Listed & Energy Star Certified: Ṣe idaniloju ailewu ati ṣiṣe agbara.
Eto ati fifi sori
Follow these steps for proper installation of your recessed lighting fixture:
- Mura agbegbe fifi sori ẹrọ: Turn off power at the circuit breaker. Cut a 3.25-inch diameter hole in the ceiling at the desired location. Ensure there is at least 2 inches of clearance above the ceiling for the fixture.
- Open Junction Box: Open the driver box and remove the appropriate knockouts for your wiring.
- Asopọmọra Waya: Connect the corresponding wires from your power supply to the wires in the junction box (Black to Black, White to White, Ground to Ground). Secure connections with wire nuts.
- Yan Iwọn Awọ: Before closing the junction box, use the 5-color selectable switch located on the side of the junction box to choose your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K).
Image: The LUXRITE 3-inch ultra-thin LED recessed light fixture, showing the integrated light, spring clips, and the separate junction box with the 5-color selectable switch clearly visible on its side. This image illustrates the main components and the color selection feature.
- Apoti Isopọ to ni aabo: Place the junction box into the ceiling opening.
- Connect Fixture to Junction Box: Connect the male and female connectors between the light fixture and the junction box. Ensure a secure connection.
- Install Light Fixture: Push the spring-loaded clips on the light fixture upwards and insert the fixture into the ceiling hole. Release the clips to secure the fixture flush against the ceiling.
Aworan: A alaye view of the LUXRITE 3-inch LED recessed light fixture, showing its top-down diameter of 3.62 inches and a side profile illustrating its slim 1.38-inch depth and 2-inch light opening. This image provides critical dimensional information for installation.
Dimmers ibaramu
For optimal dimming performance, use with compatible LED dimmers. Refer to the list below for recommended dimmer models:
- Lutron: CTCL-153P, DVCL-153P, S-600P, SLV-600P, CN-600P, DVWCL-153P, CTCL-153PR, DVCL-153PR
- Leviton: 6672

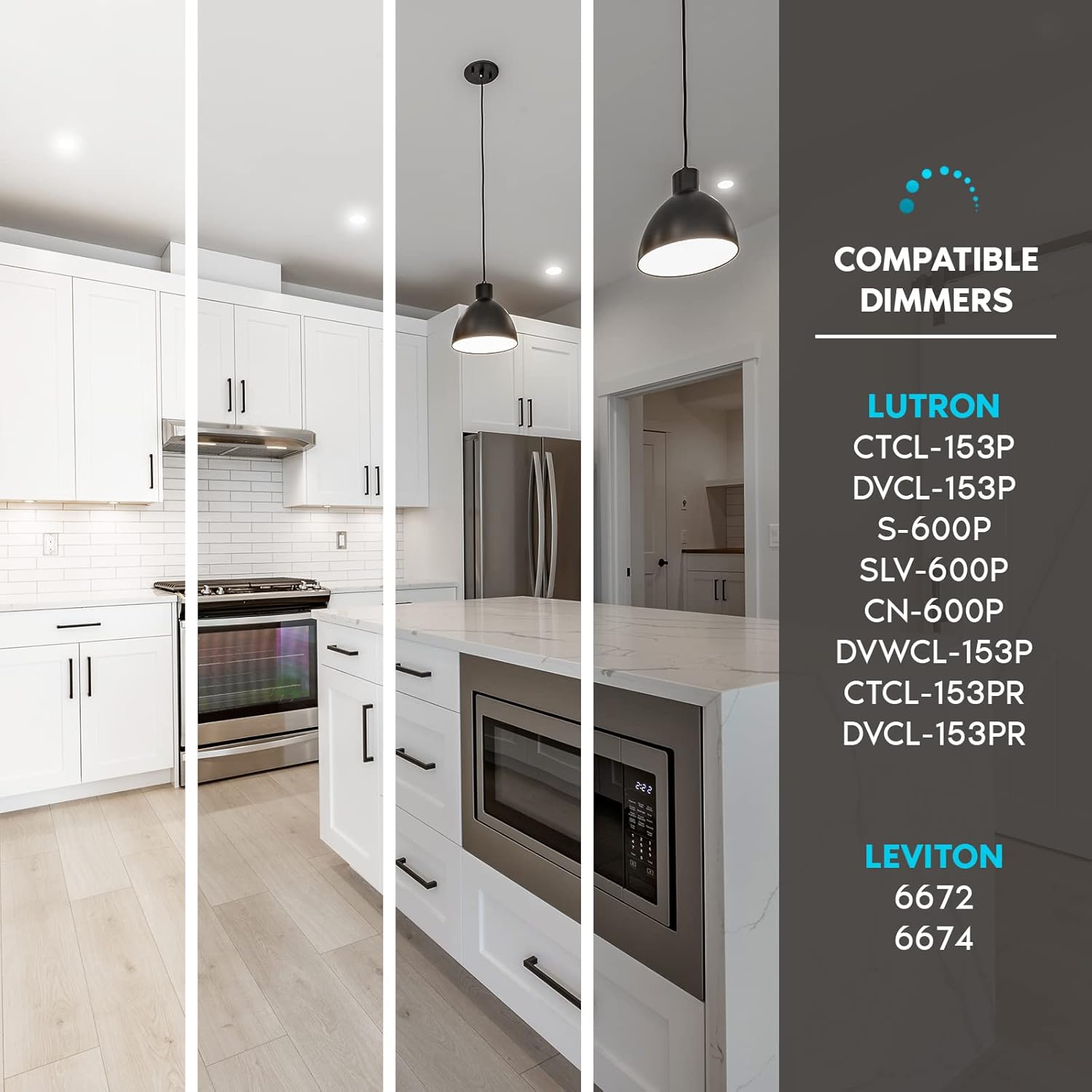

Image: A visual representation of compatible dimmer switches, listing specific model numbers from Lutron and Leviton. This image helps users select appropriate dimmers for their LUXRITE recessed lights.
Awọn ilana Iṣiṣẹ
Aṣayan iwọn otutu awọ
The LUXRITE 3 Inch LED Recessed Light features a 5-color selectable switch on the junction box. This switch allows you to choose from five distinct color temperatures to match your preference or room ambiance:
- 2700K: Warm White, ideal for cozy and inviting spaces.
- 3000K: Soft White, a slightly brighter warm tone.
- 3500K: Natural White, a balanced neutral light.
- 4000K: Cool White, a crisp and energetic light.
- 5000K: Bright White, a vibrant and clear light, similar to daylight.
To change the color temperature, ensure the power is off at the circuit breaker. Access the junction box and slide the switch to your desired setting. Restore power to see the selected color temperature. This setting is typically done once during installation.

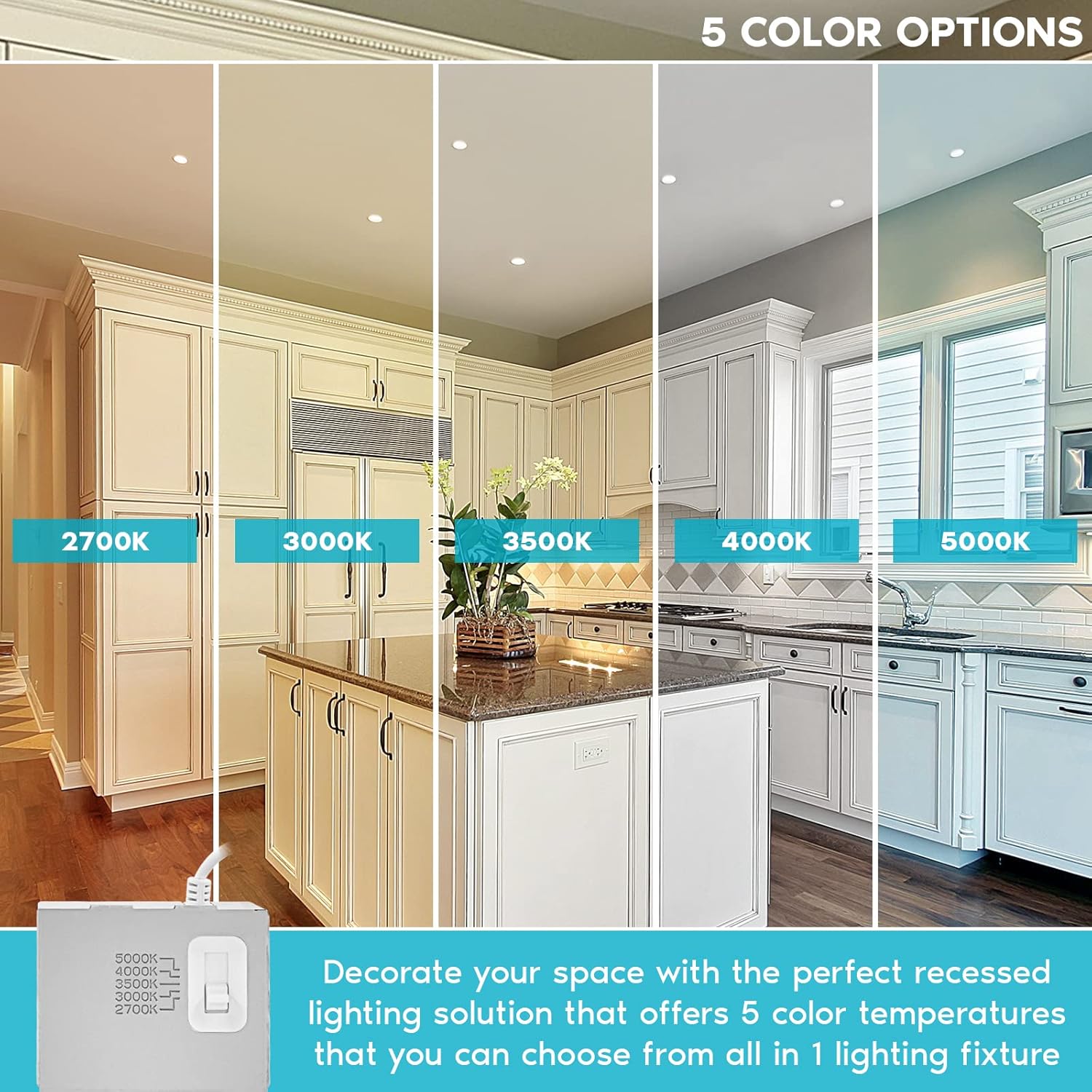

Image: A series of five panels demonstrating the different color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) in a kitchen environment. This visual aid helps users understand the effect of each color temperature setting.
Itoju
The LUXRITE LED Recessed Light is designed for long-term, maintenance-free operation. No bulb replacement is necessary.
- Ninu: Láti nu ohun èlò ìṣiṣẹ́ náà, rí i dájú pé agbára náà ti pa. Lo ohun èlò tó rọ̀, tó gbẹ, tàbí tó ní ìdè díẹ̀.amp asọ. Ma ṣe lo abrasive ose tabi epo.
- Ayewo: Máa ṣe àyẹ̀wò ẹ̀rọ náà lẹ́ẹ̀kọ̀ọ̀kan fún àwọn àmì ìbàjẹ́ tàbí àwọn ìsopọ̀ tí ó bàjẹ́. Tí a bá rí ìṣòro kankan, pa iná kí o sì kan sí onímọ̀ iná mànàmáná tó mọ̀ nípa rẹ̀.
Laasigbotitusita
If you encounter issues with your LUXRITE LED Recessed Light, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Imọlẹ ko tan | Ko si ipese agbara Loose onirin asopọ Incorrect color temperature switch setting | Ṣayẹwo Circuit fifọ ati odi yipada. Turn off power, check and secure all wire connections in the junction box. Turn off power, ensure the color temperature switch is set to a valid position. |
| Ina flickers | Iyipada dimmer ti ko ni ibamu Loose onirin asopọ | Ensure you are using a compatible LED dimmer (refer to 'Compatible Dimmers' section). Pa agbara, ṣayẹwo ki o si so gbogbo awọn asopọ waya mọ. |
| Ina ti wa ni baìbai tabi ju imọlẹ | Dimmer eto Aṣayan iwọn otutu awọ | Ṣatunṣe dimmer yipada si ipele imọlẹ ti o fẹ. The perceived brightness can vary with color temperature. Adjust the CCT switch if a different light appearance is desired. |
Awọn pato
Detailed technical specifications for the LUXRITE 3 Inch Ultra Thin LED Recessed Lighting (Model LR23730):
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Brand | LUXRITE |
| Nọmba awoṣe | LR23730 |
| Iwọn | 3 Inṣi |
| Wattage | 6 Wattis |
| Imọlẹ | 400 Lumens |
| Iwọn otutu awọ | 2700K, 3000K, 3500K, 4000K, 5000K (Ó ṣeé yàn) |
| Atọka Rendering Awọ (CRI) | 90 |
| Voltage | 120 Volts |
| Dimmable | Bẹẹni (100%-10%) |
| Igba aye | Awọn wakati 50,000 |
| Awọn iwe-ẹri | UL Listed, Energy Star |
| Location Rating | Wet Rated, IC Rated |
| Ohun elo | Irin, Ṣiṣu |
| Ọja Mefa | 3.62 x 1.38 x 3.62 inches |
| Iwọn Nkan | 0.78 Poun (12.5 iwon) |
Image: An infographic summarizing key features and specifications of the LUXRITE recessed light, including 400 lumens, 6 watts, 50,000-hour lifetime, wet rating, dimmability, 5-color selection, 5-year warranty, Energy Star certification, CRI 90, and UL listing.
Atilẹyin ọja
LUXRITE provides a 5-odun atilẹyin ọja for this LED recessed lighting fixture. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, please refer to the official LUXRITE webojula tabi kan si atilẹyin alabara.
Onibara Support
For further assistance, technical support, or warranty inquiries, please contact LUXRITE customer service:
- Webojula: Visit the official LUXRITE webaaye fun FAQs ati awọn orisun atilẹyin.
- Imeeli: Refer to your product packaging or the LUXRITE webojula fun olubasọrọ imeeli.
- Foonu: Refer to your product packaging or the LUXRITE webojú-òpó wẹ́ẹ̀bù fún nọ́mbà fóònù olùbáṣepọ̀.
When contacting support, please have your product model number (LR23730) and purchase date available.
