1. Ifihan

This manual provides detailed instructions for the installation, operation, and maintenance of your OREiN 2-in-1 Bathroom Exhaust Fan with Light. This unit is designed to provide efficient ventilation and illumination for your bathroom, helping to reduce humidity and odors. Please read this manual thoroughly before installation and use, and retain it for future reference.

Image 1.1: The OREiN 2-in-1 Bathroom Exhaust Fan with Light, showcasing awọn oniwe-aso oniru ati ese ina.

2. Awọn ẹya Ọja

• Afẹfẹ ti o lagbara: Operates at 100 Cubic Feet Per Minute (CFM) to effectively remove moisture and odors from your bathroom.
• Isẹ idakẹjẹ: Engineered for quiet performance with a sound level of 1.5 Sones, ensuring minimal disturbance.
• Imọlẹ LED ti a ṣepọ: Features a bright 1500 lumen LED light for ample itanna.
• 3-Color Temperature Selectable (3CCT): Choose between 3000K (soft white), 4000K (bright white), or 5000K (daylight) to match your preference. The color temperature is selected via a toggle switch on the fan housing.
• Iṣẹ Imọlẹ alẹ: Includes a 2200K nightlight for low-level illumination in the dark. Activate by cycling the light switch within 2 seconds.
• DC Motor with Slow Start/Stop: Equipped with a durable DC motor that features a slow start and slow stop mechanism to protect the motor and extend its lifespan.
• Fifi sori Rọrun: Designed with a fast bracket for secure and straightforward installation between ceiling joists or directly to a joist.
• Ikole ti o tọ: Made from metal and plastic components for long-lasting use.
• Awọn iwe-ẹri: FCC and ETL Listed, ensuring compliance with safety and performance standards.

Image 2.1: Illustration of the 3-color temperature selectable feature (3000K, 4000K, 5000K) for the integrated LED light.

Image 2.2: Visual representation of the dimmable 3CCT light (19W, 1500LM) and the 200LM nightlight, with instructions for cycling the light switch to change modes.

3. Alaye Aabo

Lati dinku eewu ina, mọnamọna, tabi ipalara si eniyan, ṣe akiyesi atẹle naa:

• Iṣẹ fifi sori ẹrọ ati onirin itanna gbọdọ ṣee ṣe nipasẹ eniyan ti o peye ni ibamu pẹlu gbogbo awọn koodu ati awọn iṣedede to wulo, pẹlu awọn koodu ikole ti ina ati awọn iṣedede.
• Afẹ́fẹ́ tó tó ni a nílò fún jíjóná tó dára àti lílo àwọn èéfín láti inú èéfín (ẹ̀rọ ìdáná) ti àwọn ohun èlò ìdáná epo láti dènà ìfàsẹ́yìn. Tẹ̀lé ìlànà olùpèsè ohun èlò ìdáná àti àwọn ìlànà ààbò bíi èyí tí National Fire Protection Association (NFPA) tẹ̀ jáde, àti American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), àti àwọn aláṣẹ òfin agbègbè.
• Nigbati o ba ge tabi liluho sinu ogiri tabi aja, ma ṣe ba awọn onirin itanna jẹ ati awọn ohun elo miiran ti o farapamọ.
• Awọn egeb onijakidijagan gbọdọ wa ni idasilẹ nigbagbogbo si ita.
• Maṣe lo olufẹ yii pẹlu eyikeyi ẹrọ iṣakoso iyara ti o lagbara.
• Ẹyọ yii gbọdọ wa ni ilẹ.
• Maṣe fi sori ẹrọ ni agbegbe sise.
• A ṣe àgbékalẹ̀ ọjà yìí fún lílo afẹ́fẹ́ gbogbogbòò nìkan. Má ṣe lò ó láti mú kí àwọn ohun èlò tó léwu tàbí tó ń bú gbàù àti èéfín jáde.
• Lati yago fun bibajẹ motor ti nso ati ariwo ati/tabi aipin impellers, pa drywall sokiri, ikole eruku, ati be be lo pa agbara kuro.
• The fan is suitable for use in a shower or tub enclosure when installed in a GFCI protected branch circuit.

4. Package Awọn akoonu

Jọwọ ṣayẹwo akoonu inu apoti naa lati rii daju pe gbogbo awọn ẹya wa nibẹ ati pe ko bajẹ:

• OREiN 2-in-1 Bathroom Exhaust Fan with Light Unit
• Mounting Bracket (Fast Bracket)
• Installation Hardware (screws, wire connectors)
• Afowoyi Olumulo (iwe-ipamọ yii)

5. Awọn ilana fifi sori ẹrọ

Before beginning installation, ensure power is turned off at the circuit breaker. It is recommended to have a qualified electrician perform the installation.

5.1 Àwọn ìwọ̀n àti àwọn ohun tí a nílò

• Awọn Iwọn Ibugbe: 7.68" x 7.55" x 6.42" (L x W x H)
• Light Cover Size: 10.1" x 10.1"
• Ceiling Opening Size: 8.11" x 7.48"
• Iwon Iwo: 4 inches (yika)

Image 5.1: Detailed product dimensions and required ceiling opening size for installation.

5.2 Ṣíṣeto Ilé Afẹ́fẹ́

1. Identify the desired location for the fan. Ensure there is sufficient space in the ceiling cavity and access to an existing or new ducting system.
2. Cut a ceiling opening of 8.11" x 7.48".
3. Attach the fast bracket to the fan housing.
4. Mount the fan housing between ceiling joists using the fast bracket, or nail/screw it directly to a joist. Ensure the housing is securely fastened and flush with the ceiling surface.
5. Connect the 4-inch ductwork to the fan's exhaust port. Ensure the duct does not bend into the opening to block the damper. Use rigid or semi-rigid ducting for optimal performance.

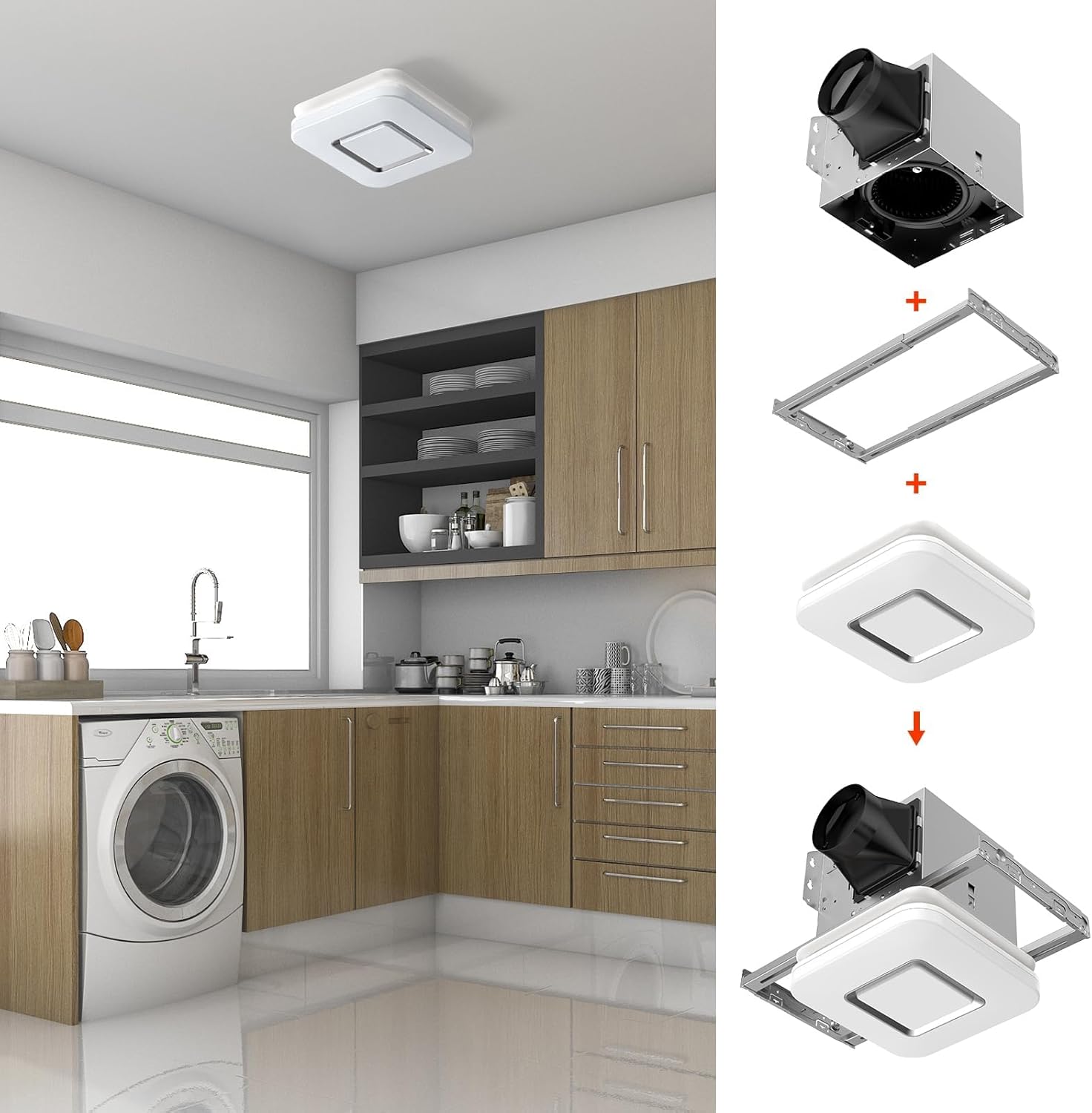

Image 5.2: Step-by-step visual guide for installing the fan housing and light cover.

5.3 Itanna onirin

All wiring must comply with local electrical codes. Ensure power is OFF before wiring.

1. Remove the wiring cover from the fan housing.
2. Connect the household wiring to the fan's wiring using appropriate wire connectors.
3. So okun waya ilẹ.
4. Ensure all connections are secure. Replace the wiring cover.

Image 5.3: Electrical wiring diagrams for single and dual switch configurations. Note the warning about ducting not blocking the damper.

5.4 Attaching the Light Cover

1. Once the housing is installed and wired, connect the light fixture's electrical connector to the receptacle inside the fan housing.
2. Carefully push the light cover into the ceiling opening until the mounting springs engage and hold it securely in place.

6. Awọn ilana Iṣiṣẹ

6.1 Selecting Light Color Temperature (3CCT)

The fan's LED light offers three color temperature options: 3000K (soft white), 4000K (bright white), and 5000K (daylight).

• To select your desired color temperature, locate the toggle switch on the back of the fan housing (before final installation of the light cover).
• Slide the switch to the corresponding setting for 3000K, 4000K, or 5000K.
• Once set, the light will operate at this color temperature when turned on.

6.2 Using the Nightlight Function

The fan includes a 2200K nightlight feature.

• To activate the nightlight mode, quickly turn the light switch OFF and then ON again within 2 seconds.
• The light will switch to the nightlight mode.
• To return to the main light mode, repeat the OFF-ON cycle.

7. Itọju

Regular maintenance helps ensure optimal performance and extends the lifespan of your exhaust fan. Always disconnect power before performing any maintenance.

7.1 Cleaning the Light Cover and Grille

• Gently pull down the light cover to detach it from the housing springs.
• Wipe the light cover and grille with a damp cloth using a mild, non-abrasive cleaning solution.
• Ma ṣe lo abrasive ose tabi epo.
• Ensure the cover is completely dry before reattaching.

7.2 Cleaning the Fan Motor and Blades

• With the light cover removed and power disconnected, carefully vacuum or wipe dust and debris from the fan motor and blades.
• Ma ṣe fi mọto naa sinu omi.
• Ensure no foreign objects are obstructing the fan blades.

Image 7.1: Diagram showing the internal components of the exhaust fan, including the DC motor, check valve, lampshade, and wind wheel (fan blades).

8. Laasigbotitusita

If you experience issues with your OREiN exhaust fan, refer to the following table for common problems and solutions.

Image 8.1: Visual comparison showing a bathroom before and after effective steam removal by the exhaust fan.

9. Awọn pato

10. Atilẹyin ọja ati Support

OREiN products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official OREiN webojula.

For technical support, troubleshooting assistance, or warranty claims, please contact OREiN customer service:

• Olubasọrọ: Wa fun "OREiN" online or contact through the Amazon platform.
• Foonu: 1(844)506-1530 (24-Hour Service)

Jọ̀wọ́ mú nọ́mbà àwòṣe rẹ (OL17002) àti ìwífún nípa ríra rẹ sílẹ̀ nígbà tí o bá ń kàn sí olùrànlọ́wọ́.

Image 10.1: OREiN customer service contact information for support inquiries.
