CaDA C61052W Farm Tractor Instruction Manual

Ọrọ Iṣaaju

Thank you for choosing the CaDA C61052W Farm Tractor building set. This manual provides essential information for the assembly, operation, maintenance, and troubleshooting of your remote-controlled farm tractor model. Please read these instructions carefully before beginning assembly or operation to ensure proper use and to maximize your enjoyment of the product.

Alaye Aabo

• Iṣeduro ọjọ ori: This product is recommended for users aged 8 years and older. It contains small parts that may pose a choking hazard for younger children.
• Abojuto Agba: Adult supervision is recommended during assembly and operation, especially for younger users.
• Aabo Batiri:
  • Maṣe dapọ atijọ ati awọn batiri titun.
  • Maṣe dapọ ipilẹ, boṣewa (carbon-zinc), tabi awọn batiri gbigba agbara (nickel-cadmium).
  • Fi awọn batiri sii pẹlu polarity to pe (+ ati -).
  • Yọ awọn batiri ti o ti re kuro ni kiakia.
  • Maṣe ṣe awọn ebute batiri kukuru kukuru.
  • Yọ awọn batiri kuro ti ọja ko ba ni lo fun igba pipẹ.
• Ayika Ṣiṣẹ: Operate the model in a safe, open area, away from obstacles, people, and pets. Avoid operating near water or in wet conditions.
• Ewu Gbigbọn: Keep all small parts and packaging materials away from infants and young children.

Package Awọn akoonu

The CaDA C61052W Farm Tractor set includes the following components:

• Building blocks for the CaDA C61052W Farm Tractor model
• Building blocks for the detachable plough attachment
• 2 x M Size Pro Motors
• 1 x Servo Pro Motor
• 1 x L Size Pro Motor
• 1 x Lipo Battery Box (requires rechargeable LiPo battery, not included)
• 1 x 2.4GHz Radio Control (requires 2 x AA batteries, not included)
• Ilana itọnisọna (iwe yii)
• Assembly guide (separate booklet)

Aworan: Pariview of the CaDA C61052W Farm Tractor's main components, including various motors, the Lipo battery box, and the 2.4GHz remote control unit.

Image: The retail packaging for the CaDA C61052W Farm Tractor, showing the assembled model and remote control.

Ṣeto

1. Apejọ

The CaDA C61052W Farm Tractor is a self-assembly model. Please refer to the separate, detailed assembly guide provided in the box for step-by-step instructions on how to construct the tractor and its plough attachment. Follow the instructions carefully to ensure all parts are correctly connected and the mechanical functions operate as intended.

2. Fifi sori batiri

Batteries are required for both the tractor's Lipo Battery Box and the 2.4GHz Radio Control unit. Batteries are not included in the package.

• For the Tractor (Lipo Battery Box): Install a compatible rechargeable LiPo battery (not included) into the Lipo Battery Box according to the instructions in the assembly guide. Ensure correct polarity.
• Fun Iṣakoso Latọna jijin: Open the battery compartment on the back of the 2.4GHz Radio Control unit. Insert 2 x AA alkaline batteries (not included), ensuring correct polarity (+ and -). Close the battery compartment securely.

Awọn ilana Iṣiṣẹ

1. Awọn iṣẹ Iṣakoso latọna jijin

The 2.4GHz Radio Control unit allows for comprehensive control of the CaDA C61052W Farm Tractor. Familiarize yourself with the controls as illustrated below:

Image: The remote control unit, highlighting controls for driving, steering, hitch lift, indicator light, rotating plough, and power switch.

• Agbara Yi pada: Turns the remote control unit on/off.
• Wiwakọ: Controls forward and backward movement of the tractor.
• Itọnisọna: Controls the left and right steering of the front wheels.
• Hitch Lift: Raises and lowers the rear hitch mechanism, which connects to the plough.
• Imọlẹ Atọka: Provides status feedback for the remote control.
• Rotating Plough: Activates the 180-degree rotation function of the plough.

2. Plough 180° Rotation

The attached plough features a realistic 180-degree rotation function, simulating real farm work. This function is controlled via the remote control.

• Use the designated control on the remote to initiate the plough's rotation.
• The plough can rotate to its opposite position and back to its original position.
• During rotation, the model's wheels may automatically adjust position to facilitate the movement.

Image: The CaDA C61052W Farm Tractor demonstrating the 180-degree rotation capability of the plough attachment and the automatic wheel adjustment.

3. Detaching the Plough

The plough attachment can be detached from the tractor, allowing the tractor to be operated independently. This modular design enhances playability.

• To detach, carefully uncouple the plough from the tractor's rear hitch mechanism. Refer to the assembly guide for specific detachment steps.
• Once detached, the tractor can be controlled via the remote without the plough.

Image: The CaDA C61052W Farm Tractor shown with its plough attachment separated, demonstrating its modular design.

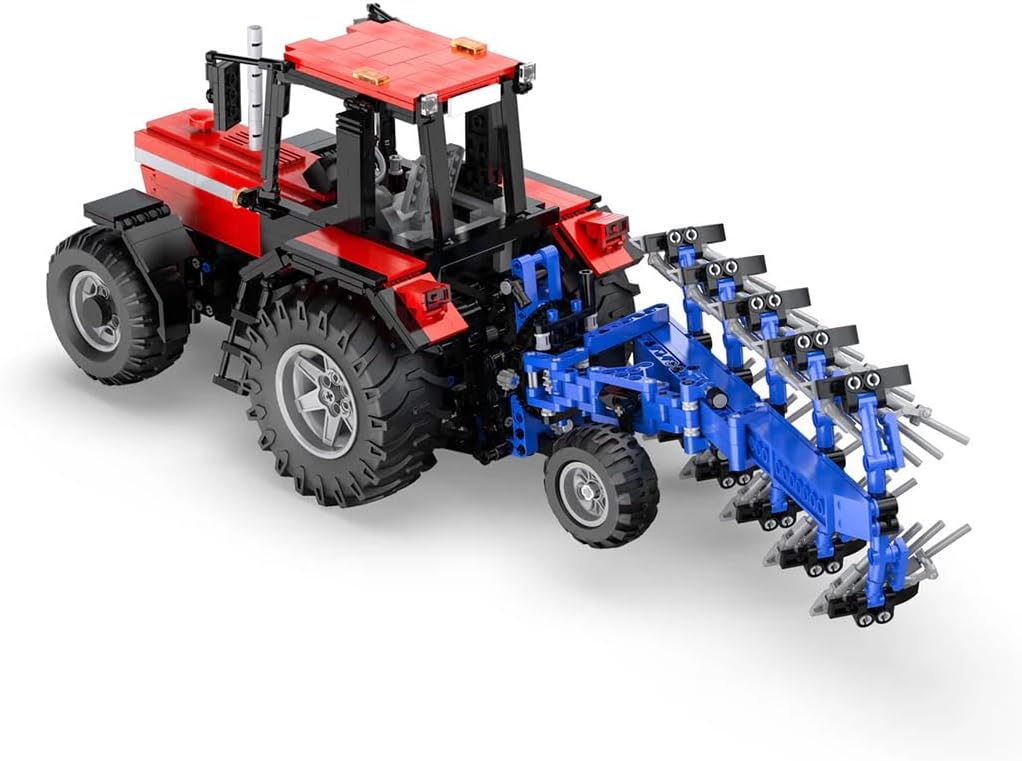

Aworan: A iwaju-ẹgbẹ view of the fully assembled CaDA C61052W Farm Tractor with the plough attachment.

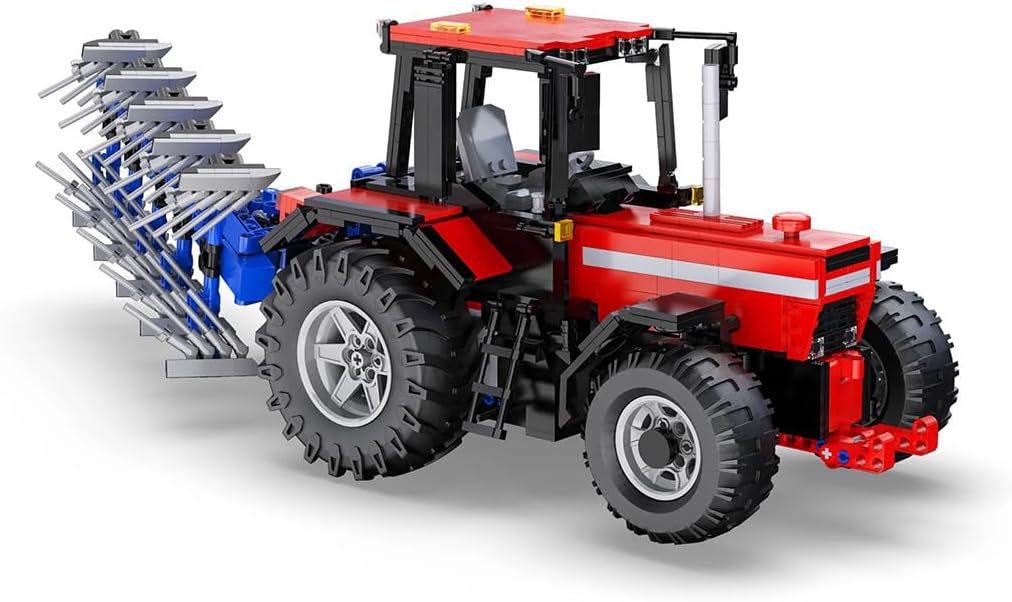

Image: A rear-side view of the fully assembled CaDA C61052W Farm Tractor with the plough attachment.

Itoju

• Ninu: Use a soft, dry cloth to clean the model. Avoid using water or chemical cleaners, as they may damage the electronic components or plastic parts.
• Ibi ipamọ: Store the model in a cool, dry place, away from direct sunlight and extreme temperatures.
• Itọju Batiri: Remove batteries from both the tractor and the remote control if the model will not be used for an extended period to prevent leakage and damage.
• Charging LiPo Battery: If using a rechargeable LiPo battery (not included), ensure it is charged according to the battery manufacturer's instructions. Note that accessing the Lipo Battery Box for charging may require partial disassembly of the model.
• Iwa ododo apakan: Periodically check all connections and parts to ensure they are secure. Re-tighten or re-assemble any loose components as needed.

Laasigbotitusita

If you encounter issues with your CaDA C61052W Farm Tractor, please refer to the following common problems and solutions:

Awọn pato

Atilẹyin ọja ati Support

Information regarding specific warranty terms for the CaDA C61052W Farm Tractor is not available in this document. Please refer to the product packaging or contact your retailer for warranty details.

Information on the availability of spare parts is currently unavailable.

For further assistance or technical support, please contact the retailer or manufacturer directly using the contact information provided with your purchase.
