OKG Ultra Security Motorcycle Chain Lock User Manual

Ọrọ Iṣaaju

This manual provides comprehensive instructions for the proper use, setup, operation, and maintenance of your OKG Ultra Security Motorcycle Chain Lock. Designed for maximum protection, this heavy-duty lock system is suitable for securing motorcycles, e-bikes, ATVs, trailers, mopeds, generators, and various yard tools. Please read this manual thoroughly before first use to ensure optimal performance and longevity of your security product.

Ọja Awọn ẹya ara ẹrọ

• 12mm (1/2 inch) Hexagonal Chain Links: Constructed from advanced triple heat-treated boron manganese anti-rust steel for extreme strength. The narrower inner width of individual links is designed to prevent bolt cutter and leverage attacks.
• Reinforced U-Lock Shackle: Features a shrouded lock shell and a 16mm hardened MAX-Performance steel shackle with a hardened double deadbolt locking mechanism. This provides ultimate protection against hand tools, bolt cutters, saws, and leverage attacks.
• High Security Cylinder: Equipped with a stainless steel disc-style cylinder featuring reinforced anti-drill, anti-saw, and anti-pull protection systems.
• Cinch Loop Circle Link: An effective design that extends the chain's flexibility, allowing users to connect their vehicle to another vehicle or a fixed object (e.g., anchorage element, tree, fence, lamppost), reducing bulk to carry.
• Durable Chain Sleeve: A weather-resistant, highly flexible embroidered sleeve with a hook-n-loop fastener allows for compact coiling and protects the bike or motorbike surface from scratches.
• Sliding Dust-Cover: Protects the lock cylinder from dirt, debris, and corrosion, extending its lifespan.
• User-Friendly Keys: Includes 4 brass steel "I" user-friendly reversible keys with an ergonomic design.

Package Awọn akoonu

Nígbà tí o bá ṣí àpò náà, jọ̀wọ́ rí i dájú pé gbogbo àwọn èròjà náà wà níbẹ̀ àti pé wọ́n wà ní ipò tó dára:

• 1 x Heavy Duty Security Chain (5.0 ft length)
• 1 x Heavy Duty Small U-Lock
• 4 x awọn bọtini

Image: The complete OKG Ultra Security Motorcycle Chain Lock package, including the chain, U-lock, and four keys.

Awọn ilana iṣeto

1. Yọ awọn ohun elo kuro: Carefully remove the chain lock, U-lock, and keys from their packaging.
2. Ṣayẹwo fun ibajẹ: Before first use, visually inspect all components for any signs of shipping damage or manufacturing defects. If any issues are found, do not use the product and contact customer support.
3. Idanimọ bọtini: Familiarize yourself with the keys. All four keys are identical and can be used interchangeably. Keep at least one spare key in a secure location separate from the lock.
4. Initial Lock Test: Insert a key into the U-lock cylinder and turn it to ensure the locking mechanism operates smoothly. The shackle should open and close without excessive force.

Awọn ilana Iṣiṣẹ

Securing Your Vehicle:

1. Position the Chain: Wrap the heavy-duty chain around a secure, immovable object (e.g., a lamppost, sturdy fence, or ground anchor) and through a non-removable part of your vehicle (e.g., wheel, frame).
2. Utilize the Cinch Loop: The chain features a cinch loop at one end. Pass the other end of the chain through this loop to create a tight fit around the object and your vehicle. This minimizes slack and makes it harder for thieves to manipulate the lock.
3. Attach the U-Lock: Once the chain is positioned, bring the two ends of the chain together. Insert both ends of the chain (or the cinch loop and the other end) into the shackle of the U-lock.
4. Lock the U-Lock: Insert one of the provided keys into the U-lock cylinder. Turn the key clockwise to engage the double deadbolt locking mechanism. Remove the key. Ensure the shackle is fully closed and the lock is secure by attempting to pull it apart.

Image: A motorcycle's front wheel secured with the OKG chain lock, wrapped around a fixed pole for enhanced security.

Image: The OKG chain lock and U-lock securing the rear wheel of a motorcycle, demonstrating a common locking method.

Unlocking Your Vehicle:

1. Fi Bọtini sii: Slide the dust cover away from the keyhole. Insert a key into the U-lock cylinder.
2. Yipada bọtini: Yí kọ́kọ́rọ́ náà padà sí ọ̀nà òdìkejì láti yọ ẹ̀rọ ìdènà kúrò.
3. Remove U-Lock: Once unlocked, the shackle will release. Carefully remove the U-lock from the chain.
4. Remove Chain: Unwind the chain from your vehicle and the fixed object.

Itoju

Regular maintenance will ensure the smooth operation and longevity of your OKG Ultra Security Chain Lock.

• Lubrication: Periodically (every 3-6 months, or more frequently in harsh environments) apply a small amount of graphite-based lubricant or a silicone spray to the U-lock cylinder. Avoid oil-based lubricants as they can attract dirt.
• Ideri Ekuru: Always ensure the sliding dust cover is closed when the lock is not in use to protect the cylinder from dirt, moisture, and debris.
• Chain Sleeve Care: The embroidered chain sleeve can be wiped clean with a damp asọ. Yẹra fun awọn kẹmika lile ti o le ba aṣọ jẹ.
• Abojuto bọtini: Keep your keys clean and dry. Avoid bending or forcing keys into the lock. If a key becomes difficult to insert or turn, do not force it.

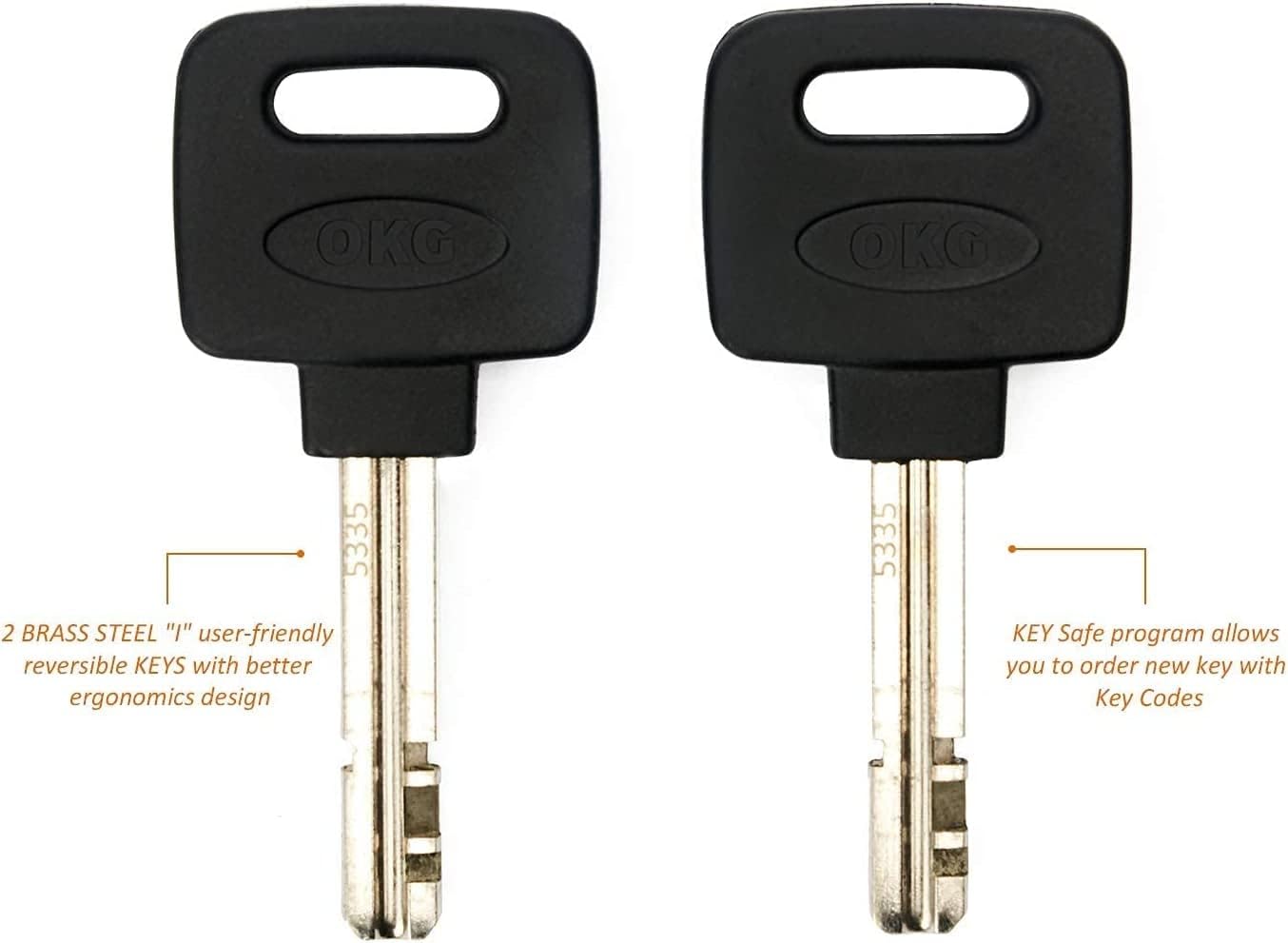

Aworan: A sunmọ-soke view of the two brass steel "I" user-friendly reversible keys, highlighting their ergonomic design.

Laasigbotitusita

Awọn pato

Image: Detailed dimensions of the OKG U-lock, illustrating its size and shackle thickness for compatibility assessment.

Atilẹyin ọja ati Support

OKG is committed to providing high-quality security products. For any questions, concerns, or assistance with your OKG Ultra Security Motorcycle Chain Lock, please do not hesitate to contact our customer support team.

While specific warranty details are not provided in this manual, OKG products undergo rigorous safety, innovation, and quality testing. We encourage customers to retain their proof of purchase for any warranty claims.

For further information or to explore other OKG security solutions, please visit the official OKG store: OKG Store on Amazon.
