Gardena Sprinkler System Pop-up Sprinkler SD80

Ọja Pariview

The Gardena Pop-up Sprinkler SD80 is designed for efficient and even irrigation of small to medium-sized lawns up to 80 m². This sprinkler is installed underground, emerging only during operation and retracting discreetly when not in use. It features adjustable spray range and sector for precise watering.

This image displays the Gardena Pop-up Sprinkler SD80, highlighting its adjustable spray range of 3 to 5 meters, a sector adjustment from 5 to 360 degrees, and a 1/2 inch male thread connection.

Eto ati fifi sori

Proper installation ensures optimal performance of your Gardena Pop-up Sprinkler SD80. This sprinkler is designed for underground installation as part of a Gardena Sprinkler System.

Nsopọ si System

The sprinkler utilizes patented Quick & Easy connection technology. Screw the 1/2 inch male thread onto the Gardena Sprinkler System piping. Ensure all connections are secure to prevent leaks.

Adjusting Spray Range and Sector

The spray range can be adjusted continuously from 3 to 5 meters. The sector to be watered can be adjusted continuously between 5 and 360 degrees. These adjustments are tool-free, allowing for precise customization to your lawn's shape and size.

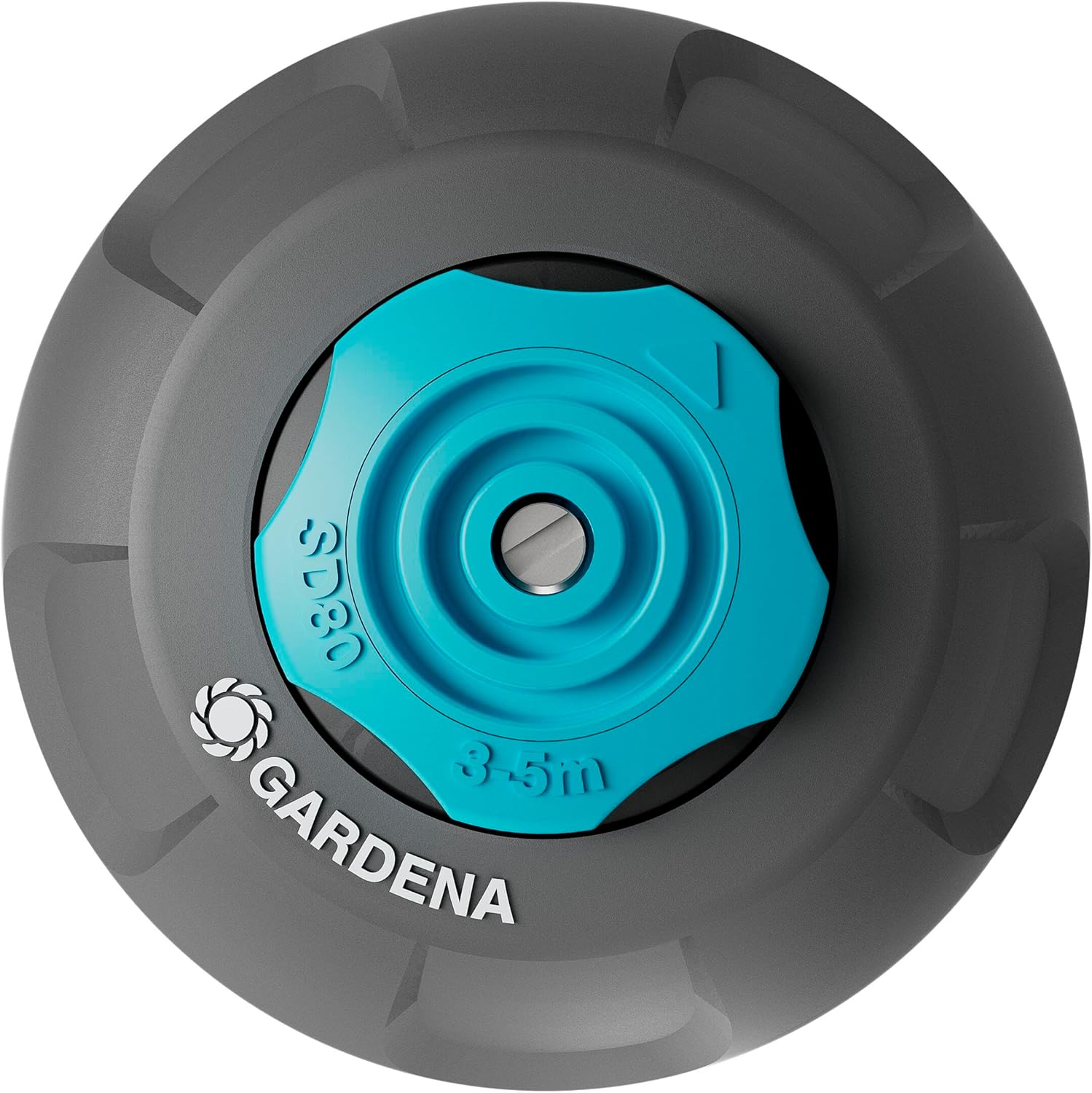

A close-up top view of the Gardena Pop-up Sprinkler SD80's nozzle, indicating the adjustable spray range from 3 to 5 meters and the sector adjustment mechanism.

Awọn ilana Iṣiṣẹ

Once installed and adjusted, the Pop-up Sprinkler SD80 operates automatically as part of your Gardena Sprinkler System. When water pressure is applied, the sprinkler head rises to deliver water, and retracts when the water supply is turned off.

Watering Coverage

The sprinkler is designed to provide even irrigation for areas up to 80 m². For optimal coverage, ensure proper placement and adjustment of multiple sprinklers if needed.

Combining Sprinklers

The Pop-up Sprinkler SD80 can be combined with other Gardena Pop-up Sprinklers, such as the SD30 (model 8241-20), to create a comprehensive irrigation system. It can also easily replace older Gardena S sprinklers.

An illustration of the Gardena Pop-up Sprinkler SD80 in operation, demonstrating its effective watering coverage across a lawn.

Itoju

Regular maintenance helps ensure the longevity and efficient operation of your sprinkler system.

Idọti Ajọ

The sprinkler features an integral dirt filter. Periodically inspect and clean this filter to prevent clogging and maintain consistent spray patterns. A clean filter reduces the frequency of nozzle replacement.

Water Supply Shut-off

The water supply to the sprinkler can be completely shut off if needed for maintenance or system adjustments.

This image provides a cutaway view of the Gardena Pop-up Sprinkler SD80, clearly showing the integrated dirt filter designed to prevent clogging.

Laasigbotitusita

If you encounter issues with your Pop-up Sprinkler SD80, consider the following common solutions:

• Apẹrẹ Sokiri Aidọgba: Check the nozzle for debris and clean the integral dirt filter. Ensure the spray sector and range are correctly adjusted.
• Sprinkler Not Rising/Retracting: Verify adequate water pressure in the system. Inspect for any obstructions around the sprinkler head. The internal mechanism might be jammed by dirt; clean the filter and flush the system if necessary.
• Njo: Check all connections, especially the 1/2 inch male thread, for tightness. Ensure O-rings or seals are properly seated and not damaged.
• No Water Output: Confirm the water supply to the sprinkler is not shut off. Check for blockages in the supply line or filter.

Awọn pato

The image illustrates the physical dimensions of the Gardena Pop-up Sprinkler SD80, measuring 16.5 cm (6.5 inches) in height and 5.4 cm (2.1 inches) in width.

Atilẹyin ọja ati Support

For warranty information or technical support, please refer to the official Gardena website or contact Gardena customer service directly. Keep your purchase receipt as proof of purchase.
