Cecotec Bolero Dresscode 7410 Front-Load Washing Machine User Manual

1. Ifihan

This manual provides essential information for the safe and efficient use of your Cecotec Bolero Dresscode 7410 front-load washing machine. Please read all instructions carefully before installation and operation. Keep this manual for future reference.

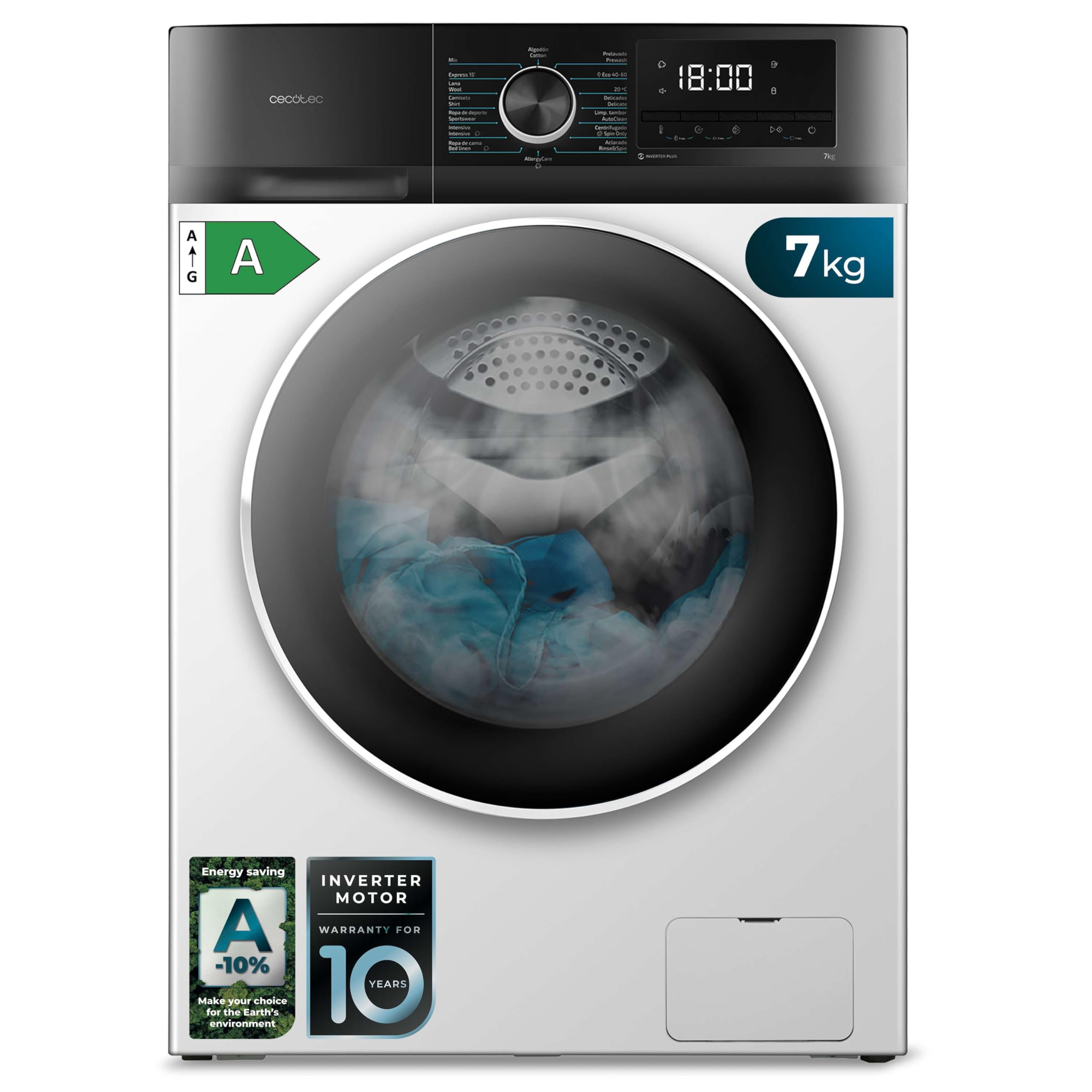

Aworan 1.1: Iwaju view of the Cecotec Bolero Dresscode 7410 washing machine, showing its overall dimensions of 85 cm height, 60 cm width, and 50 cm depth.

2. Awọn ilana aabo

Nigbagbogbo tẹle awọn iṣọra aabo ipilẹ nigba lilo awọn ohun elo itanna lati dinku eewu ina, mọnamọna, tabi ipalara.

• Rii daju pe ẹrọ fifọ ti wa ni ilẹ daradara.
• Ma ṣe ṣiṣẹ ẹrọ naa pẹlu okun agbara ti o bajẹ tabi pulọọgi.
• Pa awọn ọmọde ati awọn ohun ọsin kuro ninu ohun elo lakoko iṣẹ.
• Maṣe fi ọwọ kan ẹrọ pẹlu ọwọ tutu.
• Yọọ ohun elo ṣaaju ṣiṣe mimọ tabi itọju.
• Ma ṣe fọ awọn ohun kan ti a ti sọ di mimọ, ti a ti fọ sinu, ti a fi sinu rẹ, tabi ti o ti ri pẹlu awọn nkan ti o jona tabi awọn ohun ibẹjadi.

3. Eto ati fifi sori

3.1 Ṣiṣii silẹ

Carefully remove all packaging materials. It is crucial to remove the transit bolts located at the rear of the machine before use. These bolts secure the drum during transport and must be removed to prevent damage during operation.

3.2 Ibi ati Ipele

Place the washing machine on a firm, level surface. Adjust the leveling feet until the machine is perfectly stable and level. Use a spirit level to ensure accuracy. Proper leveling minimizes vibration and noise during operation.

Image 3.1: The washing machine correctly installed in a laundry setting, highlighting its energy efficiency rating.

3.3 Omi ati Agbara Awọn isopọ

• Wiwọle Omi: Connect the water inlet hose to a cold water tap and to the corresponding inlet on the back of the machine. Ensure connections are tight to prevent leaks.
• Sisọ okun: Gbe okun sisan sinu ibi iduro tabi si eti ifọwọ kan, ni idaniloju pe o wa titi ni aabo lati yago fun gbigbe lakoko gbigbe.
• Ibi ti ina elekitiriki ti nwa: Pulọọgi okun agbara sinu iṣan itanna ti ilẹ. Rii daju pe voltage ati igbohunsafẹfẹ baramu awọn pato ti ohun elo rẹ.

4. Awọn ilana Iṣiṣẹ

4.1 Iṣakoso igbimo Loriview

The washing machine features a central program selector dial and a touch display for additional settings and cycle information.

Aworan 4.1: alaye view of the control panel, showing the program selection dial and digital display for cycle settings.

4.2 ikojọpọ ifọṣọ

Open the door and load clothes loosely into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely. The maximum capacity is 7 kg.

Image 4.2: A user loading laundry into the washing machine's drum.

4.3 Fifi Detergent

Add the appropriate amount of detergent and fabric softener to the dispenser compartments. Refer to your detergent packaging for recommended dosages.

4.4 Eto Aṣayan

Turn the program selector dial to choose one of the 16 available programs:

• Illapọ
• Owu
• Super Sare
• Irinajo 40-60
• Kìki irun
• Ṣaaju
• Awọn seeti
• Idaraya
• lekoko
• Ọgbọ ibusun
• Itọju Ẹhun
• Omo / Sisan
• Yiyi
• Ilu Mọ
• Elege
• Owu 20°C

4.5 Awọn iṣẹ pataki

• SteamMax: Provides steam cleaning for tough stains and garment sterilization.
• Itọju Ẹhun: Sterilizes garments with steam up to 99.9%, effective even in cold water washes, eliminating germs and bacteria.
• Anti-wrinkle: Reduces creases in clothes, making ironing easier or potentially unnecessary.
• Ibẹrẹ Idaduro: Allows you to program the washing machine to finish at a desired time, fitting your schedule.
• My Fav: Saves your most frequently used program and settings for quick access.
• Ilu Mimọ: A dedicated program to clean the drum, preventing bacteria buildup and odors.

Image 4.3: Visual representation of the sterilization process, demonstrating the effectiveness of the Allergy Care function.

4.6 Bibẹrẹ Ayika

After selecting the program and any desired special functions, press the Start/Pause button to begin the wash cycle.

5. Itọju

Itọju deede ṣe idaniloju gigun ati iṣẹ ti o dara julọ ti ẹrọ fifọ rẹ.

5.1 Ìmọ́tótó ìlù

Use the dedicated 'Drum Clean' program periodically to remove detergent residue and prevent odors. Run this cycle without any laundry in the drum.

Image 5.1: The internal drum during a self-cleaning cycle, showing water jets for thorough cleaning.

5.2 Ìmọ́tótó Ẹ̀rọ Ìfọṣọ

Remove the detergent dispenser drawer and rinse it under running water to clear any accumulated detergent or softener residue. Clean the housing of the dispenser as well.

5.3 Filter Cleaning

Locate the drain pump filter, usually at the bottom front of the machine. Open the cover, drain any residual water, and carefully remove and clean the filter of lint and debris. Reinstall securely.

5.4 Ode Ninu

Mu ese ita ti ẹrọ fifọ pẹlu asọ, damp asọ. Yago fun abrasive ose tabi epo.

6. Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ alabara, tọka si awọn ọran ti o wọpọ ati awọn ojutu wọnyi:

7. Awọn pato

8. atilẹyin ọja Information

Your Cecotec Bolero Dresscode 7410 washing machine comes with a standard manufacturer's warranty. The Inverter motor is specifically covered by an extended 10-year warranty, ensuring long-term reliability and energy efficiency. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty card included with your product or visit the official Cecotec webojula.

9. Onibara Support

If you encounter any issues that cannot be resolved using the troubleshooting guide, or if you require further assistance, please contact Cecotec customer service. Our specialized support team is available to help you with any queries or service requests.

Ibi iwifunni:

• Refer to the contact details provided in your product packaging or on the official Cecotec webojula.
• When contacting support, please have your model number (Bolero Dresscode 7410) and purchase date ready.
