THOR Kitchen 36-Inch Gas Range with Tilt Panel and Self-Cleaning Oven

Ọrọ Iṣaaju

This instruction manual provides essential information for the safe and efficient operation, installation, and maintenance of your new THOR Kitchen 36-Inch Gas Range, Model TRG3601. Please read this manual thoroughly before using the appliance and retain it for future reference.

The TRG3601 is a professional-grade gas range featuring a stainless steel construction, high-powered burners, continuous grates, a commercial convection fan, and an easily accessible tilt panel touch control system. It is designed to enhance your cooking experience with versatile functionality.

Alaye Aabo pataki

IKILO: Lati dinku eewu ina, mọnamọna, ipalara si awọn eniyan, tabi ibajẹ nigba lilo ohun elo, tẹle awọn iṣọra ipilẹ, pẹlu atẹle naa:

• Ka gbogbo awọn ilana ṣaaju lilo ohun elo naa.
• Rii daju fifi sori ẹrọ to dara ati ilẹ nipasẹ olutẹtisi ti o peye.
• Maṣe lo ohun elo naa fun imorusi tabi gbigbona yara naa.
• Ma ṣe tọju awọn ohun elo ina sinu tabi nitosi ohun elo naa.
• Keep children away from the appliance. Do not allow children to climb or stand on the oven door or racks.
• Always have an ABC-type fire extinguisher accessible in the kitchen.
• Má ṣe fọwọ́ kan àwọn ohun èlò ìgbóná tàbí àwọn ohun èlò inú ààrò nígbà tí a bá ń lò ó tàbí lẹ́sẹ̀kẹsẹ̀ lẹ́yìn lílò.
• Lo awọn ikoko ti o gbẹ. Ọrinrin tabi damp potholders lori gbona roboto le ja si ni iná lati nya.
• Never leave surface burners unattended at high heat settings. Boil-over can cause smoking and greasy spill-overs that may ignite.
• Pa gbogbo awọn idari nigbagbogbo nigbati sise ba ti pari.

Eto ati fifi sori

The THOR Kitchen TRG3601 gas range is designed for freestanding installation. Proper installation is crucial for safety and optimal performance. It is recommended that installation be performed by a qualified professional.

Gaasi Asopọ

This appliance is factory-set for natural gas. An LP (Liquid Propane) conversion kit is included for conversion to propane gas, if required. The conversion process should only be performed by a qualified technician. Refer to the detailed instructions provided in the LP Conversion Kit for specific steps.

Ipele Ibiti

The range is equipped with adjustable legs to ensure it is perfectly level. Adjust the legs as needed to achieve a stable and level cooking surface.

Asopọ Itanna

Ensure the range is connected to a properly grounded electrical outlet as per local electrical codes.

Ọja Awọn ẹya ara ẹrọ

• High-Powered BTU Burners: Features burners ranging from a high-powered 18,000 BTU for rapid heating to a steady 650 BTU simmer function for delicate cooking.
• Tilt Panel Touch Controls: An easily accessible control panel that can be tilted or flattened, offering flexible control over cooktop and oven settings.
• True Convection Fan: An 800W heating element combined with a true convection fan ensures even heat distribution for optimal cooking and baking results.
• Air Fry Feature: Allows for healthier and crispier meals with reduced oil usage.
• Àwọn Gáàtì Irin Tí Ó Ń Tẹ̀síwájú: Provides a stable and continuous surface for moving cookware across burners.
• Ikole Irin Alagbara: Durable and professional aesthetic.
• Self-Cleaning Oven: Simplifies adiro itọju.
• Large Oven Capacity: 6.0 cubic feet oven capacity to accommodate various dishes.

Figure 1: Bottom storage drawer for cookware and accessories.

Awọn ilana Iṣiṣẹ

Ṣiṣẹ Cooktop

The cooktop features six sealed burners with varying BTU outputs. To ignite a burner:

1. Ensure all grates are properly seated.
2. Push in the desired burner control knob and turn it counter-clockwise to the "HI" position.
3. The igniter will click, and the burner will light. Once lit, adjust the knob to the desired flame size (HI, MED, LO, or SIMMER).
4. If the burner does not light within 5 seconds, turn the knob to "OFF" and wait for one minute before trying again.

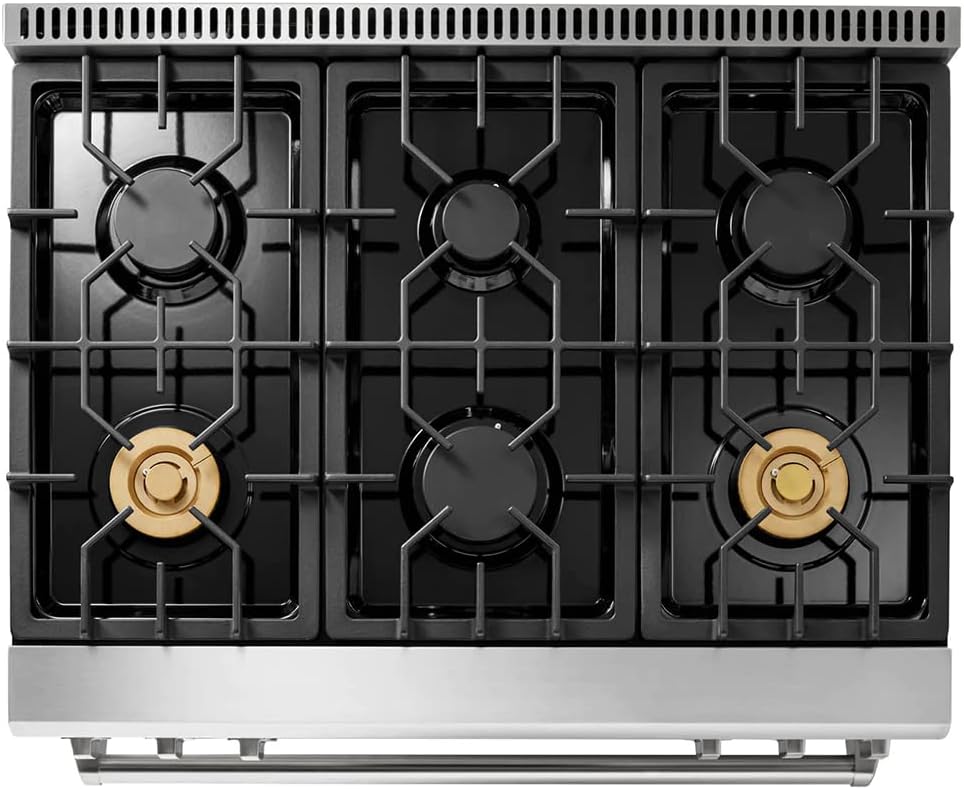

olusin 2: Top view of the cooktop showing six burners and continuous cast iron grates.

Figure 3: Close-up of a lit gas burner with a blue flame.

The continuous cast iron grates allow for easy movement of pots and pans across the cooking surface.

Isẹ adiro

The oven offers various cooking modes, including Bake, Roast, Broil, Air Fry, and True Convection. The tilt panel provides intuitive touch controls for setting temperature, time, and cooking functions.

1. Agbara Tan: Press the power button on the tilt panel to activate the display.
2. Yan Ipo: Choose your desired cooking mode (e.g., BAKE, AIR FRY, ROAST) from the touch panel.
3. Ṣeto iwọn otutu: Use the +/- buttons on the touch panel to set the desired temperature.
4. Bẹrẹ Sise: Press the START button. The oven will begin preheating.
5. Fan Convection: The True Convection fan can be activated for more even cooking. Refer to the control panel for the specific convection fan button.
6. Imọlẹ adiro: The oven interior light can be turned on or off using the dedicated light button on the control panel.

olusin 4: Iwaju view of the range with the tilt panel display.

Figure 5: Oven interior with racks and convection fan visible.

The oven features multiple rack positions to accommodate different cooking needs. The large oven capacity of 6.0 cubic feet is suitable for various dishes, from small casseroles to large roasts.

Itọju ati Cleaning

Àyíká Ìfọ̀kànbalẹ̀

The oven is equipped with a self-cleaning function to simplify maintenance. Follow these steps for a self-clean cycle:

1. Remove all oven racks and accessories before starting the self-clean cycle.
2. Wipe up any loose soil or spills.
3. Select the "CLEAN MODE" option on the tilt panel.
4. Follow the on-screen prompts to start the cycle. The oven door will lock automatically.
5. Once the cycle is complete and the oven has cooled, wipe away any ash residue with a damp asọ.

Cooktop Cleaning

• Jẹ́ kí ibi tí a fi ń sè oúnjẹ àti àwọn àwo oúnjẹ náà tutù pátápátá kí o tó fi wọ́n sí mímọ́.
• Remove cast iron grates and burner caps. Clean with warm, soapy water.
• Wipe the stainless steel surface with a soft cloth and a mild detergent or stainless steel cleaner. Avoid abrasive cleaners.

Ita Cleaning

For the stainless steel exterior, use a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain to prevent streaking.

Laasigbotitusita

Ṣaaju ki o to kan si iṣẹ alabara, jọwọ tọka si awọn ọran ti o wọpọ ati awọn ojutu wọnyi:

For issues not listed here or if problems persist, please contact THOR Kitchen customer support.

Awọn pato

• Orukọ Brand: Thor idana
• Orukọ awoṣe: THOR Kitchen 36-Inch Gas Range with Tilt Panel and Self-Cleaning Oven
• Nọmba awoṣe: TRG3601
• ASIN: B0BW5GP5X1
• Awọn iwọn ọja: 36 x 29.4 x 36 inches
• Ìwọ̀n Nkan: 232 iwon
• Agbara: Ẹsẹ̀ Onígun 6 (Ààrò)
• Iru fifi sori ẹrọ: Sisun
• Ohun elo: Irin ti ko njepata
• Pari Iru: Didan
• Iru adina: Ti di edidi
• Awọn eroja alapapo: 6 (Cooktop)
• Konsolo Iṣakoso: Touch (Tilt Panel)
• Awọn agbeko: 3 (Oven)
• Irú apọn: Sise

Atilẹyin ọja ati Support

For warranty information, please refer to the warranty card included with your product or visit the official Thor Kitchen website. For technical support, service requests, or to order replacement parts, please contact Thor Kitchen customer service.

Atilẹyin Ayelujara: www.thorkitchen.com

Please have your model number (TRG3601) and serial number ready when contacting support.
