podofo 8 CORE 6G+128G Car Stereo Radio for Honda Civic 2006-2011 User Manual

1. Ọja Ipariview

This manual provides instructions for the podofo 8 CORE 6G+128G Car Stereo Radio, designed specifically for Honda Civic models from 2006 to 2011. This head unit features a 10.1-inch IPS touch screen, Android 13 operating system, wireless CarPlay and Android Auto, GPS navigation, Wi-Fi, Bluetooth, 32-band DSP audio, and supports steering wheel controls and an HD rear camera.

Aworan: Pariview of the podofo car stereo highlighting compatibility with Honda Civic 2006-2011 and its core specifications (8 Core, 6GB RAM, 128GB ROM).

Awọn ẹya pataki:

• Awọn awoṣe to wulo: Honda Civic 2006-2011.
• Eto isesise: Android 13.0 with 8 Core CPU, 6GB RAM, and 128GB ROM.
• Ifihan: 10.1-inch IPS touch screen with 1280x720P resolution, supporting split screen and multiple UI themes.
• Asopọmọra: Wireless and wired CarPlay / Android Auto, built-in WiFi, Bluetooth 5.0, Dual USB ports.
• Ohun: 32-band DSP for precise sound adjustments and improved clarity.
• Lilọ kiri: GPS navigation with support for online and offline maps.
• Awọn ẹya afikun: Steering Wheel Control (SWC), Mirroring Link, FM RDS radio, subwoofer output, Dual Mic, HD Rear Camera (included).

2. Eto ati fifi sori

The podofo car stereo is designed for plug-and-play installation with the provided wiring harness. Ensure your vehicle is compatible before proceeding with installation.

2.1 Ayẹwo ibamu

This unit is compatible with Honda Civic models from 2006 to 2011 that have a standard factory radio system. It is ko ni ibamu with original car radio systems featuring built-in navigation or a large screen (high configuration models).

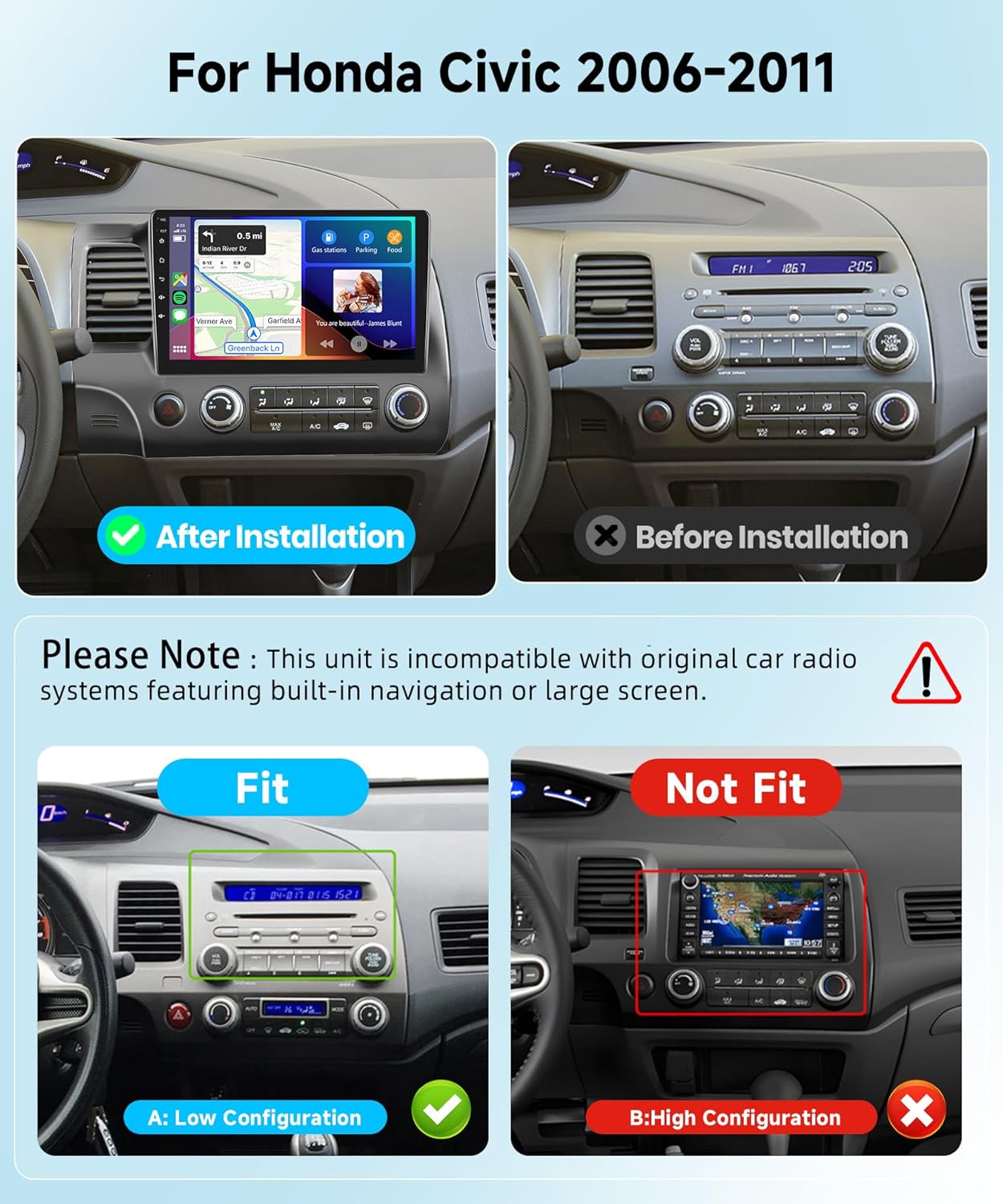

Image: Visual guide illustrating compatible (low configuration) and incompatible (high configuration with built-in navigation) Honda Civic dashboards.

2.2 Package Awọn akoonu

Jẹrisi pe gbogbo awọn paati wa ninu package:

• Android Car Stereo Head Unit
• Okun agbara
• Àwọn okùn ìṣíwọlé/ìjáde RCA
• Okùn Ìtẹ̀síwájú Kámẹ́rà
• USB Cables (Dual)
• Eriali GPS
• Eriali Redio
• Gbohungbohun ita
• HD Kamẹra Afẹyinti
• Afowoyi Olumulo (iwe-ipamọ yii)
• Installation Tool (if included)

Image: Detailed diagram of the package list, showing the main unit and all included accessories and cables.

2.3 Basic Installation Steps (General Guide)

1. Ge batiri kuro: Ṣaaju ki o to bẹrẹ, ge asopọ ebute odi ti batiri ọkọ rẹ lati ṣe idiwọ awọn kukuru itanna.
2. Yọ Redio Factory kuro: Carefully remove the existing factory radio and trim panels. Refer to a vehicle-specific guide or professional assistance if unsure.
3. Sopọ Ijanu Waya: Connect the provided plug-and-play wiring harness to your vehicle's factory harness.
4. Awọn Agbeegbe Sopọ:
   • Eriali GPS: So eriali GPS naa si ipo kan pẹlu aaye ti o han gbangba view ti oju ọrun (fun apẹẹrẹ, dasibodu, labẹ gilasi oju afẹfẹ).
   • Gbohungbohun ita: So gbohungbohun ita pọ fun didara ipe ti o dara si.
   • Awọn okun USB: Route the USB cables to a convenient location (e.g., glove compartment).
   • Eriali Redio: So eriali redio ọkọ ayọkẹlẹ naa pọ.
5. Backup Camera Wiring:

   Connect the HD backup camera as follows:

   • Connect the video RCA cable from the camera to the "Reversing Camera Input" on the head unit.
   • Connect the camera's power cable (red wire) to the vehicle's reverse light positive (+) wire.
   • Connect the camera's ground cable (black wire) to a suitable ground point (GND).
   • Locate the "BACK" or "REVERSE" trigger cable on the head unit's wiring harness. Connect this cable to the vehicle's reverse light positive (+) wire. (If this cable is already tied with the power harness, no separate connection is needed).


   Image: Wiring diagram for the HD backup camera, detailing connections for power, ground, and the reverse trigger signal.

6. Idanwo Awọn isopọ: Before fully reassembling the dashboard, reconnect the battery and test all functions of the stereo (power, audio, touch screen, CarPlay/Android Auto, GPS, camera).
7. Ẹyọ Orí Ààbò: Mount the head unit securely into the dashboard opening.
8. Tun Dasibodu jọ: Reinstall all trim panels and secure them.

Akiyesi: For detailed vehicle-specific installation instructions, it is recommended to consult a professional installer or search for installation videos specific to your Honda Civic model year.

3. Awọn ilana Iṣiṣẹ

This section covers the primary functions and operations of your podofo car stereo.

3.1 Power On/Off and Basic Interface

• The unit powers on automatically with the vehicle's ignition.
• The 10.1-inch IPS touch screen provides access to all functions. Navigate through apps and settings by tapping and swiping.
• Multiple UI themes are available for customization.

Image: Illustration of the IPS HD screen technology, highlighting its 178° viewing angle, 1280x720 resolution, 2.5D screen, touch functionality, and split-screen capability.

3.2 Alailowaya CarPlay & Android Auto

Connect your smartphone wirelessly or via USB to access CarPlay (for iOS devices) or Android Auto (for Android devices). This allows you to use phone apps like navigation, music, and calls directly on the stereo's screen.

1. Ensure Bluetooth is enabled on your phone and the car stereo.
2. Pair your phone with the car stereo via Bluetooth.
3. Follow the on-screen prompts to initiate CarPlay or Android Auto.
4. For wired connection, simply connect your phone via a USB cable to the designated USB port.

Image: Visual representation of wired and wireless CarPlay and Android Auto functionality, showing phone integration with the car stereo.

3.3 Lilọ kiri GPS & Wi-Fi

The unit supports GPS navigation with pre-installed maps or downloadable apps. Connect to Wi-Fi to access online maps, stream content, and download applications from the app store.

• To use online navigation, connect the stereo to a Wi-Fi hotspot (e.g., from your phone).
• Offline maps can be downloaded and used without an internet connection.

Image: Display of GPS navigation with online and offline map capabilities, alongside Wi-Fi connectivity for app downloads and internet access.

3.4 Awọn iṣẹ Bluetooth

Bluetooth 5.0 enables hands-free calling and wireless audio streaming from your smartphone.

• Pipọpọ: Go to the Bluetooth settings on the stereo and your phone, search for available devices, and select the stereo to pair.
• Npe ni Ọwọ: Ṣe ati gba awọn ipe taara lati inu wiwo sitẹrio.
• Orin Bluetooth: Stream audio from your phone's music library or streaming apps.

Image: Depiction of Bluetooth 5.0 for hands-free calling and music streaming, and the FM/RDS radio interface.

3.5 FM / RDS Redio

Access local radio stations with the built-in FM/RDS tuner. RDS (Radio Data System) displays station information where available.

• Ṣe ayẹwo fun awọn ibudo laifọwọyi tabi pẹlu ọwọ.
• Fipamọ́ àwọn ibùdó ayanfẹ́ rẹ gẹ́gẹ́ bí àwọn ètò tí a ti ṣètò tẹ́lẹ̀.

3.6 Iṣakoso kẹkẹ idari (SWC)

The unit supports your vehicle's existing steering wheel controls, allowing you to manage audio, calls, and modes without taking your hands off the wheel. Configuration may be required in the stereo's settings menu.

Image: Illustration of the steering wheel control learning interface, showing how to map vehicle buttons to stereo functions.

3.7 DSP Audio Adjustment

The 32-band Digital Sound Processor (DSP) allows for detailed audio customization. Adjust equalizer settings, balance, fader, and subwoofer output to optimize sound quality for your vehicle's acoustics.

Image: Screenshot of the 32-band equalizer and DSP settings interface, demonstrating sound customization options.

3.8 Split Screen & UI Themes

Utilize the split-screen function to run two applications simultaneously (e.g., navigation and music player). Customize the user interface with various themes available in the settings.

Aworan: Example of the split-screen feature, showing navigation and media player running concurrently.

Image: Collage displaying 59 different UI themes available for personalizing the car stereo interface.

3.9 Iṣakoso ohun

Use voice commands to control various functions, such as playing music, navigating, making calls, and opening applications. This feature enhances driving safety by minimizing manual interaction with the screen.

Image: Illustration of the voice control assistant, showing example commands like playing music, making calls, and opening apps.

3.10 Mirror Link

Mirror Link allows you to display your smartphone's screen directly onto the car stereo. This feature supports both Android and iOS devices, typically connecting via Bluetooth or USB cable.

Image: Depiction of Mirror Link, showing a smartphone screen mirrored onto the car stereo display.

3.11 HD Rear Camera

The included HD night vision rearview camera provides a 170-degree ultra-wide viewing angle. When the vehicle is shifted into reverse, the stereo automatically displays the camera feed, assisting with parking and maneuvering.

Image: Composite image showing Bluetooth, FM/RDS radio, DVR function, and the AHD 1080P reverse camera view pẹlu pa itọnisọna.

3.12 Osise Video ọja

4. Itọju

Láti rí i dájú pé sitẹrio ọkọ̀ ayọ́kẹ́lẹ́ rẹ pẹ́ tó àti pé ó ń ṣiṣẹ́ dáadáa, tẹ̀lé àwọn ìlànà ìtọ́jú gbogbogbòò wọ̀nyí:

• Isọsọ iboju: Use a soft, lint-free cloth to gently wipe the touch screen. Avoid abrasive cleaners or harsh chemicals that could damage the display.
• Awọn imudojuiwọn sọfitiwia: Ṣe àyẹ̀wò lẹ́ẹ̀kọ̀ọ̀kan fún àwọn àtúnṣe sọ́fítíwè tó wà nípasẹ̀ àwọn ètò ètò tàbí ti olùpèsè website. Updates can improve performance, add features, and fix bugs.
• Awọn ipo Ayika: Yago fun ṣiṣafihan ẹyọkan si awọn iwọn otutu to gaju, imọlẹ orun taara fun awọn akoko gigun, tabi ọrinrin pupọ.
• Awọn Isopọ USB: Rí i dájú pé gbogbo àwọn okùn wa ni a so pọ̀ dáadáa. Àwọn ìsopọ̀ tí kò ní ìsopọ̀ lè fa ìṣòro lẹ́ẹ̀kọ̀ọ̀kan.
• Eto atunto: If the unit becomes unresponsive, a soft reset (usually a small reset button or a combination of buttons) may resolve the issue. Refer to the device settings for specific reset options.

5. Laasigbotitusita

This section addresses common issues you might encounter. For persistent problems, refer to the support section.

5.1 Power and Battery Drain Issues

• Ẹka Ko Ṣiṣẹ Tan-an: Check all power connections and the vehicle's fuse box for blown fuses. Ensure the battery is properly connected.
• Sisan Batiri: If the car battery drains when the vehicle is off, the stereo might not be entering sleep mode correctly.
  • Itọju: Access the factory settings (password: 8888) and then engineering test (password: 26959910). Set the radio to "direct shutdown" instead of sleep. Note that this will increase boot time (approx. 2 minutes).
  • Ensure your vehicle's battery has sufficient amp-hours (at least 500 AH is recommended).

5.2 Display and Touch Screen Issues

• Iboju Fọwọkan ti ko dahun: Perform a soft reset. If the issue persists, ensure the screen is clean and free of debris.
• Screen Stuck on Settings Page: Try a system reset. If the issue persists, contact technical support.

5.3 Audio and Sound Quality

• No Sound/Distorted Sound: Check speaker wiring connections. Verify DSP settings and equalizer adjustments. Ensure volume is not muted.
• Radio Volume Issues: If volume at level 1 is too loud, adjust the system's audio settings or consider a software update if available.

5.4 Camera and Connectivity

• Backup Camera Not Working:
  • Verify all camera wiring connections, especially the reverse trigger cable (labeled "BACK" or "REVERSE") and power/ground.
  • Ensure the camera is receiving power when the vehicle is in reverse.
  • Check if there are camera settings within the stereo's menu that need activation.
• Àwọn Ìṣòro Ìsopọ̀ Àdánidá CarPlay/Android:
  • Ensure Bluetooth is on and paired.
  • Gbiyanju lati so okùn USB miiran pọ ti o ba lo asopọ onirin.
  • Restart both the phone and the car stereo.

6. Awọn pato

7. Atilẹyin ọja ati Support

7.1 atilẹyin ọja Alaye

The podofo car stereo comes with a 2-odun atilẹyin ọja. This warranty covers manufacturing defects and ensures product reliability. For specific terms and conditions, please refer to the warranty card included in your package or contact podofo customer support.

Image: Information graphic highlighting availability in over 100 countries, a 2-year warranty, and 24/7 expert customer support.

7.2 Imọ Support

Podofo offers professional technical support for any concerns regarding installation, operation, or troubleshooting. You can reach out to the support team directly via Amazon or through the contact information provided with your product.

To contact support via Amazon:

1. Lọ si oju-iwe ọja lori Amazon.
2. Find the "Sold by Podofo US" section.
3. Click on "Podofo US" to view seller information.
4. Click "Ask a question" to send a message to the support team.

Image: Step-by-step guide on how to contact Podofo technical support through the Amazon platform.

When contacting support, please provide your product model (B0BYYNK1LT), vehicle model and year, and a detailed description of the issue.
