Feit Electric OneSync 4-inch Solar LED Hanging Lantern Instruction Manual

Ọrọ Iṣaaju

This manual provides detailed instructions for the installation, operation, and maintenance of your Feit Electric OneSync 4-inch Solar LED Hanging Lantern. Please read this manual thoroughly before use and retain it for future reference. This solar lantern is designed for outdoor use, providing ambient lighting with solar power and OneSync smart features.

Alaye Aabo

• Always handle electrical products with care.
• Má ṣe gbìyànjú láti yí ọjà náà padà tàbí tú u ká ju ohun tí a ṣàlàyé nínú ìwé ìtọ́ni yìí lọ.
• Ensure the solar panel is clean and free from obstructions for optimal charging.
• This product is weather-resistant for outdoor use but is kii ṣe submersible. Do not immerse in water.
• Jeki kuro lati ìmọ ina tabi ga ooru orisun.
• The internal Lithium-Ion battery is not user-replaceable unless specified. Contact customer support for battery service.

Package Awọn akoonu

Rii daju pe gbogbo awọn eroja wa:

• Feit Electric OneSync 4-inch Solar LED Hanging Lantern (Model 3010304)

Note: Additional accessories such as shepherd's hooks or mounting hardware may be sold separately.

Ṣeto

1. Gbigba agbara akọkọ

Before first use, place the solar lantern in direct sunlight for at least 8-10 hours to allow the internal battery to fully charge. Ensure the ON/OFF switch (if present) is in the 'ON' position during charging.

2. Awọn ero Ibi

For optimal performance, select a location that receives a minimum of 6-8 hours of direct sunlight daily. Avoid placing the lantern under trees, eaves, or other structures that may block sunlight from reaching the solar panel.

Image: The solar lantern is shown hanging from a shepherd's hook, illuminating a garden path. This demonstrates a typical outdoor placement for the lantern.

3. Apejọ ati iṣagbesori

The lantern is designed for hanging. Use the integrated handle to hang it from a shepherd's hook, tree branch, or other suitable outdoor fixture. It can also be placed on a flat surface.

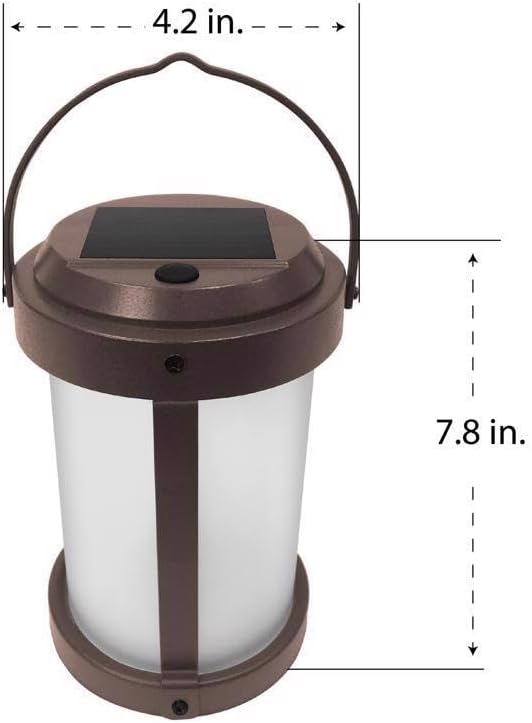

Image: A diagram illustrating the physical dimensions of the lantern, measuring approximately 4.2 inches in width and 7.8 inches in height. This helps in planning placement.

Awọn ilana Iṣiṣẹ

1. Laifọwọyi isẹ

Once fully charged and the internal switch is set to 'ON', the lantern will automatically turn on at dusk and turn off at dawn. The integrated solar panel detects ambient light levels to manage this function.

2. Manual Control and Color Selection

The lantern features a button, typically located near the solar panel, to cycle through different light modes, including tunable white and various RGB colors. Press the button repeatedly to select your desired color or mode.

Image: The solar lantern is shown emitting a vibrant red light, demonstrating its RGB color changing capability in an outdoor night scene.

3. OneSync Remote Control (Sold Separately)

This lantern is compatible with the Feit Electric OneSync remote control system. If you have a OneSync remote, you can control brightness (Low/High), group multiple lanterns, and set timers.

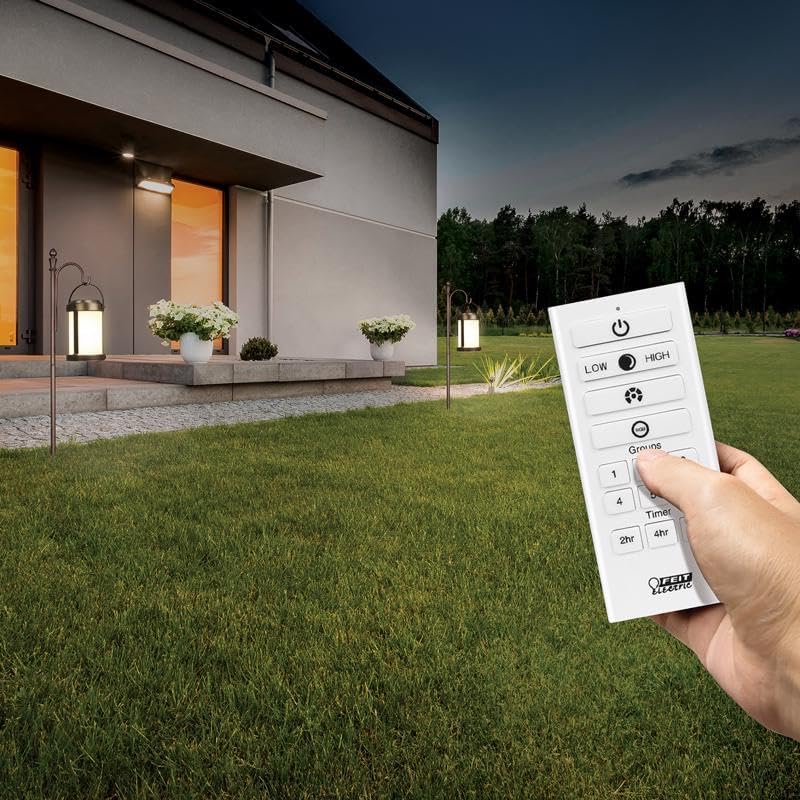

Image: A hand holds a white Feit Electric OneSync remote control, showing buttons for power, brightness, grouping, and timers. In the background, two lanterns illuminate an outdoor area, suggesting remote operation.

4. Grouping and Automation with OneSync

The OneSync system allows you to create custom lighting zones and schedules. Refer to your OneSync remote control manual for detailed instructions on grouping and automating your lanterns.

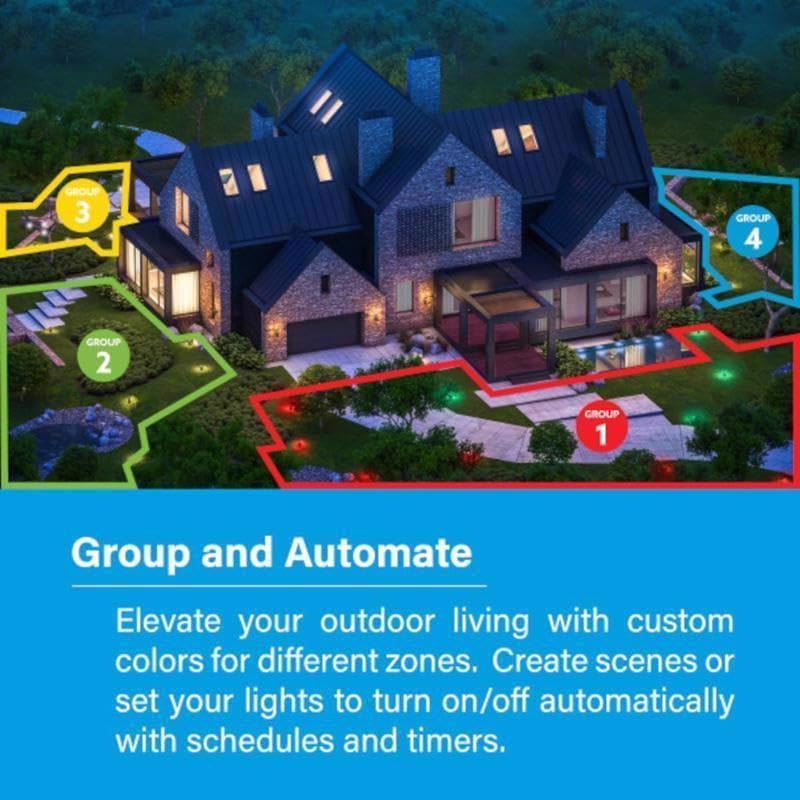

Image: An illustrative diagram showing a house and garden divided into multiple lighting zones (Group 1, Group 2, Group 3, Group 4), demonstrating the capability to group and automate OneSync lights for customized outdoor illumination.

Itoju

1. Ninu oorun Panel

Nigbagbogbo nu nronu oorun pẹlu asọ, damp cloth to remove dust, dirt, or debris. A clean solar panel ensures efficient charging of the battery.

2. Itọju batiri

The lantern uses a long-lasting, replaceable Lithium-Ion battery. If the lantern's performance significantly decreases over time, the battery may need replacement. Contact Feit Electric customer support for information on replacement batteries and service.

Laasigbotitusita

• Lantern does not light up at night:
  • Rí i dájú pé stíìpù ON/OFF wà ní ipò 'ON'.
  • Verify the solar panel is receiving at least 6-8 hours of direct sunlight daily. Relocate if necessary.
  • Mọ dada nronu oorun.
  • The battery may not be fully charged. Allow more time for charging.
  • The battery may have reached the end of its lifespan. Contact customer support for replacement options.
• Light output is dim or short-lived:
  • Insufficient sunlight for charging. Ensure optimal placement.
  • Solar panel may be dirty. Clean it.
  • Battery capacity may be reduced due to age or extreme temperatures.

Awọn pato

Image: A detailed table outlining the features and specifications of the Feit Electric OneSync Landscape LED Round Solar Lantern, including item number, dimensions, technology, brightness, and battery type.

Atilẹyin ọja

This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty information provided with your purchase or visit the official Feit Electric webojula. Ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.

Onibara Support

For technical assistance, troubleshooting, or inquiries regarding your Feit Electric OneSync Solar LED Hanging Lantern, please contact Feit Electric customer support:

• Visit the Feit Electric webaaye fun FAQs ati awọn orisun atilẹyin.
• Refer to the contact information provided on the product packaging or the official Feit Electric website for phone and email support.
