ENEGON RGB Video Light Instruction Manual (Model ES-EN-SL-C02-KM-VD-NEW)

Ọrọ Iṣaaju

This manual provides detailed instructions for the safe and effective operation of your ENEGON RGB Video Light. Please read this manual thoroughly before using the product and retain it for future reference.

Ohun ti o wa ninu Apoti

Lẹhin ṣiṣi silẹ, jọwọ rii daju pe gbogbo awọn nkan wọnyi wa:

• 1 RGB Video Light
• 1 Portable Carrying Bag
• 1 1/4 dabaru
• 1 Okun gbigba agbara Iru-C
• 1 Afowoyi

Image: Contents of the ENEGON RGB Video Light package.

Ọja Pariview ati Awọn ẹya ara ẹrọ

The ENEGON RGB Video Light is a versatile lighting solution designed for various photography and videography needs. Key features include:

• Awọn ipa Imọlẹ Awọ: Features 90 bi-color LED beads and 48 RGB color LED beads, providing up to 1500Lux at 0.5 meters. Offers 3 modes with 24 common lighting scene effects in RGB full color.
• Satunṣe: Adjust hue (0-359 degrees), color saturation (0-100%), brightness (0-100%), and color temperature (2500K-9000K). All settings are displayed on the built-in LCD screen.
• Yiye Awọ Giga: CRI of ≥95 and TLCI of ≥95 for accurate color rendering.
• Built-in Battery & Power Bank Function: Equipped with a 3.7V 4000mAh rechargeable battery. Features a USB Type-C charging port and a USB output port, allowing it to function as a power bank. Full charge in approximately 2.5 hours.
• Iṣagbesori pupọ: Includes a cold shoe for mounting on DSLR cameras, camcorders, tripods, and lamp awọn dimu.

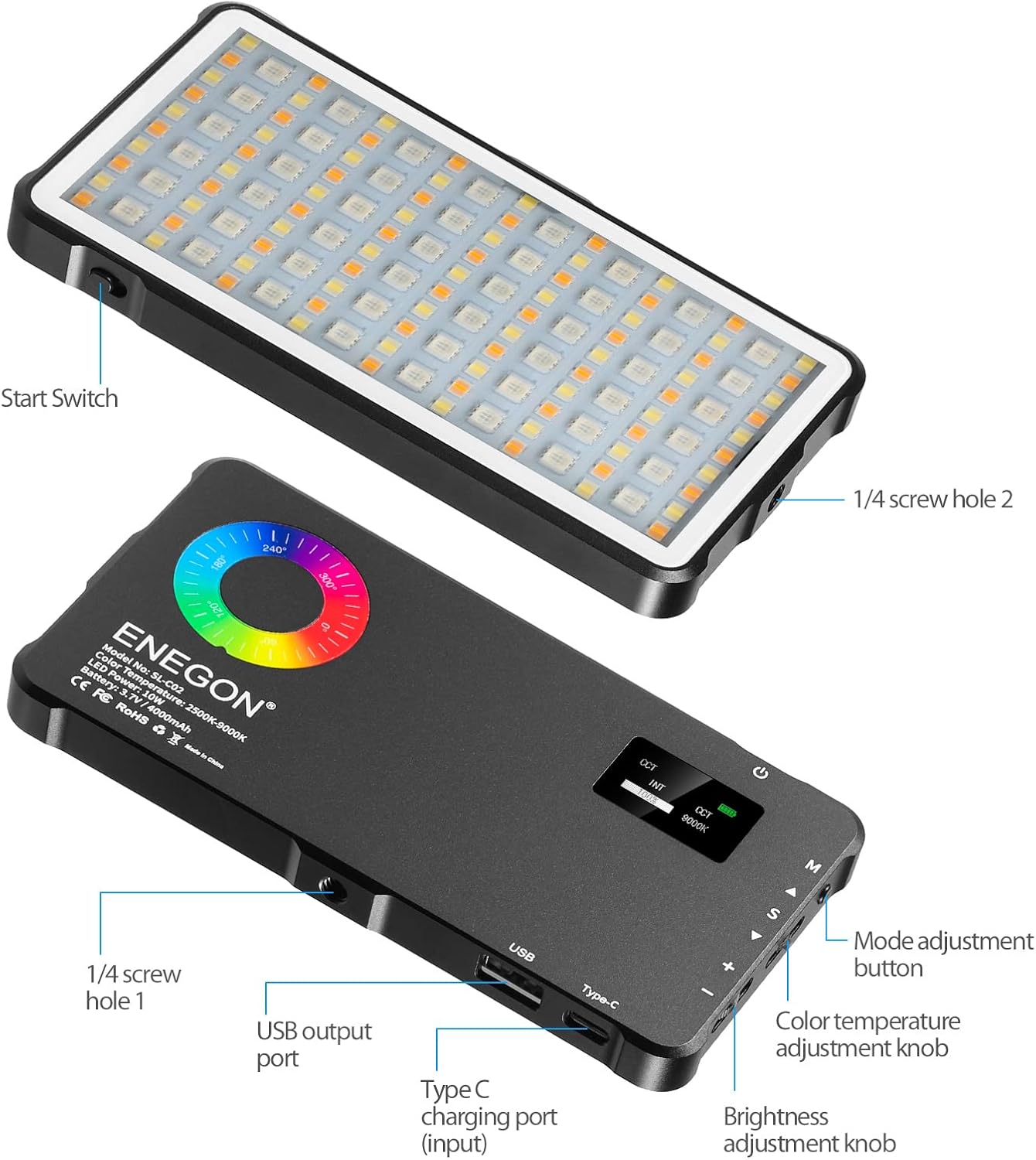

Aworan: Iwaju ati sẹhin view of the ENEGON RGB Video Light, highlighting controls and ports.

Image: Visual representation of brightness, color temperature, and RGB color adjustments.

Image: Icons representing the 24 available light effects.

Ṣeto

1. Yọọ kuro: Ni ifarabalẹ yọ gbogbo awọn paati kuro ninu apoti.
2. Idiyele Ibẹrẹ: Before first use, fully charge the RGB Video Light using the provided Type-C charging cable. Connect the cable to the Type-C charging port on the device and a suitable USB power source. The LCD screen will indicate charging status.
3. Attach Mount (Optional): If using with a camera or tripod, screw the 1/4 screw adapter into one of the 1/4 screw holes on the light. Then attach it to your desired device.

Awọn ilana Iṣiṣẹ

Familiarize yourself with the controls located on the side of the light:

• Bọtini agbara: Press and hold to turn the light ON/OFF.
• Mode Adjustment Button (M): Press to cycle through different lighting modes (CCT, HSI, Scene Effects).
• Color Temperature Adjustment Knob (S): In CCT mode, rotate to adjust color temperature from 2500K to 9000K.
• Brightness Adjustment Knob (+/-): Rotate to adjust brightness from 0% to 100% in any mode.
• Hue Adjustment (A/V): In HSI mode, use the up/down buttons to adjust hue from 0 to 359 degrees.
• Saturation Adjustment (S): In HSI mode, use the S button to adjust color saturation from 0% to 100%.

Using Scene Effects:

In Scene Effects mode, use the mode button to cycle through the 24 pre-programmed lighting effects such as "Sun," "Candle," "Police," "Fire," etc. Adjust brightness as needed.

Gbigba agbara ati Batiri

The ENEGON RGB Video Light features a built-in 4000mAh rechargeable Lithium Polymer battery. A full charge takes approximately 2.5 hours and provides up to 2 hours of continuous use at maximum brightness.

• Gbigba agbara: Connect the provided Type-C USB cable to the Type-C input port on the light and a standard USB power adapter (not included).
• Iṣẹ Bank Power: The light also has a USB output port, allowing you to use its internal battery to charge other devices, such as smartphones, in an emergency.

Image: The ENEGON RGB Video Light demonstrating its charging and power bank capabilities.

Iṣagbesori Aw

The versatile design of the ENEGON RGB Video Light allows for multiple mounting configurations:

• Oke Bata Tutu: Use the integrated cold shoe to attach the light directly to DSLR cameras, camcorders, or other compatible accessories.
• 1/4" Screw Holes: The light features 1/4" screw holes on multiple sides, enabling attachment to tripods, light stands, or other photographic equipment.

Aworan: Examples of mounting the ENEGON RGB Video Light on various devices.

Awọn pato

Itoju

• Jẹ́ kí ẹ̀rọ náà mọ́ nípa fífi aṣọ rírọ̀ tí ó sì gbẹ nu.
• Yago fun ṣiṣafihan ẹrọ naa si awọn iwọn otutu to gaju, ọriniinitutu, tabi oorun taara.
• Ma ṣe gbiyanju lati tunto tabi tun ẹrọ naa funrararẹ. Kan si atilẹyin alabara fun iranlọwọ.
• Store the device in its portable carrying bag when not in use to protect it from dust and scratches.

Laasigbotitusita

• Imọlẹ ko tan: Ensure the battery is charged. Connect to a power source using the Type-C cable.
• Ina ko gba agbara: Verify the Type-C cable is securely connected to both the light and the power source. Try a different USB power adapter.
• Ìṣẹ̀dá ìmọ́lẹ̀ tí kò báramu: Check battery level. Ensure no obstructions are blocking the LED panel.
• Device not charging from light (power bank function): Ensure the light has sufficient charge. Connect the device to the USB output port securely.

Atilẹyin ọja ati Support

For warranty information, technical support, or service inquiries, please refer to the contact details provided in the product packaging or visit the official ENEGON webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira fun awọn iṣeduro atilẹyin ọja.

Awọn fidio ọja osise

Watch these official videos for additional guidance and demonstrations of your ENEGON RGB Video Light.
