LUXRITE 2 Inch LED Recessed Lighting with Junction Box

1. Ifihan

Welcome to your new LUXRITE 2-inch LED recessed lighting fixture. This manual provides detailed instructions for the safe installation, operation, and maintenance of your lighting product. Please read these instructions thoroughly before installation and retain them for future reference.

The LUXRITE 2-inch LED recessed light fixture, shown with its integrated junction box and white trim.

2. Alaye Aabo pataki

To reduce the risk of fire, electric shock, or injury to persons, please observe the following safety precautions:

• Always turn off the power supply at the circuit breaker before beginning installation or performing any maintenance.
• Kan si alagbawo ina mọnamọna ti o pe ti o ko ba ni idaniloju nipa ilana fifi sori ẹrọ.
• This product is suitable for wet locations and is IC rated, meaning it can be in direct contact with insulation.
• Rii daju pe gbogbo awọn asopọ itanna ṣe ni ibamu pẹlu awọn koodu agbegbe ati awọn ilana.
• Do not alter or modify the fixture in any way.
• Daju pe awọn ipese voltage jẹ 120V AC.

3. Package Awọn akoonu

Carefully unpack your product and ensure all items are present and undamaged:

• LUXRITE 2 Inch LED Recessed Light Fixture
• Ese Junction Box
• Interchangeable Trim (White, included)

4. Awọn pato

Technical drawing displaying the dimensions of the 2-inch LED recessed light fixture and its accompanying junction box, including the required 2.88-inch cutout size.

5. Eto ati fifi sori

5.1 Pre-Fifi sori

• Rii daju pe agbara wa ni PA ni ẹrọ fifọ.
• Gather necessary tools: measuring tape, drywall saw, wire strippers, screwdriver.

5.2 fifi sori Igbesẹ

1. Iho gige: Using a 2.88-inch hole saw or drywall saw, cut a circular opening in the desired ceiling location. Refer to the dimensions diagram for accuracy.
2. Attach Trim: If using an alternative trim (not the pre-installed white trim), align the desired interchangeable trim with the fixture and twist to securely lock it into place.
3. Awọn isopọ onirin: Open the integrated junction box. Connect the household electrical wires to the corresponding wires in the junction box (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are secure.
4. Insert Junction Box: Place the junction box into the ceiling opening.
5. Fi Imudara sii: Squeeze the spring-loaded clips on the sides of the recessed light fixture and insert the fixture into the ceiling opening. Release the clips to secure the fixture flush against the ceiling.

Ohun exploded view showing the light fixture, twist-lock interchangeable trim, and key design elements like durable material, light reflector, sleek design, and matte finish.

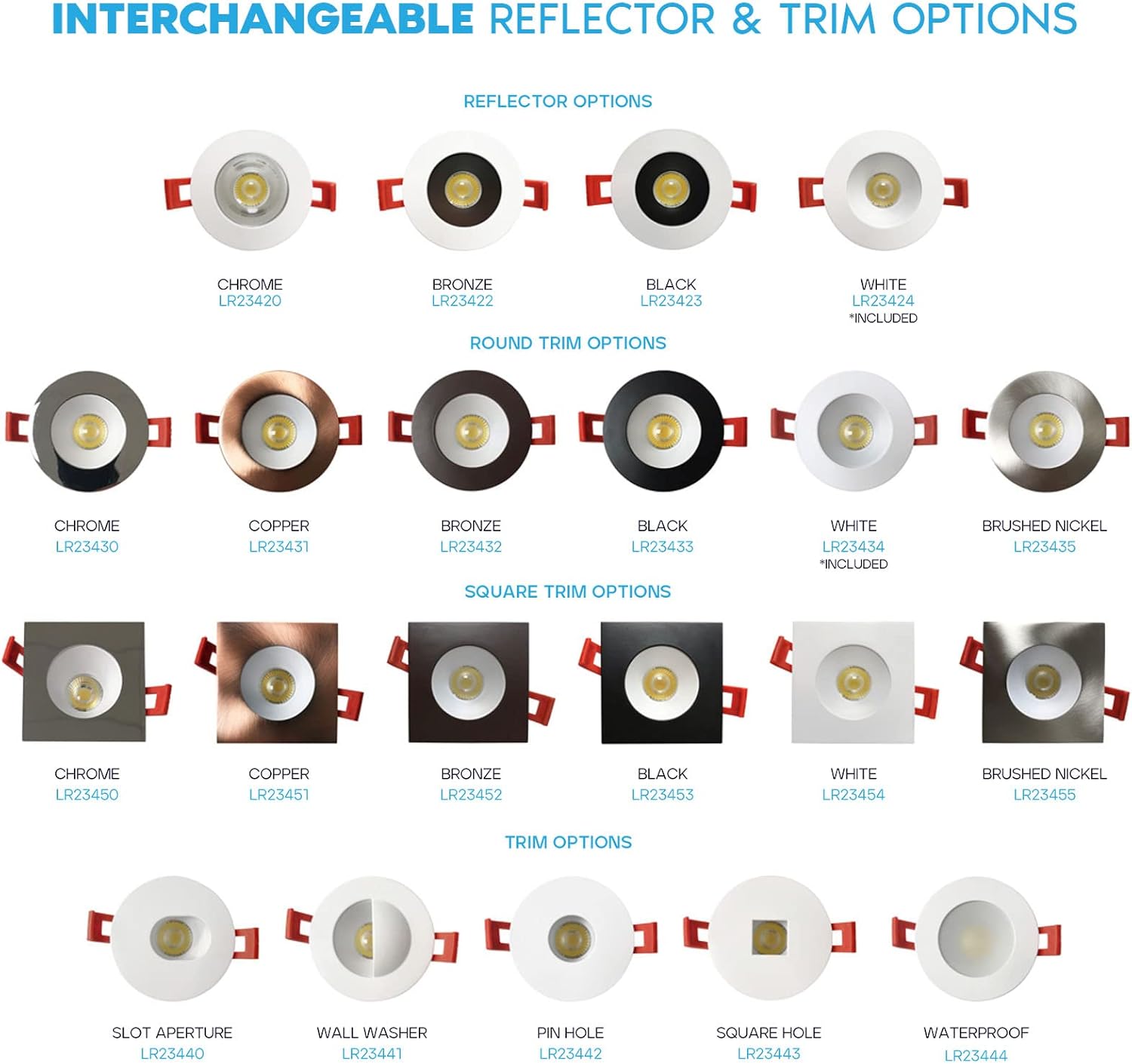

A display of various reflector and trim options available for the LUXRITE recessed light, including different finishes and shapes like round, square, slot aperture, wall washer, pin hole, and waterproof trims.

6. Awọn ilana Iṣiṣẹ

6.1 Awọ otutu Yiyan

Your LUXRITE recessed light features a selectable color temperature switch located on the junction box. Before final installation into the ceiling, or by carefully accessing the junction box, you can choose from five color temperature options:

• 2700K: Alawọ gbona
• 3000K: Alawọ Asọ
• 3500K: Adayeba White
• 4000K: Alawọ tutu
• 5000K: Funfun didan

Slide the switch to your desired color temperature setting. The selected setting will apply to the fixture once power is restored.

An illustration demonstrating the five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) and the switch used to select them.

6.2 Dimming Iṣẹ

This fixture is dimmable from 100% down to 10% output. For optimal performance, use with compatible LED dimmers. Refer to the list of compatible dimmers below.

6.3 Compatible Dimmers

The following dimmer brands and models are compatible with your LUXRITE recessed light:

A visual list of compatible dimmer models from brands like Lutron, Leviton, Legrand, and Cooper, ensuring proper dimming functionality.

7. Itọju

The LUXRITE LED recessed light fixture requires minimal maintenance. To clean the fixture:

• Ensure power is turned off at the circuit breaker before cleaning.
• Lo asọ, gbẹ, tabi die-die damp cloth to wipe the surface of the fixture.
• Do not use abrasive cleaners or solvents, as these may damage the finish or electrical components.

8. Laasigbotitusita

If you encounter issues with your LUXRITE recessed light, refer to the following common problems and solutions:

• Imọlẹ ko tan:
  • Ṣàyẹ̀wò bóyá agbára ìpèsè ní ẹ̀rọ ìfọ́mọ́ra náà wà nílẹ̀.
  • Daju pe gbogbo awọn asopọ onirin wa ni aabo ati pe o tọ.
  • Rii daju pe iyipada ina wa ni ipo ON.
• Imọlẹ flickers:
  • Confirm that the dimmer switch (if installed) is compatible with LED lighting.
  • Ṣayẹwo awọn asopọ onirin alaimuṣinṣin.
• Iwọn awọ ti ko tọ:
  • Access the junction box and verify the 5-CCT switch is set to your desired color temperature.

Tí àwọn ìgbésẹ̀ wọ̀nyí kò bá yanjú ìṣòro náà, jọ̀wọ́ kan sí ìrànlọ́wọ́ oníbàárà.

9. Atilẹyin ọja ati Support

This LUXRITE LED recessed light fixture comes with a 3-odun olupese ká atilẹyin ọja lati ọjọ ti o ra. Atilẹyin ọja yi ni wiwa awọn abawọn ninu awọn ohun elo ati iṣẹ ṣiṣe labẹ lilo deede.

For warranty claims, technical assistance, or any questions regarding your product, please refer to the contact information provided with your purchase documentation or visit the official LUXRITE webojula.
