Ọrọ Iṣaaju
The Energetic 12 Gauge Trip Wire Perimeter Alarm is a robust and reusable security device designed to provide early warning against unwanted intrusions. Constructed from high-quality, rust-proof 6061 aluminum, this spring-activated alarm is ideal for protecting campsites, homes, farms, and restricted areas by creating an audible perimeter.
It functions by utilizing a hidden trip wire that, when pulled, activates a loud acoustic alarm, alerting you to potential threats. This device is intended for outdoor use only and is designed to produce a loud noise for alert purposes, not to cause harm.

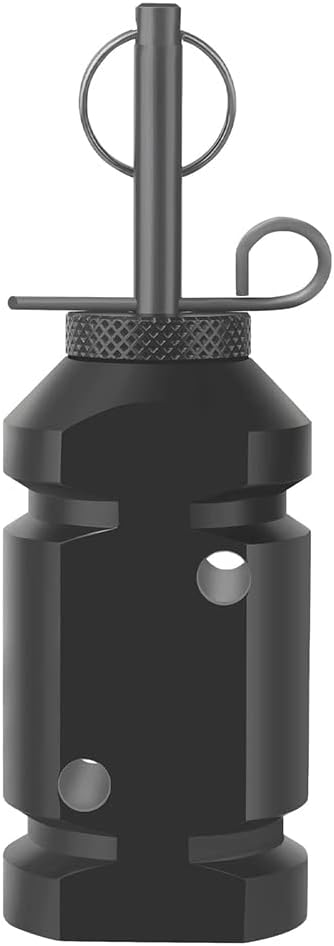

Image: The Energetic 12 Gauge Trip Wire Perimeter Alarm device, showcasing iwapọ ati apẹrẹ ti o tọ.
Package Awọn akoonu ati irinše
package rẹ yẹ ki o ni awọn atẹle wọnyi:
- 1 x Energetic 12 Gauge Trip Wire Alarm Kit
Familiarize yourself with the main components of the alarm device:
Image: Labeled diagram of the alarm device, indicating the Pull Ring, Trigger Pin, Firing Pin, Spring/Pin Retainer, Zip-tie Mounts, Mounting Holes, Load Detent, and Breech.
- Pull Ring: Used to pull the trigger pin.
- Trigger Pin: The pin that, when pulled, activates the alarm.
- Firing Pin: Internal mechanism that strikes the blank/cartridge.
- Spring/Pin Retainer: Secures the trigger pin and spring.
- Zip-tie Mounts: Slots for attaching the device using zip ties.
- Awọn ihò iṣagbesori: Holes for securing the device with screws or nails.
- Load Detent: Mechanism to hold the blank/cartridge in place.
- Breech: The opening where the 12 gauge blank or optional pepper gas cartridge is inserted.
Awọn ilana iṣeto
Follow these steps to properly set up your perimeter alarm:
Image: Visual guide showing the three main steps for installing the alarm: attaching to a hard object, installing the pin and setting the trip wire, and installing the 12 gauge blank or optional pepper gas.
- Step 1: Attach the Alarm System
Attach the alarm system in a vertical position to a hard object such as a tree, pole, or frame. You can use the provided mounting holes with eye screws, nails, or screws, or utilize the zip-tie notches with zip ties for secure fastening.
- Step 2: Install Pin and Set Trip Wire
Once the device is securely mounted, install the trigger pin. Connect a trip wire (not included) to the trigger pin and extend it across the area you wish to protect. Ensure the trip wire is taut and positioned at a height that will be triggered by an intruder but is not easily visible.
- Step 3: Install 12 Gauge Blank or Optional Pepper Gas
Carefully insert a 12 gauge blank cartridge or an optional pepper gas cartridge (not included) into the breech of the device. Always ensure the device is pointed in a safe direction and that you are clear of the firing path.
Important Safety Note: Always remove the 12 gauge blank or optional pepper gas cartridge before disarming or moving the device to prevent accidental discharge.
Isẹ
The Energetic 12 Gauge Trip Wire Perimeter Alarm is designed for simple, effective operation:
- Once set up with a trip wire and a blank/cartridge, the device is active.
- When the trip wire is disturbed or pulled, it will pull the trigger pin from the device.
- This action causes the internal firing pin to strike the inserted 12 gauge blank or pepper gas cartridge, producing a loud acoustic alarm.
- The loud noise serves as an immediate alert to the presence of an intruder or animal, providing early warning.
Reloading the Device
After activation, the device can be reloaded and reused:
- Ensure the area is safe and the device is disarmed (no cartridge inserted).
- Remove any spent cartridge from the breech.
- Reinsert the trigger pin into its position.
- Insert a new 12 gauge blank or pepper gas cartridge into the breech.
- Re-attach or adjust the trip wire as needed.
Itoju
To ensure the longevity and reliable performance of your Energetic 12 Gauge Trip Wire Perimeter Alarm, follow these maintenance guidelines:
- Ninu: Periodically inspect the device for dirt, debris, or moisture. Clean the exterior with a damp cloth. Ensure the breech and internal mechanisms are free from obstructions.
- Lubrication: A light application of silicone-based lubricant on moving parts (e.g., trigger pin, firing pin mechanism) can help maintain smooth operation, especially after prolonged exposure to outdoor elements.
- Ibi ipamọ: When not in use, store the alarm in a dry, cool place, away from direct sunlight and extreme temperatures. Ensure no cartridge is loaded during storage.
- Ayewo: Before each use, inspect the device for any signs of wear, damage, or corrosion. Do not use if any components appear compromised.
Laasigbotitusita
If you encounter issues with your perimeter alarm, consider the following common solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Alarm does not sound when trip wire is pulled. |
|
|
| Alarm sounds accidentally. |
|
|
| Difficulty inserting/removing cartridge. |
|
|
Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Ọja Mefa | 10 x 8 x 4 cm (isunmọ 3.94 x 3.15 x 1.57 inches) |
| Ohun elo | High-quality 6061 Aluminum Alloy (Rust-proof) |
| Àwọ̀ | Dudu |
| Iru Itaniji | Acoustic (requires 12 gauge blank or pepper gas cartridge) |
| Muu ṣiṣẹ | Trip wire activated, spring-loaded firing mechanism |
| Atunlo | Reloadable and reusable |
| Lilo ti a pinnu | Outdoor perimeter security, early warning system |
Image: Diagram showing the approximate dimensions of the alarm device (3.62 inches tall, 1.14 inches wide) and illustrating that it is not intended for harming animals or people.
Awọn ikilọ Abo pataki
- This perimeter alarm is intended for ita gbangba lilo nikan.
- Jeki ẹrọ kuro lati flammable ohun elo.
- Lo pẹlu awọn iwọn iṣọra. This device produces a loud noise and should be handled responsibly.
- Our devices are not intended to cause harm to any living being. They are designed solely to produce a loud noise for alert purposes.
- Always ensure the device is pointed in a safe direction when loading or disarming.
- Never look directly into the breech when loading or after activation.
- Tọju kuro ni arọwọto children and unauthorized persons.
- Always remove the 12 gauge blank or optional pepper gas cartridge before disarming or moving the device.
