1. Ifihan
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Turing TP-MED4M28-1Y 4MP Turret IP Camera. Please read this manual thoroughly before using the product to ensure proper setup and functionality. Keep this manual for future reference.
2. Alaye Aabo
Ṣe akiyesi awọn iṣọra ailewu atẹle lati yago fun ipalara tabi ibajẹ ọja naa:
- Ensure the power supply meets the camera's specifications (DC 12V+/-25% or PoE IEEE 802.3af).
- Ma ṣe fi kamẹra han si awọn iwọn otutu to gaju, ọriniinitutu, tabi awọn agbegbe ibajẹ.
- Avoid direct exposure of the lens to strong light sources, as this may damage the image sensor.
- Ma ṣe gbiyanju lati tu tabi yi kamẹra pada. Tọkasi gbogbo iṣẹ si oṣiṣẹ oṣiṣẹ.
- Handle the camera with care to prevent physical shock or vibration.
- Rii daju didasilẹ to dara lati ṣe idiwọ awọn eewu itanna.
3. Package Awọn akoonu
Rí i dájú pé gbogbo àwọn ohun èlò wà nínú àpò rẹ. Tí àwọn ohun èlò kan bá sọnù tàbí tí wọ́n bá bàjẹ́, kan sí olùtajà rẹ.
- Turing TP-MED4M28-1Y 4MP Turret IP Camera
- Iṣagbesori skru ati Wall Plugs
- Mabomire Asopọmọra fun àjọlò Cable
- Liluho awope
- Quick Bẹrẹ Itọsọna

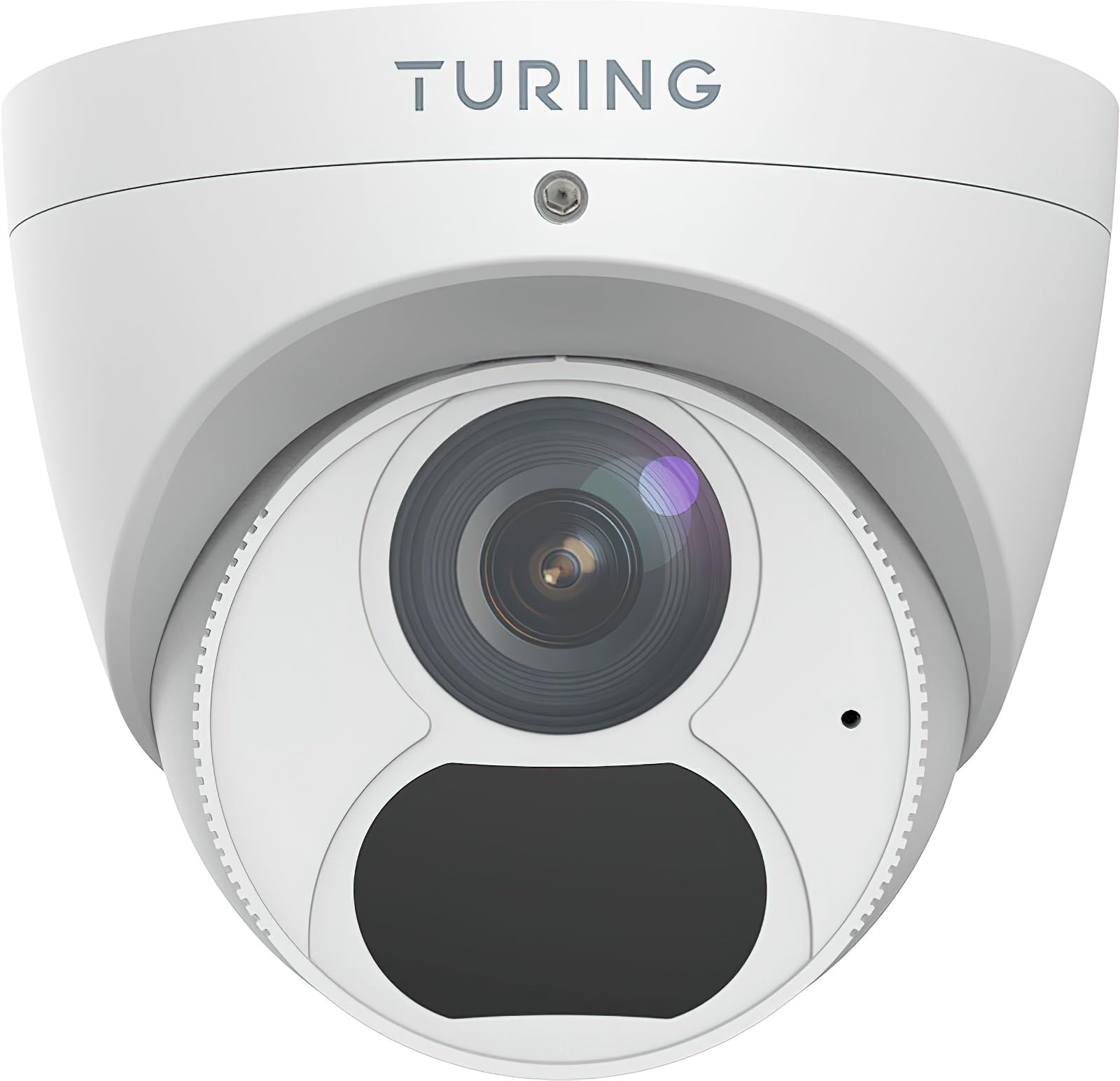

Figure 1: Turing TP-MED4M28-1Y 4MP Turret IP Camera and included accessories. The image shows the camera unit, mounting hardware, and a waterproof connector.
4. Ọja Ipariview
The Turing TP-MED4M28-1Y is a 4MP low-light turret IP camera designed for surveillance applications. It features a 2.8mm fixed lens, TwilightVision for enhanced low-light performance, and Smart IR up to 30m (98ft). The camera supports a 256GB microSD card for local storage and integrates with the Turing Vision Core AI platform.
Awọn ẹya pataki:
- Max. 4MP (2688x1520) at 30fps resolution
- 2.8mm fixed lens with 101.1° horizontal view
- TwilightVision for optimal image clarity in low light (0.002 Lux)
- Smart IR illumination up to 30m (98ft)
- IP67 weather protection, WDR (Wide Dynamic Range), PoE (Power over Ethernet)
- Built-in microphone for audio monitoring
- Supports up to 256GB microSD card (not included)
- Integrated with Turing Vision Core AI for advanced analytics (1st year license included)
- Ifaramọ NDAA
5. Eto ati fifi sori
Follow these steps for proper installation of your IP camera.
5.1 Iṣagbesori Kamẹra
- Yan Ibi kan: Select a suitable mounting location, typically a ceiling or wall, ensuring a clear field of view and within range of your network connection. The camera is IP67 rated for outdoor use.
- Ṣetan Ilẹ: Use the provided drill template to mark the screw holes on the mounting surface. Drill pilot holes as needed.
- Ṣe aabo ipilẹ: Attach the camera's mounting base to the surface using the supplied screws and wall plugs. Ensure it is firmly secured.
- Iṣakoso USB: Route the Ethernet cable through the designated cable entry point. Use the waterproof connector for outdoor installations to protect the Ethernet connection.
5.2 Asopọ Nẹtiwọọki ati Agbára
- So Ethernet: So okun Ethernet kan pọ lati yipada nẹtiwọki tabi olulana si ibudo RJ45 kamẹra.
- Ibi ti ina elekitiriki ti nwa:
- PoE (Agbara lori Ethernet): If your network switch supports PoE (IEEE 802.3af), the camera will receive power directly through the Ethernet cable. No separate power adapter is needed.
- DC 12V: If PoE is not available, connect a DC 12V power adapter (not included) to the camera's power input port.
- Ibẹrẹ ibẹrẹ: The camera will power on and initiate its boot sequence. This may take a few minutes.
5.3 Iṣeto ni ibẹrẹ
Refer to the Turing Vision Quick Start Guide or the Turing Vision platform documentation for detailed instructions on adding and configuring your camera within the Turing Vision ecosystem.
- Access the camera via the Turing Vision platform or a web aṣàwákiri nipa lilo adiresi IP rẹ.
- Yi ọrọigbaniwọle aiyipada pada fun aabo.
- Configure network settings, video resolution, and recording schedules.
- Adjust image settings such as WDR, 2D/3D DNR, and defog for optimal video quality.
6. Ṣiṣẹ kamẹra
The Turing TP-MED4M28-1Y camera is primarily operated and managed through the Turing Vision cloud platform or a compatible NVR/VMS system.
6.1 Live View ati Gbigbasilẹ
- Access the live video feed through the Turing Vision application or web ni wiwo.
- Configure continuous recording, motion-triggered recording, or scheduled recording via the platform settings.
- Review foo ti o ti gbasilẹtage by navigating to the playback section within the Turing Vision platform.
6.2 AI Features (Turing Vision Core AI)
With the included Turing CORE AI License, the camera leverages advanced analytics:
- People and Vehicle Search: Utilize the Turing Vision platform to quickly search for specific events involving people or vehicles.
- Awọn itaniji ti oye: Receive real-time notifications for detected events based on configured rules.
- Pattern Detection: Analyze patterns across multiple locations for improved operational efficiency and safety.
6.3 Image Enhancement Features
- TwilightVision: Automatically enhances image clarity in extremely low-light conditions, providing color images where traditional cameras would switch to black and white.
- Smart IR: Adjusts the intensity of the infrared LEDs to prevent overexposure of objects close to the camera, ensuring balanced night vision.
- WDR (Ibiti Dynamic Wide jakejado): Balances areas of high contrast in the image, ensuring details are visible in both bright and dark regions simultaneously.
7. Itọju
Itọju deede ṣe idaniloju iṣẹ ṣiṣe to dara julọ ati igbesi aye gigun ti kamẹra rẹ.
- Fifọ lẹnsi: Gently clean the camera lens with a soft, dry cloth. For stubborn dirt, use a lens cleaning solution and a microfiber cloth. Avoid abrasive materials.
- Awọn imudojuiwọn famuwia: Periodically check for and install firmware updates through the Turing Vision platform or the camera's web interface. Firmware updates often include performance improvements and security enhancements.
- Ayewo ti ara: Regularly inspect the camera housing and mounting for any signs of damage, loose connections, or corrosion, especially for outdoor installations.
- Isakoso Ibi ipamọ: If using a microSD card, periodically check its status and manage recorded data to prevent it from filling up. Format the card if necessary (this will erase all data).
8. Laasigbotitusita
Ti o ba pade awọn ọran pẹlu kamẹra rẹ, tọka si awọn iṣoro ati awọn solusan ti o wọpọ wọnyi:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Ko si ifunni aworan/fidio | Kò sí agbára; Ìṣòro ìsopọ̀ mọ́ nẹ́tíwọ́ọ̀kì; Àdírẹ́sì IP tí kò tọ́ | Check power supply (PoE or DC 12V). Verify Ethernet cable connection. Ensure camera is on the same network subnet as your viewing device or NVR. |
| Didara aworan ti ko dara | Dirty lens; Incorrect focus (fixed lens, but check for obstructions); Insufficient lighting; Incorrect image settings | Clean the lens. Ensure adequate lighting or verify Smart IR/TwilightVision settings. Adjust WDR, brightness, contrast in camera settings. |
| Cannot connect to Turing Vision | Network issues; Incorrect camera registration; Firewall blocking connection | Verify internet connectivity. Ensure the camera is correctly added to your Turing Vision account. Check firewall settings on your network. |
| Kaadi MicroSD kii ṣe igbasilẹ | Card full; Card not formatted; Faulty card; Recording schedule not set | Check card capacity. Format the microSD card via camera settings. Replace faulty card. Configure recording schedule. |
If the problem persists, contact Turing technical support for assistance.
9. Awọn pato
Detailed technical specifications for the Turing TP-MED4M28-1Y camera:
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Awoṣe | TP-MED4M28-1Y |
| Sensọ Aworan | 1/3-inch 4MP 16:9 Progressive Scan CMOS |
| Ipinnu | Max. 4MP (2688x1520) at 30fps |
| Lẹnsi | 2.8 mm ti o wa titi lẹnsi |
| Igun ti View (H/V/D) | 101.1 ° / 55.3 ° / 111.1 ° |
| Imọlẹ ti o kere julọ | Àwọ̀: 0.002 Lux (F1.6, AGC lórí); 0 Lux pẹ̀lú IR lórí |
| IR Ran | Títí dé 30m (98ft) Smart IR |
| Fidio funmorawon | Ultra 265, H.265, H.264, MJPEG |
| Ṣiṣe Digital | 120 dB WDR, 2D/3D DNR, Defog |
| Ohun | Built-in microphone, G.711, Noise suppression |
| Ibi ipamọ inu inu | MicroSD card slot, up to 256 GB (card not included) |
| Ibi ti ina elekitiriki ti nwa | DC 12V+/-25%, PoE (IEEE 802.3af) |
| Agbara agbara | O pọju. 4.0W |
| Idaabobo | IP67, 4KV Surge Protection |
| Awọn iwọn (Ø x H) | 4.4 x 3.7 inches (111.8 x 94 mm) |
| Iwọn | 0.93 lbs (0.42 kg) |
| Awọn iwọn otutu ti nṣiṣẹ | -30°C si 60°C (-22°F si 140°F) |
10. Atilẹyin ọja ati Support
Turing provides a limited warranty for its products. Please refer to the official Turing website or your purchase documentation for detailed warranty terms and conditions. The first year of Turing CORE AI License is included with this product.
For technical support, product inquiries, or warranty claims, please contact Turing customer service through their official webaaye tabi alaye olubasọrọ ti a pese pẹlu rira rẹ.
Awọn orisun Ayelujara: Visit the Turing support portal for FAQs, software downloads, and additional documentation.
