LESU 1/14 Metal RC Hydraulic Aoue-LT5 Skid-Steer Loader Instruction Manual

1. Ifihan

O ṣeun fun riraasing the LESU 1/14 Metal RC Hydraulic Aoue-LT5 Skid-Steer Loader. This highly detailed and functional remote-controlled model is designed for enthusiasts seeking a realistic operating experience. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new model. Please read this manual thoroughly before operating the loader to ensure proper function and longevity.

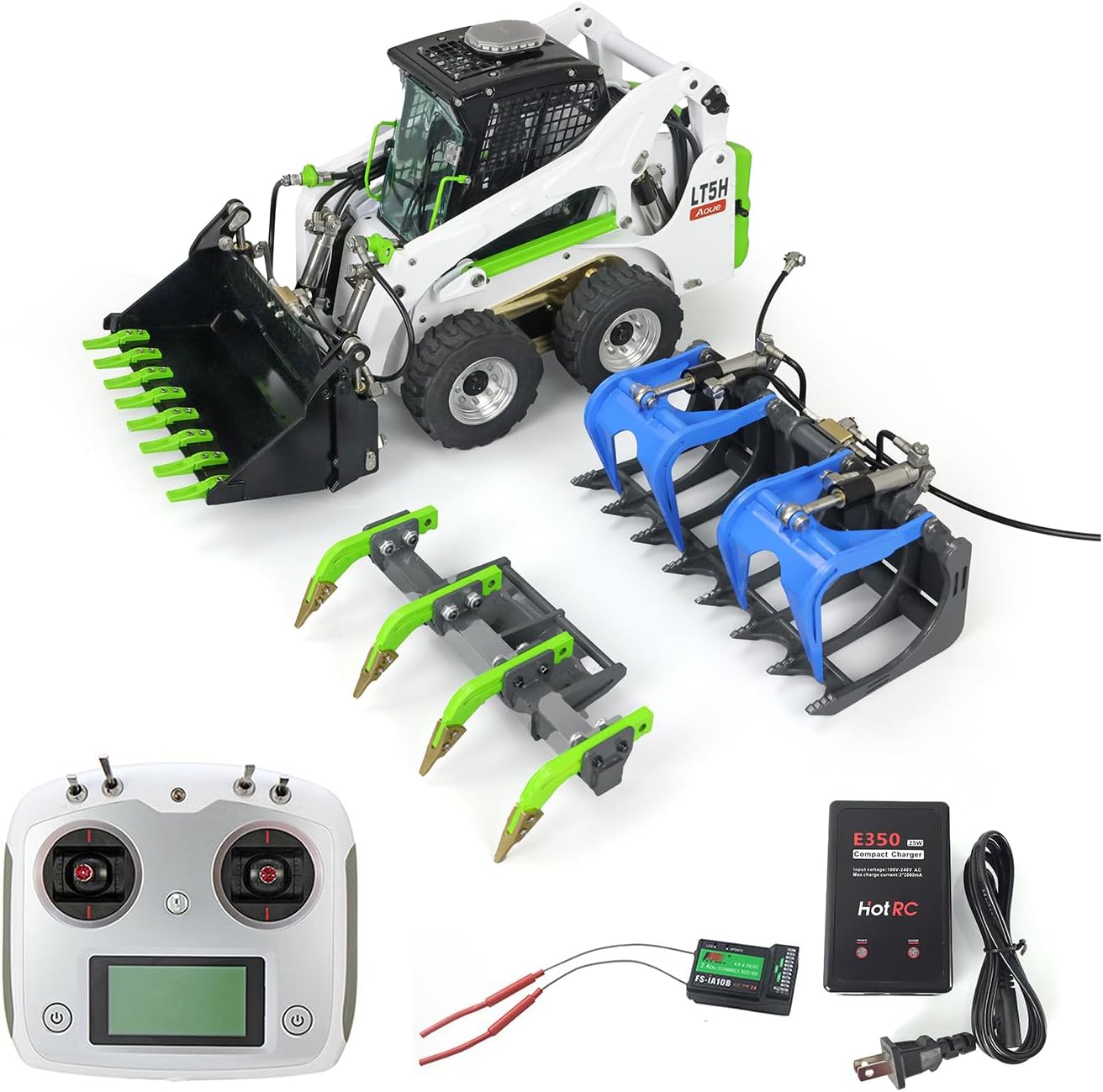

Image 1.1: The LESU 1/14 Metal RC Hydraulic Aoue-LT5 Skid-Steer Loader with included remote control, charger, and various attachments.

2. Alaye Aabo

Operating this RC model requires attention to safety to prevent injury or damage.

• Abojuto Agba: This product is recommended for individuals 21 years and older. Always operate under adult supervision.
• Ayika Ṣiṣẹ: Operate the model in open, clear areas away from people, pets, and obstacles. Avoid public roads, crowded places, and water.
• Aabo Batiri: Use only the recommended charger and battery. Do not overcharge, puncture, or expose batteries to extreme temperatures. Disconnect the battery when not in use.
• Awọn ẹya gbigbe: Keep hands, hair, and loose clothing away from moving parts such as wheels, tracks, and hydraulic arms to prevent entanglement.
• Eto eefun: Ètò hydraulic náà ń ṣiṣẹ́ lábẹ́ ìfúnpá. Má ṣe gbìyànjú láti yípadà tàbí kí o ṣe bẹ́ẹ̀amper with the hydraulic lines or components.
• Awọn ohun elo itanna: Ensure all electrical connections are secure. Avoid contact with water to prevent short circuits.
• Ibi ipamọ: Store the model and its components in a cool, dry place, out of reach of children.

3. Package Awọn akoonu

Carefully unpack the box and verify that all items listed below are present and in good condition.

• LESU 1/14 Metal RC Hydraulic Aoue-LT5 Skid-Steer Loader (RTR)
• 2.4GHz Remote Control Transmitter
• Olugba Unit
• Battery Charger (HotRC E350 Compact Charger)
• Hydraulic Grapple Attachment
• Hydraulic Bucket Attachment
• Ripper/Scarifier Attachment
• Power Cable for Charger
• Ilana Afowoyi (iwe yii)

Image 3.1: The product is shipped in a sturdy cardboard box to ensure safe delivery.

4. Eto

4.1 Ngba agbara si Batiri naa

1. Connect the HotRC E350 Compact Charger to a suitable power outlet using the provided power cable.
2. Connect the model's battery to the charger. Ensure correct polarity.
3. Monitor the charging process. The charger's indicator light will typically change color or turn off when charging is complete. Refer to the charger's specific instructions for details.
4. Ni kete ti o ti gba agbara ni kikun, ge asopọ batiri kuro lati ṣaja.

4.2 Eto Iṣakoso latọna jijin

1. Install the required batteries (not included) into the remote control transmitter. Refer to the transmitter's manual for battery type and installation.
2. Turn on the remote control transmitter.
3. Connect the charged battery to the skid-steer loader's power input.
4. Turn on the power switch on the skid-steer loader.
5. Allow the transmitter and receiver to bind. This process usually involves indicator lights on both devices. Consult the remote control's manual for specific binding procedures if automatic binding does not occur.

4.3 Attaching Implements

The LESU Aoue-LT5 supports various hydraulic attachments.

1. Ensure the loader is powered off and the hydraulic arms are in a lowered, stable position.
2. Align the desired attachment (e.g., grapple, bucket, ripper) with the quick-attach mechanism on the loader's arms.
3. Secure the attachment using the provided pins or locking mechanisms. Ensure it is firmly attached and cannot accidentally detach during operation.
4. If the attachment requires hydraulic power (e.g., grapple, bucket), connect the hydraulic lines from the attachment to the corresponding ports on the loader's arms. Ensure connections are tight to prevent leaks.

Image 4.1: The skid-steer loader equipped with the hydraulic grapple attachment.

Image 4.2: The skid-steer loader equipped with the hydraulic bucket attachment.

5. Awọn ilana Iṣiṣẹ

5.1 Basic Controls (Refer to Remote Control Manual for specific stick assignments)

• Wiwakọ: Typically controlled by one or two joysticks. Push forward/backward for movement, left/right for steering (skid-steer style).
• Arm Lift/Lower: Controls the main hydraulic arms to raise or lower the attachment.
• Attachment Tilt: Controls the tilt angle of the attached implement (e.g., bucket curl/dump, grapple open/close).
• Awọn iṣẹ Iranlọwọ: Additional channels on the remote may control lights or other features.

5.2 Operating the Loader

1. Ibẹrẹ: Ensure the remote control is on first, then power on the loader.
2. Gbigbe: Practice driving in an open area to get accustomed to the skid-steer steering. Small, precise movements are key.
3. Lifting/Lowering: Use the arm controls to carefully raise and lower the attachment. Avoid sudden movements, especially with heavy loads.
4. Lilo Awọn Asomọ:
   • Garawa: Approach material, lower the bucket, curl it to scoop, then lift and dump.
   • Grapple: Position the grapple over the object, open the jaws, lower, close the jaws to secure, then lift and transport.
   • Ripper: Lower the ripper teeth into the ground and drive forward slowly to break up compacted material.
5. Paade: Always power off the loader first, then the remote control. Disconnect the battery from the loader for storage.

Image 5.1: The skid-steer loader demonstrating the full range of motion with the grapple attachment.

Image 5.2: The skid-steer loader with the bucket attachment in a raised position.

6. Itọju

Regular maintenance will ensure the longevity and optimal performance of your LESU Aoue-LT5 Skid-Steer Loader.

• Ninu: After each use, clean the model to remove dirt, dust, and debris. Use a soft brush or compressed air. Avoid using water directly on electronic components.
• Omi Hydraulic: Periodically check the hydraulic fluid level. Top up with recommended hydraulic oil if necessary. Refer to the manufacturer's specifications for the correct type of fluid.
• Lubrication: Apply a small amount of appropriate lubricant to moving parts, such as pivot points and linkages, to ensure smooth operation and prevent wear.
• Awọn ayewo: Regularly inspect all screws, nuts, and bolts for tightness. Check hydraulic lines for any signs of leaks or damage. Inspect tires for wear and proper inflation.
• Itọju Batiri: Store batteries in a cool, dry place. Do not leave batteries fully charged or fully discharged for extended periods. Charge them to approximately 50% for long-term storage.

7. Laasigbotitusita

If you encounter issues with your loader, consult the following table before contacting support.

8. Awọn pato

9. Atilẹyin ọja ati Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. Keep your proof of purchase for warranty claims.

Fun iranlọwọ siwaju sii, o le ṣabẹwo si Toucan RC Hobby Store on Amazon.
