Ọrọ Iṣaaju
This manual provides essential information for the proper installation, operation, and maintenance of your ELCO Lighting Koto System 2" Deep Round Reflector Trim, model ELK2818W. This product is designed to enhance the aesthetic and functional aspects of your recessed lighting fixtures by providing a clean, finished look and optimizing light distribution. Please read this manual thoroughly before installation and retain it for future reference.
Alaye Aabo
Maa tẹle awọn iṣọra aabo wọnyi nigbagbogbo lati yago fun ipalara tabi ibajẹ si ọja naa:
- IKILO: Ewu ti ina-mọnamọna. Ge asopọ agbara ni fiusi tabi fifọ Circuit ṣaaju fifi sori ẹrọ tabi iṣẹ.
- Onímọ̀ ẹ̀rọ iná mànàmáná tó mọ̀ nípa rẹ̀ gbọ́dọ̀ fi sori ẹ̀rọ náà ní ìbámu pẹ̀lú gbogbo àwọn ìlànà iná mànàmáná tó bá yẹ.
- Ensure the product is compatible with your existing recessed housing before installation.
- Do not modify the product in any way. Any modifications may void the warranty and create safety hazards.
- Handle the trim with care to avoid bending or damaging the reflector surface.
- Jeki awọn ohun elo apoti kuro lọdọ awọn ọmọde.
Package Awọn akoonu
Verify that all components are present and undamaged upon opening the package. If any parts are missing or damaged, contact ELCO Lighting customer support immediately.
- 1 x ELCO Lighting Koto System 2" Deep Round Reflector Trim (Model: ELK2818W)

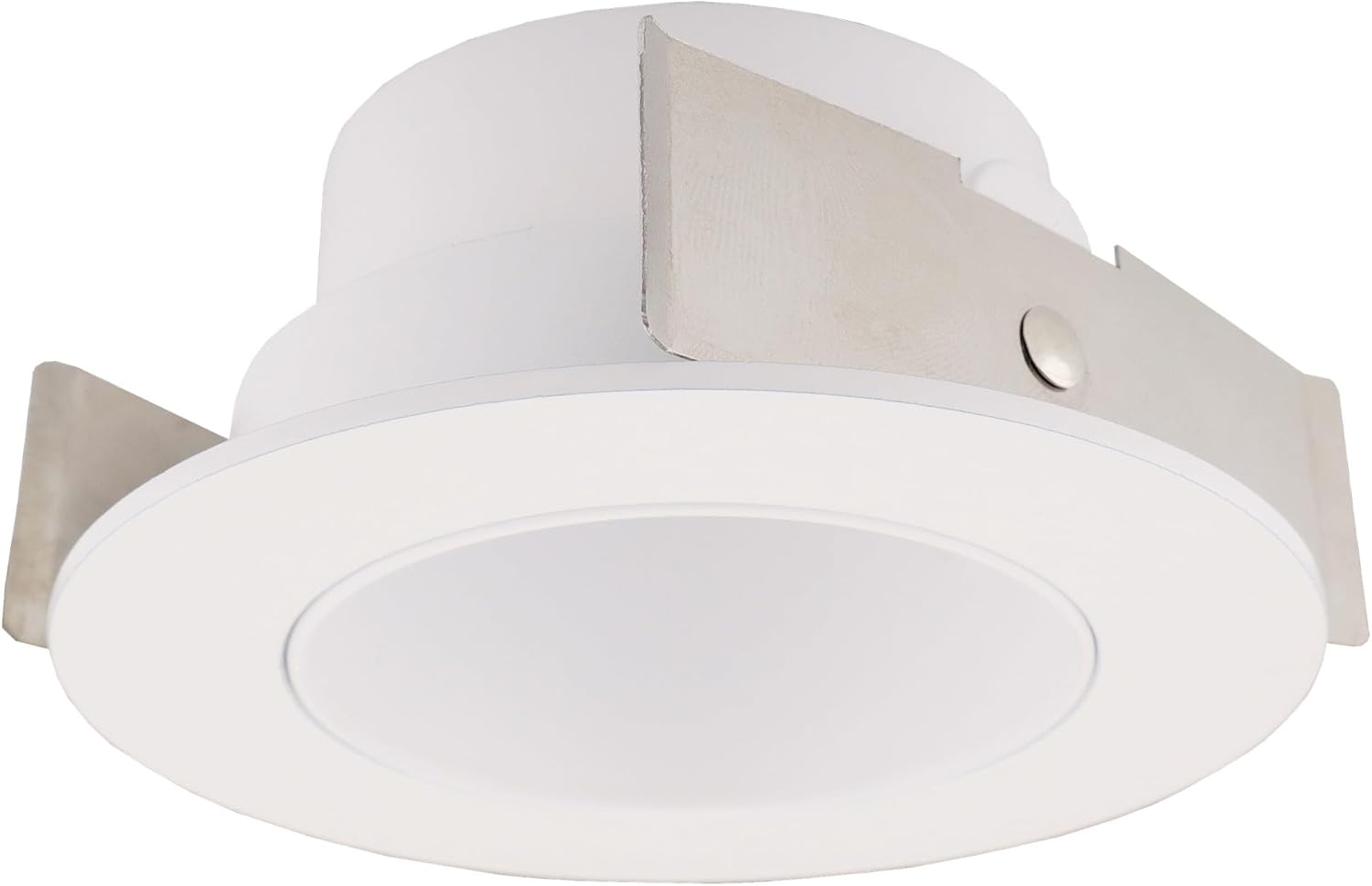

Image: The ELCO Lighting Koto System 2" Deep Round Reflector Trim, white in color, featuring a smooth, round design with mounting clips visible on the sides. This image shows the complete trim unit.
Eto ati fifi sori
Follow these steps for proper installation of the reflector trim:
- Pa Agbara: Before beginning any installation, ensure the power to the recessed lighting circuit is turned off at the circuit breaker or fuse box. Verify power is off using a voltage idanwo.
- Prepare Housing: Ensure the recessed housing is properly installed and wired according to local electrical codes. The trim is designed for 2-inch recessed housings.
- Insert Trim: Carefully align the trim with the opening of the recessed housing. The spring clips or torsion springs (if applicable) on the trim should align with the corresponding slots or brackets inside the housing.
- Secure Trim: Gently push the trim upwards into the housing until the spring clips or torsion springs engage and hold the trim firmly in place against the ceiling. Ensure the trim is flush with the ceiling surface.
- Pada Agbara pada: Once the trim is securely installed, restore power to the circuit at the breaker or fuse box.
- Idanwo: Tan ina yipada lati jẹrisi iṣẹ ṣiṣe to dara.
Akiyesi: Specific installation methods may vary slightly depending on the type of recessed housing used. Refer to your recessed housing's instructions for detailed compatibility and installation requirements.
Awọn ilana Iṣiṣẹ
The ELCO Koto System Reflector Trim is a passive component designed to work in conjunction with a compatible recessed lighting fixture. Once installed, its primary function is to provide a finished appearance and to help direct the light from the lamp. There are no operational controls on the trim itself.
- The trim will function automatically when the light source within the recessed housing is activated.
- The deep reflector design helps to minimize glare and provide a more focused light output.
Itoju
The ELCO Koto System Reflector Trim requires minimal maintenance. Follow these guidelines to keep your trim in optimal condition:
- Ninu: To clean the trim, ensure the power to the fixture is off. Use a soft, dry, or slightly damp Aṣọ. Má ṣe lo àwọn ohun ìfọṣọ, àwọn ohun èlò ìfọṣọ, tàbí àwọn ohun ìfọṣọ, nítorí pé wọ́n lè ba ìparí rẹ̀ jẹ́.
- Ayewo: Periodically inspect the trim for any signs of damage or loosening. If any issues are observed, turn off power and address them promptly.
Laasigbotitusita
If you encounter issues with your ELCO Koto System Reflector Trim, consider the following common solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Trim does not fit into housing. | Incorrect trim size or incompatible housing. | Verify the trim size (2-inch) matches your recessed housing. Consult the housing's specifications. |
| Trim is loose or falls out. | Spring clips/torsion springs not properly engaged or damaged. | Ensure clips are fully engaged. If damaged, contact customer support for replacement or professional assistance. |
| Light output is poor (not related to bulb). | Reflector surface is dirty or damaged. | Clean the reflector surface as per maintenance instructions. If damaged, replacement may be necessary. |
If the problem persists after attempting these solutions, please contact ELCO Lighting customer support.
Awọn pato
| Iwa | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Brand | Imọlẹ ELCO |
| Nọmba awoṣe | ELK2818W |
| Ara | The Koto System |
| Gige Iwon | 2 inches |
| Àwọ̀ | Funfun |
| Ohun elo | Ejò |
| Awọn iwọn Ọja (L x W x H) | 3.5 x 3.5 x 1.5 inches |
| Iwọn Nkan | 6.4 iwon |
| Orisun agbara | Corded Electric (refers to the system it integrates with) |
| Iṣagbesori Iru | Recessed Aja Mount |
| UPC | 633999213740 |
| Ọjọ Akọkọ Wa | Oṣu Kẹsan Ọjọ 3, Ọdun 2023 |
Alaye atilẹyin ọja
The ELCO Lighting Koto System 2" Deep Round Reflector Trim (ELK2818W) is covered by ELCO Lighting's 5-odun lopin atilẹyin ọja. This warranty covers defects in materials and workmanship under normal use and service. For full details regarding warranty terms, conditions, and limitations, please refer to the official ELCO Lighting warranty statement available on their webojula tabi kan si atilẹyin alabara.
Onibara Support
For technical assistance, warranty claims, or any questions regarding your ELCO Lighting product, please contact ELCO Lighting customer support:
- Webojula: Visit the official ELCO Lighting website for FAQs, product documentation, and contact forms. (e.g., www.elcolighting.com)
- Foonu: Refer to the ELCO Lighting webAaye fun lọwọlọwọ onibara iṣẹ awọn nọmba foonu.
When contacting support, please have your product model number (ELK2818W) and purchase date available.
