1. Ifihan
O ṣeun fun riraasing the Nedis KAAF320BK Dual Basket Digital Air Fryer. This appliance uses high-speed hot air circulation technology to cook food with little to no oil, resulting in healthier, crispier meals. With its dual 4.2-liter baskets, you can prepare two different dishes simultaneously. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting.
Image 1.1: The Nedis KAAF320BK Dual Basket Digital Air Fryer shown in a kitchen environment, demonstrating its dual cooking capability with different foods in each basket.
2. Awọn Ilana Aabo pataki
Please read these safety instructions carefully before using the appliance and keep them for future reference. Incorrect use may result in electric shock, fire, or serious injury.
- Nigbagbogbo rii daju voltage on the rating label matches your mains supply voltage.
- Maṣe fi ohun elo, okun, tabi pulọọgi sinu omi tabi awọn olomi miiran.
- Jeki ohun elo naa kuro ni arọwọto awọn ọmọde ati awọn ohun ọsin.
- Do not operate the appliance if the plug, power cord, or appliance itself is damaged.
- Place the appliance on a stable, heat-resistant surface, away from walls and other appliances to allow for proper ventilation.
- Do not cover the air inlet or outlet vents during operation.
- The appliance surfaces become hot during use. Use oven mitts when handling hot parts.
- Yọọ ohun elo kuro ni iṣan agbara nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ.
- Ma ṣe lo awọn ẹya ẹrọ ti olupese ṣe iṣeduro.
- Ohun elo yii jẹ ipinnu fun lilo ile nikan.
3. Ọja irinše
Familiarize yourself with the parts of your Nedis KAAF320BK Air Fryer:
- Ẹgbẹ akọkọ
- Digital Control Panel with LED Display
- Basket 1 (4.2 Liters capacity)
- Basket 2 (4.2 Liters capacity)
- Removable Crisper Racks (2 units)
- Okun agbara
Aworan 3.1: Iwaju view of the air fryer, highlighting the two separate cooking baskets.
4. Eto ati First Lo
- Ṣii silẹ: Fi ìṣọ́ra yọ ẹ̀rọ ìfọṣọ afẹ́fẹ́ àti gbogbo ohun èlò ìdìpọ̀ kúrò.
- Ninu: Before first use, wash the baskets and crisper racks with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry. Wipe the main unit with a damp asọ.
- Ibi: Place the air fryer on a stable, level, heat-resistant surface. Ensure there is at least 10 cm (4 inches) of clear space around the back and sides, and above the appliance for proper air circulation.
- Asopọ agbara: Pulọọgi okun agbara sinu iṣan ogiri ti o wa lori ilẹ.
- Ṣiṣe Ibẹrẹ (Aṣayan): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C (350°F) to burn off any manufacturing residues. A slight odor may be present, which is normal. Allow the appliance to cool completely afterward.
5. Awọn ilana Iṣiṣẹ
The Nedis KAAF320BK features a digital control panel for easy operation.
5.1. Iṣakoso igbimo Loriview
Image 5.1: The digital control panel, displaying cooking zones, temperature/time settings, and preset program icons.
- Bọtini agbara (⏻): Yipada ohun elo titan/pa.
- Zone 1 / Zone 2 Selection: Press the corresponding zone number to select which basket to program.
- Temperature/Time Buttons (⏱ / ⏰): Adjust temperature and time using the up/down arrows.
- Awọn Eto Tto: Icons for 10 common dishes (Fries, Chicken, Shrimp, Bake, Bacon, Pizza, Steak, Fish, Dehydrate, Reheat).
- Bẹrẹ / Duro: Ti bẹrẹ tabi da duro ilana sise.
- Ipari Ọgbọn: Synchronizes cooking times so both baskets finish simultaneously.
- BARAMU sè: Copies settings from Zone 1 to Zone 2.
5.2. Basic Cooking Operation
- Place the crisper rack into the basket(s).
- Place your food into the basket(s). Do not overfill.
- Insert the basket(s) back into the air fryer.
- Tẹ bọtini agbara (⏻) lati tan ẹrọ naa.
- For single basket cooking: Select Zone 1 or Zone 2. Adjust temperature and time using the ⏱ / ⏰ buttons. Alternatively, select a preset program.
- For dual basket cooking (different settings): Select Zone 1, set its temperature/time or preset. Then select Zone 2, and set its temperature/time or preset.
- Tẹ START/STOP lati bẹrẹ sise.
- Fryer afẹfẹ yoo dun nigbati sise ba ti pari. Fara yọ awọn agbọn kuro.
5.3. Lilo Awọn Eto Tito tẹlẹ
The air fryer comes with 10 pre-programmed cooking settings for convenience. Simply select the desired preset icon after choosing a zone, and the appliance will automatically set the optimal temperature and time.

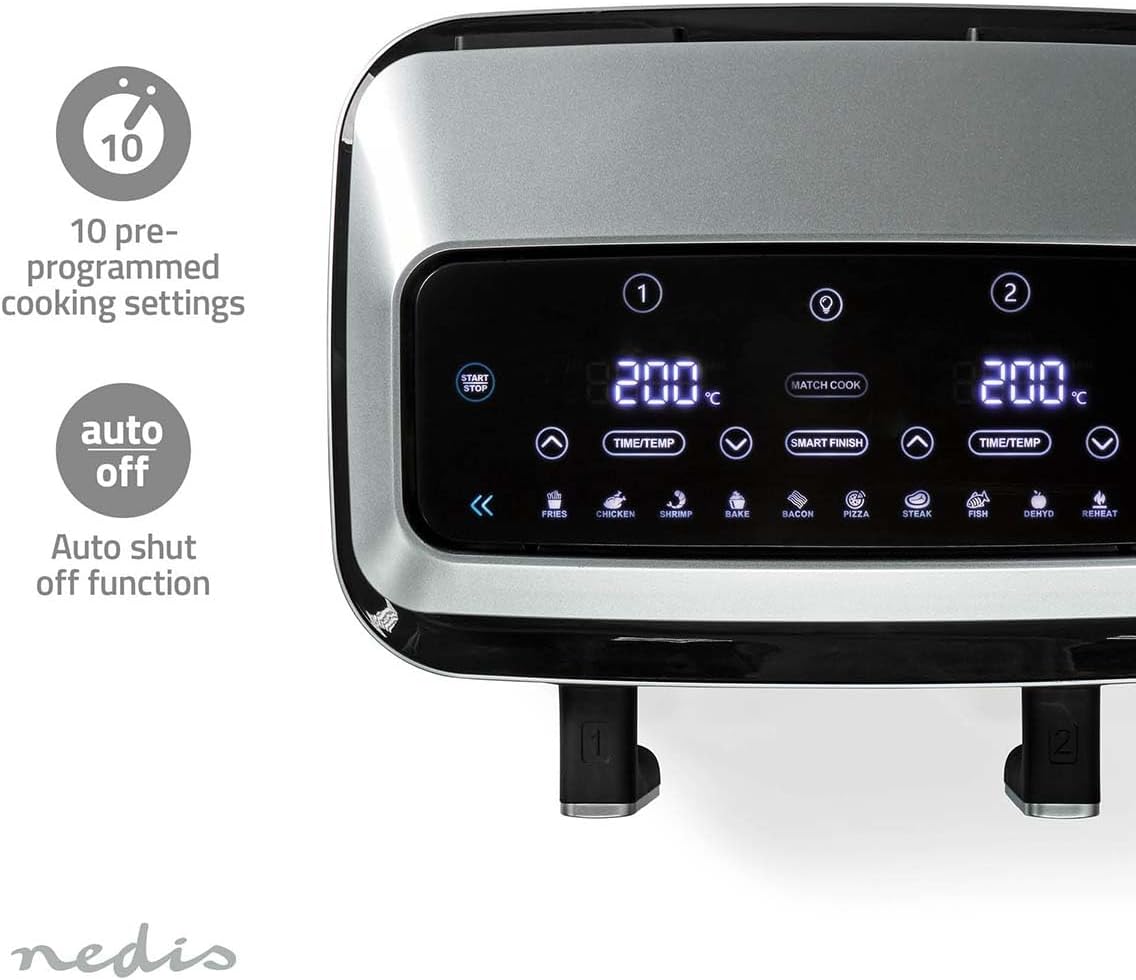

Image 5.2: Display of the 10 pre-programmed cooking settings and the auto-off feature.
5.4. Smart Finish Function
The Smart Finish function allows you to cook two different foods with different cooking times and temperatures, ensuring they both finish at the same time.
- Load both baskets with food.
- Select Zone 1 and set its desired cooking time and temperature (or preset).
- Select Zone 2 and set its desired cooking time and temperature (or preset).
- Press the SMART FINISH button.
- Press START/STOP. The air fryer will automatically adjust the start times for each zone so they conclude simultaneously.
5.5. Match Cook Function
The Match Cook function is useful when you want to cook the same food in both baskets using identical settings.
- Load both baskets with the same food.
- Select Zone 1 and set its desired cooking time and temperature (or preset).
- Press the MATCH COOK button. The settings from Zone 1 will be copied to Zone 2.
- Tẹ START/STOP lati bẹrẹ sise.
Image 5.3: Visual explanation of the Match Cook and Smart Finish functions.
5.6. Gbigbọn Olurannileti
For certain foods, especially fries, the air fryer includes a shake reminder function. During the cooking cycle, the appliance will beep and display a "SHAKE" icon to remind you to shake the basket(s) for even cooking and crispiness. Open the basket, shake the contents, and reinsert it to resume cooking.
6. Itọsọna ati awọn imọran sise
- Gbigbona ṣaaju: Fun awọn esi to dara julọ, ṣaju fryer afẹfẹ fun awọn iṣẹju 3-5 ṣaaju fifi ounjẹ kun.
- Lilo Epo: While air frying requires little to no oil, a light spray or toss with oil can enhance crispiness and flavor for some foods.
- Sise ipele: Avoid overcrowding the baskets. Cook in smaller batches if necessary to ensure even cooking and crispiness.
- Gbigbọn/Sisọ: For foods like fries, chicken nuggets, or vegetables, shaking or tossing the basket halfway through cooking helps achieve uniform results.
- Ṣiṣayẹwo Ti pari: Always check food for doneness, especially meats and poultry, using a food thermometer.
- Àwọn Àtúnṣe Oúnjẹ: Air fryer cooking times and temperatures may vary from conventional oven recipes. Start with recommended settings and adjust as needed.
7. Itọju ati Cleaning
Ṣiṣe mimọ nigbagbogbo ṣe idaniloju iṣẹ ṣiṣe to dara julọ ati fa igbesi aye fryer afẹfẹ rẹ pọ si.
- Yọọ: Yọọ fryer afẹfẹ nigbagbogbo ki o jẹ ki o tutu patapata ṣaaju ṣiṣe mimọ.
- Baskets and Racks: The cooking baskets and crisper racks are dishwasher safe. For hand washing, use hot water, dish soap, and a non-abrasive sponge. The non-stick coating allows for easy removal of food residues.
- Inu inu: Mu inu inu ohun elo naa nu pẹlu ipolowoamp asọ. Ma ṣe lo awọn afọmọ abrasive tabi awọn paadi iyẹfun.
- Òde: Wẹ ode pẹlu asọ, damp asọ.
- Ibi ipamọ: Rii daju pe gbogbo awọn ẹya jẹ mimọ ati ki o gbẹ ṣaaju ki o to tọju fryer afẹfẹ ni ibi ti o tutu, ti o gbẹ.
Image 7.1: Detachable baskets and dishwasher-safe crisper racks for easy cleaning.
8. Laasigbotitusita
If you encounter issues with your air fryer, consult the table below for common problems and solutions.
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Afẹfẹ fryer ko ni tan. | Ko edidi ni; isoro iṣan agbara; aṣiṣe ẹrọ. | Rii daju pe okun agbara ti wa ni edidi ni aabo sinu iṣan-iṣẹ iṣẹ. Ṣayẹwo rẹ Circuit fifọ. |
| Ounjẹ kii ṣe boṣeyẹ. | Baskets overcrowded; food not shaken/tossed. | Cook in smaller batches. Shake or toss food halfway through cooking. |
| Ounje ko crispy. | Ọrinrin pupọ ju; epo to ko to (fun awọn ounjẹ kan); iwọn otutu kekere ju. | Pat food dry before cooking. Lightly coat with oil. Increase temperature slightly. |
| Ẹfin funfun n bọ lati inu ohun elo. | Aloku girisi lati lilo iṣaaju; ounjẹ ti o sanra. | Clean the baskets and interior thoroughly. For high-fat foods, drain excess fat during cooking. |
| Ohun elo n run lakoko lilo akọkọ. | Awọn iṣẹku iṣelọpọ sisun ni pipa. | This is normal for first use. Run empty for 10-15 minutes as described in Setup. Ensure good ventilation. |
9. Awọn pato
- Awoṣe: KAAF320BK
- Brand: NEDIS
- Agbara: 2 x 4.2 Liters (Total 8.4 Liters)
- Agbara: 2600 Wattis
- Voltage: 240 Volts
- Iwọn otutu: 50°C - 200°C (Adjustable)
- Aago: Titi di iṣẹju 60
- Àwọn Ètò tí a ti ṣètò tẹ́lẹ̀: 10
- Ohun elo: Acrylonitrile Butadiene Styrene (ABS)
- Awọn iwọn ọja: 27 x 39 x 31 cm (Ijinle x Iwọn x Giga)
- Ìwọ̀n Nkan: 7.25 kilo
- Awọn ẹya pataki: Dual Zone Functions, Smart Control, Shake Reminder, Auto Shut-off
Image 9.1: Key specifications and features of the Nedis KAAF320BK Air Fryer.
10. Atilẹyin ọja ati Support
Nedis products are manufactured to high quality standards. This product is covered by a warranty period of 2 years from the date of purchase. The warranty does not cover damage caused by improper use, neglect, accidents, or normal wear and tear.
For technical support, warranty claims, or further information, please refer to the official Nedis webaaye tabi kan si alagbata agbegbe rẹ. Tọju iwe-ẹri rira rẹ bi ẹri rira.
Fun alaye diẹ sii, ṣabẹwo si osise naa Nedis Store on Amazon.
