Ìwé Ìtọ́ni fún Ibùdó Agbára Gbígbé Generac GB2000

1. Ifihan

The Generac GB2000 Portable Power Station provides clean, emission-free power for various applications. This manual outlines the proper setup, operation, and maintenance procedures to ensure safe and efficient use of your device. Whether for home backup, camping, or outdoor activities, the GB2000 offers reliable energy.

Image 1: Generac GB2000 Portable Power Station, a compact and durable unit with a handle for easy transport.

2. Alaye Aabo

ÌKÌLỌ̀: Ka gbogbo ìkìlọ̀ àti ìtọ́ni ààbò kí o tó lo ọjà yìí. Àìtẹ̀lé àwọn ìkìlọ̀ àti ìtọ́ni lè yọrí sí ìkọlù iná mànàmáná, iná, àti/tàbí ìpalára ńlá.

• Abe ile/ita gbangba Lo: This power station is designed for both indoor and outdoor use. Ensure adequate ventilation when operating indoors.
• Yago fun Ọrinrin: Do not expose the power station to rain or wet conditions.
• Awọn isopọ to tọ: Ensure all connections are secure and correctly inserted to prevent electrical hazards.
• Idaabobo Apọju: Do not exceed the rated output of the power station. Overloading can cause damage to the unit and connected devices.
• Awọn ọmọde ati awọn ohun ọsin: Pa ibudo agbara mọ kuro lọwọ awọn ọmọde ati awọn ẹranko.
• Ibi ipamọ: Store the unit in a cool, dry place away from direct sunlight and flammable materials.

3. Package Awọn akoonu

Daju pe gbogbo awọn ohun kan wa ninu package rẹ:

• Generac GB2000 Portable Power Station
• Generac 8031 Charge Enhancer 200W Charger
• Ngba agbara USB
• Afowoyi Olumulo (iwe-ipamọ yii)

4. Ọja Awọn ẹya ara ẹrọ ati irinše

The Generac GB2000 is equipped with a variety of ports and features for versatile power delivery:

• Multi-Color Display: Provides real-time information on battery status, input/output wattage, àti àkókò ìṣiṣẹ́ tó kù.
• AC Receptacles (NEMA 1-15R): Standard household outlets for powering various appliances.
• USB-C Output Receptacles: Fun awọn ẹrọ USB-C ti o baamu gbigba agbara iyara.
• USB-A Output Receptacles: Standard USB ports for charging smaller electronic devices.
• Ibudo ọkọ ayọkẹlẹ 12V: For powering 12V DC devices or charging the power station from a vehicle.
• Awọn ibudo ti o jọra: Allows connection of two GB2000 units for increased power output (Parallel Kit sold separately).
• Paadi Ngba agbara Alailowaya: Built-in 15W wireless charging for compatible devices.
• LED ON/OFF Button & Diffused LED Light: Provides illumination for various situations.
• AC Output ON/OFF Button: Controls the AC power output.
• Bọtini TAN/PA Ijade DC: Controls the DC power output.
• Display On/Off Button: Toggles the display screen.
• Main ON/OFF Button: Powers the entire unit on or off.

Aworan 2: alaye view of the Generac GB2000 control panel, highlighting various input/output ports and control buttons.

5. Eto

1. Yọọ kuro: Carefully remove the Generac GB2000 and all accessories from the packaging.
2. Idiyele Ibẹrẹ: Before first use, fully charge the power station using the provided charging cable and a standard wall outlet. The display will indicate charging progress.
3. Mọ Ara Rẹ: Review the control panel and port locations as detailed in Section 4.

6. Awọn ilana Iṣiṣẹ

1. Titan/Apapa: Tẹ mọlẹ Main ON/OFF Button to power the unit on or off. The multi-color display will activate.
2. Activate AC Output: Tẹ awọn AC wu ON/PA Button to enable the AC receptacles. The indicator light will illuminate.
3. Activate DC Output: Tẹ awọn DC o wu ON / PA Bọtini to enable the DC ports (USB, 12V Car Port). The indicator light will illuminate.
4. Awọn ẹrọ Sopọ: Plug your devices into the appropriate AC or DC ports. Monitor the display for real-time output wattage.
5. Gbigba agbara Alailowaya: Place your compatible device on the built-in 15W wireless charging pad located on top of the unit.
6. Imọlẹ LED: Tẹ awọn LED ON / PA Bọtini to activate the diffused LED light. Press again to cycle through brightness settings or activate SOS mode.
7. Iṣẹ́ tó jọra: For increased power, connect two Generac GB2000 units using a Parallel Kit (sold separately) via the Parallel Ports. Refer to the Parallel Kit manual for detailed instructions.

7. Awọn aṣayan gbigba agbara

The Generac GB2000 offers flexible recharging methods:

• Odi Odi: Use the provided charging cable to connect to a standard AC wall outlet.
• Awọn panẹli Oorun: Connect compatible solar panels (sold separately) to the designated input ports for eco-friendly recharging.
• Ṣaja ọkọ ayọkẹlẹ: Use a car charger (sold separately) to recharge the power station from your vehicle's 12V outlet.
• Charge Enhancer: Utilize the Generac 8031 Charge Enhancer 200W Charger to recharge your GB Power Station up to 25% faster.

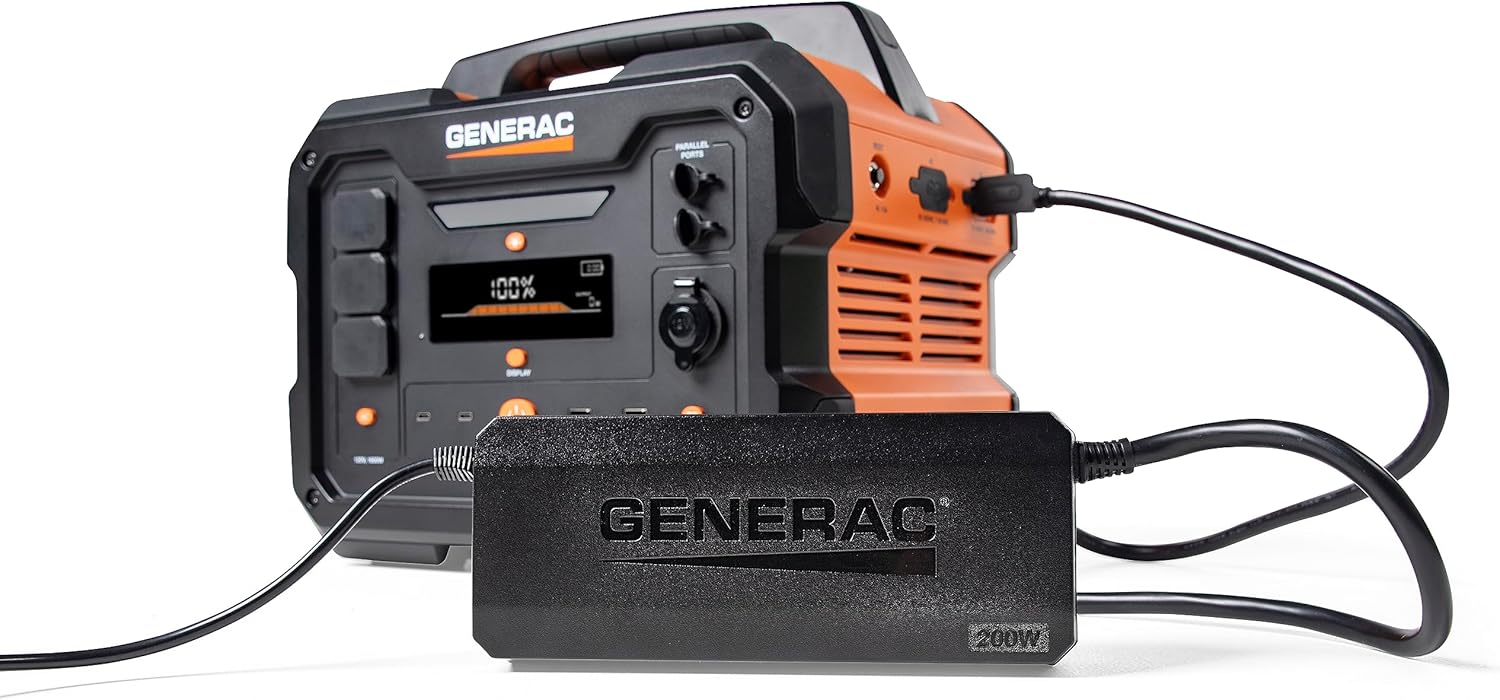

Image 3: Generac GB2000 connected to the Generac 8031 Charge Enhancer for optimized charging speed.

Image 4: Optional accessories for the Generac GB2000, including a Parallel Kit, Charge Enhancer, and Solar Panel.

8. Itọju

• Ninu: Wipe the exterior of the power station with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Ibi ipamọ: If storing for extended periods, ensure the battery is charged to at least 50% and recharge every 3-6 months to maintain battery health. Store in a cool, dry environment.
• Ayewo: Periodically inspect the unit and cables for any signs of damage. Do not operate if damaged.

9. Laasigbotitusita

• Ẹka Ko Ṣiṣẹ Tan-an: Rí i dájú pé batiri náà ti gba agbára. Tí kò bá rí bẹ́ẹ̀, so mọ́ orísun agbára kan.
• Ko si Ijade lati Awọn ibudo: Verify that the AC/DC output buttons are pressed and their indicator lights are on. Check device connections.
• Itọkasi apọju: If the overload alarm activates, disconnect some devices to reduce the load. The unit may automatically reset or require a manual restart.
• Awọn ọran gbigba agbara: Ensure the charging cable is securely connected and the power source is active. Check the display for charging status.

10. Awọn pato

Image 5: Estimated runtimes for common devices with the Generac GB2000 Portable Power Station.

11. Atilẹyin ọja ati Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included in your product packaging or visit the official Generac webojula. Tọju iwe-ẹri rira rẹ bi ẹri rira.
