Ehaho Porch Light with GFCI Outlet

1. Alaye Aabo

Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be fatal or cause property damage.

• Aabo Itanna: Always turn off the main power supply at the circuit breaker before installing, servicing, or cleaning the fixture.
• Ilẹ: Rí i dájú pé ohun èlò náà dúró dáadáa kí ó má ​​baà jẹ́ kí iná mànàmáná tàn kálẹ̀.
• Lilo ita gbangba: This fixture is designed for outdoor use and is IP65 rated for water and dust resistance. However, ensure all connections are sealed properly during installation.
• Iṣan GFCI: The integrated GFCI (Ground Fault Circuit Interrupter) outlet provides additional protection against electrical shock. Test the GFCI outlet monthly to ensure proper function.
• Ibamu Boolubu: Use only E26-based bulbs with a maximum wattage ti 60W.

2. Kini To wa

Daju pe gbogbo awọn paati wa ṣaaju ki o to bẹrẹ fifi sori:

• 1 x Wall Lantern with Outlet
• Iṣagbesori Hardware
• Ilana itọnisọna
• Silicone Cap (for photocell sensor)

3. Awọn ilana fifi sori ẹrọ

This Ehaho Porch Light is designed for easy installation. Follow these general steps:

1. Mura fun fifi sori: Turn off power at the circuit breaker. Remove any existing fixture.
2. Gbe Bracket soke: Secure the mounting bracket to the junction box on your wall using the provided hardware.
3. Fi okun waya: Connect the fixture's wires to your household wiring according to local electrical codes. Ensure proper grounding.
4. Ṣe aabo Ohun elo naa: So imuduro ina mọ akọmọ iṣagbesori.
5. Fi sori ẹrọ Bulb: Screw in an E26-based bulb (max 60W, not included).
6. Activate GFCI Outlet: After installation and restoring power, press the "TEST" button once and then the "RESET" button once on the GFCI outlet to activate it.

Image: The Ehaho Porch Light with GFCI outlet is shown powering various outdoor devices such as a hedge trimmer, a security camera, and holiday string lights, highlighting its versatility.

4. Awọn ilana Iṣiṣẹ

Your Ehaho Porch Light offers two operational modes:

4.1. Dusk to Dawn Sensor Mode

The built-in photocell sensor automatically detects ambient light levels. In this mode:

• The light will automatically turn ON when brightness is below 10-20 Lux (at night).
• The light will automatically turn PAA when brightness is above 30-60 Lux (during the daytime).

4.2. Switch-Controlled Mode

To operate the light using a standard wall switch, cover the photocell sensor with the included silicone cap. This disables the dusk-to-dawn function, allowing manual control.

Image: This image displays the two operational modes: Dusk to Dawn, where the light automatically turns on at night and off during the day, and Switch-Controlled, which is activated by covering the sensor with a silicone cap.

5. Awọn ẹya ara ẹrọ

• Integrated GFCI Outlet: Features a downward-opening design to protect against rain, with two receptacles suitable for 2 or 3-pronged plugs. Supports a maximum current of 15A and a maximum load of 1800W.
• Oru titi di oni sensọ: Automatically turns the light on at night and off during the day, providing convenience and energy efficiency.
• Ipilẹ Socket E26: Compatible with 60-watt max E26-based bulbs (LED, CFL, incandescent, halogen). The open design allows for easy bulb replacement and cleaning.
• Durable & Weatherproof Construction: Made from heavy-duty die-cast aluminum alloy, ensuring strength and anti-rust properties. IP65 rated for excellent performance in various weather conditions, including rain, sleet, and snow.

Aworan: A alaye view of the GFCI outlet on the Ehaho Porch Light, emphasizing its weather-resistant (WR) and tamper-resistant (TR) design for enhanced safety and durability.

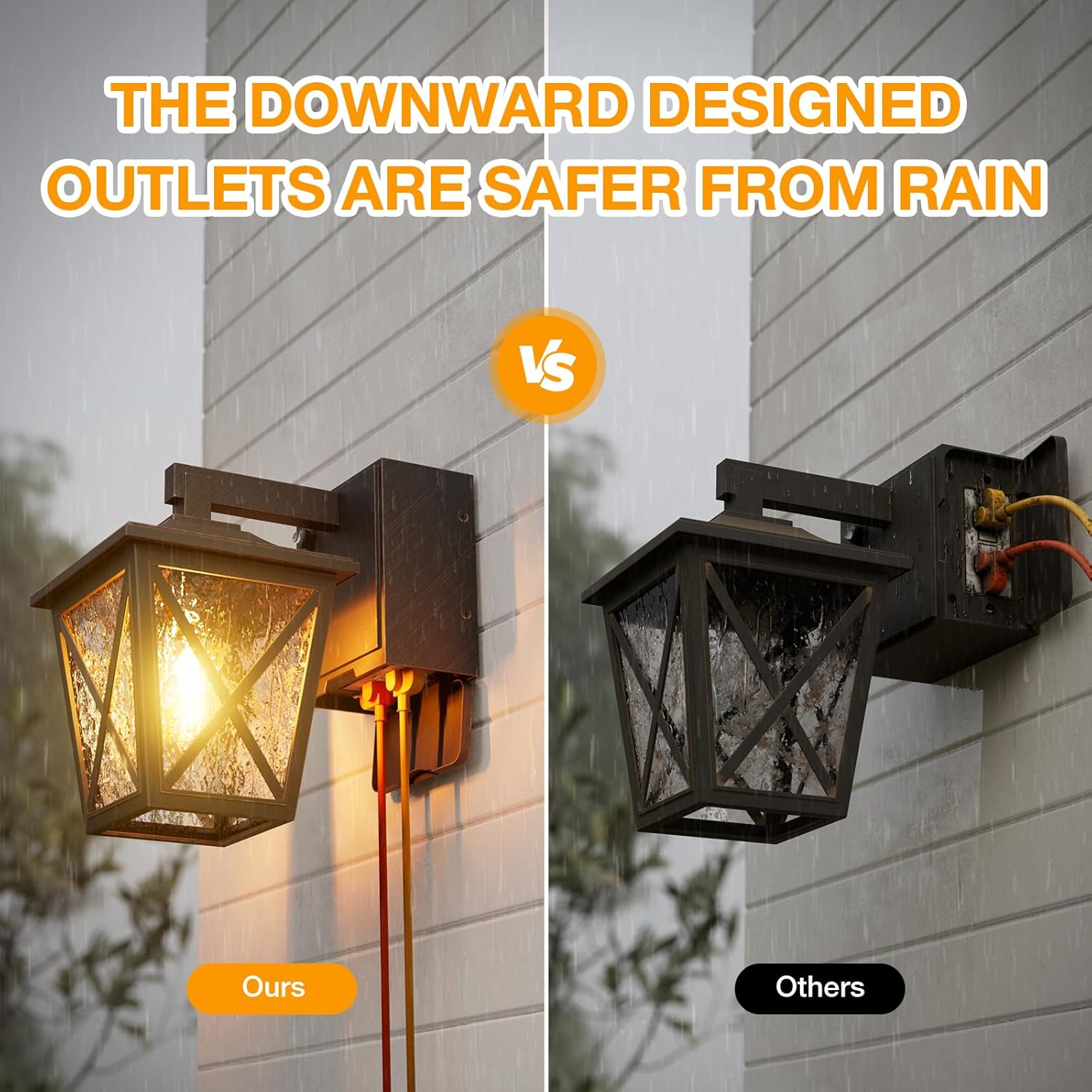

Image: This image compares the downward-designed GFCI outlets of the Ehaho Porch Light with other designs, showing how the downward orientation offers superior protection against rain.

Image: The Ehaho Porch Light is presented with its elegant and durable aluminum design, emphasizing its IP65 waterproof rating and resilience against various weather conditions like rain, rust, sun, and snow.

6. Itọju

• Ninu: Láti nu ohun èlò ìṣiṣẹ́ náà, rí i dájú pé agbára náà ti pa. Fi aṣọ rírọ, d nu ún.amp cloth. Avoid abrasive cleaners that may damage the finish or glass. The open design facilitates easy access for cleaning and bulb replacement.
• Idanwo GFCI: Regularly test the GFCI outlet (monthly recommended) by pressing the "TEST" button. The "RESET" button should pop out, indicating the circuit has tripped. Press "RESET" to restore power. If it does not trip or reset, the GFCI may be faulty and should be replaced.

7. Laasigbotitusita

• Light not turning on/off automatically:
  • Ensure the photocell sensor is not obstructed by dirt, debris, or external light sources.
  • If you desire manual control, ensure the silicone cap is properly covering the sensor.
• GFCI Outlet not providing power:
  • Press the "RESET" button on the GFCI outlet. If it doesn't reset, press the "TEST" button first, then "RESET".
  • Check your main circuit breaker to ensure power is supplied to the fixture.
  • Ensure the connected device is not drawing more than the maximum load (1800W) or current (15A).
• Light not working at all:
  • Check the bulb to ensure it is screwed in tightly and is not burnt out.
  • Verify that the main power supply to the fixture is on at the circuit breaker.
  • Inspect wiring connections for any loose or disconnected wires (ensure power is off before inspecting).

8. Awọn pato

9. Atilẹyin ọja & Atilẹyin

Atilẹyin ọja ti olupese: No specific manufacturer warranty information is provided for this product.

For further assistance or inquiries, please refer to the contact information provided with your purchase or visit the official Ehaho store on Amazon: Ehaho Store
