Ọrọ Iṣaaju
The SONICAKE A-Factory is a versatile acoustic guitar effects pedal designed to enhance your instrument's tone with an analog preamp and digital reverb. It features a built-in notch filter for feedback suppression, high impedance input, and a balanced XLR output, making it suitable for various performance and recording setups. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance of your A-Factory pedal.
Aworan: Iwaju view of the SONICAKE A-Factory pedal, showcasing its controls and footswitches.
Key Awọn ẹya ara ẹrọ
- Analog Preamp and Digital Reverb: Combines essential acoustic guitar tone shaping with lush digital reverb effects.
- Built-in Notch Filter and MUTE: Features adjustable gain and frequency range to quickly eliminate whistling feedback, along with a MUTE function for silent tuning or instrument changes.
- High Impedance Input and XLR Balanced Output: Ensures signal integrity from your instrument and provides professional connectivity to mixers or PA systems.
- Specially Designed Buffer Bypass Circuit: Maintains the pristine quality of your instrument's signal when the effect is bypassed.
- 9V Center Negative Power Supply: Compatible with standard pedal power supplies (not included).
Awọn iṣakoso ati awọn isopọ
Image: Labeled diagram of the A-Factory pedal's controls and connections.
Awọn bọtini Iṣakoso:
- TẸRẸ: Adjusts the high-frequency content of your tone.
- IDAGBASOKE: Ó ń ṣàkóso gbogbo ìwọ̀n ìjáde ti pedal.
- N.FREQ (Notch Frequency): Sets the frequency point for the notch filter to target and reduce.
- Ogbontarigi: Adjusts the depth of the notch filter, used to eliminate feedback.
- GND LIFT (Ground Lift Switch): Ṣe iranlọwọ lati yọkuro ariwo ti o fa nipasẹ awọn iyipo ilẹ.
- R.DECAY (Reverb Decay): Ó ń ṣàkóso gígùn ìrù ìrọ̀rùn.
- R.MIX (Reverb Mix): Adjusts the blend of the dry signal with the reverb effect.
- Mimọ: Adjusts the low-frequency content of your tone.
- LARIN: Adjusts the mid-range frequency content of your tone.
Awọn ẹlẹsẹ:
- REVERB Footswitch: Toggles the digital reverb effect on or off. Hold down to activate the MUTE function.
- PREAMP Ẹsẹ ẹlẹsẹ: Toggles the analog preamp apakan tan tabi pa.
Awọn jacks Input / Output:
- INPUT (1/4-inch): Connect your acoustic instrument here.
- OUTPUT (1/4-inch): Sopọ si rẹ amplifia tabi pedal tókàn ninu ẹwọn ifihan agbara.
- XLR OUT (Balanced XLR Output): Provides a balanced signal for direct connection to a mixer or audio interface.
- DC 9V: Power input for a 9V DC center-negative power supply.
Aworan: Isunmọ views of the pedal's input, output, and power connections, highlighting its robust aluminum-alloy casing.
Ṣeto
- Asopọ agbara: Connect a standard 9V DC center-negative power supply (not included) to the DC 9V input jack on the pedal. Ensure the power supply meets the specified voltage and polarity requirements.
- Isopọ ohun elo: Plug your acoustic guitar or instrument into the 1/4-inch INPUT jack on the pedal using a standard instrument cable.
- Asopọ jade:
- Fun asopọ si gita kan amplifier or other effects pedals, use a 1/4-inch instrument cable from the OUTPUT jack.
- For direct connection to a mixer, PA system, or audio interface, use an XLR cable from the XLR OUT jack.
- Awọn Eto Ibẹrẹ: Before powering on, set all control knobs to their middle (12 o'clock) position. Ensure both footswitches are disengaged (LEDs off).

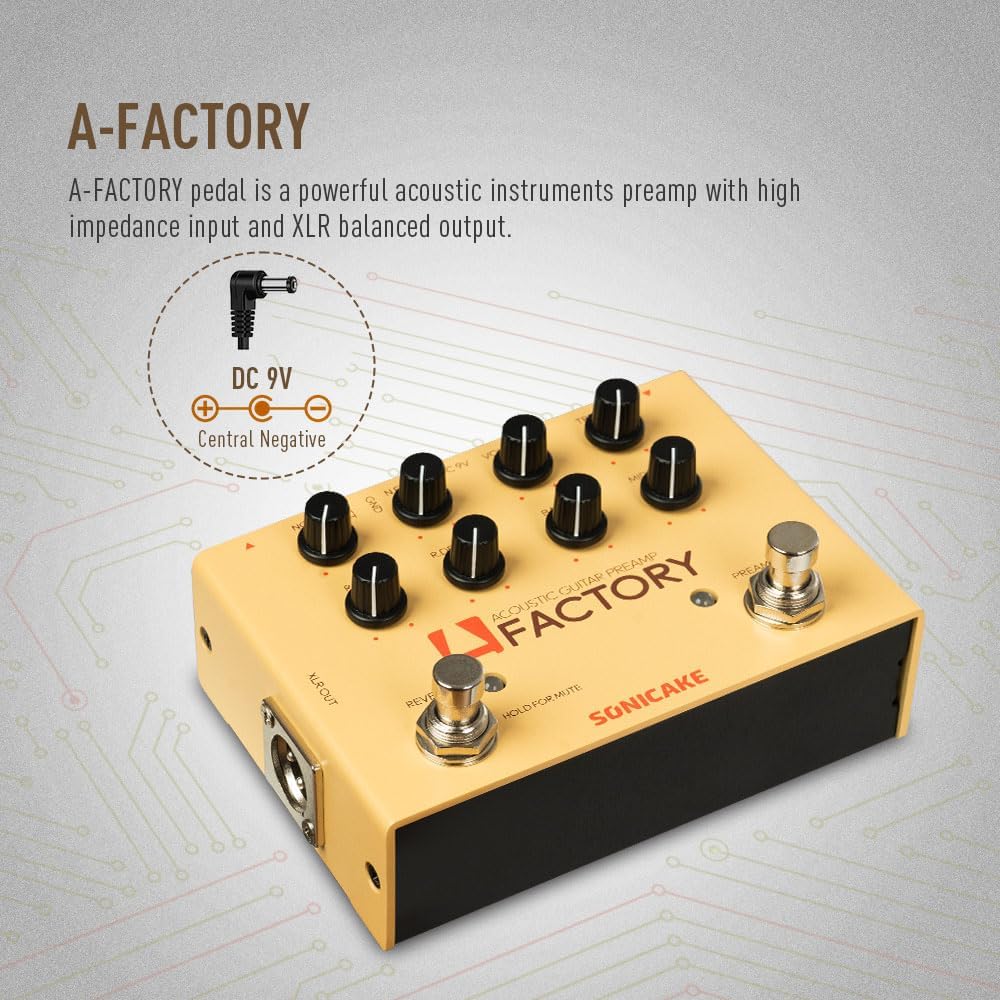

Image: The A-Factory pedal illustrating the 9V DC center-negative power input requirement.
Awọn ilana Iṣiṣẹ
Engaging the Preamp:
Fọwọ ba PREAMP footswitch to activate the analog preamp section. The corresponding LED will illuminate, indicating the preamp is active. This provides tone shaping capabilities via the BASS, MIDDLE, and TREBLE controls.
Using the Reverb and Mute Function:
Fọwọ ba OWO footswitch to engage or disengage the digital reverb effect. The LED will light up when the reverb is active. To activate the IKU function, press and hold the REVERB footswitch for approximately 2 seconds. This will silence the output, useful for silent tuning or instrument changes. Press and hold again to unmute.
Image: Diagram illustrating how to tap the Reverb footswitch for reverb on/off and hold for the Mute function.
Adjusting Tone (EQ):
Lo awọn Bass, LARIN, ati TREK. knobs to sculpt your acoustic guitar's tone. Adjust these to suit your instrument, playing style, and the acoustic environment.
Utilizing the Notch Filter:
The notch filter is crucial for feedback suppression. If you experience feedback, slowly turn the AKIYESI knob while playing. If the feedback persists, adjust the N.FREQ knob to sweep through frequencies until the feedback is minimized or eliminated. The GND gbe soke switch can also help reduce hum or noise from ground loops, especially when using the XLR output.
Image: Diagram detailing the Notch Filter controls (NOTCH and N.FREQ) and their function in eliminating feedback.
Controlling Reverb Effect:
Awọn R.MIX knob controls the amount of reverb blended with your dry signal. Turn clockwise for more reverb. The R.DECAY knob adjusts the length of the reverb tail; clockwise increases the decay time.
Setting Overall Volume:
Awọn Iwọn didun knob controls the master output level of the pedal. Adjust this to achieve the desired loudness without clipping your amplifier tabi aladapo input.
Itoju
- Ninu: Use a soft, dry cloth to clean the pedal's surface. Avoid using abrasive cleaners, solvents, or waxes, as they may damage the finish or internal components.
- Ibi ipamọ: When not in use for extended periods, disconnect the power supply and store the pedal in a cool, dry place away from direct sunlight and extreme temperatures.
- Ibi ti ina elekitiriki ti nwa: Always use a regulated 9V DC center-negative power supply to prevent damage to the unit. Unplug the power supply when not in use.
- Awọn isopọ: Periodically check all cable connections for wear and tear. Ensure cables are securely plugged in to prevent signal loss or intermittent issues.
Laasigbotitusita
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| No sound from pedal. | Incorrect power supply, loose cables, pedal bypassed, MUTE engaged. | Verify 9V DC center-negative power supply. Check all cable connections. Ensure PREAMP and REVERB are engaged (LEDs on). Disengage MUTE by holding REVERB footswitch. |
| Excessive hum or noise. | Ground loop, faulty cables, interference. | Engage the GND LIFT switch. Try different cables. Ensure power supply is isolated and regulated. Move pedal away from power sources or other electronics. |
| Feedback (howling) when playing. | Microphonic feedback from instrument, high volume. | Adjust the NOTCH and N.FREQ knobs to find and eliminate the problematic frequency. Reduce overall VOLUME. Move further from the amplifier/PA speakers. |
| Reverb effect is too subtle or too strong. | R.MIX or R.DECAY settings. | Adjust the R.MIX knob to control the blend of the reverb effect. Adjust the R.DECAY knob to control the length of the reverb tail. |
Awọn pato
- Awoṣe: QDS-04 (A Factory)
- Ìwọ̀n Nkan: 13.7 iwon (0.39 kilo)
- Awọn iwọn ọja: 4.72"L x 1.42"W x 3.43"H (12 x 3.6 x 8.7 cm)
- Orisun Agbara: Okun Itanna
- Voltage: 9 Volts DC (Center Negative)
- Ọna kika Ifihan: Analog (Preamp), Digital (Reverb)
- Ni wiwo Hardware: 1/4-inch Audio, XLR
- Orisi Asopọmọra: 1/4" TS Input/Output, XLR Output
Atilẹyin ọja ati Support
