KOKIDO XTROVAC 310 Rechargeable Dual Filter Pool Vacuum

1. Ifihan

Thank you for choosing the KOKIDO XTROVAC 310 Rechargeable Dual Filter Pool Vacuum. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new pool cleaner. Please read these instructions carefully before use and retain them for future reference.

The XTROVAC 310 is designed for versatile and powerful cleaning of small to medium-sized above-ground and in-ground pools, spas, and hot tubs. Its cordless, rechargeable design offers freedom of movement, while the dual filtration system and interchangeable vacuum heads ensure comprehensive debris removal.

2. Alaye Aabo

Máa tẹ̀lé àwọn ìlànà ààbò wọ̀nyí láti dín ewu ìpalára, ìkọlù iná mànàmáná, tàbí ìbàjẹ́ sí ọjà náà kù.

• Ka gbogbo awọn itọnisọna ṣaaju ṣiṣe ẹrọ.
• Do not operate the vacuum if it is damaged in any way.
• Keep the charging port dry and clean. Do not charge the unit near water or with wet hands.
• Lo ṣaja ti olupese ti pese nikan.
• Do not allow children to operate this appliance. Supervise children and pets around the pool area.
• Ensure the vacuum is fully submerged before activating to prevent motor damage.
• Do not attempt to clean algae or fine silt with this vacuum, as it is not designed for such particles and may clog the filter or redistribute them.
• Store the vacuum in a dry, cool place when not in use.

3. Package Awọn akoonu

Jẹrisi pe gbogbo awọn paati wa ninu package:

• XTROVAC 310 Main Vacuum Unit
• Standard Stainless Steel Filter (250 micron)
• Fine Filter Bag (106 micron)
• XL Oversized 50° Pivoting Vacuum Head
• Flat Brush Vacuum Head
• 5-Section Aluminum Pole (1.8m / 72 inches total length)
• Pole Connector (for standard telescopic poles, not included)
• Okun Ngba agbara USB
• Afowoyi Olumulo (iwe-ipamọ yii)

4. Eto ati Apejọ

The XTROVAC 310 requires minimal, tool-free assembly.

4.1 Ngba agbara si Batiri naa

1. Ensure the charging port on the vacuum unit is dry.
2. Connect the USB charging cable to the vacuum unit and a suitable USB power adapter (not included).
3. Allow approximately 4.5 to 6 hours for a full charge. The indicator light will change to show charging status (refer to product specific indicator details if available on unit).
4. Do not operate the vacuum while charging.

4.2 Nto Vacuum

1. Fi Ajọ sii: Choose either the standard stainless steel filter (for larger debris like gravel, leaves) or the fine filter bag (for fine sand and particles). Insert the chosen filter into the designated compartment in the main vacuum unit. Ensure it is securely seated.
2. Attach a Vacuum Head: Select the XL oversized pivoting head for general pool floor cleaning or the flat brush head for hard-to-reach areas like corners and steps. Align the head with the vacuum unit and snap it into place.
3. Ṣepọ Ọpa naa: Connect the 5 sections of the aluminum pole by pushing the buttons and sliding them together until they lock. The pole provides a reach of 2.5 to 6 feet.
4. Connect the Pole to the Vacuum: Attach the assembled pole to the vacuum unit. For extended reach with a standard telescopic pole (not included), use the provided pole connector.

Figure 1: Components of the XTROVAC 310, including the lightweight design, 5-section pole, pole connector for extended reach, and the two vacuum heads (oversized pivoting head and flat brush).

5. Awọn ilana Iṣiṣẹ

Follow these steps for effective pool cleaning with your XTROVAC 310.

5.1 Preparing for Cleaning

• Rii daju pe batiri ti gba agbara ni kikun.
• Select the appropriate filter for the type of debris you are cleaning. Use the 250µ filter for general debris (leaves, gravel) and the 106µ filter for fine sand. Note: The fine filter may slightly reduce suction power.
• Attach the desired vacuum head (XL pivoting for general cleaning, flat brush for targeted spot cleaning).

5.2 Cleaning Your Pool

1. Submerge the Vacuum: Gently lower the vacuum unit into the water until it is fully submerged. The unit is designed to activate automatically once submerged.
2. Bẹrẹ Isọmọ: Press the one-button control to begin operation.
3. Maneuver the Vacuum: Guide the vacuum across the pool floor and walls using the pole. The XL pivoting head is effective for broad areas, while the flat brush is ideal for corners, steps, and tight spots.
4. Lilo amusowo: For smaller areas, steps, or spas, the vacuum can be used without the pole for handheld spot cleaning.
5. Akoko Iṣiṣẹ: The XTROVAC 310 provides approximately 30 minutes of continuous cleaning on a full charge.
6. Remove from Water: When finished or when the battery is low, lift the vacuum out of the water. The unit will automatically power off.

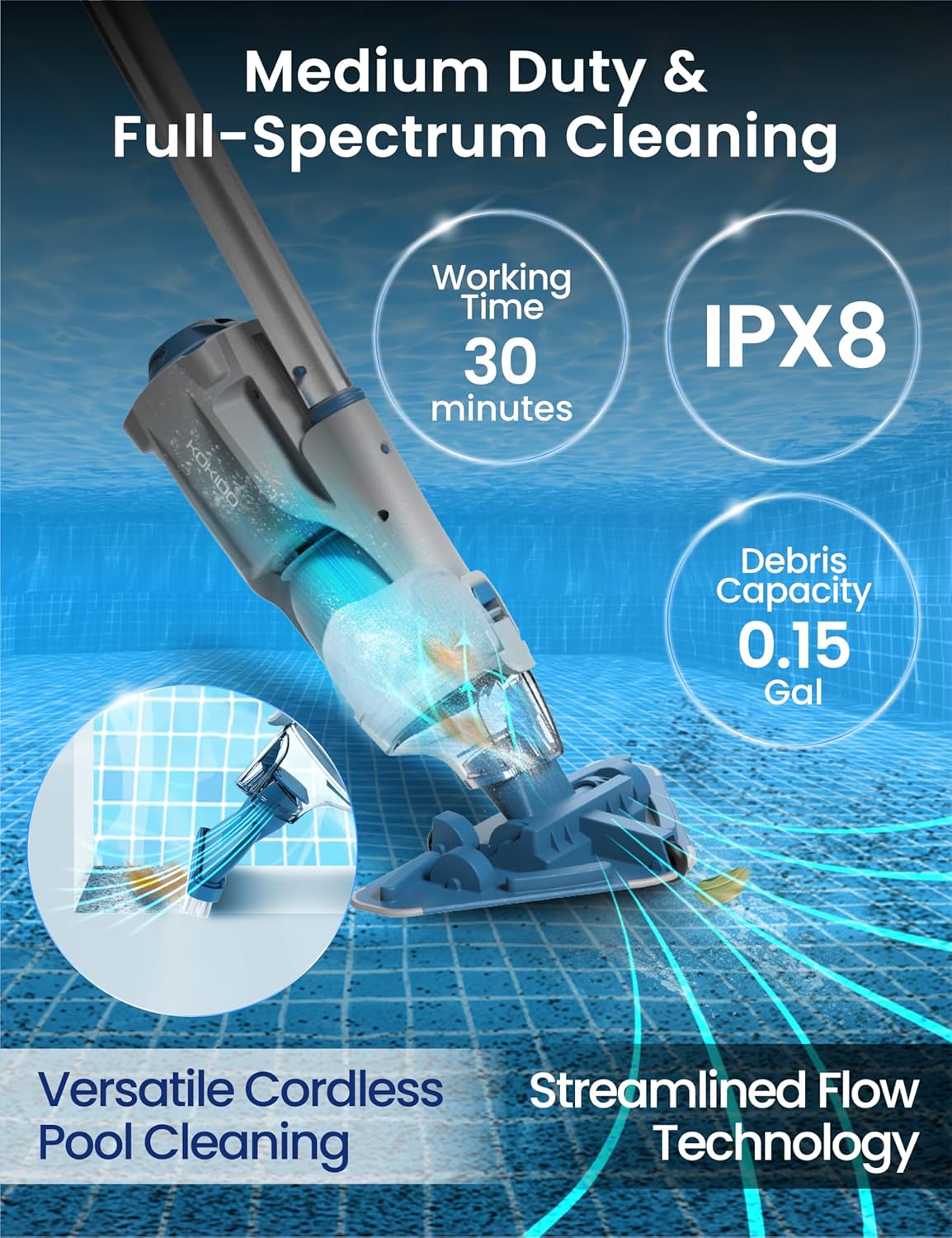

Figure 2: The XTROVAC 310 in operation, highlighting its streamlined flow technology, 30-minute working time, IPX8 waterproofing, and 0.15 gallon debris capacity.

Figure 3: Demonstrates the versatility of the XTROVAC 310, showing a user cleaning a pool with the extension pole and a close-up of handheld cleaning for hard-to-reach areas like steps.

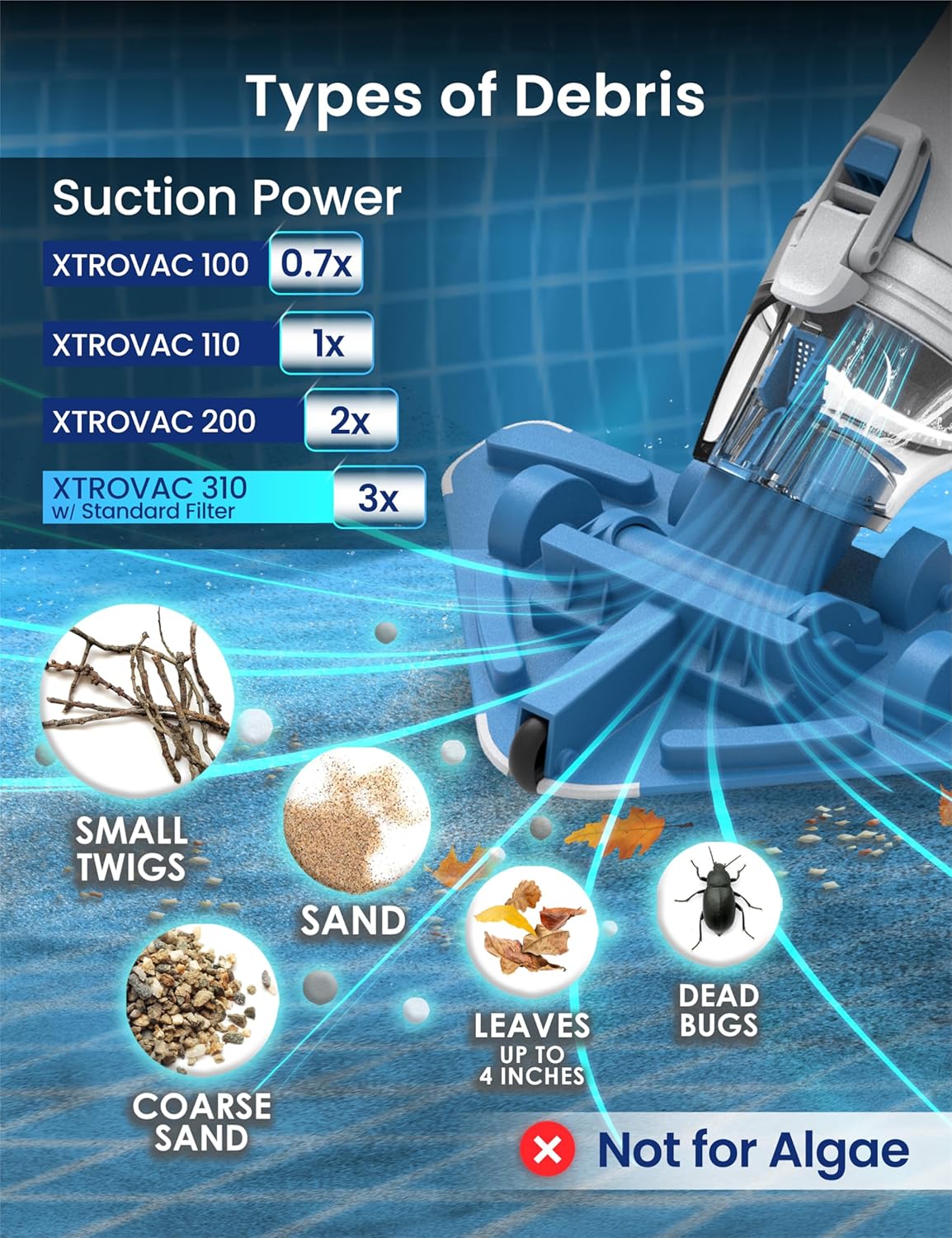

Figure 4: Visual guide to the types of debris the XTROVAC 310 effectively captures, such as small twigs, sand, leaves (up to 4 inches), and dead bugs. It also highlights the 3X suction power of the XTROVAC 310 with a standard filter.

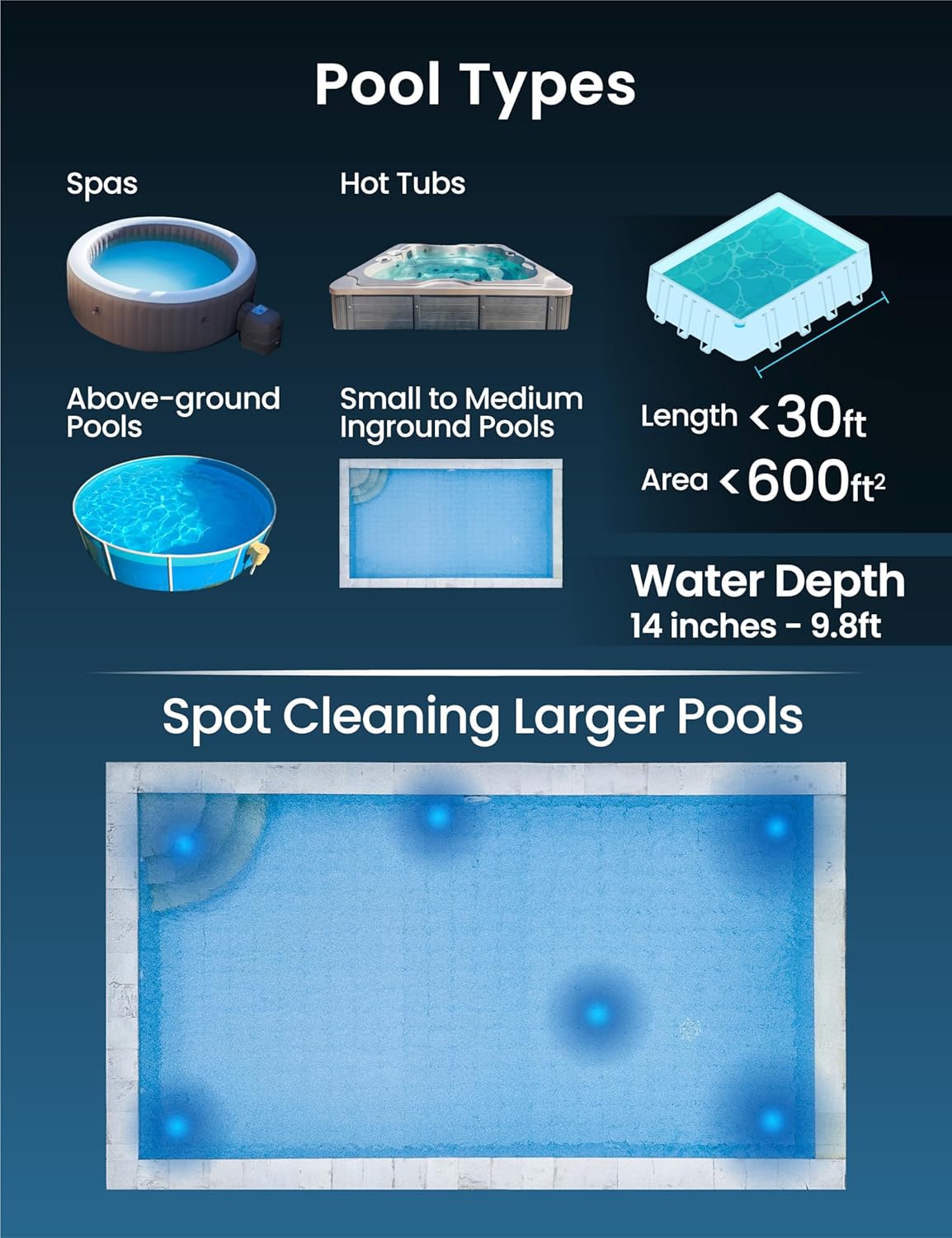

Figure 5: Illustrates the various pool types suitable for the XTROVAC 310, including spas, hot tubs, above-ground pools, and small to medium in-ground pools. It also shows how the vacuum can be used for spot cleaning in larger pools.

6. Itọju

Regular maintenance ensures optimal performance and extends the lifespan of your XTROVAC 310.

6.1 Ninu Ajọ

1. After each use, remove the vacuum head and filter from the main unit. The XTROVAC 310 features an easy release system for filter removal.
2. Empty any collected debris from the filter.
3. Rinse the filter thoroughly with clean water to remove any remaining particles.
4. Allow the filter to air dry completely before reinserting it or storing the unit.

Figure 6: Details the two available filter types: the 250 micron all-purpose stainless steel filter for larger debris and the 106 micron fine filter for fine sand. It also notes that the fine filter may weaken suction and that the vacuum is not suitable for algae.

6.2 Gbogbogbo Itọju ati Ibi ipamọ

• Always rinse the entire vacuum unit with clean, fresh water after each use, especially if used in chlorinated or saltwater pools.
• Rí i dájú pé ẹ̀rọ náà gbẹ pátápátá kí o tó tọ́jú rẹ̀.
• Store the XTROVAC 310 in a cool, dry place, away from direct sunlight and extreme temperatures.
• Periodically check the vacuum heads for wear or damage and clean any debris from the brushes.

7. Laasigbotitusita

If you encounter issues with your XTROVAC 310, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Kokido customer support.

8. Awọn pato

9. Atilẹyin ọja ati Support

9.1 Atilẹyin ọja

The KOKIDO XTROVAC 310 comes with a 1-odun atilẹyin ọja from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, neglect, accidents, or unauthorized modifications.

9.2 Onibara Support

For any questions, concerns, or warranty claims, please contact Kokido customer service. You may find contact information on the product packaging or the official Kokido website. Please have your purchase receipt and product model number (XTROVAC 310) ready when contacting support.

Kokido is a brand with 32 years of experience in pool cleaning, committed to providing quality products and customer satisfaction.
