1. Ifihan
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your LESU 1/14 RC Hydraulic Excavator Model Aoue 9150 Forward Shovel. Please read this manual thoroughly before operating the model to ensure optimal performance and longevity.
2. Ohun ti o wa ninu Apoti
The Rtr-Edition package includes the following components:
- 1Pc 1/14 Aoue 9150 Rc Excavator
- ESC (Oluṣakoso Iyara Itanna)
- Mọto
- Servo
- Imọlẹ System
- Eefun ti System
- Flysky PL18EV Lite Remote Controller And Receiver
- Batiri
Note: Sound System, Charger, and Hydraulic Oil are not included and must be acquired separately.
3. Ọja Ipariview
The LESU 1/14 RC Hydraulic Excavator Aoue 9150 is a highly detailed and functional model featuring a robust design and advanced hydraulic system. Key features include:
- Double Oil Pump Hydraulic System for super large flow.
- Double Hydraulic Cylinder Digging Arm with a large cylinder design.
- Newly designed overflow valve for reliable oil circuit system.
- 80% of the oil circuit system is welded with copper, and 90% of the whole machine is made of metal.
- Modular design, hydraulic lift ladder, openable/closable bucket, and interchangeable arm for backhoe shovel.
- Precise hydraulic system for coordinated and smooth excavator action.
- Balanced oil circuit valve device for stable boom operation.
- Pure Copper Carved Bucket Teeth (Big Gold Teeth).
- Aluminum Alloy Excavator Arm and Counterweight processed by CNC.
- Full machine lighting and analog electronic display.

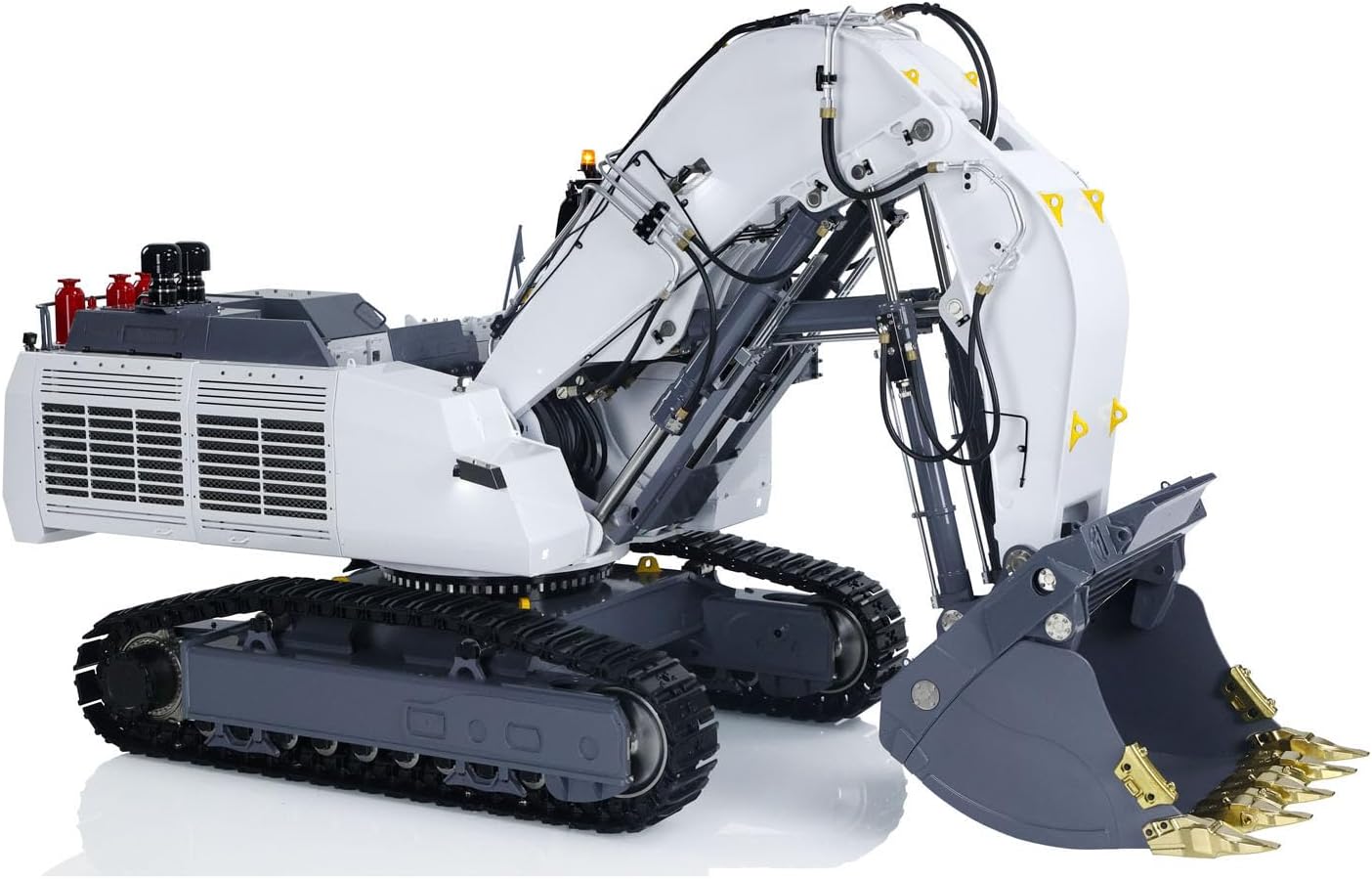

Nọmba 1: Lapapọ view of the LESU 1/14 RC Hydraulic Excavator Aoue 9150.
olusin 2: Apa view of the excavator with the arm extended, showcasing the detailed hydraulic lines and bucket.
olusin 3: Apa view of the excavator with the arm retracted, highlighting the compact design.
olusin 4: Ẹyìn view of the excavator, showing the detailed engine compartment and exhaust pipes.
4. Eto
Before first use, ensure all components are securely connected and the battery is fully charged. Refer to the remote controller's manual for specific pairing instructions.
4.1 Ibẹrẹ Ayẹwo
- Carefully remove the excavator from its packaging.
- Ayewo fun eyikeyi han bibajẹ nigba sowo.
- Ensure all doors and panels are securely closed.
Figure 5: The product packaging as received.
4.2 Battery Installation and Connections
- Locate the battery compartment, typically accessible via a removable panel.
- Connect the provided battery to the excavator's power connector.
- Ensure all internal wiring is neatly arranged and not pinched.
Nọmba 6: View of the engine compartment with the pressure gauge visible, indicating access points for internal components.
Video 1: Demonstrates various features and internal access points of the LESU 1:14 RC Hydraulic Excavator, including opening panels and viewing the hydraulic system and cabin interior.
4.3 Eto Oluṣakoso Latọna jijin
The Flysky PL18EV Lite Remote Controller is pre-bound to the excavator. Refer to the remote controller's specific manual for detailed instructions on charging, calibration, and advanced settings.
olusin 7: Isunmọ view of the excavator's cabin interior, showing the detailed display and controls.
5. Awọn ilana Iṣiṣẹ
Familiarize yourself with the remote controller's functions before operating the excavator. Always operate in a safe, open area, away from obstacles and people.
5.1 Agbara Lori ọkọọkan
- Ensure the excavator's main power switch is OFF.
- Tan oluṣakoso latọna jijin.
- Turn ON the excavator's main power switch. Wait for the system to initialize and lights to activate.
5.2 Basic Movements
- Siwaju/Sẹhin: Use the designated joystick on the remote controller to move the excavator.
- Yipada: Use the designated joystick to control the independent track movements for turning.
- Turret Rotation: Control the rotation of the excavator's upper body (turret) using the appropriate control.
5.3 Hydraulic Arm and Bucket Operation
The hydraulic system allows for precise control of the arm and bucket. Practice these movements in an open space.
- Boom Control: Raise and lower the main boom arm.
- Stick Control: Extend and retract the stick arm.
- Bucket Control: Open and close the bucket for digging and dumping.
Figure 8: Close-up of the hydraulic lift ladder, demonstrating the attention to detail and functional components.
Video 2: Showcases the operational capabilities of the LESU 1:14 RC Hydraulic Excavator, including arm and bucket movements, and the smooth action of the hydraulic cylinders.
6. Itọju
Regular maintenance is crucial for the longevity and performance of your RC excavator.
- Ninu: After each use, clean the model to remove dirt, dust, and debris. Use a soft brush or cloth. Avoid water directly on electronic components.
- Eto eefun: Regularly check hydraulic fluid levels and inspect hoses for leaks or damage. Replenish hydraulic oil as needed (use recommended type only).
- Lubrication: Apply appropriate lubricant to moving parts, joints, and gears as per manufacturer recommendations.
- Track Inspection: Check the tracks for wear, damage, or trapped debris. Ensure proper tension.
- Itọju Batiri: Store batteries in a cool, dry place. Follow charging guidelines to prevent overcharging or deep discharge.
7. Laasigbotitusita
Ti o ba pade awọn ọran, tọka si awọn igbesẹ laasigbotitusita ti o wọpọ wọnyi:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Awoṣe ko dahun | Low battery (model/remote), power switch off, binding issue | Charge batteries, ensure power is ON, re-bind remote controller |
| Weak hydraulic movement | Low hydraulic fluid, air in system, pump issue | Check/refill hydraulic oil, bleed air from system, inspect pump |
| Tracks not moving smoothly | Debris in tracks, track tension incorrect, motor issue | Clean tracks, adjust tension, check motor connections |
For persistent issues, contact LESU customer support or a qualified RC model technician.
8. Awọn pato
Detailed technical specifications for the LESU 1/14 RC Hydraulic Excavator Aoue 9150:
- Olupese: LESU
- Iwọn: 1/14
- Apapọ iwuwo: 60 kg
- Excavator Size: 940 x 465 x 490 mm
- Awọn iwọn ọja: 44 x 30 x 22 inches
- Ohun elo: Stainless Steel, Aluminum Alloy, Brass, Plastic
- Height From Top Of The Cab To Ground: 418.3 mm
- Height From The Top Of The Air Filter To The Ground: 352.9 mm
- Total Length Of Track: 485.2 mm
- Wheel Base (Center Distance Between The Driving Wheel And Idler): 379 mm
- Height From The Bottom Of X Frame To The Ground: 62.4 mm
- Minimum Rotating Radius: 429.5 mm
- Maximum Excavation Height: 752.8 mm
- Giga Igbega ti o pọju: 975.7 mm
- Rotating Speed (R/Min): 6
- Rotary Drive Reduction Ratio: 1:256
- Rotating Motor Speed (R/Min): 10,878; 11.1V
- Maximum Pressure Of Hydraulic Workstation: 5 MPa
- Rated Pressure Of Hydraulic Workstation: 4 MPa
- Maximum Unloading Height: 682 mm
- Maximum Excavation Depth: 301.2 mm
- Maximum Excavation Radius: 866.3 mm
- Maximum Ground Excavation Radius: 830 mm
- Iwọn: 302 mm
- Iwọn Tọpinpin: 53.5 mm
- Total Width Of Excavator: 465 mm
- Height Of Ladder From The Ground: 16.8 mm
- Walking Driving Wheel Speed (R/Min): 26
- Walking Drive Reduction Ratio: 1:576
- Walking Motor Speed (R/Min): 13875; 11.1V
- Directional Valves Quantity: 5
- Hydraulic Pumps Quantity: 2
9. Atilẹyin ọja & Atilẹyin
For warranty information and technical support, please refer to the official LESU webaaye tabi kan si alagbata ti a fun ni aṣẹ. Tọju iwe-ẹri rira rẹ bi ẹri rira.
For additional resources and product updates, visit the LESU Store on Amazon.
