1. Ifihan
O ṣeun fun riraasing the Shot Navi Voice Laser Red Leo Golf Laser Rangefinder, MASTER BUNNY EDITION. This device is designed to provide accurate distance measurements on the golf course, featuring a highly visible red OLED display and innovative voice operation. This product was recognized with the Good Design Award 2021 for its user-friendly design and functionality.
Image 1.1: The Shot Navi Voice Laser Red Leo Golf Laser Rangefinder.
Image 1.2: Recognition with the Good Design Award 2021.
2. Alaye Aabo
This device is a laser product. Please read the following safety information carefully before use.
- Sọri lesa: This product is classified as IEC60825-1 Class 1M Laser Product / Class 1 Laser (invisible).
- Aabo oju: Maṣe wo taara sinu ina ina lesa tabi view it with optical instruments. Direct exposure to the laser beam may cause eye damage.
- Awọn ọmọde: Jeki ẹrọ naa kuro ni arọwọto awọn ọmọde.
- Disas Karo: Do not attempt to disassemble or modify the device. This can expose you to laser radiation and will void the warranty.
3. Ọja Ipariview
The Shot Navi Voice Laser Red Leo combines advanced features for an enhanced golf experience:
- Red OLED Display: Offers superior visibility, especially against green backgrounds, compared to traditional black displays.
- Voice Operation: Unique voice command functionality for hands-free measurement, reducing hand shake during target acquisition.
- Wíwọ̀n Gígùn: Automatically calculates and displays the adjusted distance, taking into account elevation differences for uphill and downhill shots. This feature can be toggled ON/OFF for competition compliance.
- Iwọn Iyara Giga: Provides rapid distance readings in approximately 0.3 seconds, with a maximum range of 1,000 yards.
Image 3.1: Key features: Red OLED for visibility and voice recognition for ease of use.
4. Eto
4.1. Ngba agbara ẹrọ
The device is powered by a built-in lithium polymer battery. Before first use, or when the battery is low, charge the device using the provided USB cable and a compatible power adapter (not included).
- So okun USB pọ si ibudo gbigba agbara lori ẹrọ naa.
- Connect the other end of the USB cable to a USB power source.
- A full charge takes approximately 2 hours. A fully charged battery allows for approximately 50,000 point measurements.
4.2. Agbara akọkọ Lori
Press and hold the power button until the display illuminates. The device will perform a brief self-check before entering measurement mode.
5. Awọn ilana Iṣiṣẹ
5.1. Agbara Tan / Paa
- Lati Fi agbara: Tẹ mọlẹ bọtini agbara.
- Lati Paarẹ: Press and hold the power button again until the display turns off. The device will also automatically power off after a period of inactivity to conserve battery.
5.2. Awọn ọna wiwọn
The device offers three measurement methods: Point, Pin Seek, and Scan, accessible via voice command or button operation.
Image 5.1: Voice operation for Point, Pin Seek, and Scan measurements.
- Point Measurement: Aim at a specific target and say "Point" or "Measure point." The device will measure the distance to that single point.
- Wiwọn Wiwa Pin: Aim at the flagstick and say "Pin Seek" or "Measure pin." The device will prioritize the closest target, making it easier to lock onto the flagstick.
- Wiwọn Ṣiṣayẹwo: Say "Scan" or "Start scan." Pan the device across multiple targets to get continuous distance readings. This is useful for understanding distances to various hazards or features.
- Bọtini Isẹ: Traditional button press measurement is also available for all modes.
5.3. Red OLED Display Brightness Adjustment
The red OLED display offers excellent visibility. You can adjust its brightness to suit ambient light conditions.
- Double-press the mode switch button to cycle through 4 levels of display brightness.
Image 5.2: Adjusting Red OLED display brightness.
5.4. Slope Measurement ON/OFF
The slope measurement feature provides adjusted distances based on elevation changes. For competition play, this feature can be disabled.
- To toggle the slope measurement ON or OFF, press and hold the mode switch button for 5 seconds.
- An indicator on the display will show whether slope measurement is active.
Image 5.3: Toggling slope measurement and comparing display visibility.
Image 5.4: This device is compliant with competition rules when slope function is off.
5.5. Oye Ifihan naa
The measurement screen provides various information to assist your game.
Image 5.5: Diagram of the measurement screen display.
- Main Distance Display: Shows the measured distance in yards or meters.
- Adjusted Distance (Slope): When slope mode is active, this displays the compensated distance.
- Atọka Batiri: Shows the remaining battery level.
- Atọka ipo: Displays the current measurement mode (e.g., Pin Seek).
- Aami ibi-afẹde: Crosshairs or other indicators to help aim.
6. Itọju
- Ninu: Use the provided lens cloth to gently clean the lenses. For the body, wipe with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ibi ipamọ: Store the device in its carrying case in a dry place, away from direct sunlight and extreme temperatures. Recommended storage temperature is -20°C to 60°C.
- Itọju Batiri: Láti mú kí batiri pẹ́ sí i, má ṣe jẹ́ kí batiri náà máa jáde nígbà gbogbo. Tí o bá ń tọ́jú rẹ̀ fún ìgbà pípẹ́, gba agbára batiri náà sí nǹkan bí 50% kí o sì gba agbára padà ní gbogbo oṣù díẹ̀.
- Omi Resistance: The device has an IPX4 rating, meaning it is splash-proof. Do not submerge the device in water.

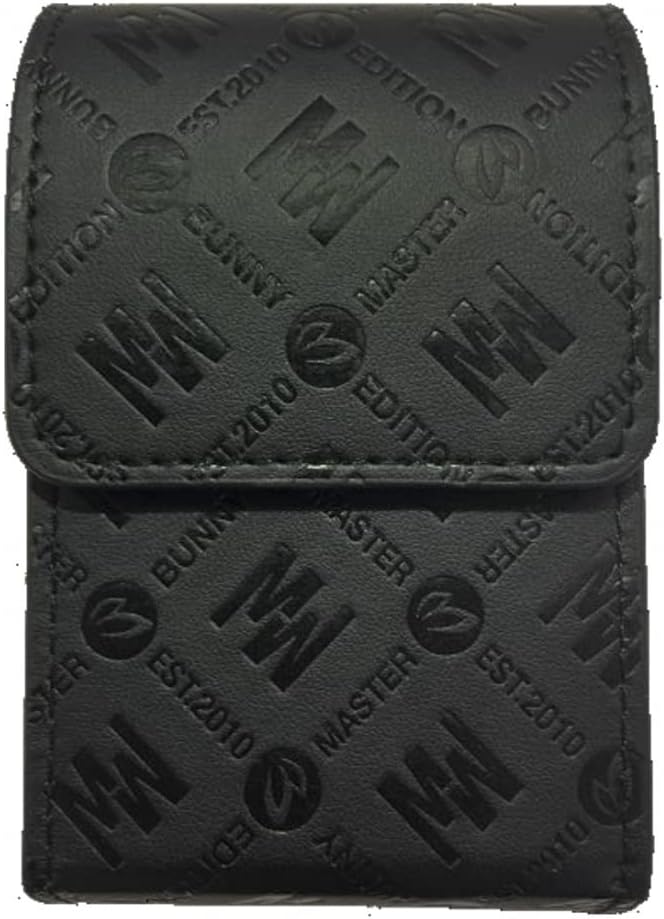

Image 6.1: The included carrying case protects the device during storage and transport.
7. Laasigbotitusita
If you encounter issues with your Shot Navi Voice Laser Red Leo, please refer to the following common solutions:
- Ẹrọ ko ṣiṣẹ lori: Rii daju pe batiri ti gba agbara. Sopọ si orisun agbara ati gbiyanju lẹẹkansi.
- Awọn wiwọn ti ko pe: Ensure the lenses are clean. Make sure you are aiming at a clear target. Environmental conditions like fog or heavy rain can affect accuracy.
- A kò dá àwọn àṣẹ ohun mọ̀: Speak clearly and at a normal volume. Ensure there is no excessive background noise. Try using button operation as an alternative.
- Ṣe afihan awọn iṣoro: Check the display brightness settings. If the display is still problematic, try restarting the device.
Ti awọn iṣoro ba wa, jọwọ kan si atilẹyin alabara.
8. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe Ọja | Red Leo MASTER BUNNY EDITION |
| Àwọ̀ | MASTER BUNNY EDITION (Limited Edition) |
| Ohun elo | ABS |
| Iru | Golf lesa Rangefinder |
| Awọn iwọn | 95.7 x 38.4 x 61.3 mm |
| Iwọn | 130 g |
| Orisun agbara | Batiri litiumu polima |
| Akoko gbigba agbara | Isunmọ. wakati meji 2 |
| Iwọn Iwọn | 5-999 yààdì (mita 5-913) |
| Ifihan Ibiti | ±1 meter (actual distance) |
| Omi Resistance | IPX4 (Imudaniloju Asesejade) |
| Lesa Classification | IEC60825-1 Class 1M Laser Product |
| Opin lẹnsi | 20 mm |
| Awọn iwọn otutu ti nṣiṣẹ | -10°C si 50°C |
| Ibi ipamọ otutu | -20°C si 60°C |
| Awọn ẹya ẹrọ | Carrying case, lens cloth, instruction manual/warranty card |
9. Atilẹyin ọja ati Support
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for details on coverage and duration. Keep your proof of purchase for warranty claims.
For technical support, troubleshooting assistance, or warranty inquiries, please contact Shot Navi customer service. Contact information can typically be found on the official Shot Navi webojula tabi lori kaadi atilẹyin ọja.
