SPYMINNPOO Electric Scooter 1T5 Integrated Wiring Harness User Manual

Ọrọ Iṣaaju

This manual provides comprehensive instructions for the SPYMINNPOO Electric Scooter 1T5 Integrated Wiring Harness. It covers product features, installation guidelines, operational details, maintenance tips, and technical specifications. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Alaye Aabo

• Always disconnect the scooter's power source before installing or replacing any electrical components.
• Rii daju pe gbogbo awọn asopọ wa ni aabo ati ni idayatọ daradara lati ṣe idiwọ awọn iyika kukuru.
• If you are unsure about any installation step, consult a qualified technician.
• Keep the wiring harness away from sharp objects or excessive heat sources.
• Do not attempt to modify the wiring harness, as this may void the warranty and compromise safety.

Ọja Pariview

The SPYMINNPOO Electric Scooter 1T5 Integrated Wiring Harness is designed for electric scooter motor drive wheel wiring harness repair and replacement. It features copper core wires for durability and waterproof connectors for reliable performance in various weather conditions.

Image: The SPYMINNPOO Electric Scooter 1T5 Integrated Wiring Harness, showing its main cable and multiple connectors.

Apejuwe Išė paati

Aworan: A alaye view of the wiring harness connectors with their corresponding functions and pin configurations.

• Left and Right Brake Lever: 2 x Red Female 2 Pin connectors.
• Ohun imuyara: Yellow Female 3 Pin connector.
• Panel (Instrument): Purple Female 7 Pin connector.
• Yipada Iṣọkan: Green Female 5 Pin connector.

Fifi sori ẹrọ

The wiring harness is designed for straightforward installation and replacement. Follow these general steps:

1. Mura Scooter naa: Ensure the electric scooter is powered off and the battery is disconnected before beginning any wiring work.
2. Ṣe idanimọ awọn isopọ: Refer to the "Component Function Description" above and the existing wiring on your scooter to identify the corresponding connection points for the brake levers, accelerator, control panel, and integrated switch.
3. So Ijanu pọ: Carefully plug each connector from the new 1T5 wiring harness into its designated port on the scooter's components. Ensure a firm and secure connection for each plug.
4. Asopọmọra to ni aabo: Route the cables neatly and secure them using cable ties or clips to prevent them from interfering with moving parts or getting damaged.
5. Iṣe idanwo: Once all connections are made, reconnect the scooter's battery and power it on. Test the functionality of the brakes, accelerator, panel, and switch to ensure everything is working correctly before riding.

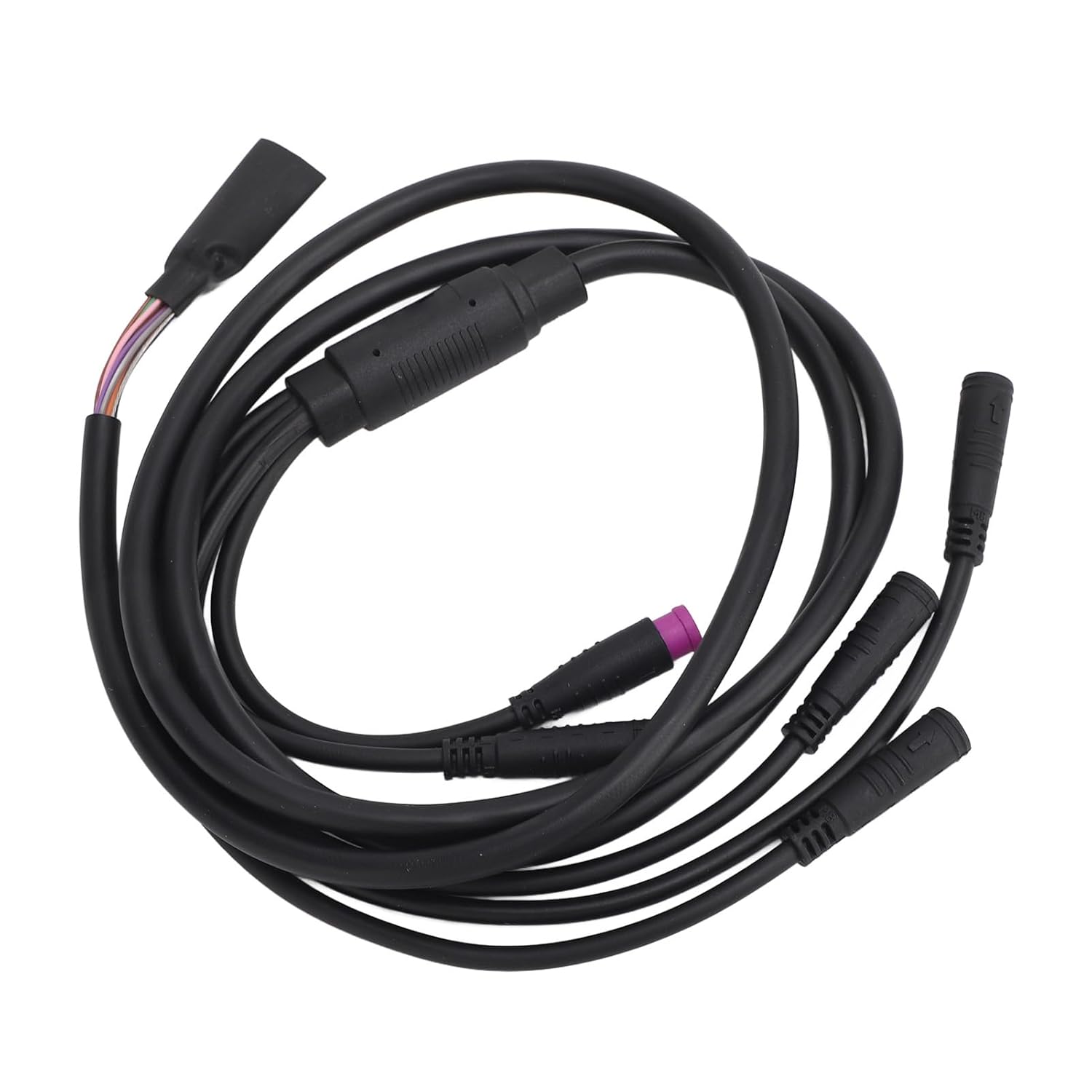

Image: Close-up of the waterproof connectors, highlighting their robust design for all-weather performance.

The harness includes additional terminal connectors for specific applications or repairs, as shown below.

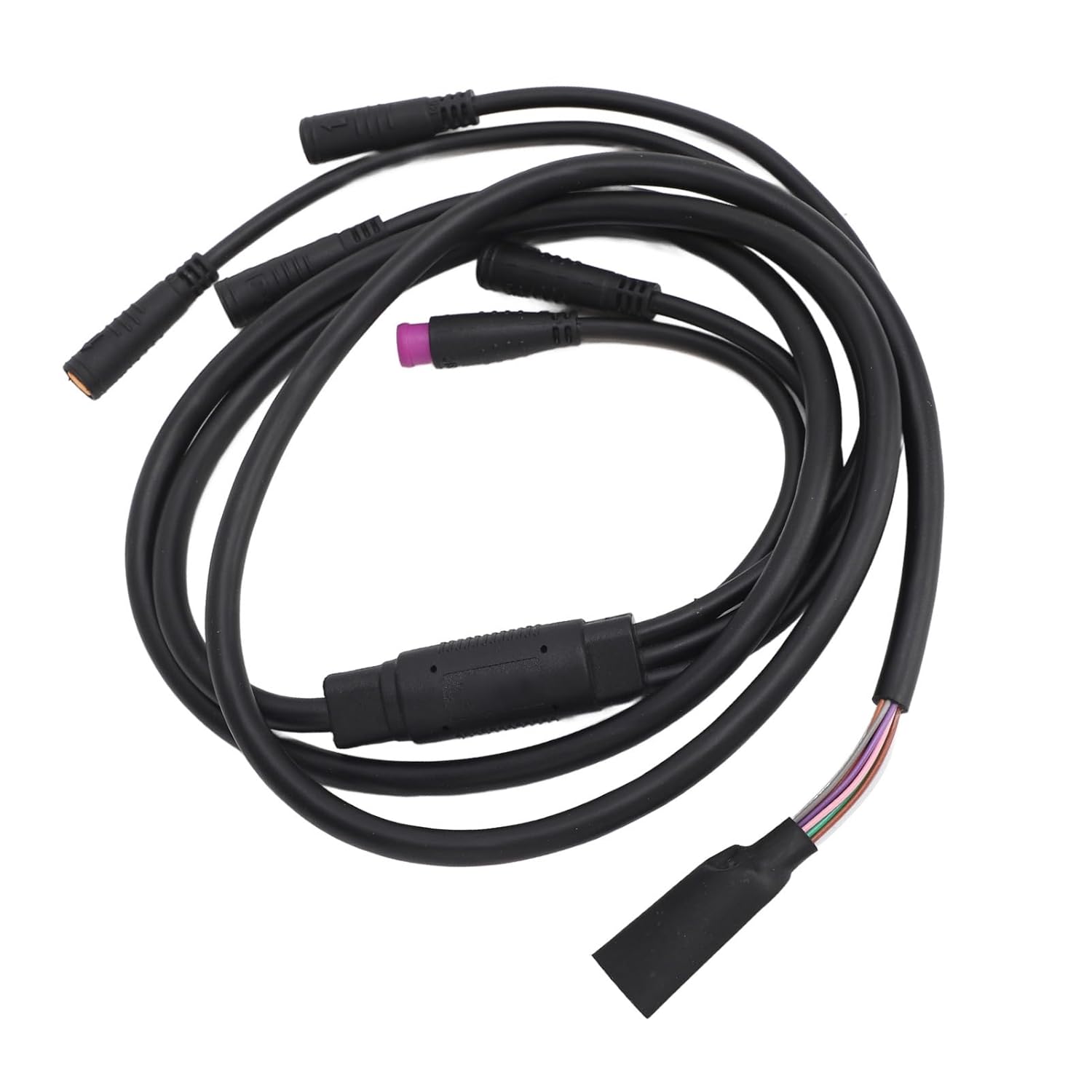

Image: The integrated wiring harness displayed alongside three additional terminal connectors.

Isẹ

The SPYMINNPOO 1T5 Integrated Wiring Harness facilitates the electrical connections between various control components of your electric scooter. Once correctly installed, it enables the proper functioning of the brake levers, accelerator, control panel, and integrated switch, allowing for seamless operation of the scooter's motor drive system.

Itoju

• Periodically inspect the wiring harness for any signs of wear, fraying, or damage.
• Ensure all connectors remain securely plugged in. Loose connections can lead to intermittent functionality.
• Keep the harness clean and free from dirt, dust, and moisture. Wipe with a dry cloth if necessary.
• Avoid exposing the harness to extreme temperatures or harsh chemicals.

Laasigbotitusita

Awọn pato

Atilẹyin ọja ati Support

For warranty information or technical support, please refer to the product packaging or contact SPYMINNPOO customer service through your retailer. Keep your purchase receipt for warranty claims.
