1. Ifihan
This manual provides detailed instructions for the SVANTTO Android Barcode Scanner, Model IPDA111-2D-US. This handheld device is designed for efficient data collection and inventory management in various professional environments, including warehouses, retail, and logistics. It features an Android 10 operating system, a full-size numeric keyboard, and a high-performance 1D/2D/QR barcode scanning engine.

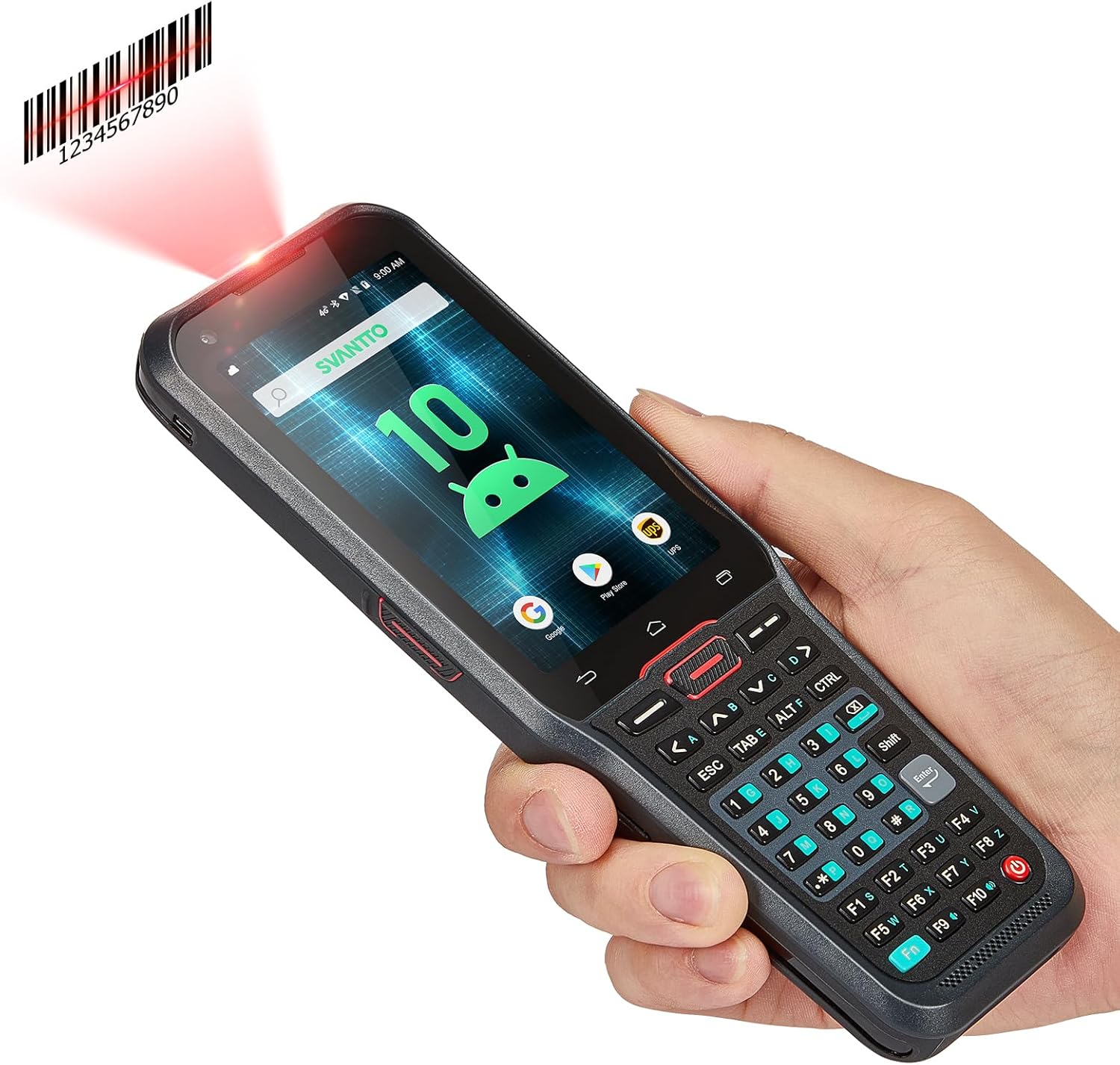

Image: The SVANTTO Android Barcode Scanner, showcasing its ergonomic design, vibrant display, and comprehensive numeric keyboard, held in a user's hand.
2. Ọja Ipariview
2.1 Key Awọn ẹya ara ẹrọ
- Eto isesise: Android 10 for enhanced privacy and smooth operation.
- Olupilẹṣẹ: 12nm Finfet Mt6762 Octa-core 64-bit CPU for efficient multitasking.
- Iranti: 4GB RAM and 64GB ROM for ample storage and smooth application performance.
- Scanning Engine: Honeywell N6602, supporting 1D, 2D, and QR barcodes (EAN-13, UPC-A, PDF417, Code128, etc.).
- Àtẹ bọ́tìnnì Full-size numeric keyboard (A-Z) with F1-F10 customizable keys for rapid data entry.
- Batiri: 5000mAh large-capacity battery, providing up to 13 hours of continuous work or 370 hours of standby time. Supports fast charging (under 3 hours).
- Asopọmọra: 2G/3G/4G, Wi-Fi, and Bluetooth for versatile communication.
- Iduroṣinṣin: Designed to withstand 1.5-meter drops and operate in temperatures from -20°C to 55°C (-4°F to 131°F).
- Ibamu sọfitiwia: Compatible with Odoo, Zoho Inventory, Ocra Scan, and Finale inventory management software.
2.2 irinše
The SVANTTO barcode scanner package typically includes the following items:
- SVANTTO Android Barcode Scanner Unit
- Okun Ngba agbara USB
- Adapter agbara
- Easy Setup Guide (Printed Manual)
- Olugbeja iboju
- Hand Strap (often included for secure handling)

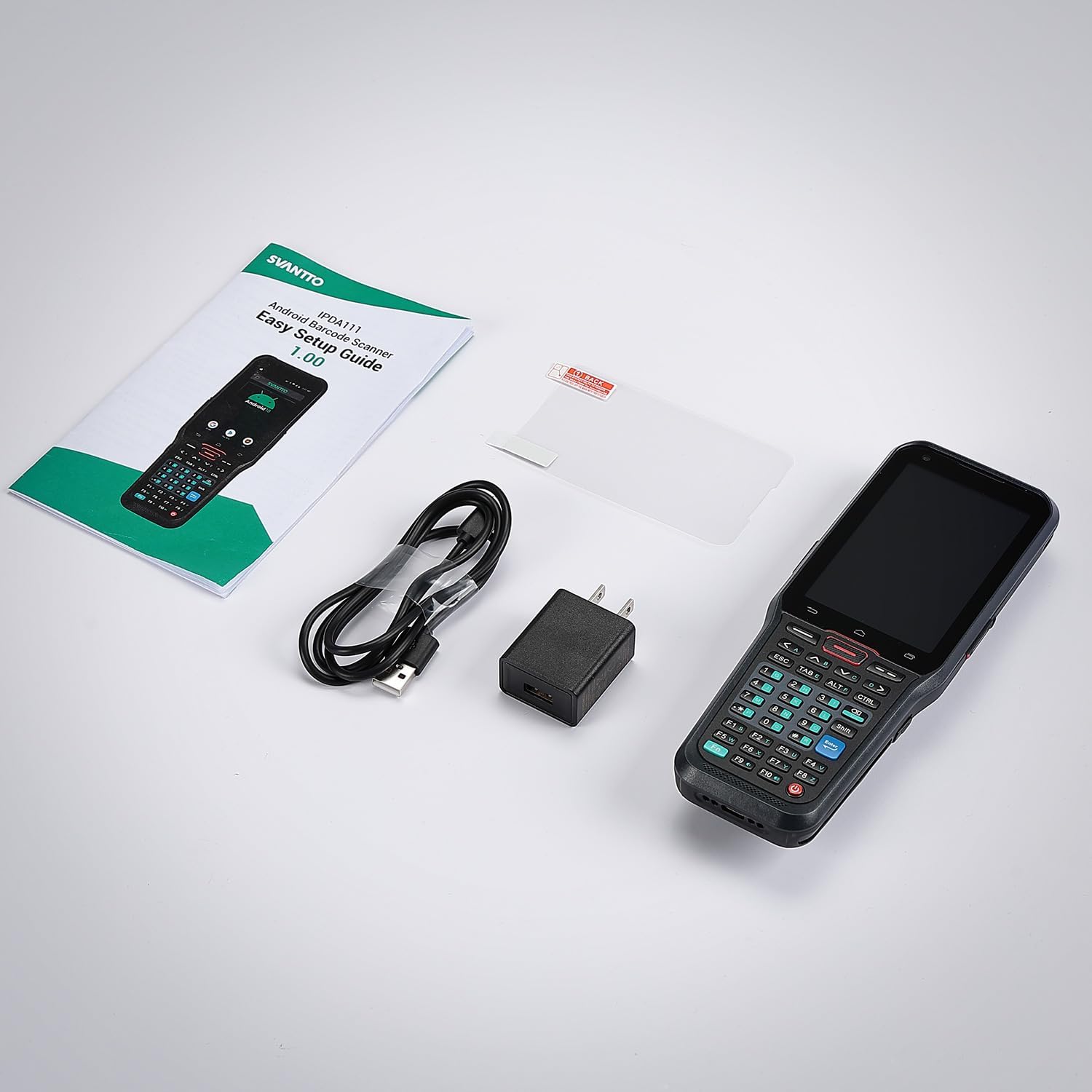

Image: The complete package contents of the SVANTTO barcode scanner, laid out to show the device, its charging accessories, and the user manual.
3. Eto
3.1 Gbigba agbara akọkọ
Before first use, fully charge the device. Connect the USB charging cable to the scanner's charging port and the power adapter to a wall outlet. The device supports fast charging and can be fully charged in less than 3 hours.
Aworan: A alaye view of the SVANTTO barcode scanner's removable battery, emphasizing its 5000mAh capacity for extended operation.
3.2 Titan / Pa a
- Lati Fi agbara: Press and hold the power button (usually on the side) until the SVANTTO logo appears on the screen.
- Lati Paarẹ: Press and hold the power button until a power-off menu appears. Select 'Power off' to shut down the device.
3.3 Installing SIM/SD Card (If Applicable)
Refer to the specific slot locations on your device for SIM card (for 2G/3G/4G connectivity) and microSD card (for expanded storage) installation. Ensure the device is powered off before inserting or removing cards.
4. Awọn ilana Iṣiṣẹ
4.1 Ipilẹ Lilọ kiri
The device runs on Android 10. Navigate using the touchscreen for app selection, settings, and general interaction. The physical keyboard provides additional input options.
4.2 Barcode Scanning
The integrated Honeywell N6602 scanner engine is designed for fast and accurate scanning of various barcode types.
- Lati Ṣayẹwo: Point the scanner's head towards the barcode. Press the dedicated scan button (typically on the side or front) to activate the laser/light. Ensure the barcode is within the scanning range and properly aligned.
- Awọn koodu bar ti o ni atilẹyin: 1D (EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code39, etc.), 2D (PDF417, Micro PDF417, QR Code, Data Matrix, GS1 Composite, etc.).
Image: A close-up of the Honeywell N6602 Scanner Engine, illustrating its capability to accurately read various 1D, 2D, and QR barcode formats.
Image: A user efficiently scanning a package in a warehouse environment, highlighting the practical use of the SVANTTO barcode scanner and the convenience of the included hand strap.
4.3 Keyboard Lilo
The full-size numeric keyboard allows for quick and accurate data input, especially beneficial for numerical data such as inventory counts.
- Iṣagbewọle nọmba: Use the dedicated numeric keys for number entry.
- Alphabetical Input: The keyboard includes A-Z keys for text input.
- Awọn bọtini isọdi: F1-F10 keys can be customized to perform specific functions based on your application needs. Refer to your software documentation for customization options.
Aworan: A alaye view of the SVANTTO barcode scanner's full-size numeric keyboard, showcasing its layout and the customizable F1-F10 function keys.
4.4 Asopọmọra
- Wi-Fi: Connect to available Wi-Fi networks via Android settings for internet access and data synchronization.
- Bluetooth: Pair with Bluetooth-enabled devices (e.g., printers, headsets) through Android Bluetooth settings.
- Cellular (2G/3G/4G): If a SIM card is installed, the device can utilize cellular data for connectivity in areas without Wi-Fi.
4.5 Ohun elo Idagbasoke Software (SDK)
SVANTTO provides an SDK for developers to integrate the scanner's functionalities into custom applications. This includes tools, libraries, documentation, and code samples.
Image: An illustration explaining the comprehensive Software Development Kit (SDK) offered by SVANTTO, detailing its components for platform-specific development, code libraries, and development tools.
5. Itọju
5.1 Ninu
- Lo asọ asọ, ti ko ni lint die-die dampened with water or a mild screen cleaner to clean the display.
- For the scanner window and device body, use a dry or slightly damp cloth. Avoid abrasive materials or harsh chemicals.
- Rii daju pe ko si omi ti o wọ awọn ibudo tabi awọn ṣiṣi.
5.2 batiri Itọju
- Lati pẹ aye batiri, yago fun gbigba agbara si batiri ni kikun nigbagbogbo.
- Tọju ẹrọ naa ni itura, aye gbigbẹ nigbati o ko ba wa ni lilo fun awọn akoko gigun.
- Lo awọn ẹya ẹrọ gbigba agbara atilẹba tabi ti a fọwọsi nikan.
5.3 Ayika riro
The device is designed for rugged use but should be protected from extreme conditions beyond its specified operating temperature range (-20°C to 55°C / -4°F to 131°F). Avoid prolonged exposure to direct sunlight or excessive moisture.
6. Laasigbotitusita
6.1 Wọpọ Oran ati Solusan
| Oro | Owun to le Fa | Ojutu |
|---|---|---|
| Ẹrọ naa ko ṣiṣẹ | Batiri kekere; Eto naa kuna | Charge the device; Perform a forced restart (hold power button for 10-15 seconds). |
| Cannot scan barcodes | Scanner not activated; Barcode damaged/unreadable; Incorrect symbology settings; Camera and scan engine running simultaneously. | Ensure scan button is pressed; Clean scanner window; Check barcode quality; Verify symbology settings in software; Note: The camera and scan engine cannot run at the same time. Close camera app if open. |
| Awọn iṣoro asopọ Wi-Fi/Bluetooth | Out of range; Incorrect password; Device settings | Move closer to access point; Re-enter password; Toggle Wi-Fi/Bluetooth off and on; Restart device. |
| Device is slow/unresponsive | Ọ̀pọ̀lọpọ̀ àwọn àpù ló ń ṣiṣẹ́; Ibi ìpamọ́ díẹ̀ | Close unnecessary apps; Clear cache; Free up storage space. |
7. Awọn pato
| Ẹya ara ẹrọ | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | IPDA111-2D-US |
| Eto isesise | Android 10 |
| isise | 12nm Finfet Mt6762 Octa-core 64-bit CPU |
| Àgbo | 4GB |
| ROM | 64GB |
| Scanner Engine | Honeywell N6602 (1D/2D/QR) |
| Agbara Batiri | 5000mAh litiumu Iwon |
| Asopọmọra | Wi-Fi, Bluetooth, 2G/3G/4G |
| Ju Idaabobo | 1.5 mita |
| Awọn iwọn otutu ti nṣiṣẹ | -20°C si 55°C (-4°F si 131°F) |
| Iwọn Nkan | 1.3 iwon |
| Package Mefa | 10.51 x 4.72 x 3.15 inches |
8. Atilẹyin ọja ati Support
SVANTTO is committed to providing excellent customer service and product support.
- Iṣẹ Pada: 30-day no-questions-asked return service.
- Atilẹyin ọja: 2-year warranty service from the date of purchase.
- Oluranlowo lati tun nkan se: Lifetime online technical support is available.
For any questions or assistance, please contact SVANTTO customer support. They aim to reply promptly.
Aworan: An loriview of SVANTTO's customer support offerings, including a 30-day return policy, a 2-year warranty, and lifetime online technical support.
