Foster 54" Commercial Freezer Instruction Manual

1.1 Awọn iṣọra aabo

• Máa yọ agbára kúrò kí o tó sọ ọ́ di mímọ́ tàbí kí o tó tún un ṣe.
• Rii daju didasilẹ to dara lati ṣe idiwọ mọnamọna itanna.
• Ma ṣe fi awọn nkan ibẹjadi pamọ gẹgẹbi awọn agolo aerosol pẹlu itọka ina ninu ohun elo yii.
• Maintain adequate ventilation around the unit to ensure efficient operation and prevent overheating.
• Jeki gbogbo awọn šiši fentilesonu kuro ninu idena.
• Maa ko ba awọn refrigerant Circuit.
• Awọn oṣiṣẹ ti o ni oye nikan yẹ ki o ṣe atunṣe.

2.1 Awọn ẹya ara ẹrọ

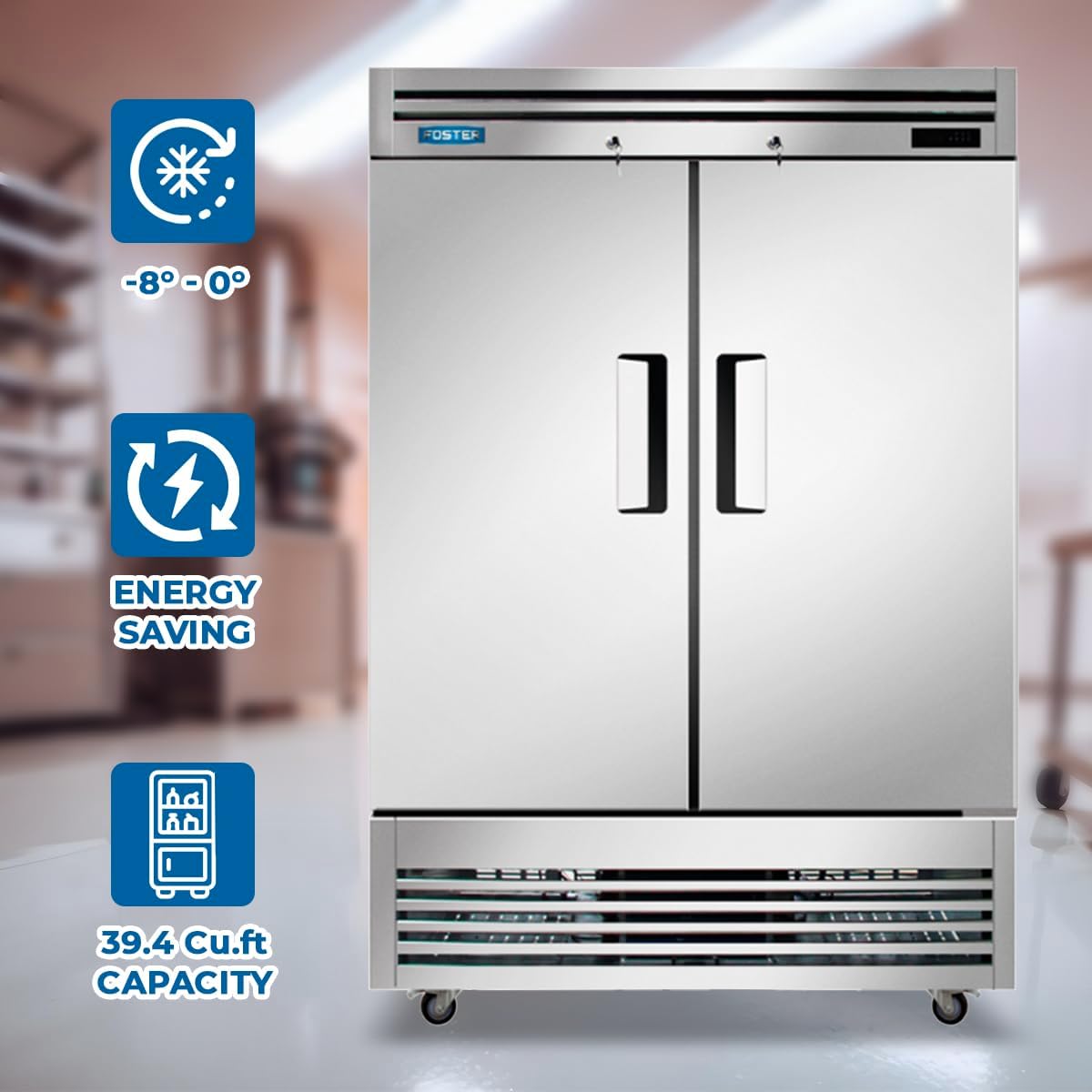

• Powerful Freezing Capacity: Robust compressor system and fan cooling mechanism ensure reliable freezing performance within -8°F to 0°F.
• Efficient Temperature Control: Dixell temperature control allows precise adjustments for optimal preservation of frozen goods.
• Spacious Storage Solution: Generous 39.4 cubic feet capacity with two solid doors, ideal for high-volume establishments.
• Ikole ti o tọ: Built with stainless steel both inside and out for longevity and durability in demanding commercial environments.
• Voltage: O ṣiṣẹ lori 115 Volts.
• Wattage: 955 watt.
• Ijẹrisi: ETL certified for safety and sanitation.

3.1 Ṣiṣii silẹ

Carefully remove all packaging materials. Inspect the freezer for any shipping damage. Report any damage immediately to the carrier and your supplier. Do not discard packaging until the unit has been tested and is operating correctly.

3.2 Ipo

• Place the freezer on a strong, level surface capable of supporting its weight when fully loaded.
• Ensure adequate air circulation around the unit. Maintain a minimum of 6 inches (15 cm) clearance from walls and other equipment for proper ventilation.
• Avoid direct sunlight or proximity to heat-generating appliances (ovens, stoves) to ensure optimal performance and energy efficiency.
• The ambient temperature should not exceed 90°F (32°C).

3.3 Itanna Asopọ

• The freezer requires a dedicated 115V, 60Hz, single-phase electrical outlet.
• Ensure the electrical supply matches the requirements specified on the unit's data plate.
• Ma ṣe lo awọn okun itẹsiwaju tabi awọn pilogi ohun ti nmu badọgba.
• Ẹyọ naa gbọdọ wa ni ilẹ daradara.

3.4 Ibẹrẹ Ibẹrẹ

• After positioning the unit, allow it to stand upright for at least 2 hours before plugging it in. This allows the refrigerant to settle.
• So ẹ̀rọ náà mọ́ inú ihò iná mànàmáná tí a yà sọ́tọ̀.
• The freezer will begin to cool. Allow 24 hours for the unit to reach its set temperature before loading with products.

4.1 Temperature Control (Dixell Controller)

Your Foster freezer is equipped with a Dixell digital temperature controller, allowing precise temperature management. The factory preset temperature range is -8°F to 0°F (-22°C to -18°C).

• Viewing the Setpoint: Press and immediately release the SET button. The display will show the setpoint value. Press SET again or wait 5 seconds to return to the normal display.
• Changing the Setpoint:
  1. Press the SET button for more than 2 seconds. The setpoint value will flash.
  2. Use the UP or DOWN arrows to adjust the temperature.
  3. Press SET again to confirm the new value.
• Afowoyi Defrost: To initiate a manual defrost cycle, press and hold the defrost button (usually a snowflake icon) for approximately 5 seconds.

Note: Refer to the specific Dixell controller model manual for advanced programming and alarm settings.

4.2 Ikojọpọ firisa

• Do not overload the freezer. Allow space for air circulation around products for efficient cooling.
• Ensure doors are closed completely after each use to maintain temperature and prevent ice buildup.
• Organize products to minimize door opening times.

5.1 Ninu

• Inu inu: Clean the interior regularly with a mild soap and warm water solution. Rinse thoroughly and dry completely to prevent odors and mildew. Do not use abrasive cleaners or steel wool.
• Òde: Wipe down the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
• Awọn apoti ilẹkun: Clean door gaskets regularly with warm water and mild soap. Ensure they are pliable and seal properly. Replace worn or damaged gaskets promptly.
• Okun Condenser: The condenser coil should be cleaned every 30 days or as needed. Disconnect power before cleaning. Use a stiff brush or vacuum cleaner to remove dust and debris from the coil. A dirty condenser coil can significantly reduce efficiency and increase energy consumption.

5.2 Defrosting

This unit features an automatic defrost system. However, if excessive ice buildup occurs, a manual defrost may be necessary. Refer to Section 4.1 for manual defrost initiation.
