Devoko Height Adjustable Desk 140 x 60 cm with Cable Tray

1. Ifihan ati Aabo ikilo

Thank you for choosing the Devoko Height Adjustable Desk. This manual provides essential information for the safe assembly, operation, and maintenance of your new desk. Please read it thoroughly before use and retain it for future reference.

Awọn ikilọ Abo:

• Do not exceed the recommended load capacity of 85 kg (static) / 70 kg (dynamic). Overloading can cause damage to the desk and potential injury.
• Use the desk by alternating between sitting and standing positions to avoid health problems associated with prolonged sitting.
• Pa awọn ọmọde ati awọn ẹranko mọ kuro ni tabili lakoko iṣẹ-ṣiṣe lati yago fun ijamba.
• Ensure all cables are properly managed and secured to prevent tripping hazards or damage to the motor mechanism.
• Do not place liquids directly on the control panel or motor components.
• If any unusual noise, smell, or malfunction occurs, immediately unplug the desk from the power outlet and contact customer support.

2. Ọja Ipariview ati Key Awọn ẹya ara ẹrọ

The Devoko Height Adjustable Desk is designed to promote a healthier work environment by allowing seamless transitions between sitting and standing positions. It features a robust construction and intelligent functionalities.

Awọn ẹya pataki:

• Apẹrẹ-imọ-ilera: Promotes alternating between sitting and standing to reduce fatigue and improve focus.
• Didara to gbẹkẹle: Industrial-grade steel frame, FSC-certified solid MDF wood tabletop, with a static load capacity of 85 kg and dynamic load capacity of 70 kg.
• Easy Height Adjustment: Electric adjustment with a range of 71 cm to 119 cm.
• Awọn tito iranti: Two programmable memory slots for preferred sitting and standing heights.
• Mọto ti o tọ ati idakẹjẹ: Powerful, energy-efficient motor operating at less than 50 dB, tested for over 10,000 cycles.
• Intelligent Anti-Collision System: Automatically stops and slightly reverses if an obstruction is detected during height adjustment.
• Iṣakoso okun USB ti a ṣepọ: Features cable grommets and a foldable cable tray to keep your workspace tidy.
• Awọn ẹya afikun: Includes a free hook for headphones or bags.

Awọn eroja:

The desk consists of a sturdy metal frame, a multi-part tabletop, an electric motor system, a control panel, and various accessories for assembly and cable management.

Nọmba 2.1: Lapapọ view of the Devoko height-adjustable desk in white, showcasing its spacious surface and clean design with multiple monitors, a laptop, keyboard, mouse, and headphones.

Figure 2.2: The desk in a modern office setting, illustrating its intuitive design and key performance metrics: automatic rebound for safety, noise level below 50 dB for quiet operation, and a lifting speed of 22mm/s.

olusin 2.3: A alaye view of the desk's control panel, featuring up and down adjustment buttons, two memory preset buttons (1 and 2), and an automatic reset function. It also highlights the intelligent anti-collision system for enhanced safety.

Figure 2.4: An illustration demonstrating the versatile height adjustment range of the desk, from a minimum of 71 cm suitable for sitting to a maximum of 119 cm for comfortable standing.

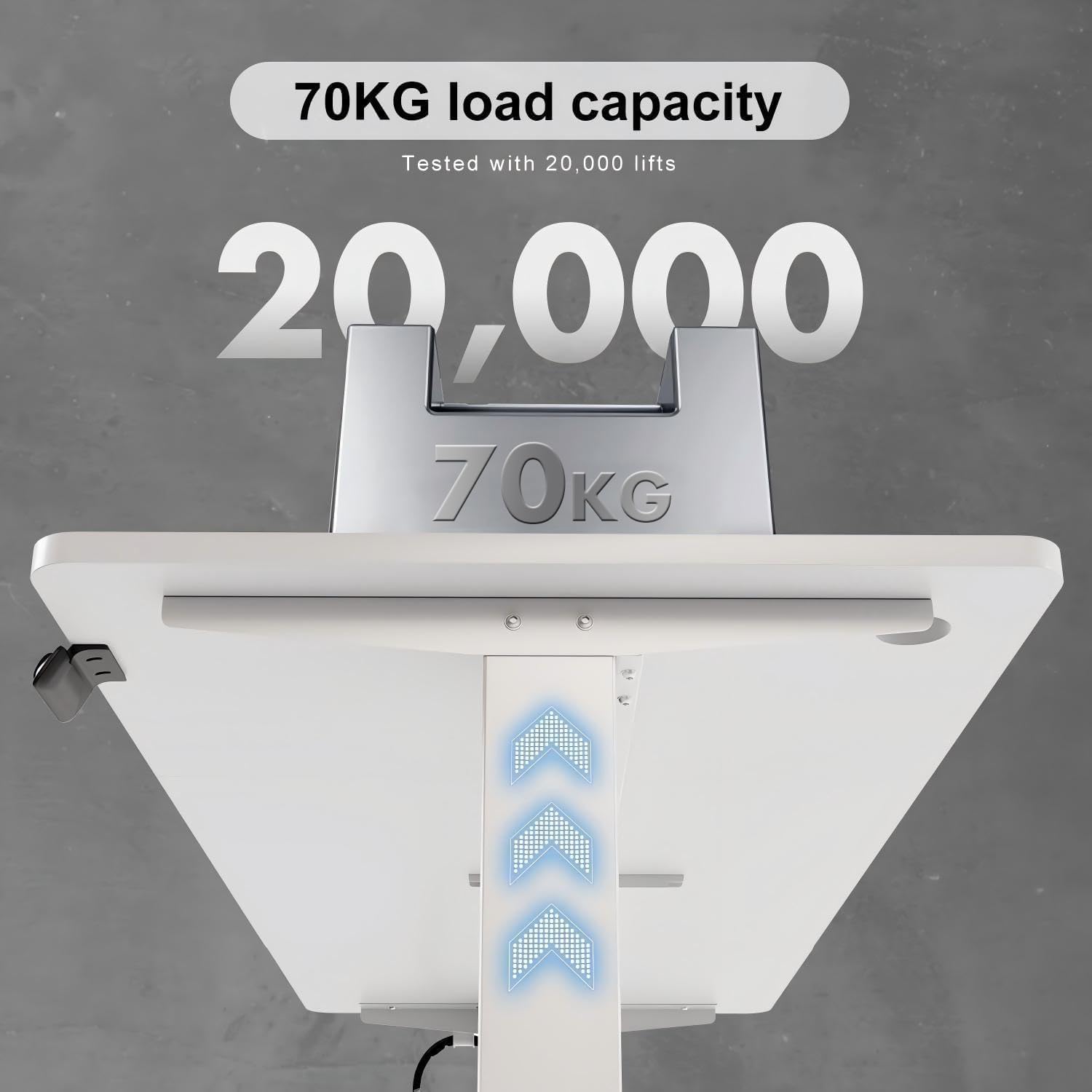

Figure 2.5: Visual representation of the desk's robust construction, indicating a tested load capacity of 70 kg, ensuring stability for various workstation setups.

Figure 2.6: A comparative graphic illustrating the desk's quiet operation, with a noise level below 50 dB, comparable to light rain and significantly quieter than normal conversation or truck noise.

3. Eto ati Apejọ

The Devoko Height Adjustable Desk requires assembly. Please follow the instructions provided in the separate assembly guide included with your product. Ensure all parts are present before beginning assembly.

Awọn Igbesẹ Apejọ Gbogbogbo:

1. Yọọ gbogbo awọn paati ati rii daju lodi si atokọ awọn ẹya.
2. Pejọ fireemu tabili ni ibamu si awọn aworan atọka ti a pese.
3. Attach the tabletop sections securely to the frame. Note: The tabletop may come in multiple parts.
4. Install the motor and control panel, ensuring all electrical connections are firm.
5. Attach the cable tray and any additional accessories like the headphone hook.
6. Connect the power cable and perform an initial test of the height adjustment.

olusin 3.1: An exploded view showing all components of the height-adjustable desk, including the three-part tabletop, frame elements, motor, and control unit. A warning advises checking the parts list before installation.

4. Awọn ilana Iṣiṣẹ

Atunse Giga:

• To raise the desk, press and hold the UP arrow button on the control panel.
• To lower the desk, press and hold the SILE arrow button on the control panel.
• Release the button when the desired height is reached.

Awọn tito iranti:

The desk features two memory presets (1 and 2) to store your preferred sitting and standing heights.

1. Ṣe àtúnṣe tábìlì náà sí gíga tí o fẹ́ nípa lílo àwọn bọ́tìnì UP/SOWN.
2. Press and hold the desired memory button (1 or 2) until you hear a beep or see the display flash. This indicates the height has been saved.
3. To recall a saved height, simply press the corresponding memory button (1 or 2). The desk will automatically move to the stored position.

Automatic Reset Function:

If the desk encounters an error or needs to be recalibrated, use the automatic reset function.

• Tẹ mọlẹ M button (or the button indicated for reset on your control panel, often a combination or specific symbol) until the desk moves to its lowest position and then slightly back up. This completes the reset cycle.

Intelligent Anti-Collision System:

The desk is equipped with an anti-collision system. If the desk encounters an obstruction while moving up or down, it will automatically stop and reverse slightly to prevent damage to the desk or objects.

5. Itọju

Regular maintenance ensures the longevity and optimal performance of your Devoko desk.

• Ninu: Nu oju tabili ati fireemu pẹlu asọ, damp asọ. Yago fun abrasive ose tabi simi kemikali ti o le ba awọn ipari.
• Iṣakoso USB: Periodically check that all cables are securely routed through the cable tray and grommets to prevent tangling or damage.
• Awọn isopọ: Ensure all screws and bolts remain tight. Re-tighten if necessary.
• Itọju mọto: The motor is designed for durability and requires no special lubrication. Keep the motor area free from dust and debris.

6. Laasigbotitusita

If you encounter issues with your Devoko Height Adjustable Desk, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Devoko customer support for further assistance.

7. Awọn pato

Detailed technical specifications for the Devoko Height Adjustable Desk (Model 0427).

8. Atilẹyin ọja ati Support

Devoko products are manufactured to high-quality standards. While specific warranty details are not provided in this manual, please retain your proof of purchase for any warranty claims.

Atilẹyin Onibara:

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Devoko customer support through the retailer where you purchased the product or visit the official Devoko webojula fun alaye olubasọrọ.

Jọ̀wọ́ mú nọ́mbà àwòṣe rẹ (0427) àti ọjọ́ tí o fẹ́ rà á ti ṣetán nígbà tí o bá ń bá olùrànlọ́wọ́ sọ̀rọ̀.
