1. Ifihan
Thank you for choosing the FELLAT 4x360° Self Leveling Green Cross Line Laser, Model MQT-16. This precision instrument is designed to provide accurate horizontal and vertical alignment for various construction, renovation, and DIY projects. This manual provides essential information for safe operation, proper setup, and effective use of your laser level.
Image 1.1: FELLAT 4x360° Self Leveling Green Cross Line Laser and accessories.
2. Alaye Aabo
2.1 Aabo lesa
This product emits a Class II laser beam. Adhere to the following safety guidelines:
- Maṣe wo taara sinu ina ina lesa. Direct eye exposure can cause temporary or permanent eye injury.
- Yago fun itọka ina lesa si eniyan tabi ẹranko.
- Do not disassemble the laser level. Repairs should only be performed by authorized service personnel.
- Jeki ẹrọ naa kuro ni arọwọto awọn ọmọde.
- The laser output power is less than 1mW.
2.2 Gbogbogbo Abo
- Ensure the work area is clear of obstacles and potential hazards.
- Use the device in a stable environment to prevent accidental drops.
- Protect the device from extreme temperatures and moisture. The device has an IP54 rating for dust and splash protection, but it is not fully waterproof.

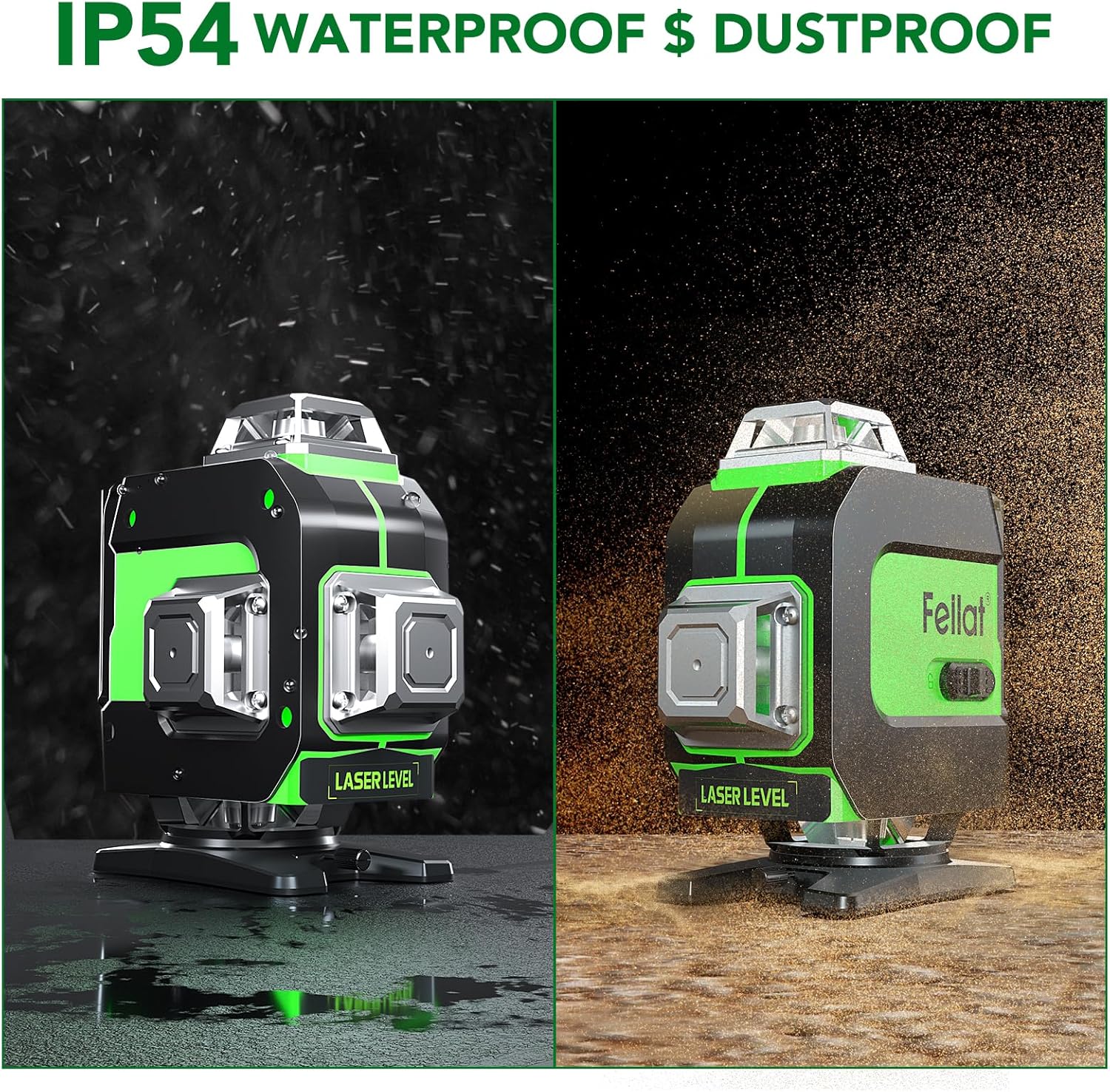

Image 2.1: The FELLAT laser level features IP54 dust and splash protection.
3. Package Awọn akoonu
Daju pe gbogbo awọn nkan ti a ṣe akojọ rẹ si isalẹ wa ninu package rẹ:
- 1x FELLAT 4x360° Laser Level
- Batiri Atunlo 2x 4000mAh
- 1x Iru-C Ngba agbara USB
- Ṣaja 1x
- 1x Apo Gbigbe
- 1x Lifting Base
- 1x Odi akọmọ
- 1x Iron Plate
- 1x Laser Target Plate
- 1x Isakoṣo latọna jijin
- 1x User Manual (Five Languages)
Image 3.1: All components included in the FELLAT laser level package.
4. Awọn ẹya ara ẹrọ Ọja ati Loriview
The FELLAT MQT-16 laser level offers advanced features for precise alignment:
- 4x360° Green Laser Lines: Projects two horizontal 360° lines and two vertical 360° lines for comprehensive coverage.
- Wiwo giga: Green laser beams are four times brighter than red lasers, providing a working distance of up to 40 meters (131 feet) indoors and outdoors.
- Ipo Ipele-ara-ẹni: Automatically levels within ±3° for quick and accurate setup. An alarm sounds if the tilt exceeds this range.
- Ipo afọwọṣe: Allows locking the pendulum to project lines at any angle.
- Isakoṣo latọna jijin: Conveniently switch laser lines and adjust brightness from a distance.
- Awọn batiri gbigba agbara: Two 4000mAh batteries provide extended operation, rechargeable via Type-C port.
- Awọn aṣayan Iṣagbesori pupọ: Compatible with 1/4"-20 and 5/8"-11 tripods, includes a magnetic pivoting base, lifting base, and wall bracket.
Image 4.1: Key features of the FELLAT 4x360° Laser Level.
Image 4.2: Superior visibility of the green laser beam.
5. Eto
5.1 Batiri sori ati gbigba agbara
The laser level uses two 4000mAh rechargeable batteries. Ensure batteries are fully charged before first use.
- Open the battery compartment cover on the device.
- Fi awọn batiri sii, ni idaniloju polarity ti o tọ.
- Pa ideri batiri naa ni aabo.
- To charge, connect the Type-C charging cable to the device and a power source using the provided charger. The battery indicator will show charging status.
Image 5.1: Battery charging via Type-C port.
5.2 iṣagbesori Aw
The FELLAT laser level offers versatile mounting for various applications:
- Igbesoke Tripod: Use the 1/4"-20 or 5/8"-11 thread at the bottom of the device to attach it to a standard tripod.
- Magnetic Pivoting Base: The included magnetic base allows attachment to metal surfaces or the provided iron plate. It also enables rotation for precise angle adjustments.
- Lifting Base: Use the lifting base for fine height adjustments, especially for floor-level tasks.
- Odi Biraketi: Secure the laser level to a wall using the wall bracket for elevated projections.

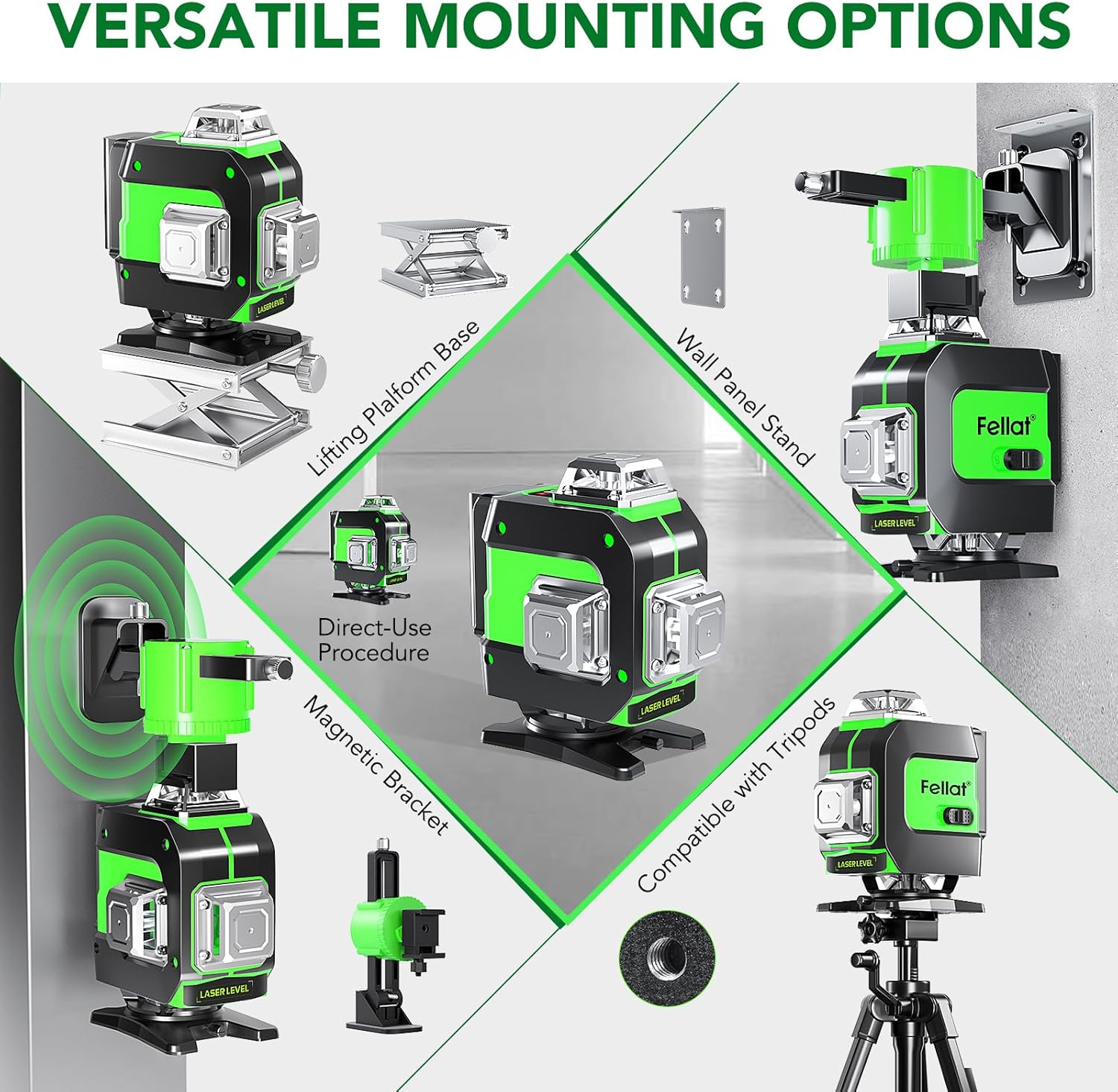

Image 5.2: Versatile mounting options for the laser level.
Image 5.3: Laser level mounted on a tripod using the 1/4" screw.
Image 5.4: Laser level mounted with the wall bracket.
Image 5.5: Laser level with lifting base for floor applications.
6. Isẹ
6.1 Agbara Tan / Pa
To power on the device, slide the main switch to the 'ON' position. To power off, slide the switch to 'OFF'.
6.2 Ipo Ipele-ara-ẹni
When powered on, the device defaults to self-leveling mode. Place the laser level on a stable surface. The internal pendulum will automatically level the laser lines within ±3°. If the device is tilted beyond this range, the laser lines will flash and an audible alarm will sound, indicating that the device is out of level. Adjust the position of the device until the lines stabilize and the alarm stops.
6.3 Manual Mode (Tilt Mode)
To activate manual mode, press and hold the 'OD' (OUT) button on the control panel or remote control for approximately 3 seconds. In manual mode, the pendulum is locked, allowing you to project laser lines at any desired angle. The laser lines will not flash, and no alarm will sound, even if the device is tilted. Press and hold the 'OD' button again to return to self-leveling mode.
6.4 Switching Laser Lines and Brightness
Use the 'H' (Horizontal) and 'V' (Vertical) buttons on the control panel or remote control to switch between different laser line combinations:
- Press 'H' to activate/deactivate horizontal lines.
- Press 'V' to activate/deactivate vertical lines.
- The 'OD' button can also be used for brightness adjustment in some modes.
Image 6.1: Switching between different laser line modes.
6.5 Latọna Iṣakoso Lilo
The remote control allows for convenient operation from a distance, especially useful in large work areas or when the device is mounted in hard-to-reach places.
- Use the 'H' button to control horizontal laser lines (H1 and H2).
- Use the 'V' button to control vertical laser lines (V1 and V2).
- The 'OD' button switches between automatic leveling and manual mode, and can also adjust brightness.
Image 6.2: Remote control for operating the laser level.
Image 6.3: Remote control in use for outdoor applications.
7. Itọju
Proper maintenance ensures the longevity and accuracy of your laser level.
- Ninu: Lo asọ, damp cloth to clean the device. Do not use abrasive cleaners or solvents. Keep the laser windows clean for optimal beam clarity.
- Ibi ipamọ: Store the laser level in its carrying case in a dry, cool place, away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
- Itọju Batiri: Recharge batteries regularly, even if not in use, to maintain their lifespan. Avoid fully discharging batteries.
- Àwọn Fèrèsé Lésà: The laser windows can be removed and replaced with a screwdriver if necessary for cleaning or service.
8. Laasigbotitusita
If you encounter issues with your FELLAT laser level, refer to the following common problems and solutions:
- Laser lines are flashing and alarm is sounding: The device is in self-leveling mode and is tilted beyond its ±3° self-leveling range. Adjust the device's position until it is within range.
- Àwọn ìlà lésà jẹ́ dúdú tàbí wọn kò hàn: Check battery charge. Ensure laser windows are clean. In bright outdoor conditions, use the laser target plate to enhance visibility.
- Ẹrọ ko ni agbara lori: Rii daju pe awọn batiri ti fi sori ẹrọ daradara ati pe wọn ti gba agbara ni kikun.
- Iṣakoso latọna jijin ko ṣiṣẹ: Ṣàyẹ̀wò bátìrì ìṣàkóso latọna jijin. Rí i dájú pé kò sí ìdènà láàárín ìpele agbára latọna jijin àti ìpele lésà.
Ti awọn iṣoro ba wa, kan si atilẹyin alabara fun iranlọwọ.
9. Awọn pato
| Ẹya ara ẹrọ | Sipesifikesonu |
|---|---|
| Brand | FELLAT |
| Awoṣe | MQT-16 |
| Lesa Kilasi | Kilasi II |
| Lesa wu Power | <1mW |
| Lesa Awọ | Alawọ ewe |
| Laser Configuration | 4 x 360° (2 Horizontal, 2 Vertical) |
| Ara-ni ipele Range | ±3° |
| Ijinna iṣẹ | Titi de awọn mita 40 (131 ẹsẹ) |
| Orisun agbara | Agbara Batiri |
| Batiri Iru | 2 x 4000mAh Lithium Polymer (Rechargeable) |
| Gbigba agbara Port | Iru-C |
| IP Rating | IP54 (Dust and Splash Proof) |
| Iṣagbesori Oran | 1/4"-20 & 5/8"-11 |
| Ipo Isẹ | Manual / Self-Leveling |
| Iwọn Nkan | 3.94 iwon |
| Ohun elo | Alloy Irin, Irin |
10. Atilẹyin ọja ati Support
FELLAT is committed to providing high-quality products. For any questions, technical support, or warranty inquiries regarding your MQT-16 laser level, please refer to the contact information provided in your purchase documentation or visit the official FELLAT webojula. Jọwọ ṣe idaduro ẹri rira rẹ fun awọn iṣeduro atilẹyin ọja.
