Getac K120 Rugged 2-in-1 Laptop Instruction Manual

1. Ifihan

The Getac K120 is a rugged 2-in-1 laptop designed for demanding environments. It combines the versatility of a tablet with the performance of a laptop, featuring a 12.5-inch Full HD touchscreen, an Intel Core i5-8250U processor, 16GB of RAM, and a 512GB SSD. This device operates on Windows 11 Pro and is built to withstand challenging conditions, making it suitable for various professional applications.

2. Key Awọn ẹya ara ẹrọ

• Apẹrẹ alagidi: Built to MIL-STD 810G standards, capable of withstanding 6-foot drops, and features IP65 ingress protection against dust and water.
• 2-ni-1 Iwapọ: Functions as both a laptop with a detachable full-size backlit keyboard and a standalone tablet.
• Iṣe-giga: Powered by an Intel Core i5-8250U processor, 16GB DDR4 RAM, and a 512GB SSD for fast boot-up and efficient multitasking.

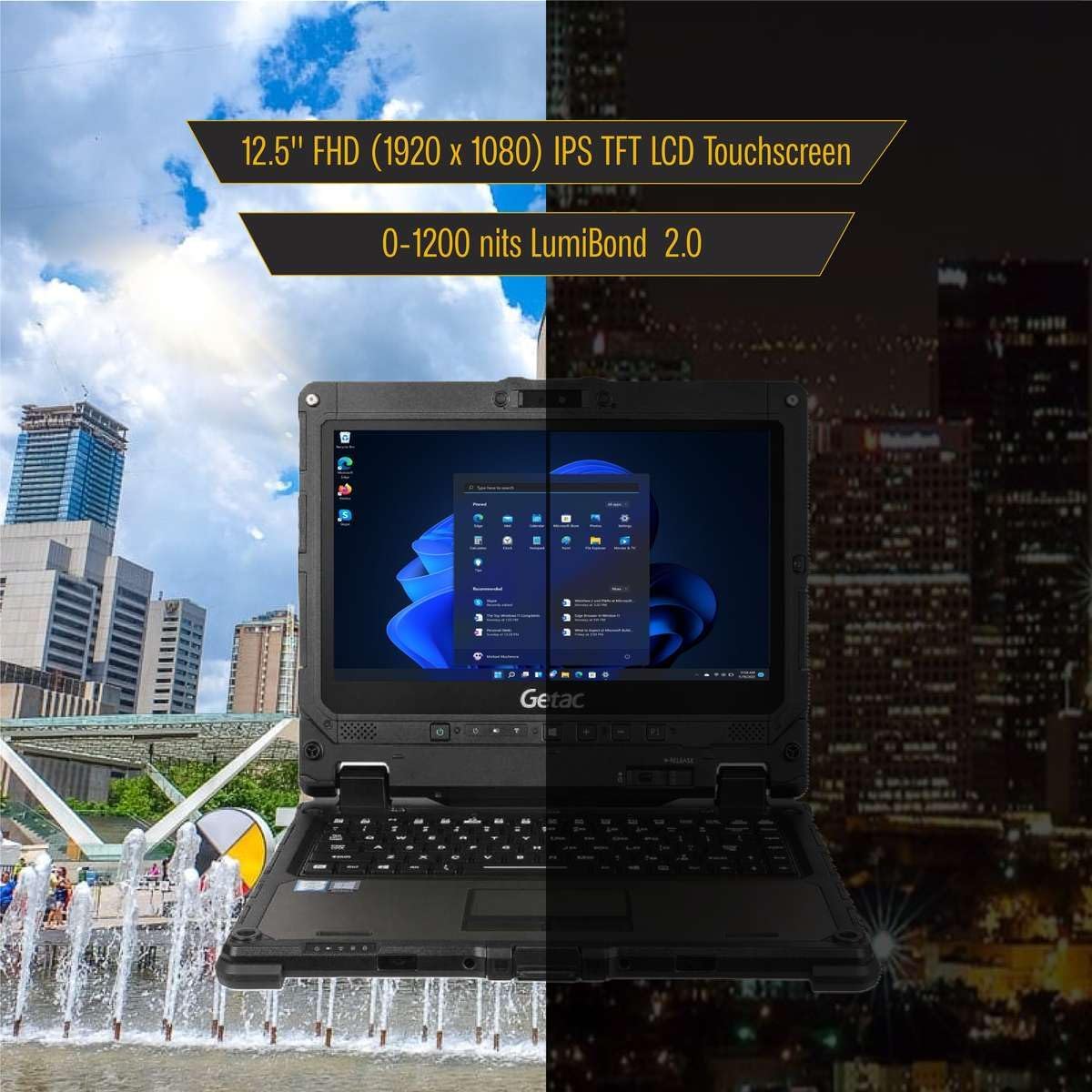

• Ìfihàn alárinrin: 12.5-inch Full HD (1920x1080) touchscreen with LumiBond 2.0 technology, supporting wet touch and glove operation.
• Eto isesise: Pre-installed with Windows 11 Pro 64-bit, offering enhanced security and management features with multi-language support.
• Integrated Cameras: Equipped with a 2MP front camera and an 8MP rear camera with LED flash.
• Awọn Batiri Meji: Features two Li-Ion batteries, supporting hot-swappable functionality for extended operation.

3. Eto

1. Ṣii silẹ: Carefully remove the Getac K120 and all accessories from the packaging.
2. Idiyele Ibẹrẹ: Connect the power adapter to the DC-in jack on either the tablet or the keyboard base and plug it into a power outlet. Allow the device to charge fully before first use.
3. Agbara Tan: Tẹ bọtini agbara lati tan ẹrọ naa.
4. Eto Windows: Tẹle awọn ilana loju iboju lati pari iṣeto Windows 11 Pro, pẹlu yiyan ede, asopọ nẹtiwọọki, ati ṣiṣẹda akọọlẹ olumulo.
5. Keyboard Attachment (Optional): To use in laptop mode, align the tablet with the keyboard base and gently press until it clicks securely into place. Ensure the release button is engaged.

4. Awọn ilana Iṣiṣẹ

4.1. Tablet Mode

• Detaching the Tablet: Press the release button located on the keyboard base to separate the tablet from the keyboard.
• Lilọ kiri iboju ifọwọkan: Use your finger or a compatible stylus for navigation, tapping, swiping, and pinch-to-zoom gestures. The display supports wet touch and glove input.
• Keyboard Lori iboju: When in tablet mode, the on-screen keyboard will automatically appear when text input is required.

4.2. Laptop Mode

• So Keyboard: Align the tablet with the keyboard base and press firmly until it locks.
• Keyboard ati Touchpad: Use the physical keyboard for typing and the integrated touchpad for cursor control. The keyboard is backlit for low-light conditions.

4.3. Isakoso Agbara

• Igbesi aye batiri: The device features two Li-Ion batteries. Monitor battery levels through the Windows taskbar.
• Hot-Swappable Batteries: Batteries can be replaced without powering down the device, ensuring continuous operation.
• Sleep/Hibernate: Use Windows power settings to configure sleep or hibernate modes to conserve battery life.

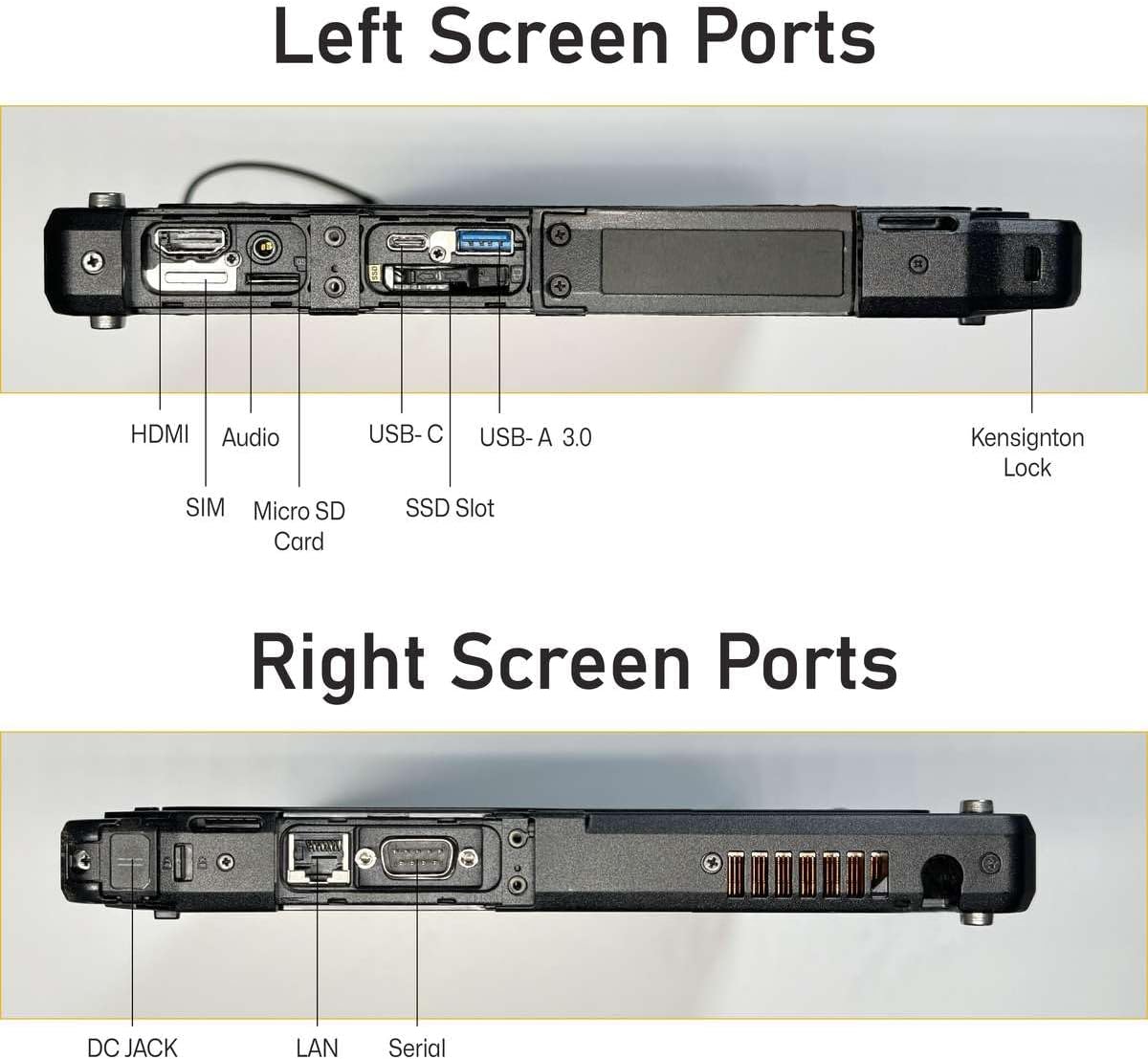

5. Awọn ibudo ati Asopọmọra

5.1. Tablet Ports

• DC in Jack x 1
• USB 3.0 x 1
• USB 3.1 Gen 1 Type-C x 1
• LAN (RJ-45) x 1
• HDMI x1
• MicroSD slot x 1
• Asopo docking x 2
• Headphone out / mic-in combo x 1
• Serial Port
• 4G LTE (EM7511)

5.2. Keyboard Ports

• DC in Jack x 1
• USB 3.0 x 3
• LAN (RJ-45) x 1
• HDMI x1
• Serial port (9-pin; D-sub) x 1
• SDXC slot x 1
• VGA x1

6. iyan Awọn ẹya ara ẹrọ

The Getac K120 offers various configurable options to enhance functionality:

• Barcode Reader (BCR)
• Second USB 2.0 port
• True Serial port
• Oluka Kaadi Smart (SCR)
• Contactless Smart Card Reader (Contactless SCR)
• Fingerprint Reader (FPR)
• Nẹtiwọọki Agbegbe Alailowaya (WWAN)
• Eto Gbigbe Kariaye (GPS)

These options are typically configured at the time of purchase and may vary by model or region.

7. Itọju

• Ninu: Lo asọ, damp cloth to clean the screen and exterior. Avoid harsh chemicals or abrasive materials. Ensure all port covers are securely closed before cleaning with liquids.
• Itọju Batiri: For optimal battery longevity, avoid extreme temperatures. If storing the device for an extended period, ensure batteries are charged to approximately 50%.
• Awọn imudojuiwọn sọfitiwia: Regularly check for and install Windows updates and driver updates to maintain performance and security.
• Idaabobo Ayika: While rugged, avoid intentionally exposing the device to extreme conditions beyond its specified ratings (MIL-STD 810G, IP65). Ensure all port covers are sealed when operating in dusty or wet environments.

8. Laasigbotitusita

• Ẹrọ ti ko ni agbara: Rii daju pe ẹrọ naa ti gba agbara. So ohun ti nmu badọgba agbara pọ ki o duro fun iṣẹju diẹ ṣaaju igbiyanju lati tan-an lẹẹkansi.
• Iboju ifọwọkan Ko dahun: Restart the device. If the issue persists, check for driver updates. Ensure the screen is clean and free of debris.
• Connectivity Issues (Wi-Fi/4G LTE): Verify that Wi-Fi or 4G LTE is enabled in Windows settings. Check network signal strength. For 4G LTE, ensure a valid SIM card is inserted and activated.
• Keyboard Ko Dahun: Ensure the tablet is securely docked to the keyboard base. Restart the device.
• Iṣẹ ṣiṣe ti o lọra: Close unnecessary applications. Check for available Windows updates. Ensure sufficient free space on the SSD.

9. Awọn pato

10. Atilẹyin ọja ati Support

This Getac K120 device is offered as an Amazon Renewed product. It comes with a 90-day return policy, allowing for refunds or replacements if issues arise within this period.

Additionally, various protection plans are available for purchase to extend coverage beyond the initial return period. Please refer to the product listing for details on available 2-Year, 4-Year, or Complete Protect plans.

For technical support or warranty claims, please contact the seller or refer to the Amazon Renewed program guidelines.

11. Ọja Ipariview Fidio
