Bonnlo 8ft Folding Table Instruction Manual

Ọrọ Iṣaaju

Thank you for choosing the Bonnlo 8ft Folding Table. This manual provides essential information for the safe and efficient setup, operation, maintenance, and troubleshooting of your new table. Please read these instructions carefully before use and retain them for future reference. This versatile table is designed for various indoor and outdoor applications, including parties, camping, banquets, crafts, dining, weddings, and home office use.

Alaye Aabo

• Agbara iwuwo to pọ julọ: Maa ko koja awọn ti o pọju àdánù agbara ti 300 poun (136 kg). Overloading the table can cause damage or injury.
• Eto to ni aabo: Always ensure all leg locks and tabletop latches are fully engaged and secure before placing any items on the table.
• Ilẹ Iduroṣinṣin: Place the table on a flat, stable, and level surface to prevent tipping.
• Avoid Standing: Do not stand, sit, or climb on the table. It is not designed for such purposes.
• Awọn orisun Ooru: Keep the table away from open flames, extreme heat sources, and sharp objects to prevent damage to the High-Density Polyethylene (HDPE) surface.
• Awọn ọmọde: Supervise children around the table to ensure safe use and prevent accidents.
• Awọn ojuami pọ: Exercise caution when folding and unfolding the table to avoid pinching fingers or hands in moving parts.

Package Awọn akoonu

Daju pe gbogbo awọn paati wa ati pe ko bajẹ lori ṣiṣi package naa.

• 1 x Bonnlo 8ft Folding Table

Awọn ilana iṣeto

Follow these steps to correctly set up your Bonnlo 8ft Folding Table:

1. Unfold the Table and Open the Legs: Place the folded table on its side or on the ground. Carefully unfold the table halves until they lie flat. Extend the table legs outwards from their folded position.
2. Secure the Tabletop with Yellow Latches: Locate the yellow latches on the underside of the table where the two halves meet. Push these latches into place to secure the tabletop, ensuring the two sections are firmly joined.
3. Secure the Legs with "0" Locks: Once the legs are fully extended, locate the "0" shaped locking mechanisms near the top of each leg assembly. Push these locks into the engaged position to prevent the legs from collapsing. Ensure all four leg locks are securely fastened.

Image: Visual guide for the 3-step setup process, showing unfolding, latching the tabletop, and securing the legs.

Isẹ ati Ibi ipamọ

Lilo gbogbogbo

Once fully assembled and secured, the Bonnlo 8ft Folding Table is ready for use. Its robust design and High-Density Polyethylene (HDPE) surface make it suitable for a wide range of activities. Always distribute weight evenly across the tabletop and adhere to the maximum weight capacity.

Image: The Bonnlo 8ft folding table in an outdoor setting, demonstrating its use for events.

Kika ati Ibi ipamọ

To fold the table for storage, reverse the setup steps:

1. Release Leg Locks: Disengage the "0" shaped locks on each leg assembly.
2. Àwọn Ẹsẹ̀ Pó: Carefully fold the legs inwards towards the underside of the table.
3. Release Tabletop Latches: Disengage the yellow latches that secure the two tabletop halves.
4. Fold Table: Fold the table in half. The integrated handle will be accessible for easy transport.

Image: A person easily carrying the folded Bonnlo table, highlighting its portability.

Image: The Bonnlo folding table stored efficiently, demonstrating its compact size when folded.

Itoju

Proper maintenance will ensure the longevity and performance of your Bonnlo folding table.

• Ninu: The HDPE tabletop is stain-resistant and easy to clean. Wipe the surface with a damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals that could damage the material.
• Itọju fireemu: Awọn fireemu irin le ti wa ni nu mọ pẹlu ipolongoamp cloth. Ensure it is dried thoroughly to prevent rust, especially after outdoor use or exposure to moisture.
• Ayewo: Periodically inspect all moving parts, including hinges, latches, and leg locks, to ensure they are functioning correctly and are free from damage.
• Ibi ipamọ: Store the table in a dry, cool place when not in use. Avoid prolonged exposure to direct sunlight or extreme weather conditions, which can degrade materials over time.

Laasigbotitusita

If you encounter issues with your Bonnlo folding table, refer to the following common problems and solutions:

• Table feels unstable or wobbly:
  • Rí i dájú pé a gbé tábìlì náà sí orí ilẹ̀ tí ó tẹ́jú pátápátá tí ó sì tẹ́jú.
  • Verify that all four leg locks are fully engaged and secured in the "0" position.
  • Check that the yellow tabletop latches are firmly in place, connecting the two halves of the table.
• Difficulty folding or unfolding the table:
  • Ensure all locking mechanisms (leg locks and tabletop latches) are fully disengaged before attempting to fold.
  • Apply gentle, even pressure. Do not force the components if they resist. Check for any obstructions.
• Tabletop halves do not align properly:
  • Ensure the table is fully unfolded and flat before engaging the yellow tabletop latches.
  • Check for any debris or foreign objects in the hinge mechanism.

Awọn pato

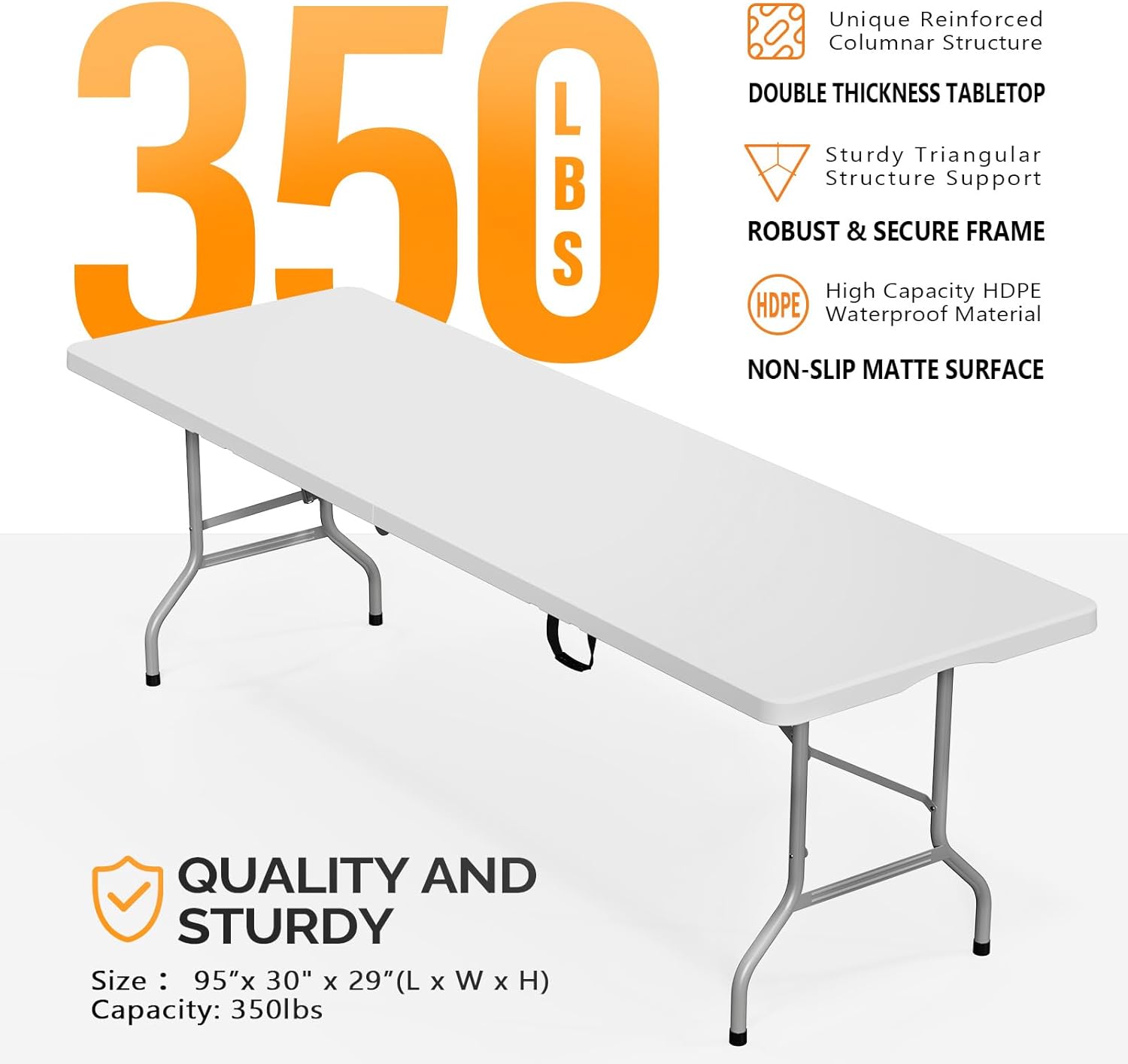

Image: Detailed specifications and structural features of the Bonnlo folding table. Note: The image indicates 350 lbs capacity, while product specifications state 300 lbs. Please adhere to the 300 lbs limit for safety.

Atilẹyin ọja ati Support

For warranty information, product support, or to report any issues, please contact Bonnlo customer service. Refer to your purchase documentation or the Bonnlo official website for contact details. Please have your model number (BNtable8ft) and purchase date available when contacting support.
