Itọsọna Itọnisọna Ibi-itọju Ẹrọ Ige Abizarch

Ọrọ Iṣaaju

This manual provides detailed instructions for the safe and effective use of your Abizarch Cutting Machine Edge Guide Positioner. Designed for woodworking enthusiasts and professionals, this tool assists in achieving precise and repeatable cuts with various cutting machines, including circular saws, trimmers, and jigsaws.

Awọn ẹya pataki:

• Dual Rail System: Ensures consistent and precise cuts by keeping your cutting machine on track.
• Ibamu Wapọ: Compatible with most 4-inch/5-inch cutting machines, trimmers, circular saws, and jigsaws.
• Lightweight Stainless Steel Frame: Provides stability and longevity for reliable performance.
• Convenient Measuring Scale: Features a clear, easy-to-read scale for accurate measurements without additional tools.
• Odi Adijositabulu: Includes micro-adjustment for setting desired widths, ensuring precise and repeatable cuts.

Awọn ẹya Akojọ

The Abizarch Cutting Machine Edge Guide Positioner includes the following components:

• 1 x Cutting Machine Edge Guide Positioner (main assembly)
• Necessary fasteners (screws, nuts) for assembly
• Adjustable components for the dual rail system and fence
• Integrated measuring scales
• Handle with integrated bubble level

Image: All components of the Abizarch Cutting Machine Edge Guide Positioner laid out before assembly.

Eto ati Apejọ

Follow these steps to assemble your edge guide positioner:

1. Attach the Rails: Connect the two main rail sections to the central plate using the provided fasteners. Ensure they are securely tightened but allow for adjustment.
2. Fi sori ẹrọ Imudani naa: Secure the handle, which includes the bubble level, to the designated side of the guide.
3. Adjust the Fence: Position the adjustable fence components onto the rails. These will be used to set your desired cutting width.
4. Jẹrisi Iduroṣinṣin: Once assembled, ensure all parts are firmly connected and the guide is stable.

Image: The fully assembled Abizarch Cutting Machine Edge Guide Positioner, ready for use.

Awọn ilana Iṣiṣẹ

The edge guide positioner is designed to provide stable and accurate cuts. Follow these guidelines for optimal performance:

1. Prepare Your Workpiece: Ensure your material is securely clamped and stable on a flat surface.
2. Attach the Cutting Machine: Secure your circular saw, trimmer, or jigsaw to the central plate of the guide positioner. Ensure it is firmly attached and aligned.
3. Set the Cutting Width: Use the adjustable fence and the integrated measuring scales to set your desired cutting width. Tighten the adjustment knobs to lock the fence in place. The clear double scale markings on both sides facilitate precise measurement.
4. Position the Guide: Place the edge guide positioner on your workpiece, aligning the guide rails with the desired cutting line. The dual rail system helps maintain a straight path.
5. Ṣayẹwo Ipele: Utilize the integrated bubble level on the handle to ensure the guide is horizontally level for accurate cuts.
6. Perform the Cut: With the cutting machine securely attached and the guide positioned, proceed with your cut, maintaining steady pressure and movement along the guide rails.

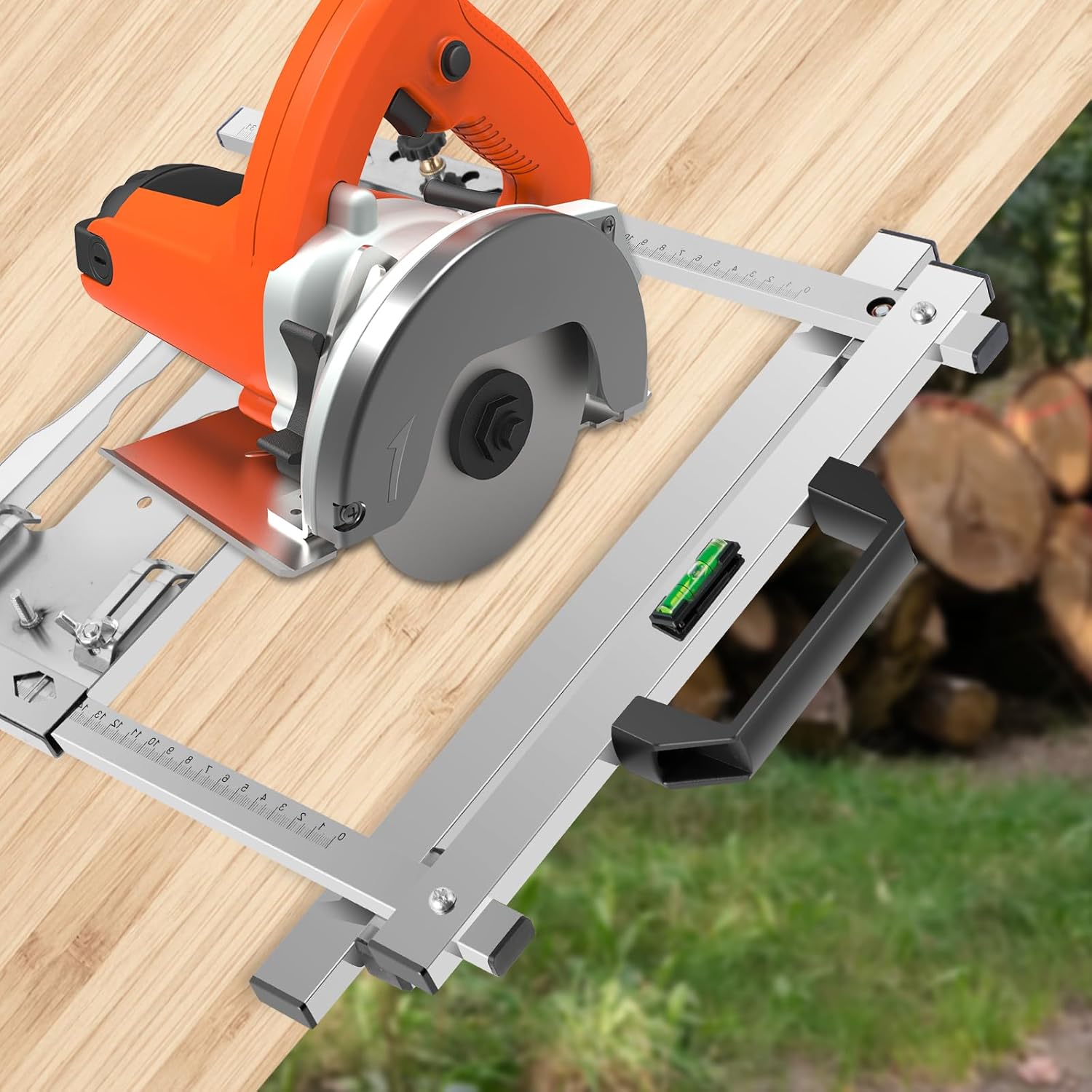

Image: The edge guide positioner attached to a circular saw, demonstrating its use for straight cuts on a wooden board.

Image: A person operating a circular saw with the Abizarch Edge Guide Positioner, ensuring a straight and precise cut.

Aworan: A sunmọ-soke view highlighting the clear double scale markings on the edge guide positioner, which aid in precise measurement and setting of cutting dimensions.

Itoju

Proper maintenance ensures the longevity and accuracy of your edge guide positioner:

• Ninu: After each use, wipe down the stainless steel frame with a clean, dry cloth to remove sawdust and debris. For stubborn residue, a damp asọ le ṣee lo, atẹle nipa gbigbe ni kikun.
• Ayewo: Regularly inspect all fasteners and adjustable components for tightness. Tighten any loose screws or nuts to maintain stability and accuracy.
• Ibi ipamọ: Store the edge guide positioner in a dry environment to prevent corrosion.

Laasigbotitusita

If you encounter issues with your edge guide positioner, consider the following:

• Awọn gige ti ko pe:
  • Rii daju pe gbogbo awọn fasteners wa ni wiwọ ni aabo.
  • Verify that the cutting machine is properly attached and aligned with the guide.
  • Check the bubble level to confirm the guide is horizontally level on the workpiece.
  • Confirm the adjustable fence is locked at the correct measurement.
• Difficulty Attaching Cutting Machine:
  • Ensure your cutting machine is compatible with the guide (suitable for 4-inch/5-inch cutting machines, trimmers, circular saws, jigsaws).
  • Adjust the mounting points on the central plate to fit your specific tool.
• Guide Not Moving Smoothly:
  • Clean the guide rails and ensure no debris is obstructing movement.
  • Check for any bent or damaged components.

Awọn pato

Image: A detailed diagram illustrating the dimensions of the Abizarch Cutting Machine Edge Guide Positioner.

Atilẹyin ọja ati Support

For warranty information or technical support regarding your Abizarch Cutting Machine Edge Guide Positioner, please refer to the product packaging or contact the manufacturer directly. Keep your purchase receipt for any warranty claims.
