1. Ifihan
This manual provides essential information for the safe and efficient operation of your ShockFlo Electric Vehicle Charging Station, model CS09-S. Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage or injury. Keep this manual for future reference.
2. Alaye Aabo
Always adhere to the following safety guidelines to prevent electric shock, fire, or injury:
- Onímọ̀ ẹ̀rọ iná mànàmáná tó mọṣẹ́ gbọ́dọ̀ ṣe iṣẹ́ rẹ̀ ní ìbámu pẹ̀lú gbogbo àwọn òfin àti ìlànà iná mànàmáná ìbílẹ̀ àti ti orílẹ̀-èdè.
- Do not attempt to open, disassemble, repair, or modify the charging station. This may void the warranty and pose a safety risk.
- Rí i dájú pé ibùdó gbigba agbara náà dúró dáadáa.
- Do not use the charging station if it is damaged, cracked, or shows any signs of malfunction.
- Pa awọn ọmọde ati awọn ohun ọsin kuro ni ibudo gbigba agbara lakoko iṣẹ.
- Avoid exposing the charging station to extreme temperatures, direct sunlight for prolonged periods, or excessive moisture.
- Only use the charging station for its intended purpose: charging electric vehicles.
3. Package Awọn akoonu
Jẹrisi pe gbogbo awọn ohun kan wa ninu package:
- ShockFlo CS09-S Electric Vehicle Charging Station
- Àwọn ohun èlò ìsopọ̀mọ́ra (àwọn skru, àwọn ìdákọ̀ró ògiri)
- RFID cards (quantity may vary)
- Itọsọna olumulo
4. Ọja Ipariview
The ShockFlo CS09-S is an advanced electric vehicle charging station designed for efficient and convenient home charging. It features a robust design, an integrated display, and smart control capabilities via a mobile application.
Image 4.1: ShockFlo CS09-S Charging Station and companion app icon.
The charging station includes a clear display that provides real-time information about the charging process, such as current, voltage, power, and charging status.
Aworan 4.2: alaye view of the charging station's display interface.
5. Eto ati fifi sori
The ShockFlo CS09-S charging station is designed for wall-mounted installation. Due to the electrical nature of this product, professional installation by a certified electrician is mandatory to ensure safety and compliance with local electrical codes.
5.1 Awọn igbesẹ fifi sori ẹrọ (Overview)
- Aṣayan Aaye: Choose a suitable location near your parking area, ensuring it is protected from direct impact and excessive environmental exposure.
- Iṣagbesori: Securely mount the charging station to a sturdy wall using the provided mounting accessories.
- Asopọmọra itanna: Connect the charging station to your home's electrical supply. This step requires a qualified electrician.
- Idanwo: After installation, the electrician should perform initial power-on and functional tests.

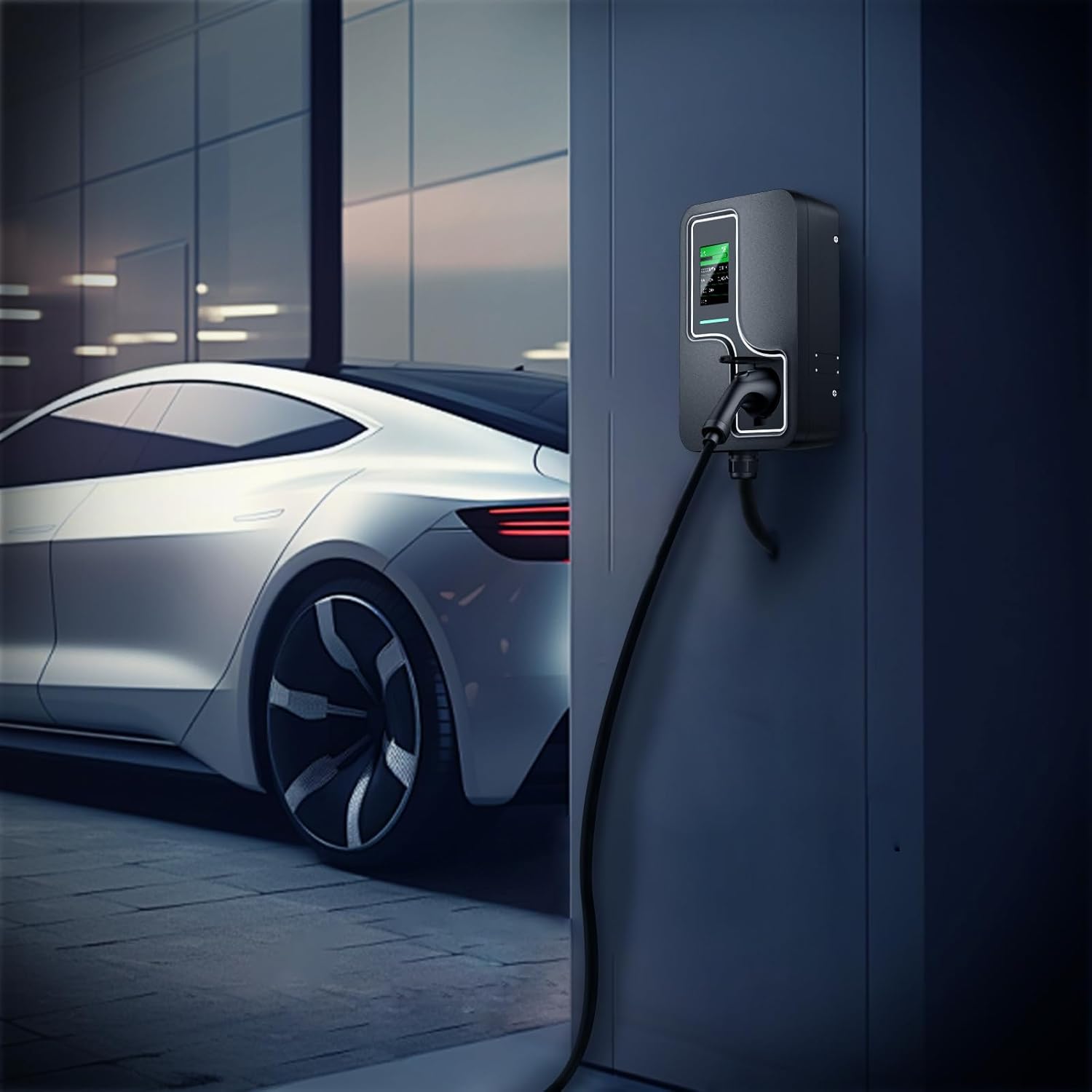

Aworan 5.1: Example of a wall-mounted ShockFlo CS09-S charging station.
6. Awọn ilana Iṣiṣẹ
The ShockFlo CS09-S offers multiple methods for initiating and managing your vehicle's charging process.
6.1 Awọn ọna gbigba agbara
The charging station supports three primary charging modes:
- App Remote Control (WIFI Ready): Manage charging sessions, adjust settings, and monitor status via the dedicated mobile application.
- RFID Card Charging: Use a registered RFID card to start and stop charging.
- Pulọọgi & Gba agbara: Simply plug the charging cable into your vehicle to begin charging automatically (if configured).
Aworan 6.1: Pariview of the three available charging modes.
6.2 App isakoṣo latọna jijin
The ShockFlo mobile application provides comprehensive control over your charging station. Features include:
- Start/Stop Charging: Remotely initiate or terminate a charging session.
- Ti o le ṣatunṣe lọwọlọwọ: Modify the charging current to suit your needs or vehicle specifications.
- Gbigba agbara iṣeto: Ṣètò àwọn àkókò pàtó fún gbígbà agbára láti gba àkókò síwájútage ti pa-tente ina awọn ošuwọn.
- Abojuto gbigba agbara: View real-time charging data, including power consumption, duration, and estimated range.
Image 6.2: Mobile application interface for remote charging control.
7. Itọju
Regular maintenance ensures the longevity and optimal performance of your charging station.
- Ninu: Lẹ́ẹ̀kọ̀ọ̀kan, nu ìta ibùdó gbigba agbara pẹ̀lú asọ, damp asọ. Ma ṣe lo abrasive ose tabi epo.
- Ayewo: Regularly check the charging cable and connector for any signs of wear, damage, or corrosion. If damage is found, discontinue use and contact support.
- Afẹfẹ: Ensure that the charging station's ventilation openings are not obstructed.
8. Laasigbotitusita
If you encounter issues with your ShockFlo CS09-S, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Gbigba agbara ko bẹrẹ | Cable not fully inserted, vehicle not ready to charge, power supply issue, RFID card not recognized. | Ensure cable is securely connected. Check vehicle's charging settings. Verify power supply. Re-scan RFID card or use app. |
| Idilọwọ gbigba agbara | Vehicle fault, power fluctuation, charging station error. | Check vehicle's dashboard for error messages. Reset the charging station by cycling power. |
| Ifihan jẹ òfo | Ko si agbara si ẹrọ naa. | Check the circuit breaker for the charging station. Ensure the main power supply is active. |
| App Asopọmọra oran | Poor Wi-Fi signal, incorrect app settings. | Ensure the charging station is within Wi-Fi range. Restart your router and the charging station. Reconfigure app settings. |
If the problem persists after attempting these solutions, please contact ShockFlo customer support.
9. Awọn pato
- Awoṣe: CS09-S
- Brand: ShockFlo
- ASIN: B0DDTYRKHQ
- Awọn iwọn idii: 40 x 28 x 15 cm
- Ìwúwo Apo: 85.05 g
- Ọjọ Akọkọ Wa: Oṣu Kẹjọ Ọjọ 21, Ọdun 2024
Note: Specific electrical specifications (e.g., voltage, current, power output) should be confirmed on the product label or with the manufacturer.
10. Atilẹyin ọja ati Support
Specific warranty details for the ShockFlo CS09-S Electric Vehicle Charging Station are not provided in the available product information. For warranty claims, technical support, or service inquiries, please contact ShockFlo directly through their official webaaye tabi alagbata ti o ti ra ọja naa.
Ṣe idaduro ẹri rira rẹ nigbagbogbo fun awọn idi atilẹyin ọja.
