MARSTEK Piggyback Style Emergency Stop Button Kit

Ọrọ Iṣaaju

The MARSTEK Piggyback Style Emergency Stop Button Kit is designed to provide a quick and reliable power-off solution for various electrical equipment. This kit features a robust construction with high-strength ABS material, ensuring durability, fire resistance, and IP67 waterproof protection. The cable and plug are UL certified for safe and dependable operation. Its plug-and-play design simplifies installation and use across multiple applications, including industrial equipment, workshops, and household devices.

Alaye Aabo

• Always ensure the emergency stop button is easily accessible and unobstructed during operation of any connected equipment.
• The socket is in a normally open state. After plugging in your device, you must first turn on the switch of the device itself for it to receive power through the emergency stop button.
• The cable and plug are UL certified. Do not use if the cable or plug shows any signs of damage.
• The emergency stop button is designed for deliberate activation and resetting. Press the red button to stop power; twist to reset.
• This device is rated IP67 waterproof. While it offers protection against dust and water immersion, avoid submerging it for extended periods or exposing it to high-pressure water jets.

Package Awọn akoonu

• 1 x MARSTEK Emergency Stop Push Button Switch
• Mounting Screws and Wall Anchors (as pictured)

Ṣeto

The MARSTEK Emergency Stop Button Kit is designed for straightforward installation. Follow these steps:

1. Yan Ibi Igbesoke: Select a stable surface near your electrical equipment where the emergency stop button will be easily accessible. Ensure the 10-foot cable can reach both a power outlet and your equipment.
2. Gbe Iyipada naa: Use the provided screws and wall anchors to securely mount the emergency stop switch. The switch can be mounted using either the top or bottom fixed ports for stability.

Figure 1: Mounting hardware and the emergency stop button.

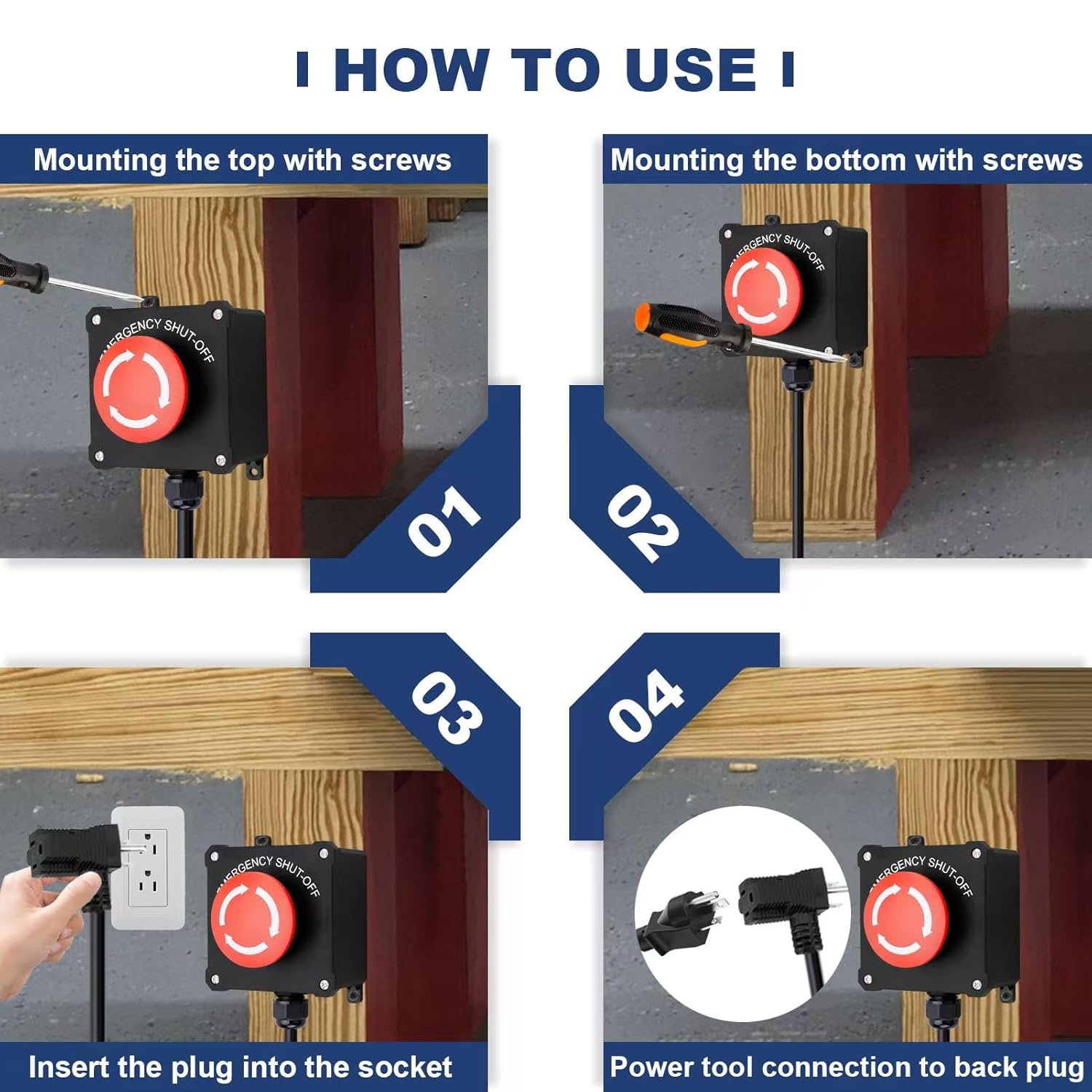

Figure 2: Step-by-step guide for mounting and connection.

3. Sopọ si Agbara: Insert the 3-pin plug of the emergency stop switch into a standard wall power socket.
4. So ẹrọ rẹ pọ: Plug your electrical equipment (e.g., table saw, coffee machine) into the back socket of the emergency stop switch.

Figure 3: Proper connection of the emergency stop button and equipment.

Awọn ilana Iṣiṣẹ

Once the emergency stop button is properly set up, follow these steps for operation:

1. Agbara Lori Ohun elo: Since the emergency stop switch operates in a normally open state, you must first turn on the power switch of your connected electrical equipment. Power will then flow through the emergency stop button to your device.
2. Ise deede: Your equipment will now operate as usual.
3. Iduro Pajawiri: In case of an emergency or when immediate power cut-off is required, firmly press the large red emergency stop button. This will instantly cut power to the connected equipment.
4. Resetting the Button: To restore power after an emergency stop, twist the red button clockwise until it pops out to its original position. Then, you may need to cycle the power switch on your equipment to resume operation.

Olusin 4: Example application with a table saw.

Itoju

The MARSTEK Emergency Stop Button Kit requires minimal maintenance due to its durable and sealed design.

• Ninu: Periodically wipe the exterior of the switch with a damp asọ lati yọ eruku ati idoti. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
• Ayewo: Regularly inspect the cable, plug, and switch housing for any signs of damage, wear, or loose connections. If any damage is found, discontinue use immediately and replace the unit.
• Omi Resistance: The unit is IP67 rated, providing protection against dust ingress and temporary immersion in water. Ensure the cable glands are tight and the housing is not compromised to maintain this rating.

Laasigbotitusita

If you encounter issues with your emergency stop button, consider the following:

• No Power to Equipment:
  • Ensure the emergency stop button is in the reset (untwisted) position.
  • Verify that your electrical equipment's own power switch is turned ON.
  • Check if the emergency stop button's plug is securely inserted into the wall outlet.
  • Confirm that the equipment's plug is securely inserted into the back socket of the emergency stop button.
  • Ṣe ìdánwò ibi tí a fi ń gbé ìta ògiri náà pẹ̀lú ẹ̀rọ mìíràn láti rí i dájú pé ó ń fúnni ní agbára.
• Emergency Stop Button Not Resetting:
  • Ensure you are twisting the button clockwise firmly until it clicks and pops out.
  • Check for any obstructions around the button mechanism.

Ti awọn iṣoro ba wa, kan si atilẹyin alabara.

Awọn pato

Ṣe nọmba 5: Awọn iwọn ọja ati awọn pato bọtini.

Atilẹyin ọja ati Support

For warranty information or technical support, please refer to the product packaging or contact MARSTEK customer service directly through their official website or the retailer where the product was purchased. Please have your model number (9387f982-bb07-4b68-aa79-6cdb4669a085) available when contacting support.
