Teesa Steam Mop TSA5051 User Manual

1. Awọn Ilana Aabo pataki

Please read all instructions carefully before using the Teesa Steam Mop TSA5051. Keep this manual for future reference.

• Always ensure the appliance is unplugged before filling the water tank or performing maintenance.
• Ma ṣe lọ kuro ni mop ategun laini abojuto lakoko ti o wa ni titan.
• Pa awọn ọmọde ati awọn ohun ọsin kuro ninu ohun elo lakoko iṣẹ.
• Use only distilled or demineralized water in the tank to prevent mineral buildup.
• Ma ṣe taara nya si awọn eniyan, ẹranko, tabi awọn ohun elo itanna.
• Avoid using the steam mop on unsealed hardwood floors or surfaces that are sensitive to heat and moisture.
• Always attach a cleaning pad before operating the steam mop.
• Ti okun agbara ba bajẹ, o gbọdọ paarọ rẹ nipasẹ olupese, aṣoju iṣẹ rẹ, tabi awọn eniyan ti o ni oye kanna lati yago fun ewu kan.

2. Ọja Ipariview ati irinše

Familiarize yourself with the parts of your Teesa Steam Mop TSA5051 before assembly and operation.

Nọmba 2.1: Fully assembled Teesa Steam Mop TSA5051, front view.

Nọmba 2.2: Apa view of the steam mop, showing the handle and power cord wrap.

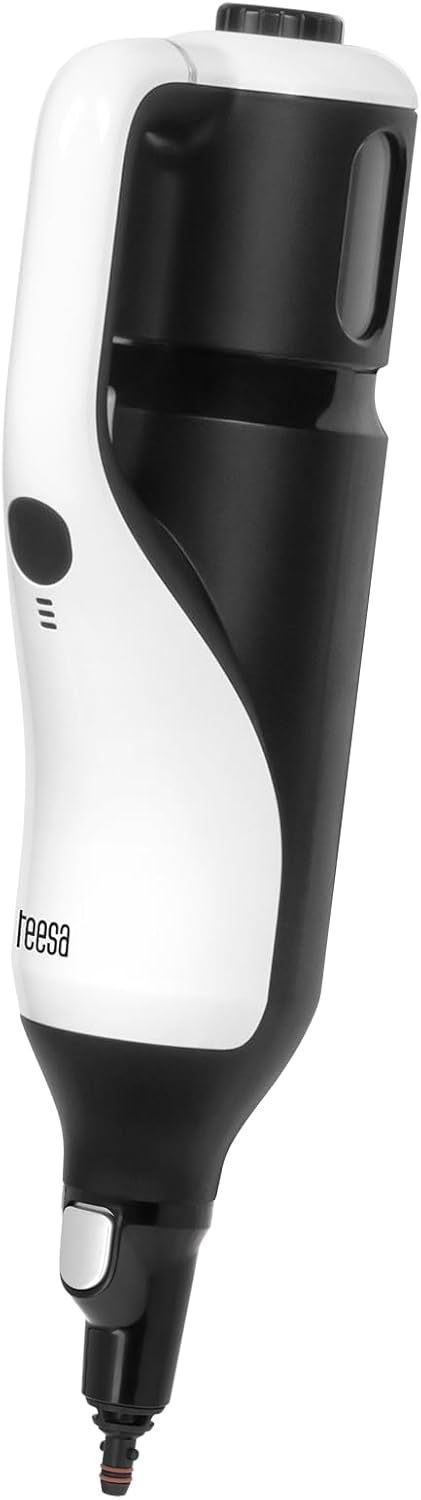

Nọmba 2.3: The detachable handheld steam unit.

Nọmba 2.4: Illustration of detaching the handheld unit from the main body.

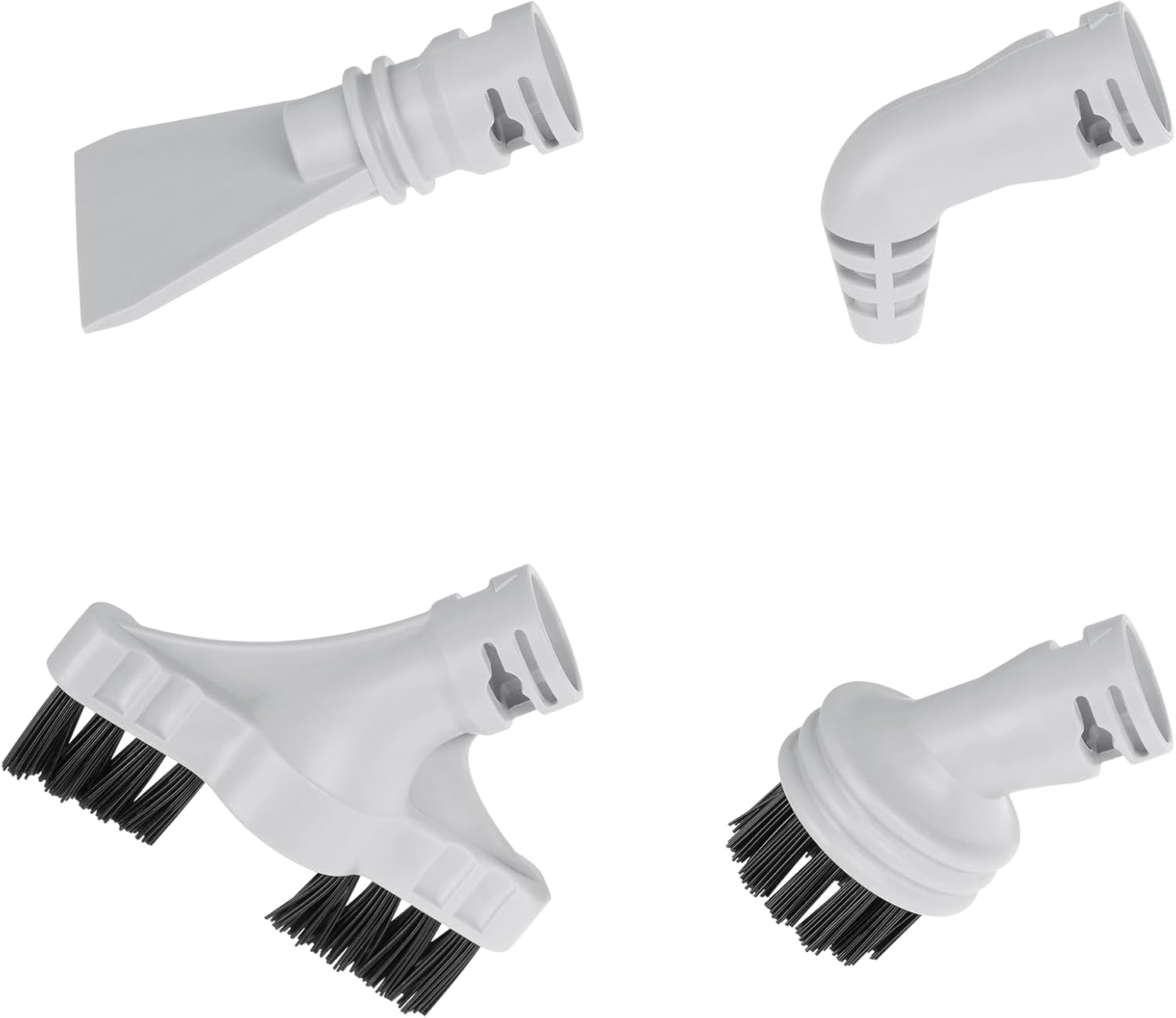

Nọmba 2.5: Included accessories: round brush, joint accessory, slot nozzle, scraper.

Nọmba 2.6: Measuring cup for water and adapter for accessories.

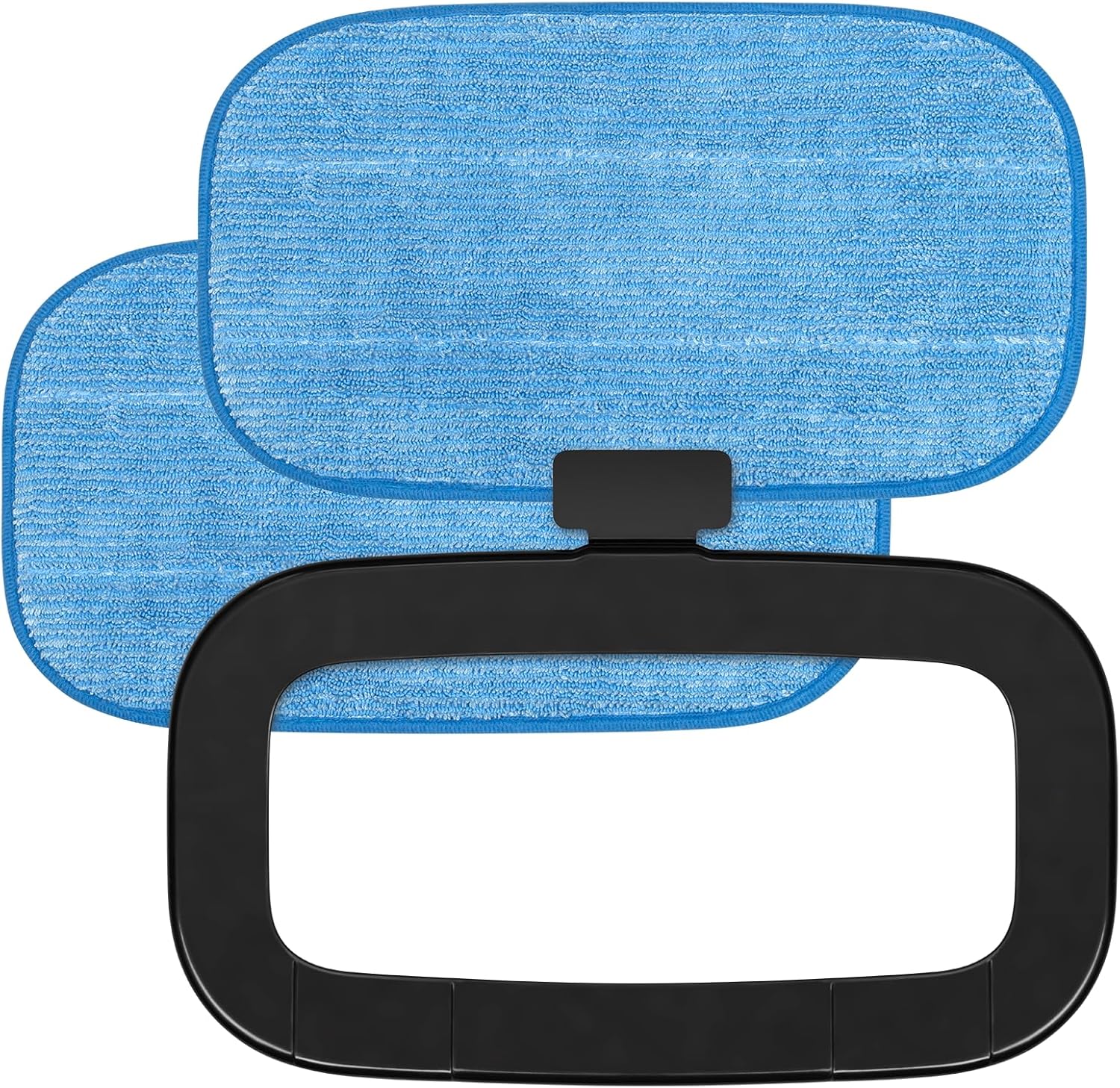

Nọmba 2.7: Two sponge cloths (mop pads) and the carpet glider frame.

Awọn eroja to wa:

• Ẹ̀rọ ìgbálẹ̀ steam mop pàtàkì (pẹ̀lú steam atọ́wọ́ tí a lè yọ kúrò)
• Mu Apejọ
• 2 x Sponge Cloths (Mop Pads)
• Idiwọn Cup
• Adapter ẹya ẹrọ
• Yika gbọn
• Joint Accessory
• Iho nozzle
• Scraper
• Carpet Glider Frame

3. Eto ati Apejọ

1. Ṣepọ Imudani naa: Insert the handle assembly into the main steam mop unit until it clicks securely into place.
2. So paadi Mimọ mọ: Place one of the sponge cloths onto the bottom of the mop head, ensuring it is securely attached.
3. Kun Omi Omi:
   • Ṣii fila ojò omi.
   • Using the provided measuring cup, fill the water tank with up to 380 ml of distilled or demineralized water. Do not overfill.
   • Pa ideri ojò omi ni aabo.
4. Optional: Attach Carpet Glider: For refreshing carpets, place the mop head with the attached cleaning pad into the carpet glider frame.

4. Awọn ilana Iṣiṣẹ

4.1. Using as a Steam Mop

1. Ensure the water tank is filled and a cleaning pad is attached.
2. Plug the power cord into a grounded electrical outlet (220-240 V AC, 50 Hz).
3. The steam mop will begin heating. The indicator light will illuminate, signaling preparation. The device is ready in approximately 25 seconds.
4. Select the desired steam level (3 levels available) using the control button.
5. Begin cleaning by moving the mop head slowly and steadily over the floor surface. The swivel head allows for easy maneuverability.
6. For carpet refreshing, ensure the carpet glider is attached and move the mop over the carpet.
7. When finished, unplug the appliance and allow it to cool before emptying any remaining water and cleaning.

4.2. Using as a Handheld Steam Cleaner

1. Unplug the steam mop and ensure it is cool.
2. Press the release button to detach the handheld steam unit from the main body (refer to Figure 2.4).
3. Attach the desired accessory (e.g., round brush, slot nozzle, joint accessory, scraper) to the handheld unit using the accessory adapter if needed.
4. Fill the water tank if necessary (follow instructions in Section 3.3).
5. Plug in the handheld unit. Wait for the indicator light to show it's ready (approx. 25 seconds).
6. Direct the steam towards the surface to be cleaned. Use caution as steam is hot.
7. After use, unplug the unit and allow it to cool before detaching accessories and storing.

5. Itọju

Ìtọ́jú déédéé máa ń mú kí iṣẹ́ rẹ̀ dára síi, ó sì máa ń mú kí ìgbádùn mọ́pù steam rẹ pẹ́ sí i.

1. Awọn paadi mimọ: The sponge cloths can be machine washed with mild detergent. Do not use bleach or fabric softeners. Air dry only. Replace pads when they become worn or lose their cleaning effectiveness.
2. Omi Omi Sofo: After each use, unplug the appliance and allow it to cool. Empty any remaining water from the tank.
3. Ninu Ode: Nu ìta ti mop steam pẹlu ipolowoamp asọ. Maṣe lo awọn kẹmika ti o lewu tabi awọn afọmọ abrasive.
4. Fifọ: If you notice a decrease in steam production or mineral residue, descaling may be necessary.
   • Mix a solution of 1 part white vinegar to 2 parts water.
   • Tú ojutu naa sinu ojò omi.
   • So ẹrọ naa pọ ki o jẹ ki o gbona.
   • Run the unit until half of the solution is used, then unplug and let it sit for 30 minutes.
   • Plug it back in and run until the tank is empty.
   • Rinse the tank thoroughly with fresh water and run two full tanks of fresh water through the unit to flush out any vinegar residue.
5. Ibi ipamọ: Store the steam mop in a cool, dry place. Wrap the power cord around the designated cord wraps on the handle (refer to Figure 2.2).

6. Laasigbotitusita

7. Awọn pato

8. Atilẹyin ọja ati Support

For warranty information and customer support, please refer to the warranty card included with your product or visit the official Teesa webojula. Jeki ẹri rira rẹ fun eyikeyi awọn ibeere atilẹyin ọja.

For further assistance, you may contact Teesa customer service through their official channels.
