1. Ifihan
The Carlinkit CPC200-Tbox S2C is a versatile wireless adapter designed to enhance your in-car entertainment and connectivity. It converts your vehicle's existing wired CarPlay or Android Auto system into a wireless experience, while also providing access to a full Android 13.0 operating system directly on your car's touchscreen. This allows for streaming popular multimedia apps like Netflix, YouTube, and TikTok, downloading additional applications from the Google Play Store, and utilizing advanced navigation features.
2. Ohun ti o wa ninu Apoti

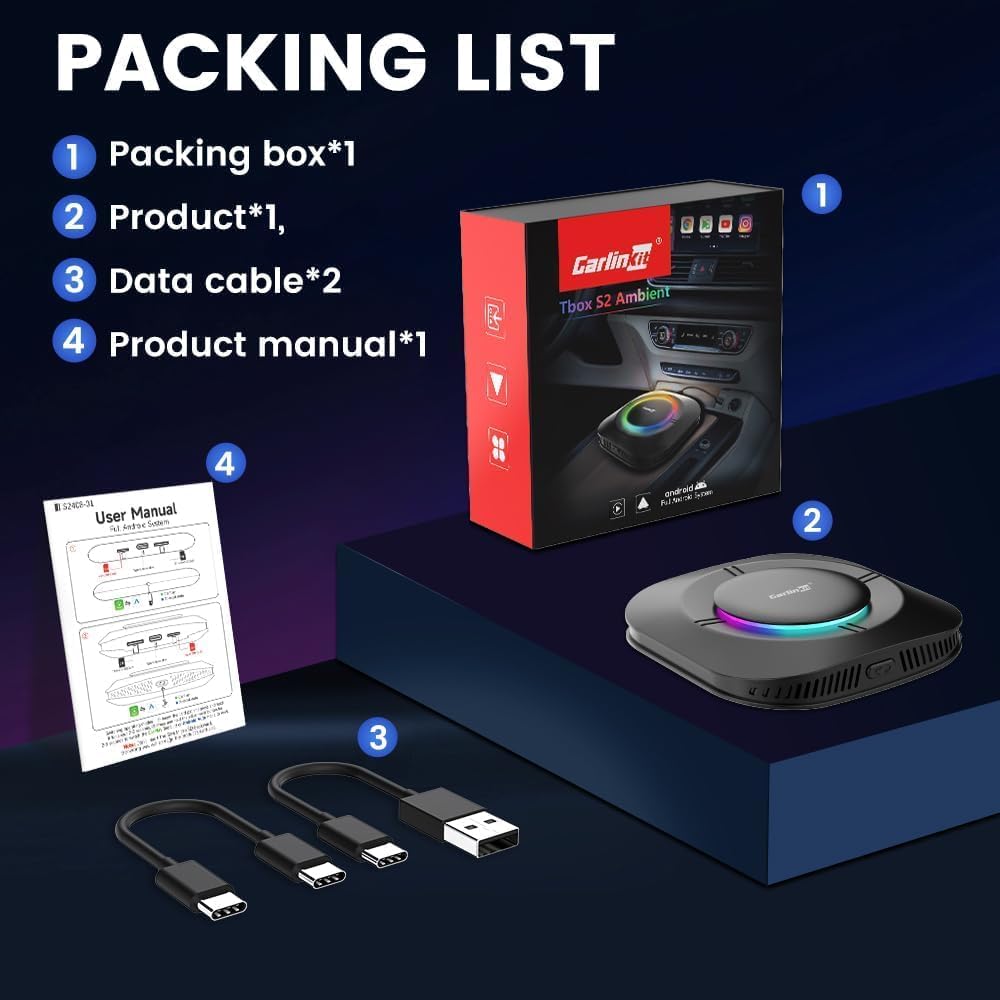

Upon unboxing your Carlinkit CPC200-Tbox S2C, you should find the following items:
- 1 x Apoti Iṣakojọpọ
- 1 x Carlinkit CPC200-Tbox S2C Device
- 2 x Data Cables (USB-A to USB-C, USB-C to USB-C)
- Ìwé Ìtọ́sọ́nà Ọjà 1 x (ìwé yìí)
3. Ọja Ipariview & Awọn pato
The Carlinkit CPC200-Tbox S2C is engineered for seamless integration and powerful performance, transforming your car's infotainment system.
Awọn ẹya pataki:
- Asopọ Alailowaya: Iyipada CarPlay ti firanṣẹ ati Android Auto si alailowaya.
- Eto Android 13.0: Full Android operating system for app installation.
- Ṣíṣíṣẹ́ Módíòmù: Pre-installed apps for Netflix, YouTube, TikTok, and more.
- Atilẹyin Iranlọwọ ohun: Compatible with Siri and Google Assistant.
- Lilọ kiri ni ilọsiwaju: Integrated GPS+Glonass for precise positioning.
- Àwọn Àtúnṣe FOTA: Supports Firmware Over-The-Air updates for continuous improvement.
Awọn pato Imọ-ẹrọ:
| Sipesifikesonu | Ẹ̀kúnrẹ́rẹ́ |
|---|---|
| Nọmba awoṣe | CPC200-Tbox |
| isise | Qualcomm SM6115 Quad-core |
| Iranti | 4GB Ramu + 64GB Ibi ipamọ |
| Eto isesise | Android 13.0 |
| Alailowaya Standards | 2.4 GHz & 5.8 GHz Radio Frequency, 802.11a/b/g/n/ac, Bluetooth |
| Asopọmọra | Plug and Play, Wired to Wireless |
| Ọja Mefa | 3.23 x 3.23 x 0.75 inches (82 x 82 x 19mm) |
| Iwọn Nkan | 2.54 iwon (72 Giramu) |
4. Ibamu
To ensure proper functionality, please verify your vehicle and phone meet the following requirements:
- Ọkọ ayọkẹlẹ ibaramu: Your car must have factory-installed wired CarPlay or wired Android Auto. It must also feature a touchscreen display. Note: BMW and Tesla series vehicles are not supported.
- Foonu ibaramu: For CarPlay, an iPhone 6 or above with iOS 10.0 or above is required. For Android Auto, an Android phone with Android 11.0 or above is required.
5. Eto Itọsọna

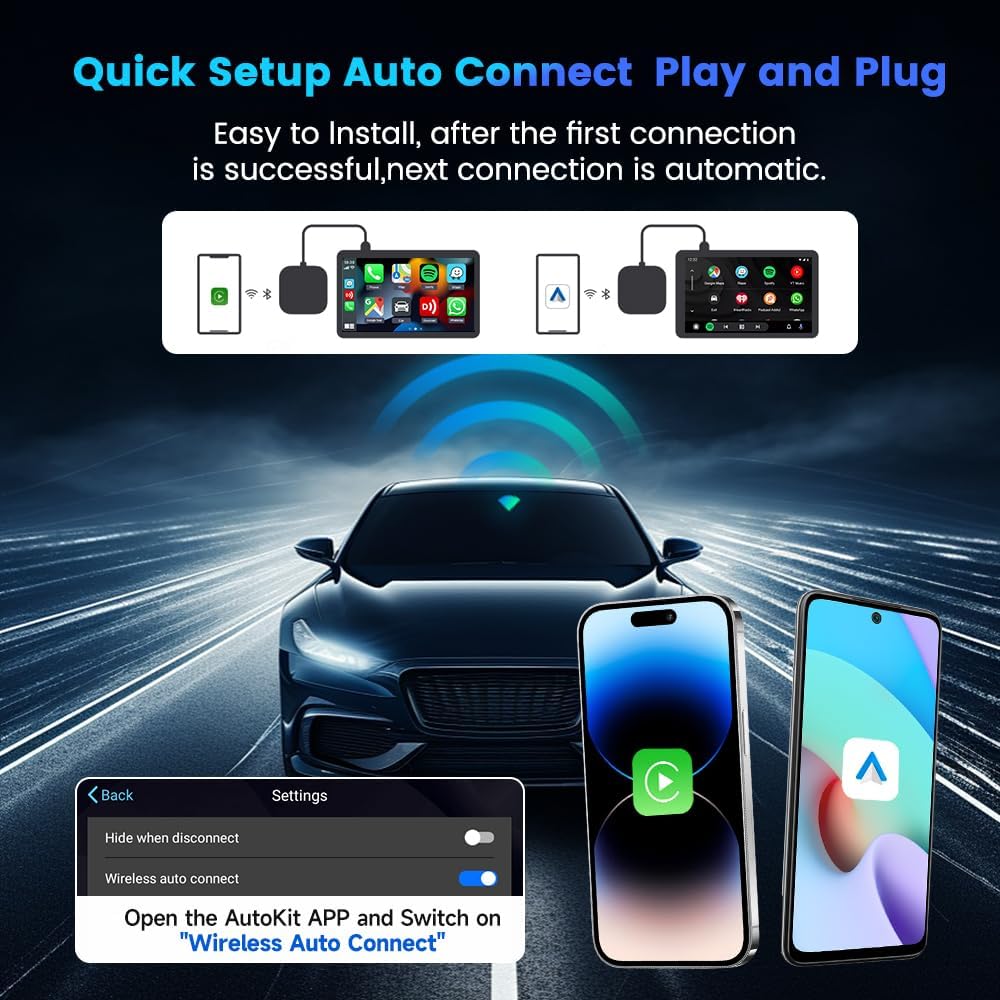

Follow these steps to set up your Carlinkit CPC200-Tbox S2C:
- So ẹrọ naa pọ: Plug the Carlinkit CPC200-Tbox S2C into your car's USB port (the one used for wired CarPlay/Android Auto) using one of the provided data cables. The device will power on and display a light indicator.
- Pipọpọ akọkọ: On your car's infotainment screen, navigate to the CarPlay or Android Auto interface. The device should automatically connect. If prompted, follow the on-screen instructions to pair via Bluetooth and Wi-Fi. Ensure your phone's Bluetooth and Wi-Fi are enabled.
- Asopọmọra Aifọwọyi: After the first successful connection, the device will automatically connect to your phone each time you start the car.
Ṣeto Fidio:
Fidio 1: This video provides a detailed introduction to the Carlinkit AI Box, demonstrating its features and initial setup process.
6. Awọn ilana Iṣiṣẹ
6.1. CarPlay Alailowaya & Android Auto
Once connected, your car's display will show the Android 13.0 interface. You can switch between the Android system, Wireless CarPlay, and Wireless Android Auto modes as needed. The device supports both Apple CarPlay (for iOS 10 and above) and Android Auto (for Android 10.0 and above mobile phones).
6.2. Multimedia Streaming
The Carlinkit CPC200-Tbox S2C comes pre-installed with popular streaming applications, allowing you to enjoy your favorite content directly on your car's screen. Ensure you have an active internet connection (see section 6.5).
- Netflix: Awọn fiimu ṣiṣanwọle ati awọn ifihan TV.
- YouTube: Watch videos and listen to music.
- TikTok: Browse short-form video content.
6.3. App Gbigba lati ayelujara
With the integrated Android 13.0 system, you can download a wide variety of applications from the Google Play Store, just like on a tablet or smartphone. This expands your car's functionality beyond standard CarPlay/Android Auto features.
6.4. Lilọ kiri
The device features precise GPS+Glonass navigation capabilities. You can use pre-installed navigation apps or download your preferred ones from the Google Play Store for accurate real-time directions.
6.5. Iṣakoso ohun
Utilize voice commands for hands-free operation. The device supports both Siri (for CarPlay) and Google Assistant (for Android Auto and the Android system), allowing you to control navigation, music, calls, and more safely while driving.
6.6. Asopọ nẹtiwọki
The Carlinkit CPC200-Tbox S2C requires an internet connection for streaming and app downloads. You have two primary options:
- Connect to Phone WiFi Hotspot: Enable the personal hotspot feature on your smartphone and connect the Carlinkit device to it via Wi-Fi.
- Fi kaadi SIM sii: The device includes a Nano SIM card slot. Insert a compatible 4G/3G/2G Nano SIM card to provide direct internet access to the device.
6.7. Firmware Updates (FOTA)
The device supports Firmware Over-The-Air (FOTA) updates to ensure you always have the latest features and improvements. To update:
- Ensure the product is connected to the car's USB port and the light is burning green.
- On the device interface, click on the "FOTA Update" icon.
- Click "Version" to check for the latest version. If an update is detected, click "Upgrade" and then "OK" to confirm. The device will restart after the update.
7. Itọju
To ensure the longevity and optimal performance of your Carlinkit CPC200-Tbox S2C:
- Jeki ẹrọ naa di mimọ ati ofe kuro ninu eruku. Lo asọ asọ ti o gbẹ fun mimọ.
- Yago fun ṣiṣafihan ẹrọ naa si awọn iwọn otutu to gaju, oorun taara fun awọn akoko gigun, tabi ọrinrin.
- Handle the device and cables with care to prevent physical damage.
8. Laasigbotitusita
If you encounter any issues with your Carlinkit CPC200-Tbox S2C, try the following basic troubleshooting steps:
- Ko si Asopọmọra: Ensure the device is securely plugged into the correct USB port. Verify your phone's Bluetooth and Wi-Fi are on and paired correctly.
- Lag tabi Ge asopọ: Check your internet connection stability. Ensure the device is not overheating. Try restarting both the device and your car's infotainment system.
- Awọn ọrọ App: Ensure the device has a stable internet connection. Try clearing the app's cache or reinstalling the app from the Google Play Store.
- Awọn abawọn sọfitiwia: Perform a FOTA update (see section 6.7) to ensure the latest firmware is installed.
9. Atilẹyin ọja & Atilẹyin
The Carlinkit CPC200-Tbox S2C comes with a 1-year warranty from the date of purchase. For technical support, warranty claims, or any other inquiries, please refer to the contact information provided in your product packaging or visit the official Carlinkit webojula.
After-Sales Contact Video:
Fidio 2: This video from Carlinkit provides methods for after-sales contact and support.
10. Alaye Aabo
Ààbò rẹ àti ààbò àwọn ẹlòmíràn ṣe pàtàkì jùlọ. Jọ̀wọ́ tẹ̀lé àwọn ìlànà ààbò wọ̀nyí:
- Focus on Driving: Always prioritize safe driving. Do not operate the device or engage with multimedia content in a way that distracts you from the road.
- Local Laws: Be aware of and comply with all local laws and regulations regarding the use of in-car entertainment systems while driving.
- Passenger Use: Multimedia streaming features are intended for passenger use only when the vehicle is safely parked.
