Cecotec Power Espresso 20 Pro Latte Coffee Machine User Manual

Ọrọ Iṣaaju

Thank you for choosing the Cecotec Power Espresso 20 Pro Latte coffee machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new espresso and cappuccino maker. Please read these instructions carefully before first use and keep them for future reference.

Image: The Cecotec Power Espresso 20 Pro Latte coffee machine, designed for ease of use and aesthetic appeal in any kitchen.

Awọn Itọsọna Aabo pataki

Nigbati o ba nlo awọn ohun elo itanna, awọn iṣọra aabo ipilẹ yẹ ki o tẹle nigbagbogbo lati dinku eewu ina, mọnamọna, ati/tabi ipalara si eniyan, pẹlu atẹle naa:

• Ka gbogbo awọn itọnisọna ṣaaju ṣiṣe ẹrọ.
• Maṣe fi ọwọ kan awọn aaye ti o gbona. Lo awọn ọwọ tabi awọn koko.
• Lati daabobo lodi si ina, mọnamọna, ati ipalara si awọn eniyan, maṣe fi okun, plugs, tabi ohun elo bọ inu omi tabi omi miiran.
• Abojuto sunmọ jẹ pataki nigbati eyikeyi ohun elo ba lo nipasẹ tabi sunmọ awọn ọmọde.
• Yọọ kuro lati inu iṣan nigbati ko si ni lilo ati ṣaaju ṣiṣe mimọ. Gba laaye lati tutu ṣaaju fifi sii tabi mu awọn ẹya kuro, ati ṣaaju ki o to nu ohun elo naa.
• Ma ṣe ṣiṣẹ ohun elo eyikeyi pẹlu okun ti o bajẹ tabi pulọọgi tabi lẹhin aiṣe ohun elo, tabi ti bajẹ ni eyikeyi ọna.
• Lilo awọn asomọ ẹya ẹrọ ti a ko ṣeduro nipasẹ olupese ohun elo le ja si ina, mọnamọna, tabi ipalara si awọn eniyan.
• Maṣe lo ni ita.
• Ma ṣe jẹ ki okun duro lori eti tabili tabi counter, tabi fi ọwọ kan awọn aaye ti o gbona.
• Ma ṣe gbe sori tabi sunmọ gaasi ti o gbona tabi ina ina, tabi ni adiro ti o gbona.
• Nigbagbogbo so plug to ohun elo akọkọ, ki o si pulọọgi okun sinu ogiri iṣan. Lati ge asopọ, tan eyikeyi iṣakoso si “pa”, lẹhinna yọ plug kuro ni iṣan ogiri.
• Ma ṣe lo ohun elo fun miiran ju lilo ti a pinnu lọ.

Ọja irinše

Familiarize yourself with the main parts of your Cecotec Power Espresso 20 Pro Latte coffee machine:

1. Control Panel with Buttons and Pressure Gauge
2. Portafilter Handle
3. Filter Baskets (Single and Double Shot)
4. Steam Nozzle / Wand
5. Omi Àgbàlá Tí A Lè Yíyọ kúrò (agbára L 1.5)
6. Removable Milk Tank (550 ml capacity)
7. Drip Atẹ ati akoj
8. Cup imorusi Atẹ
9. Ìwọ̀n Síbí pẹ̀lú Tamper

Aworan: A ko o iwaju view of the coffee machine, highlighting the control panel, portafilter, and steam wand.

Ṣeto

1. Ṣíṣí àpò àti ìmọ́tótó àkọ́kọ́

• Yọ gbogbo awọn ohun elo iṣakojọpọ ati awọn aami ipolowo kuro lati inu ẹrọ kofi.
• Clean the water tank, milk tank, portafilter, and filter baskets with warm soapy water. Rinse thoroughly and dry.
• Mu ese ita ẹrọ naa pẹlu ipolowoamp asọ.

2. Kun Omi Omi

• Rii daju pe ẹrọ naa ti yọọ kuro.
• Yọ ojò omi kuro ni ẹhin ẹrọ naa.
• Fill the tank with fresh, cold water up to the MAX level indicator. Do not exceed the MAX line.
• Gbe ojò omi pada si ipo rẹ, rii daju pe o wa ni ipo ti o daju.

Image: Demonstrates the process of removing and filling the 1.5-liter water tank.

3. First Use and Priming

• Pulọọgi ẹrọ naa sinu iṣan agbara ti ilẹ.
• Tan ẹrọ naa nipa lilo bọtini agbara. Awọn ina Atọka yoo tan imọlẹ.
• Place a large cup under the portafilter (without coffee) and another under the steam wand.
• Run a cycle of hot water through the portafilter and steam wand to prime the system and rinse any manufacturing residue. Repeat this process 2-3 times.
• Ẹrọ naa ti ṣetan fun lilo.

Awọn ilana Iṣiṣẹ

1. Pre-heating Cups

For optimal coffee temperature, place your espresso cups on the cup warming tray located on top of the machine. This helps maintain the coffee's heat after brewing.

Image: Cups being placed on the integrated cup warming tray to ensure your coffee stays hot.

2. Ṣiṣe Espresso

1. Select the appropriate filter basket (single or double shot) and place it into the portafilter.
2. Fi kọfí espresso tí a lọ̀ dáradára kún apẹ̀rẹ̀ àlẹ̀mọ́ náà.
3. Lo tamper to press the coffee grounds firmly and evenly. Wipe any excess grounds from the rim.
4. Attach the portafilter to the brewing head by inserting it and turning it firmly to the right until it locks.
5. Place one or two pre-heated cups under the portafilter spouts.
6. Press the espresso button on the control panel. The machine will begin brewing.
7. Once the desired amount of espresso is brewed, press the espresso button again to stop the flow.

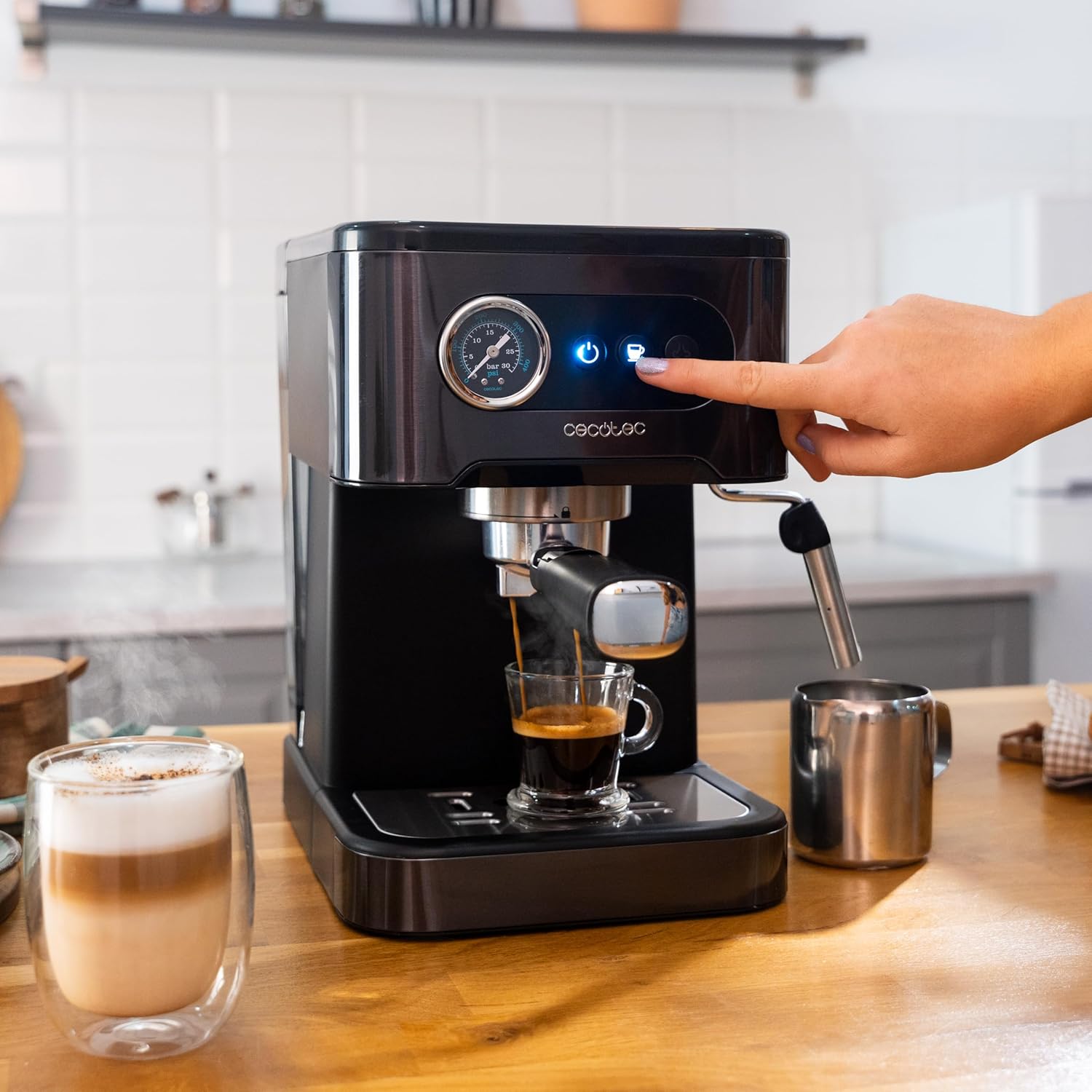

Image: The machine actively brewing espresso, demonstrating the intuitive button controls and pressure gauge.

Image: The machine brewing two shots of espresso, showcasing its dual-spout capability.

3. Frothing Milk with the Steam Nozzle

1. Fi wàrà tútù (tàbí wàrà tí kìí ṣe wàrà) kún ìkòkò ìfọ́ omi irin alagbara kan títí dé ìdá mẹ́ta.
2. Turn the steam function on using the dedicated button. Wait for the steam indicator light to illuminate steadily, indicating the machine has reached steaming temperature.
3. Position the steam nozzle just below the surface of the milk.
4. Open the steam control knob slowly to release steam. Move the pitcher up and down to create foam.
5. Once the milk is frothed to your desired consistency and temperature, close the steam control knob and turn off the steam function.
6. Mu ọpa nya si lẹsẹkẹsẹ pẹlu ipolowoamp asọ lati dena iyokù wara lati gbigbe.

Image: Demonstrates the use of the steam wand for frothing milk, essential for lattes and cappuccinos.

4. Using the Milk Container for Latte/Cappuccino

The Cecotec Power Espresso 20 Pro Latte features a dedicated 550 ml milk container for automated milk frothing and dispensing.

1. Kun awọn wara eiyan pẹlu tutu wara.
2. Attach the milk container to the designated port on the machine.
3. Place your cup under the milk dispenser spout.
4. Select your desired drink (e.g., Latte or Cappuccino) from the control panel. The machine will automatically brew espresso and froth/dispense milk into your cup.
5. After use, remove the milk container and clean it thoroughly.

Image: The coffee machine with the milk container attached, ready to prepare milk-based beverages.

Itoju

1. Ṣiṣe itọju ojoojumọ

• Portafilter ati Awọn Agbọn Ajọ: After each use, remove the portafilter, discard the coffee grounds, and rinse the portafilter and filter basket under hot water. Use a brush to remove any stubborn residue.
• Ohun elo Steam: Lẹsẹkẹsẹ lẹhin ifunwara wara, mu ese wand steam pẹlu ipolowoamp cloth. Purge a small amount of steam to clear any milk residue from inside the wand.
• Drip Atẹ: Tú àwo omi náà sílẹ̀ kí o sì fọ ọ lójoojúmọ́ tàbí nígbà tí àmì náà bá ń fò sókè.
• Omi omi: Fi omi ṣan omi lojoojumọ ki o tun fi omi tutu kun.

Image: Cleaning the portafilter after use, a crucial step for maintaining coffee quality and machine longevity.

2. Sisọ

Regular descaling is essential to remove mineral buildup and ensure optimal performance and longevity of your machine. The frequency depends on water hardness and usage.

• Use a commercial descaling solution specifically designed for coffee machines, following the manufacturer's instructions.
• Alternatively, a solution of white vinegar and water (1:1 ratio) can be used.
• Kun omi ojò pẹlu awọn descaling ojutu.
• Run several brewing cycles without coffee until the tank is empty.
• Rinse the tank thoroughly and run several cycles with fresh water to remove any descaling solution residue.

3. Cleaning the Milk System (Milk Container)

If you use the milk container, it requires regular cleaning to prevent blockages and bacterial growth.

• After each use, empty any remaining milk from the container.
• Disassemble the milk container components (lid, tube, spout).
• Wash all parts with warm soapy water and a soft brush. Rinse thoroughly.
• Ensure all milk residue is removed from the tubes and nozzles.
• Gba gbogbo awọn ẹya laaye lati gbẹ patapata ṣaaju iṣakojọpọ.

Laasigbotitusita

Refer to the following common issues and their solutions. For problems not listed here, please contact customer support.

Image: A visual troubleshooting guide addressing common operational concerns.

Why does so little coffee come out?

• If coffee flows very slowly, or barely comes out at all, check that the grind size is not too fine.
• Ensure that the brewing volume is set correctly.
• Verify that the machine has been purged and descaled recently.

Why does my coffee have no crema?

• If your coffee lacks crema, check that the grind size is not too coarse.
• Ensure the brewing volume is set correctly.
• To prevent this, clean and check the filters and brewing unit regularly.

Why isn't my coffee hot enough?

• Pre-warm your cup before brewing.
• Ensure the machine has finished its pre-heating cycle.
• Descaling is required to prevent limescale build-up in the Thermoblock, which can affect heating efficiency.

How to use the milk container

• To get the perfect froth for your coffee, use cold, whole milk.
• Turn the knob towards the '+' or '-' icon to adjust it according to your preference.
• Please note that the colder the foam temperature, the lower the temperature will be.

Awọn pato

Atilẹyin ọja ati Support

Cecotec is committed to providing quality products and customer satisfaction.

• Wiwa Awọn apakan apoju: Spare parts for this model are available for up to 10 years from the date of purchase.
• For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your purchase documentation or visit the official Cecotec webojula.
