CUIPPWRJ FPV Camera User Manual

1. Ifihan

This manual provides essential instructions for the installation, operation, and maintenance of your CUIPPWRJ FPV camera. These cameras are designed for racing drones and are available in several variants: Ratel 2, Baby Ratel 2, Caddx Ant, and Caddx Ant Lite. Please read this manual thoroughly before using your camera to ensure proper function and longevity.

2. Package Awọn akoonu

Verify that all items are present in your package. Contents may vary slightly depending on the specific model purchased.

3. Awọn ẹya Ọja

• Ipinnu giga: Features 1200TVL for clear and detailed visuals, enhancing your FPV racing experience.
• Wide Field ti View (FOV): Offers a broad 165° FOV, providing an expansive view of the racing environment.
• Awọn aṣayan Lẹnsi Wapọ: Available with 1.8mm or 2.1mm lenses, allowing customization for various viewing angles and preferences.
• Apẹrẹ iwuwo fẹẹrẹ: Compact and engineered for minimal weight, optimizing flight performance on your RC drone.
• Awọn awoṣe pupọ: Choose from Ratel 2, Baby Ratel 2, Caddx Ant, and Caddx Ant Lite variants to suit specific drone builds and requirements.

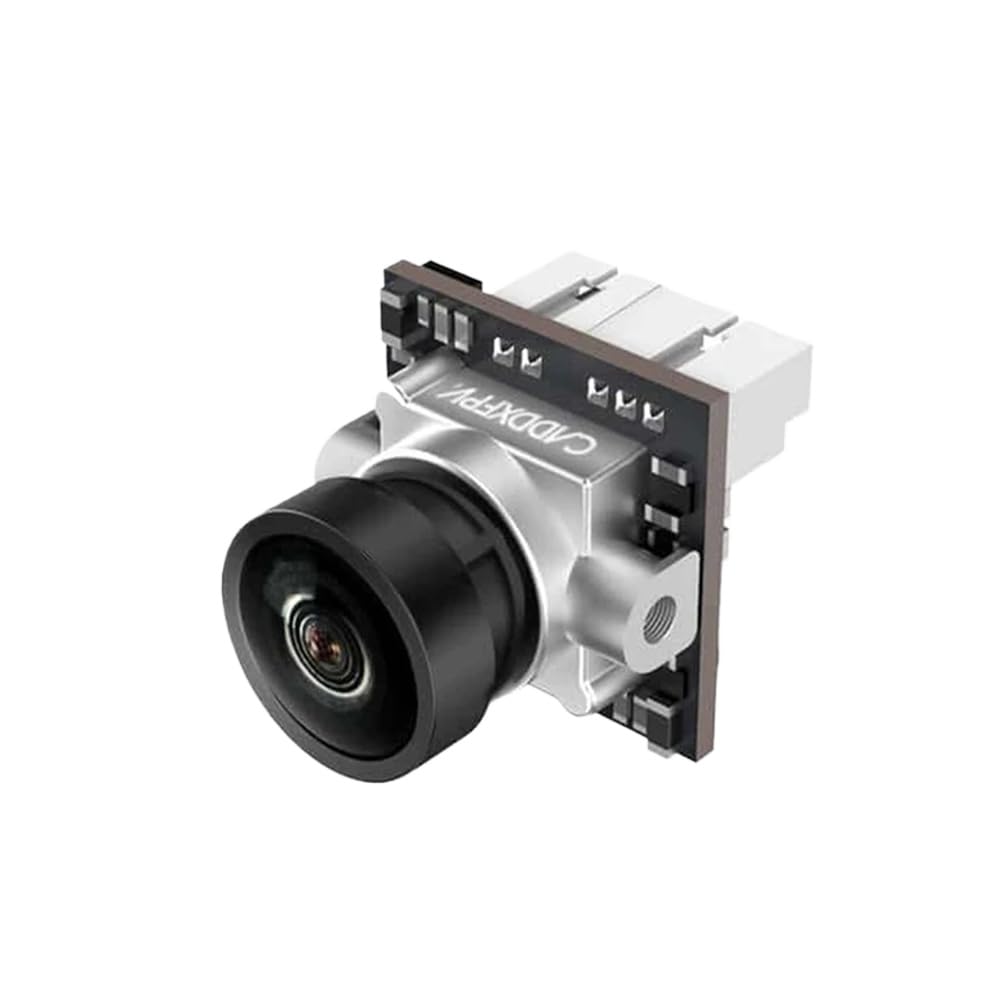

Image 1: CUIPPWRJ FPV Camera. This image shows a compact FPV camera, typically used in racing drones, highlighting its small form factor and lens.

4. Awọn ilana iṣeto

Proper installation is crucial for optimal performance. Refer to your drone's flight controller or video transmitter (VTX) manual for specific wiring diagrams.

1. Gbigbe Kamẹra:

   Secure the camera to your drone's frame using the provided bracket (if applicable) and screws. Ensure the camera is firmly attached and positioned to provide a clear, unobstructed view.

2. Awọn isopọ onirin:

   Connect the camera to your flight controller or VTX using the supplied silicon cables. Typically, FPV cameras require three connections:

   • VCC (Power): Connect to a stable power source (e.g., 5V or 12V, depending on camera specifications and VTX output).
   • GND (Ilẹ): Sopọ̀ mọ́ ibi tí gbogbo ènìyàn ti ń gbé nínú ètò rẹ.
   • Fidio Fidio: Connect to the video input of your VTX.

   Akiyesi: Always double-check polarity before powering on to prevent damage to the camera or other components.

3. OSD (On-Screen Display) Connection (if applicable):

   If your camera model includes a menu board, connect it temporarily to adjust settings. Some cameras may also support OSD control via the flight controller. Consult your flight controller's manual for OSD integration.

5. Awọn ilana Iṣiṣẹ

Once the camera is correctly installed and powered, it will begin transmitting video. Use the menu board to customize camera settings.

1. Agbara Tan:

   Apply power to your drone. The camera will power on simultaneously with your VTX.

2. Wọle si Akojọ OSD:

   If your camera came with a menu board, connect it to the camera's OSD port. Use the buttons on the menu board to navigate and adjust settings such as brightness, contrast, saturation, and other image parameters. Disconnect the menu board after configuration.
3. Fídíò Ìbánisọ̀rọ̀:

   Ensure your FPV goggles or monitor are tuned to the correct frequency of your VTX to receive the video feed from the camera.

6. Itọju

Regular maintenance helps ensure clear video and extends the lifespan of your camera.

• Fifọ lẹnsi:

  Gently clean the camera lens with a microfiber cloth and a specialized lens cleaning solution. Avoid abrasive materials that could scratch the lens.

• Ṣayẹwo Asopọmọra:

  Periodically inspect all wiring connections for looseness or damage. Secure any loose connections.

• Idaabobo Ayika:

  While FPV cameras are robust, avoid exposing them to excessive moisture, dust, or extreme temperatures when not in use. Store the camera in a dry, cool place.

7. Laasigbotitusita

Ti o ba pade awọn ọran pẹlu kamẹra rẹ, tọka si awọn iṣoro ati awọn solusan ti o wọpọ wọnyi:

8. Awọn pato

Detailed technical specifications for the CUIPPWRJ FPV Camera (Model CUIPPWRJ123 and variants).

• Orukọ awoṣe: CUIPPWRJ123
• Brand: CUIPPWRJ
• Ipinnu: 1200TVL
• Aaye ti View (FOV): 165°
• Awọn aṣayan lẹnsi: 1.8mm, 2.1mm
• Ìwọ̀n Nkan: Nǹkan bí 14.1 ounces (400 Giramu)
• Awọn iwọn idii: 1.18 x 0.79 x 0.39 inches
• Ọjọ ori Ti a ṣeduro Olupese: Awọn oṣu 36 - ọdun 18 (Note: This is a general recommendation; product is for FPV drone enthusiasts.)

9. Atilẹyin ọja ati Support

For warranty information, please refer to the documentation provided with your purchase or contact the seller directly. For technical support, please reach out to the CUIPPWRJ manufacturer or your authorized dealer.

Afowoyi yii le yipada laisi akiyesi tẹlẹ.
