ieGeek 2K HD Baby Monitor (Model baby 1T) Instruction Manual

1. Ifihan

This manual provides detailed instructions for the ieGeek 2K HD Baby Monitor, Model baby 1T. This system includes two cameras and a 5-inch parent unit, offering both secure non-WiFi monitoring and remote access via a smartphone application. Key features include 2K HD video quality, crystal clear night vision, split-screen viewing, pan/tilt/zoom control, two-way audio, and environmental sensors.

2. Eto

2.1 Ohun ti o wa ninu

Verify all components are present in the package:

• 1x Kamẹra
• 1x Monitor (Parent Unit)
• 2x Power Adapters
• 2x Awọn okun agbara
• 3x Screws & 3x Screw Hats
• 1x akọmọ
• 1x Pin
• 1x Awọn ọna Itọsọna

Nọmba 2.1: Awọn akoonu Package

2.2 Agbara Lori

Connect the provided power adapters to the cameras and the parent unit. The cameras require continuous power, while the parent unit has a rechargeable battery for portable use. Ensure both units are fully charged or connected to power before initial setup.

2.3 iṣagbesori Aw

The cameras can be placed on a flat surface or mounted to a wall or ceiling using the included bracket and screws. The monitor can be placed on a table or other flat surface.

Figure 2.2: Camera Mounting Example

3. Ṣiṣẹ Atẹle

3.1 Display and Video Quality

The parent unit features a 5-inch IPS display with 2K HD resolution, providing a clear view of your baby. Advanced infrared night vision automatically activates in low-light conditions, offering a clear video feed without any disturbing glow.

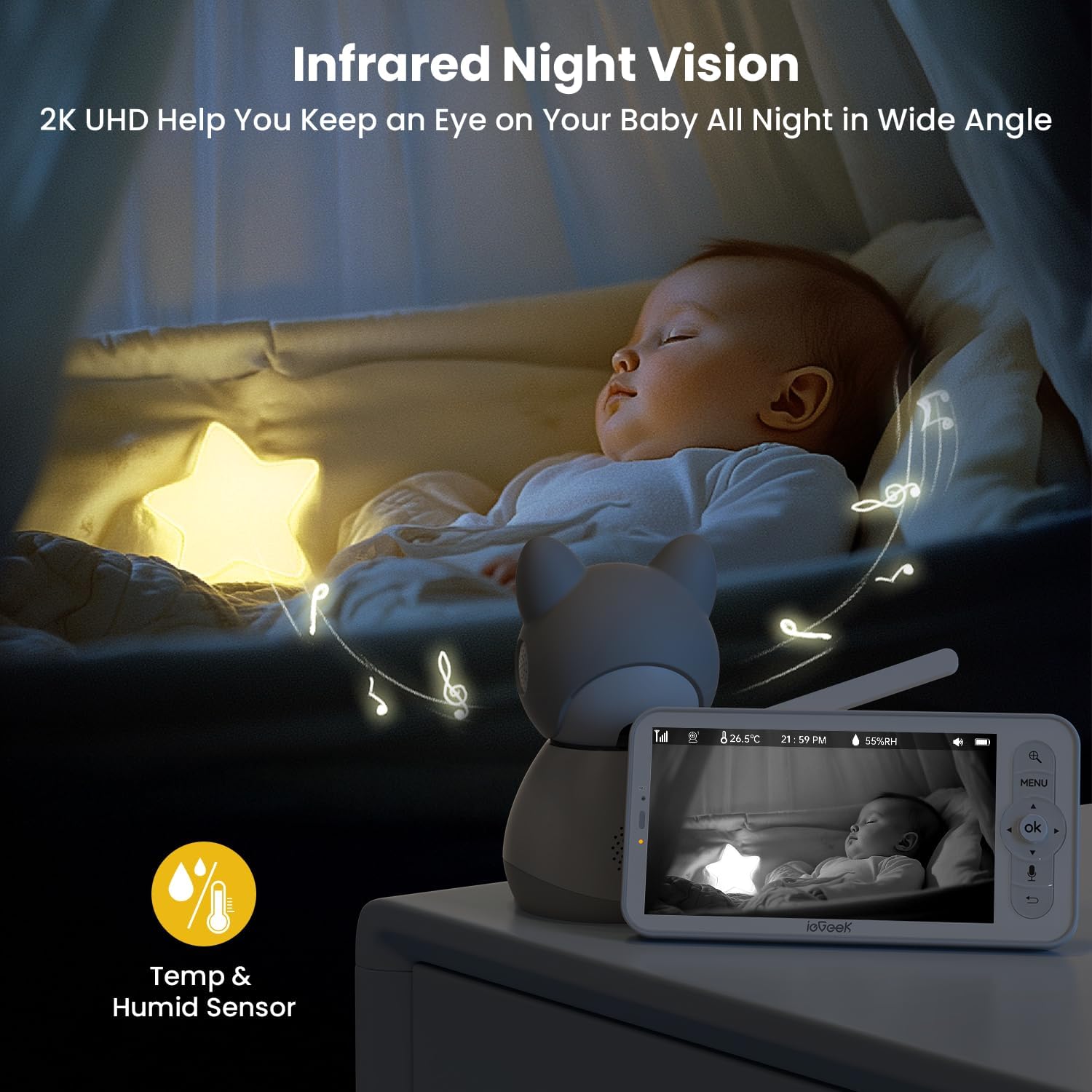

Figure 3.1: Night Vision Display

3.2 Multi-Camera and Split-Screen Viewing

The system supports up to two cameras (included) and offers split-screen viewing, allowing you to monitor two areas simultaneously. The cameras feature motorized 350° pan and 60° tilt capabilities, along with 4x digital zoom, enabling comprehensive coverage of the nursery. An auto-tracking feature can follow your baby's movements.

Figure 3.2: Split-Screen Functionality

Figure 3.3: Pan, Tilt, and Motion Detection

3.3 Two-Way Audio and Alerts

Engage in clear two-way communication with your baby using the push-to-talk button on the parent unit. The monitor provides instant alerts and push notifications for sound detection (including cry detection) and motion detection, ensuring you are promptly informed of any activity.

Àwòrán 3.4: Ohùn Ọ̀nà Méjì

Figure 3.5: Movement and Cry Detection Alerts

3.4 Connectivity and Remote Access

The system offers dual connectivity: a secure non-WiFi connection to the parent unit for local monitoring (no internet required, no hack risks), and optional remote viewing via a free smartphone app when connected to 2.4GHz WiFi. This allows for flexible monitoring at home or on the go.

Figure 3.6: Smartphone App Interface

3.5 To ti ni ilọsiwaju Awọn ẹya ara ẹrọ

The monitor includes a room temperature and humidity sensor to ensure your baby's comfort. A virtual danger zone can be set up via the app for enhanced security. All connections are secured with advanced FHSS encryption technology for privacy.

Figure 3.7: Temperature and Humidity Monitoring

3.6 Storage and Multi-User Access

The system supports local storage via an SD card (not included) and offers lifetime free 6-second cloud storage for event recordings. Multiple users can access the device, allowing family members to monitor the baby simultaneously.

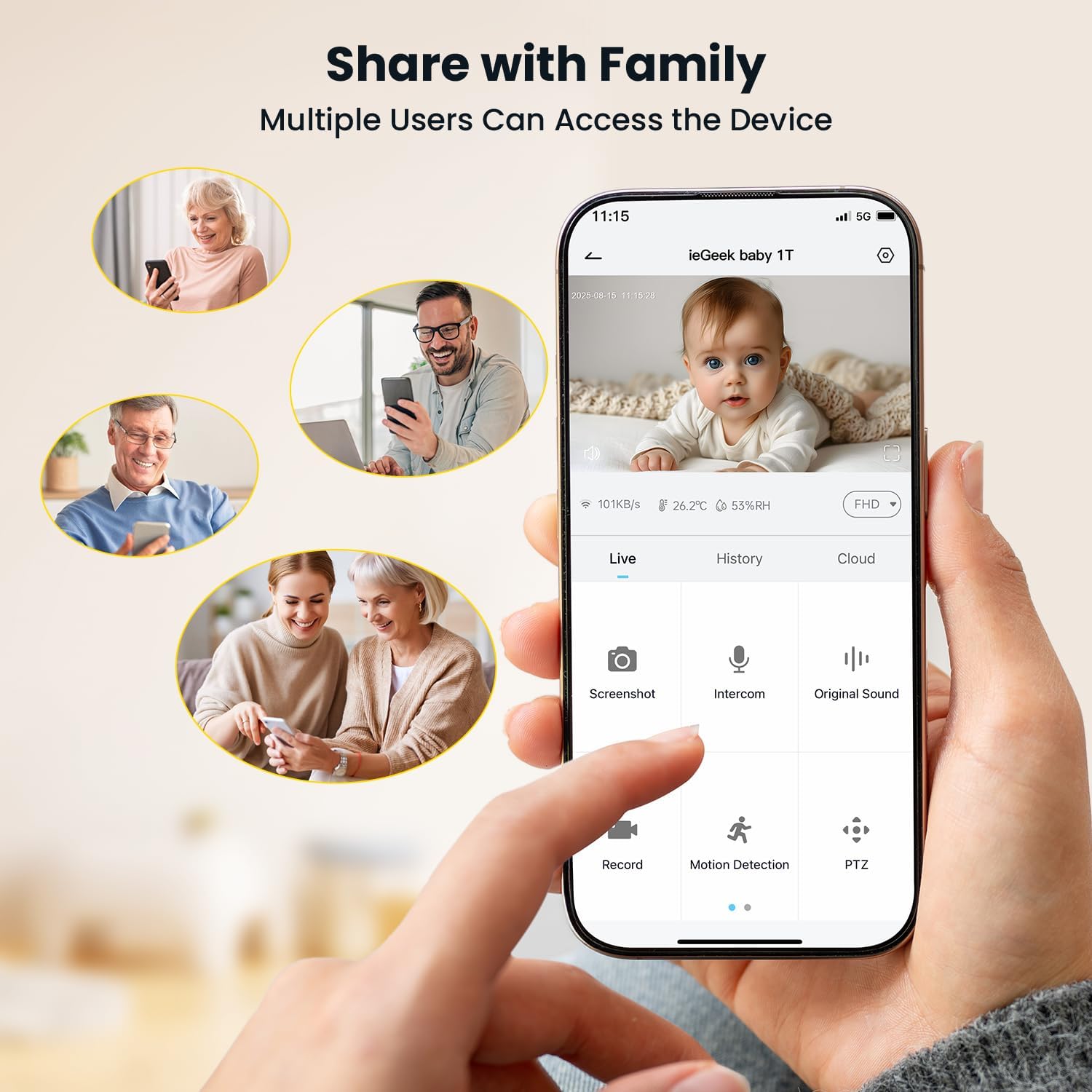

Figure 3.8: Multi-User Access

3.7 batiri Life

The parent monitor features a long-lasting battery, providing approximately 8 hours of continuous display-on time or up to 7 days with the display off, allowing for extended monitoring without frequent recharging.

Figure 3.9: Parent Unit Battery Life

3.8 Osise Video ọja

Video 3.1: ieGeek Baby Monitor with Camera and Audio Overview

4. Itọju

To ensure optimal performance and longevity of your ieGeek Baby Monitor, follow these maintenance guidelines:

• Ninu: Gently wipe the camera lenses and monitor screen with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Awọn okun agbara: Regularly inspect power cables for any signs of damage. Replace immediately if frayed or broken.
• Itọju Batiri: For the parent unit, avoid fully discharging the battery frequently. Charge it regularly to maintain battery health.
• Ibi ipamọ: Tí o bá ń tọ́jú ẹ̀rọ náà fún ìgbà pípẹ́, rí i dájú pé ó ti gba agbára tán pátápátá, kí o sì tọ́jú rẹ̀ sí ibi tí ó tutù tí ó sì gbẹ.

5. Laasigbotitusita

If you encounter issues with your ieGeek Baby Monitor, refer to the following common troubleshooting steps:

• No Signal/Connection:
  • Ensure both the camera(s) and parent unit are powered on and within range.
  • Check for obstructions or interference from other electronic devices.
  • Try re-pairing the camera(s) with the parent unit according to the quick guide.
• Kò sí Ohùn/Ohùn tí kò dára:
  • Adjust the volume settings on the parent unit.
  • Rí i dájú pé gbohùngbohùn tó wà lórí kámẹ́rà náà kò dí.
• Screen Freezing/Lag:
  • Restart both the camera(s) and the parent unit.
  • Ensure the parent unit is within optimal range of the camera(s).
• Awọn ọran Asopọmọra App:
  • Verify your smartphone is connected to a stable 2.4GHz WiFi network.
  • Ensure the camera is properly connected to your home WiFi network.
  • Ṣe imudojuiwọn ohun elo naa si ẹya tuntun.

6. Awọn pato

7. Atilẹyin ọja ati Support

ieGeek is committed to providing reliable security solutions. For any inquiries or support needs, please refer to the following contact information:

• Atilẹyin ọja: The product typically includes a 2-year warranty.
• Pada: A 90-day free return policy is generally offered.
• Awọn oran Didara: Replacements are provided for quality-related issues.

Ibi iwifunni:

Foonu: +1 (202) 656-9955
Working Hours: Mon-Fri 9:00 am-18:00 pm (ET)

Imeeli Atilẹyin: service@iegeek.com

Figure 7.1: After-Sales Service Information
