Ọrọ Iṣaaju
This manual provides detailed instructions for the installation, operation, and maintenance of your LUXRITE 2 Inch Square LED Recessed Ceiling Light. Please read this manual thoroughly before installation and keep it for future reference. This product is designed for indoor use and offers versatile lighting options with its selectable color temperature and dimmable features.
Ọja Awọn ẹya ara ẹrọ
- 5 Color Adjustable (5CCT): Easily select between 2700K (Warm White), 3000K (Soft White), 3500K (Natural White), 4000K (Cool White), and 5000K (Bright White) using a switch during installation or later.
- Imọlẹ giga: Delivers 660 lumens of light with only 8 watts of power, comparable to a 60-watt incandescent bulb.
- Ti o le ṣe dimmable: Smooth dimming capability from 100% down to 10% when used with compatible dimmers.
- Ti o tọ ati pipẹ: Rated for up to 50,000 hours of operation, reducing the need for frequent replacements.
- Wet Location & IC Rated: Dara fun lilo ninu damp or wet environments and safe for direct contact with insulation.
- Canless Design: Requires less than 2 inches of clearance, eliminating the need for a separate housing.
- Igun Igun Gigun: Provides a 100-degree beam angle for broad light distribution.
- Iṣe Gbẹkẹle: Offers zero flickering and zero delay upon activation.
- Awọn iwe-ẹri: Energy Star rated and ETL Listed for safety and efficiency.
Aworan: Pariview of the LUXRITE 2 Inch Square LED Recessed Light highlighting its key features such as lumen output, lifespan, ratings, wattage, dimmability, and color temperature selection.
Package Awọn akoonu
- 1 x LUXRITE 2 Inch Square LED Recessed Light
- 1 x Junction Box with CCT Select Switch

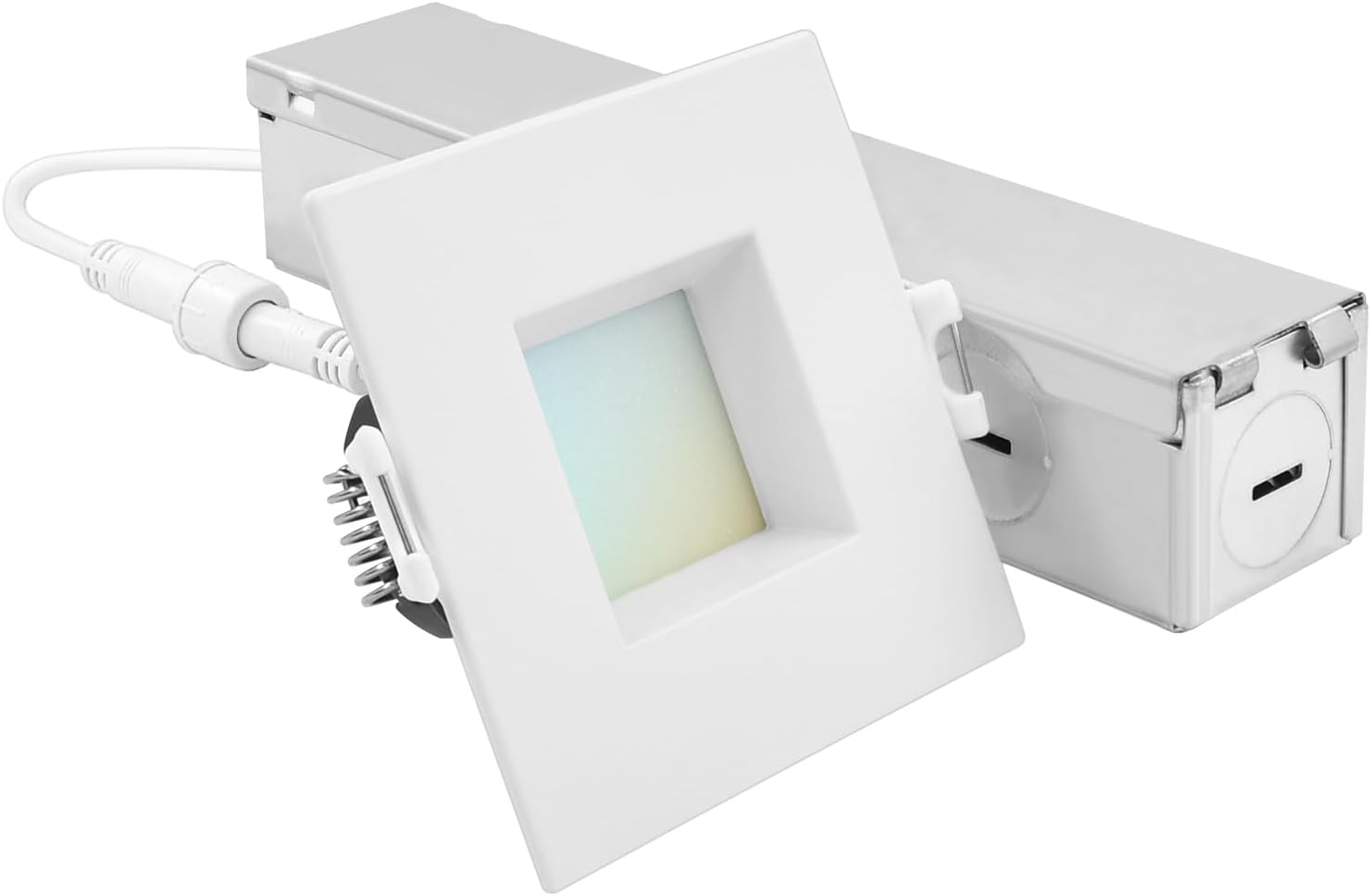

Image: The LUXRITE 2 Inch Square LED Recessed Light shown with its integrated J-Box, illustrating the main components included.
Awọn pato
| Brand | LUXRITE |
| Nọmba awoṣe | LR22637 |
| Fọọmu Imuduro Imọlẹ | Recessed |
| Dimensions (Light) | 3.1"L x 3.1"W x 1.7"H |
| Iwon gige gige | 2.16 inches |
| Regressed Depth | 7/16 inches |
| Wattage | 8 Wattis |
| Imọlẹ | 660 Lumens |
| Iwọn otutu awọ | 5CCT Selectable (2700K/3000K/3500K/4000K/5000K) |
| Voltage | 120 Volts |
| Igba aye | Awọn wakati 50,000 |
| Ohun elo | Aluminiomu |
| Pari Iru | Funfun |
| CRI | 80.0 |
| Awọn iwontun-wonsi | Wet Location Rated, IC Rated, ETL Listed, Energy Star Rated |
| inu ile / ita gbangba Lilo | Lilo inu ile Nikan |
Image: Detailed dimensions of the recessed light and its junction box, including the required cutout size for installation.
Alaye Aabo
ÌKÌLỌ̀: Ewu ìkọlù iná mànàmáná. Gé agbára kúrò ní ibi tí a ti ń fi fọ́ọ̀sì tàbí ẹ̀rọ ìfọ́mọ́ra náà ti ń ṣiṣẹ́ kí o tó fi síta tàbí kí o tó ṣe é.
- Installation should be performed by a qualified electrician or trained professional.
- Rii daju pe gbogbo awọn asopọ itanna ni ibamu pẹlu awọn koodu agbegbe ati awọn ilana.
- Do not install with damaged components. Inspect the product upon receipt.
- This product is designed for 120V hardwiring. Ensure the power supply matches this requirement.
- Má ṣe yí ohun èlò tàbí àwọn èròjà rẹ̀ padà.
Fifi sori Itọsọna
- Pa Agbara: Before beginning installation, ensure the power supply to the installation area is turned off at the circuit breaker or fuse box.
- Mura Ṣii silẹ: Cut a hole in the ceiling with a diameter of 2.16 inches (refer to the dimensions image for precise measurements). Ensure there is at least 2 inches of clearance above the ceiling for the fixture.
- Asopọmọra Waya: Open the junction box cover. Connect the house wiring (live, neutral, ground) to the corresponding wires inside the junction box using appropriate wire connectors. Ensure all connections are secure. The fixture operates on 120V hardwiring.
- Yan Iwọn Awọ (CCT): Locate the CCT selectable switch inside the junction box. Before closing the junction box, slide the switch to your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K). You can test the colors by temporarily restoring power if safe to do so, then disconnecting power again.
- Apoti Isopọ to ni aabo: Place the junction box inside the ceiling opening.
- Connect Light Fixture: Connect the light fixture's cable to the junction box using the easy twist connection.
- Insert Light Fixture: Gently push the light fixture into the ceiling opening. The spring-loaded clips will automatically secure the fixture flush against the ceiling.
- Pada Agbara pada: Nígbà tí a bá ti fi ẹ̀rọ náà sí i dáadáa, dá agbára padà sí ibi tí ẹ̀rọ náà ti ń gé ẹ̀rọ náà.
Image: Illustration of the light's spring-loaded clips for secure, flush installation and the easy twist connection point to the junction box.
Awọn ilana Iṣiṣẹ
Aṣayan iwọn otutu awọ
The LUXRITE recessed light features a 5CCT selectable switch located inside the junction box. This switch allows you to choose from five different color temperatures:
- 2700K (Funfun Gbona)
- 3000K (Asọ funfun)
- 3500K (funfun Adayeba)
- 4000K (Cool White)
- 5000K (funfun didan)
To change the color temperature after initial installation, you will need to access the junction box. Ensure power is disconnected before opening the junction box and adjusting the switch. Once the desired CCT is selected, close the box and restore power.
Image: Visual representation of the five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K) in a kitchen setting.
Dimming Iṣẹ
This LED recessed light is dimmable, allowing you to adjust the light output from 100% down to 10% using a compatible LED dimmer switch (sold separately). For optimal performance and to avoid flickering, use dimmers specifically designed for LED lighting.
Dimmers ibaramu:
- LUTRON: DVCL-153PR-WH, CTCL-153PDH-WH, TGCL-153PH-WH, MACL-153MH-WH, P-PKG1W-WH-R
- LEVITON: R62-06674-POW, R12-06672-1LW, R50-IPL06-10M
- EATON: SAL06P-LA-K
Image: Visual demonstration of dimming capabilities in a bathroom setting, alongside a list of recommended compatible dimmer switches.
Itoju
The LUXRITE LED Recessed Light is designed for long-term, maintenance-free operation with a lifespan of up to 50,000 hours. No bulb replacement is necessary.
- Ninu: Láti nu ohun èlò ìṣiṣẹ́ náà, rí i dájú pé agbára náà ti pa. Lo ohun èlò tó rọ̀, tó gbẹ, tàbí tó ní ìdè díẹ̀.amp asọ. Ma ṣe lo abrasive ose tabi epo.
- Ayewo: Máa ṣe àyẹ̀wò ẹ̀rọ náà lẹ́ẹ̀kọ̀ọ̀kan fún àwọn àmì ìbàjẹ́ tàbí àwọn ìsopọ̀ tí ó bàjẹ́. Tí a bá rí ìṣòro kankan, yọ agbára kúrò kí o sì bá onímọ̀ iná mànàmáná tó mọ̀ nípa rẹ̀ sọ̀rọ̀.
Laasigbotitusita
If you experience issues with your LUXRITE LED Recessed Light, please refer to the following common troubleshooting steps:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Imọlẹ ko tan. | No power supply; Loose wiring connection; Faulty switch or dimmer. | Check circuit breaker/fuse. Ensure all wiring connections are secure. Test the switch/dimmer with another known working fixture. |
| Ìmọ́lẹ̀ máa ń tàn tàbí dínkù láìsí ìyípadà. | Incompatible dimmer switch; Loose wiring; Overloaded circuit. | Ensure you are using a compatible LED dimmer (refer to "Compatible Dimmers" section). Check wiring connections. Reduce the load on the circuit if multiple fixtures are connected. |
| Iwọn awọ ti ko tọ. | CCT yipada ṣeto ti ko tọ. | Disconnect power, open the junction box, and adjust the CCT switch to the desired setting. |
| Ina ti wa ni baìbai tabi ju imọlẹ. | Dimmer setting; Incorrect CCT selection. | Adjust the dimmer switch. If not using a dimmer, ensure the CCT is set to your preference (e.g., 5000K for brightest). |
If the problem persists after attempting these troubleshooting steps, please contact LUXRITE customer support.
Atilẹyin ọja ati Support
The LUXRITE 2 Inch Square LED Recessed Ceiling Light is backed by a 5-odun atilẹyin ọja lati ọjọ ti o ra. Atilẹyin ọja yi ni wiwa awọn abawọn ninu awọn ohun elo ati iṣẹ ṣiṣe labẹ lilo deede.
For warranty claims, technical assistance, or any questions regarding your product, please contact LUXRITE customer support through their official website or the retailer where the product was purchased. Please have your model number (LR22637) and proof of purchase ready when contacting support.
