Ọrọ Iṣaaju
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Koda 6000 LM Modern Directional Shop Light with Motion Sensor. Please read all instructions carefully before use and retain this manual for future reference.
Alaye Aabo
- Máa yọ agbára kúrò kí o tó fi sori ẹrọ, ṣe àtúnṣe, tàbí kí o tó sọ ọ́ di mímọ́.
- Rii daju pe ipese agbara voltage bá àwọn ohun tí ọjà náà béèrè mu (120V).
- Ma ṣe wo taara sinu orisun ina LED nigbati itanna ba tan.
- Ọja yii jẹ apẹrẹ fun lilo inu ile nikan.
- Fifi sori yẹ ki o ṣe nipasẹ oṣiṣẹ ina mọnamọna ti o ko ba ni idaniloju.
- Jeki kuro lati flammable ohun elo.
Package Awọn akoonu
Rí i dájú pé gbogbo àwọn èròjà wà níbẹ̀ àti pé wọn kò bàjẹ́:

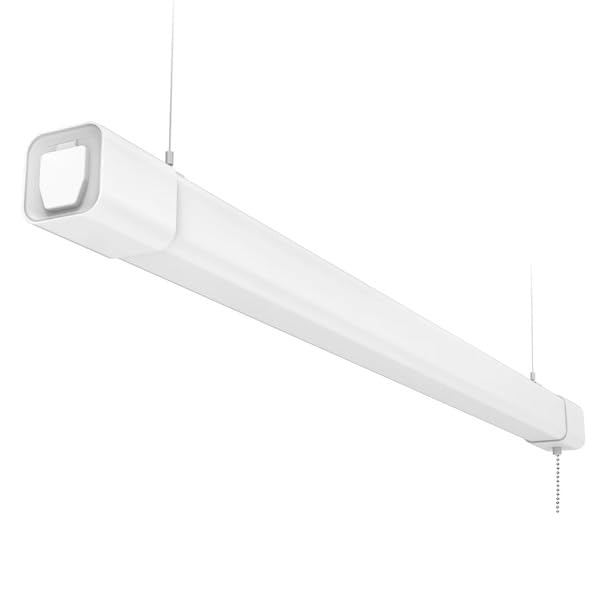

- 1 x Koda Modern Directional LED Shop Light
- 1 x Installation Kit (includes hanging chains, ceiling hooks, mounting clips, screws, plastic anchors, and end caps)
- 1 x 5 ft. Plug-in Power Cord with On/Off Switch
- 1 x Linkable Connector Cable (for connecting multiple fixtures)
Eto ati fifi sori
The Koda Shop Light offers flexible installation options, including flush mount and suspended mount. Up to 6 fixtures can be linked together for extended lighting coverage.
Awọn iwọn Loriview

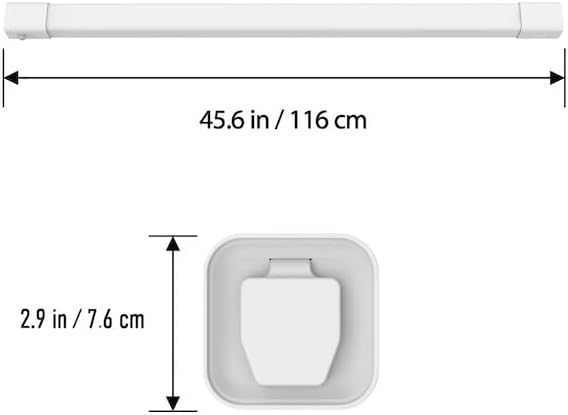

Image: Product dimensions showing a length of 45.6 inches (116 cm) and a width/height of 2.9 inches (7.6 cm).
Awọn ọna fifi sori ẹrọ
Choose between hanging mount or surface mount based on your preference and workspace requirements. The included installation kit provides all necessary hardware.
Hanging Mount Installation

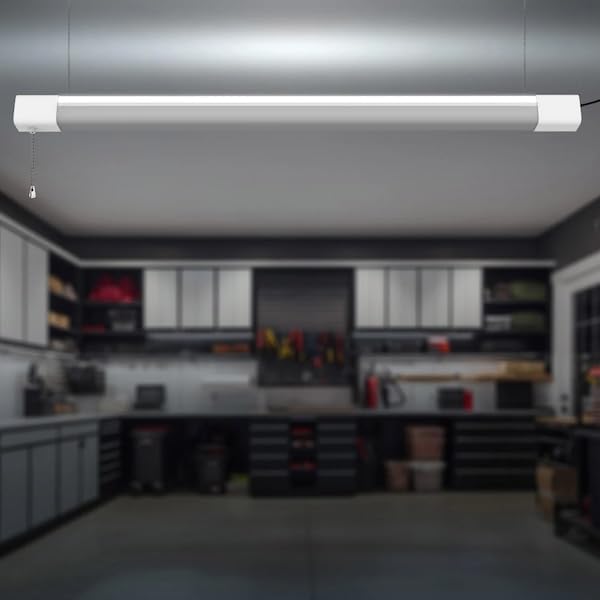

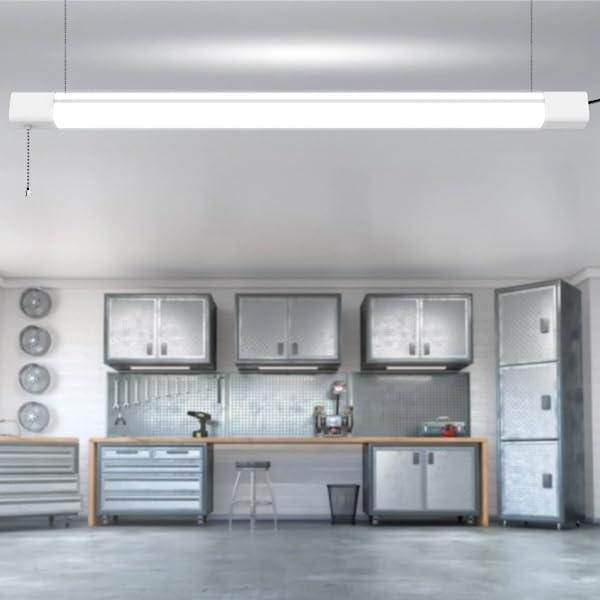

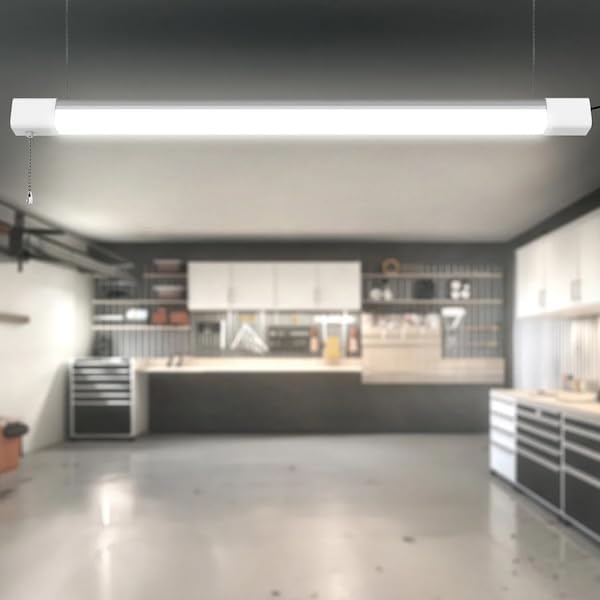

For suspended installation, use the provided hanging chains and ceiling hooks. Secure the hooks to a sturdy ceiling structure, then attach the chains to the light fixture. Adjust the chain length to achieve the desired height.
Video: Demonstrates the process of installing a shop light using hanging chains in a garage setting. This video provides a visual guide for suspended mounting.
Dada Mount fifi sori
For flush mounting, use the provided mounting clips and screws. Mark the desired locations on the ceiling or wall, drill pilot holes, insert plastic anchors if necessary, and secure the clips. Then, snap the light fixture into the secured clips.
Video: Illustrates the installation and use of an LED light fixture, including surface mounting techniques.
Linking Multiple Fixtures
The Koda Shop Light is designed to be linkable, allowing you to connect up to 6 fixtures. Use the provided linkable connector cable to create a continuous lighting system. Ensure the total wattage of linked fixtures does not exceed the recommended limit.
Video: Shows how to use hardwire connections to install and link multiple light fixtures.
Asopọ agbara
Connect the 5 ft. plug-in power cord to one end of the light fixture and then plug it into a standard 120V electrical outlet. The power cord includes an integrated on/off switch for convenient control.
Awọn ilana Iṣiṣẹ
Your Koda Shop Light features an advanced motion sensor and multiple brightness settings for optimal control.
Titan / Paa
Use the integrated on/off switch on the power cord to manually turn the light fixture on or off. Alternatively, if hardwired, use the wall switch connected to the circuit.
Išipopada Sensọ Išė
The advanced motion sensor detects movement to automatically turn the light on, providing hands-free operation. The light can be set to Ambient, Main, or All Light Brightness modes via the wall switch or pull switch (if applicable to your specific model variant).
Itoju
To ensure longevity and optimal performance of your Koda Shop Light, follow these simple maintenance guidelines:
- Ninu: Gently wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Ayewo: Lokọọkan ṣayẹwo okun agbara ati awọn asopọ fun eyikeyi awọn ami ti ibajẹ.
- Igbesi aye LED: The LED light source is designed for up to 50,000 hours of use and does not require replacement.
Laasigbotitusita
If you encounter any issues with your Koda Shop Light, refer to the following common problems and solutions:
| Isoro | Owun to le Fa | Ojutu |
|---|---|---|
| Imọlẹ ko tan | No power supply; Switch is off; Loose connection | Check power outlet; Ensure switch is in 'ON' position; Verify all connections are secure. |
| Sensọ išipopada ko ṣiṣẹ | Sensor obstructed; Incorrect mode selected | Ensure clear line of sight for sensor; Adjust mode settings (Ambient, Main, All Light Brightness). |
| Ina flickers | Unstable power supply; Loose wiring | Check power source stability; Inspect wiring connections. |
Awọn pato
- Ijade Imọlẹ: 6000 Lumens
- Lilo Agbara: 80 Wattis
- Voltage: 120V
- Mefa (L × W × H): 120 cm × 7.6 cm × 8.8 cm (47.25 in. × 3.0 in. × 3.5 in.)
- Ìwúwo: 1.81 kg (4.00 lb.)
- Igbesi aye: Titi di wakati 50,000
- Awọn aṣayan iṣagbesori: Flush mounted or Suspended
- Asopọmọra: Titi di awọn ohun elo 6
- Awọn ẹya: Advanced Motion Sensor, Ambient/Main/All Light Brightness selection
- Awọn iwe-ẹri: Akojọ ETL
- Ohun elo: Ṣiṣu
- Àwọ̀: Funfun
Atilẹyin ọja ati Support
Koda products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official Koda webojula.
